D5V0H1U2LP1610
1 CHANNEL HIGH SURGE TVS DIODE
Product Summary
V
BR (Min)
5.5V
I
PP (Max)
90A
C
T (Typ)
800pF
Features
Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±30kV, Contact ±30kV
One Channels of ESD Protection
Low Channel Input Capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Description
This new generation TVS is designed to protect sensitive electronics
from the damage due to ESD. The combination of small size and high
ESD surge capability makes it ideal for use in portable applications
such as cellular phones, digital cameras, and MP3 players.
Mechanical Data
Case: U-DFN1610-2 (Type B)
Case Material: Molded Plastic, ―Green‖ Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: NiPdAu over Copper Leadframe. Solderable per
MIL-STD-202, Method 208
e4
Weight: 0.003 grams (Approximate)
Applications
Cellular Handsets
Portable Electronics
Computers and Peripheral
Pin 2
Pin 1
Device Schematic
Ordering Information
(Note 4)
Product
D5V0H1U2LP1610-7
Notes:
Compliance
Standard
Marking
QD2
Reel Size (inches)
7
Tape Width (mm)
8
Quantity per Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
QD2
YM
QD2 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: E = 2017)
M = Month (ex: 9 = September)
D5V0H1U2LP1610
Document number: DS38332 Rev. 1 - 2
1 of 4
www.diodes.com
August 2017
© Diodes Incorporated
D5V0H1U2LP1610

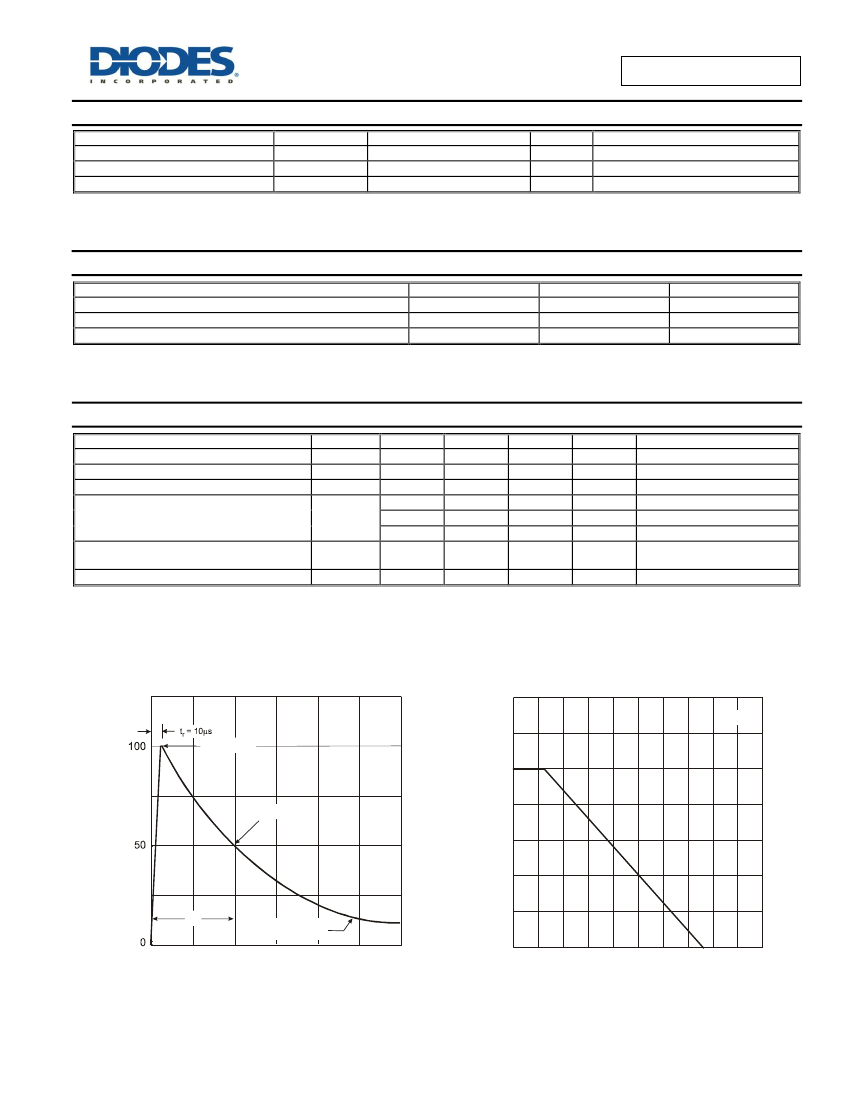

Maximum Ratings
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Peak Pulse Current
ESD Protection – Contact Discharge
ESD Protection – Air Discharge
Symbol
I
PP
V
ESD_CONTACT
V
ESD_AIR
Value
90
±30
±30
Unit
A
kV
kV
Condition
8/20µs (Note 7)
Standard IEC61000-4-2
Standard IEC61000-4-2
Thermal Characteristics
Characteristic
Power Dissipation (Note 5)
Thermal Resistance, Junction to Ambient, T
A
= +25°
C
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
T
J
, T
STG
Value
500
250
-55 to +150
Unit
mW
C/W
C
Electrical Characteristics
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Reverse Standoff Voltage
Channel Leakage Current (Note 6)
Reverse Breakdown Voltage
Clamping Voltage, Positive Transients (Note 7)
Channel Input Capacitance (Note 8)
Dynamic Resistance
Notes:
Symbol
V
RWM
I
R
V
BR
V
C
C
T
R
DYN
Min
—
—
5.5
—
—
—
—
—
Typ
—
—
—
—
—
—
800
0.05
Max
5.0
1.0
—
8.7
9.5
11.5
—
—
Unit
V
A
V
V
V
V
pF
Ω
Test Condition
V
R
= 5.0V
I
R
= 1mA
I
PP
= 10A, t
P
= 8/20μs
I
PP
= 50A, t
P
= 8/20μs
I
PP
= 90A, t
P
= 8/20μs
V
R
= 0V, f = 1MHz, Any I/O to
GND
TLP, 10A, t
P
= 100ns
5. Device mounted on FR-4 PCB pad layout (2oz copper) as shown on Diodes Incorporated’s suggested pad layout, which can be found on our website at
http://www.diodes.com/package-outlines.html.
6. Short duration pulse test used to minimize self-heating effect.
7. Clamping voltage value is based on an 8x20µs peak pulse current (I
PP
) waveform.
8. Measured from any I/O to GND.
700
Note 5
I
PP
, PEAK PULSE CURRENT (%I
pp
)
600
P
D
, POWER DISSIPATION (mW)
2
Peak Value I
pp
500
Half Value I
pp
/2
400
300
200
100
0
t
p
10 X 1000 Waveform
as defined by R.E.A.
0
1
3
0
t, TIME (ms)
Figure 1 Pulse Waveform
80
120
160
40
T
A
, AMBIENT TEMPERATURE (°
C)
Figure 2 Power Derating Curve
200
D5V0H1U2LP1610
Document number: DS38332 Rev. 1 - 2
2 of 4
www.diodes.com
August 2017
© Diodes Incorporated

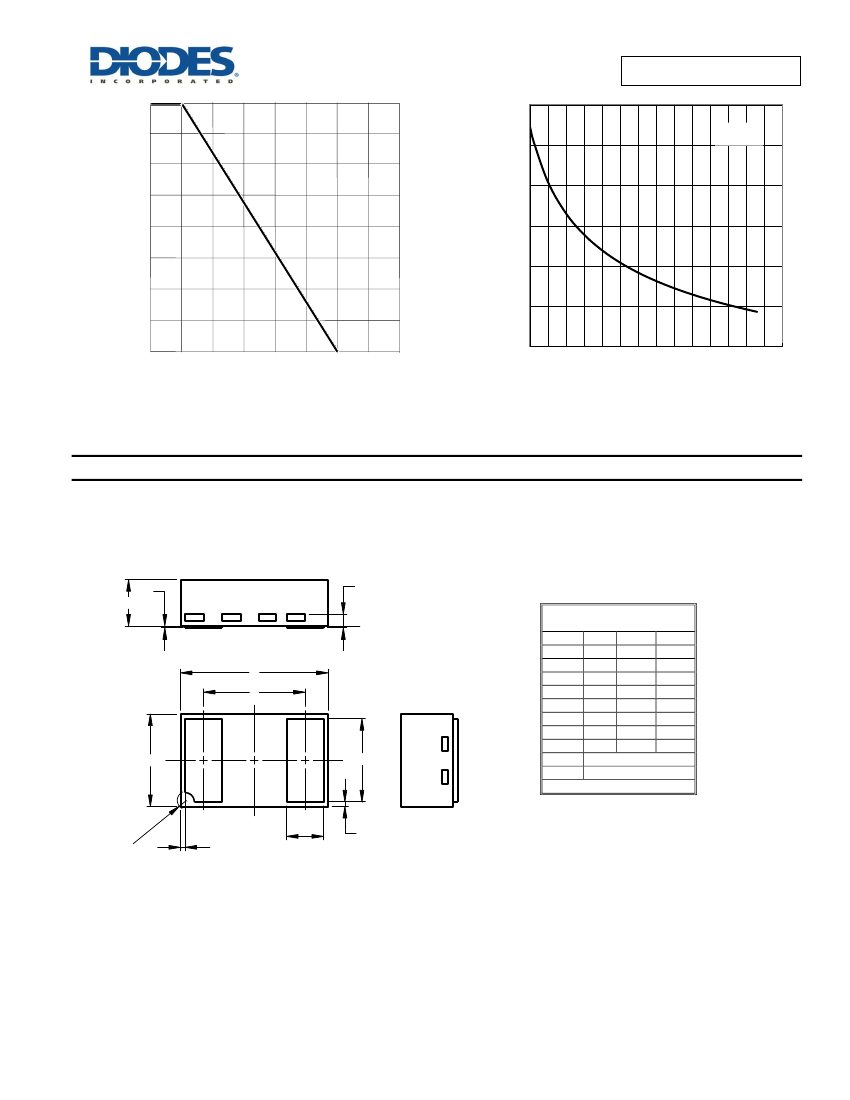

D5V0H1U2LP1610
PEAK PULSE DERATING % OF PEAK POWER
OR CURRENT
100
C
J
, JUNCTION CAPACITANCE (pF)
900
f=1MHz
800
F T
ON
% E 75
GR
NR
U
I
T C
A R
RO
E
D R 50
E
E W
S
L
UO
P P
K K
A
A E 25
E P
P
700
600
500
400
0
50
75 100 125 150 175 200
T
A
, AMBIENT TEMPERATURE (°
C)
Figure 3 Power Dissipation vs. Ambient Temperature
0
25
300
0
2
3
4
5
6
V
R
, REVERSE VOLTAGE (V)
Figure 4 Typical Junction Capacitance
1
7
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
U-DFN1610-2 (Type B)
A
A1
A3
Seating Plane
D
e
E
b
U-DFN1610-2
(Type B)
Dim
Min Max
Typ
A
0.45 0.55
0.50
A1
0.00 0.05 0.015
A3
-
-
0.127
b
0.85 0.95
0.90
D
1.55 1.65
1.60
E
0.95 1.05
1.00
e
-
-
1.10
L
0.35 0.45
0.40
z
0.050 REF
z1
0.050 REF
All Dimensions in mm
R
in
(
P
00
)
.1
1 ID
0
#
L
z
z1
D5V0H1U2LP1610
Document number: DS38332 Rev. 1 - 2
3 of 4
www.diodes.com
August 2017
© Diodes Incorporated
D5V0H1U2LP1610
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
U-DFN1610-2 (Type B)
X2
X1
Dimensions
Y
X
X1
X2
Y
Value
(in mm)
0.650
0.600
1.900
1.300
X
