74AUP1G96 — TinyLogic
®
Low Power Universal Configurable Two-Input Logic Gate (Open Drain Output)
September 2012
74AUP1G96
TinyLogic
®
Low Power Universal Configurable
Two-Input Logic Gate (Open Drain Output)
Features
0.8 V to 3.6V V
CC
Supply Operation
3.6 V Over-Voltage Tolerant I/Os at V
CC
from 0.8 V to 3.6 V
Extremely High Speed t
PD
- 3.2 ns: Typical at 3.3 V
Power-Off High-Impedance Inputs and Outputs
Low Static Power Consumption
- I
CC
=0.9 µA Maximum
Low Dynamic Power Consumption
- C
PD
=3.0 pF Typical at 3.3 V
Ultra-Small MicroPak™ Packages
Description
The 74AUP1G96 is a universal configurable. two-input
logic gate with an open-drain output that provides a
high-performance and low-power solution for battery-
powered portable applications. This product is
designed for a wide low voltage operating range (0.8 V
to 3.6 V) and guarantees very low static and dynamic
power consumption across the entire voltage range. All
inputs are implemented with hysteresis to allow for
slower transition input signals and better switching
noise immunity.

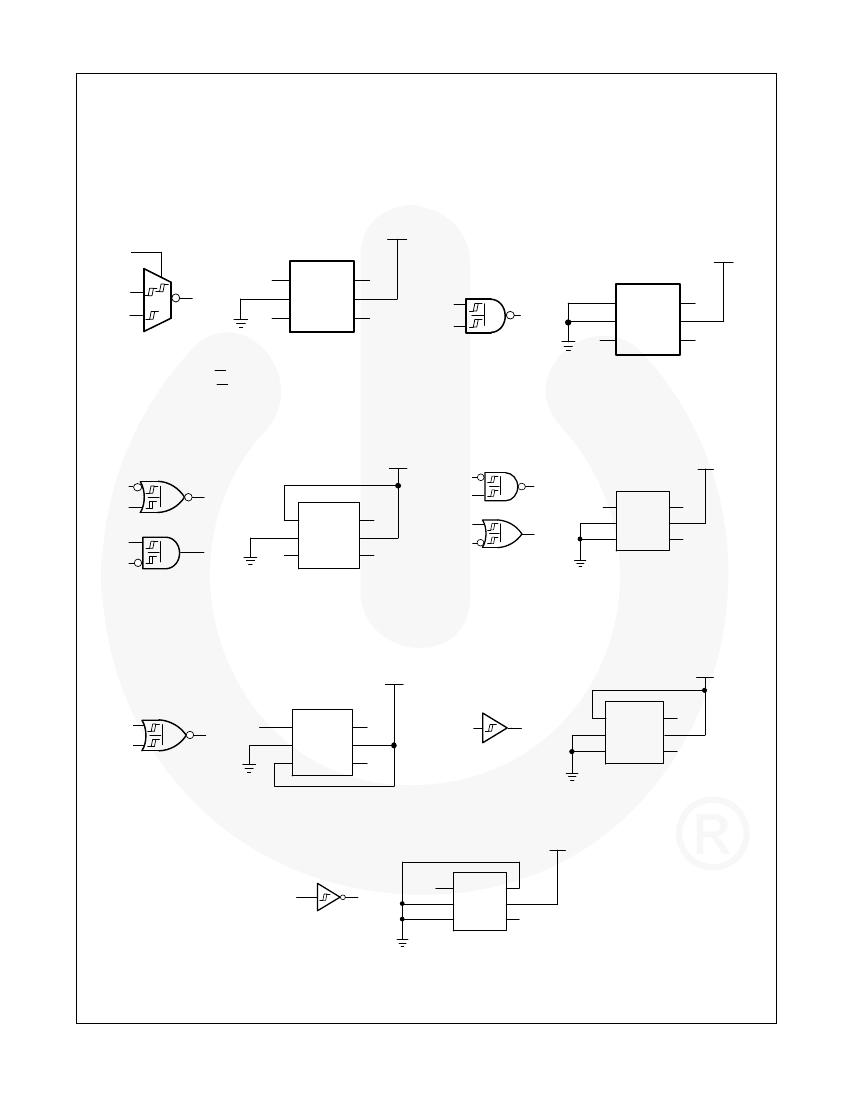

The 74AUP1G96 provides for multiple functions as
determined by various configurations of the three inputs.
The potential logic functions provided are MUX, AND,
