DT1240A-08LP3810-7 datasheet, PDF

Datasheet> All Categories > Circuit protection> DT1240A-08LP3810-7

DT1240A-08LP3810-7: DescriptionTVS DIODE 3.3V 10V U-DFN3810-9; CategoryCircuit protection; File Size285KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric View All

DT1240A-08LP3810-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DT1240A-08LP3810-7	-	-	View	Buy Now

DT1240A-08LP3810-7 Overview

TVS DIODE 3.3V 10V U-DFN3810-9

DT1240A-08LP3810-7 Parametric

Parameter Name	Attribute value
type	Steering device (rail to rail)
One way channel	8
Voltage - Reverse OFF (Typical)	3.3V (maximum)
Voltage - Breakdown (minimum)	5V
电压 - 箝位（最大值）@ Ipp	10V
Current - Peak Pulse (10/1000µs)	5.5A（8/20µs）
Power - Peak Pulse	55W
Power line protection	none
application	DVI，HDMI，USB
Capacitance at different frequencies	0.6pF @ 1MHz
Operating temperature	-55°C ~ 85°C（TA）
Installation type	surface mount
Package/casing	9-UDFN
Supplier device packaging	U-DFN3810-9

Preview

Download Datasheet

View All

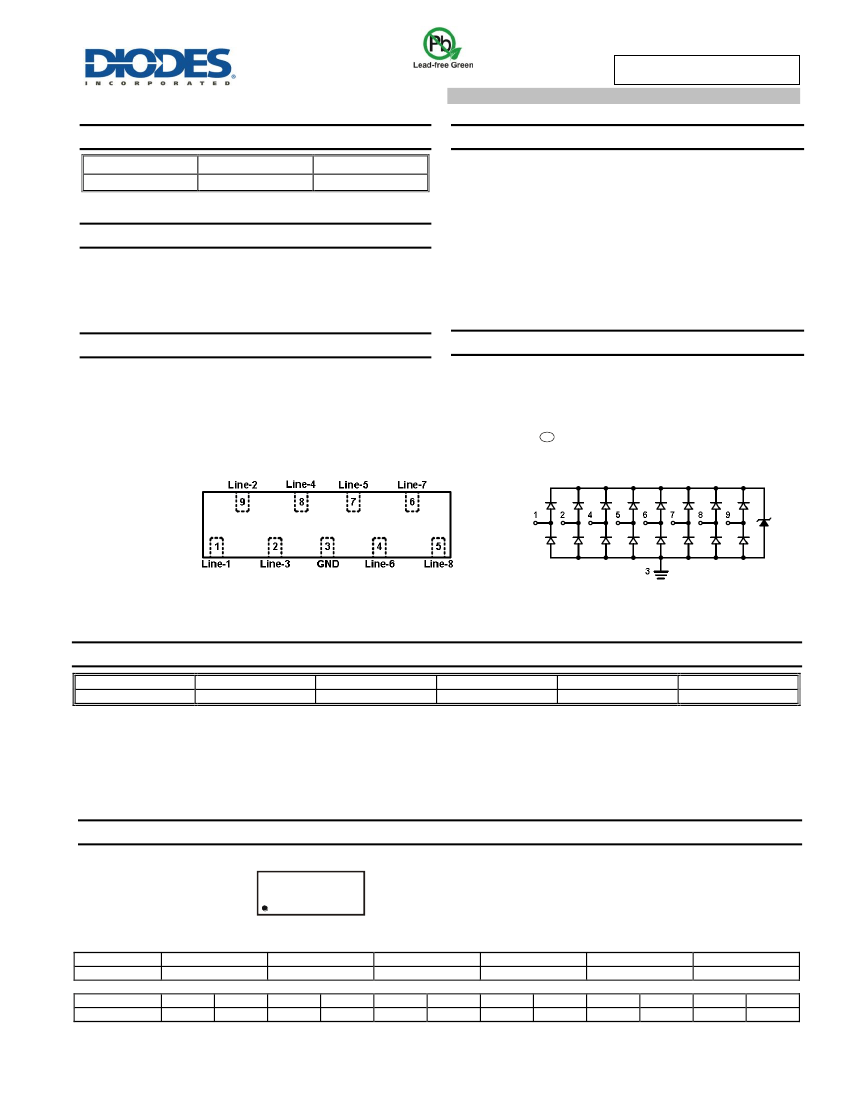

DT1240A-08LP3810

8 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Product Summary

(Min)

(Max)

5.5A

I/O

(Typ)

0.6pF

Features



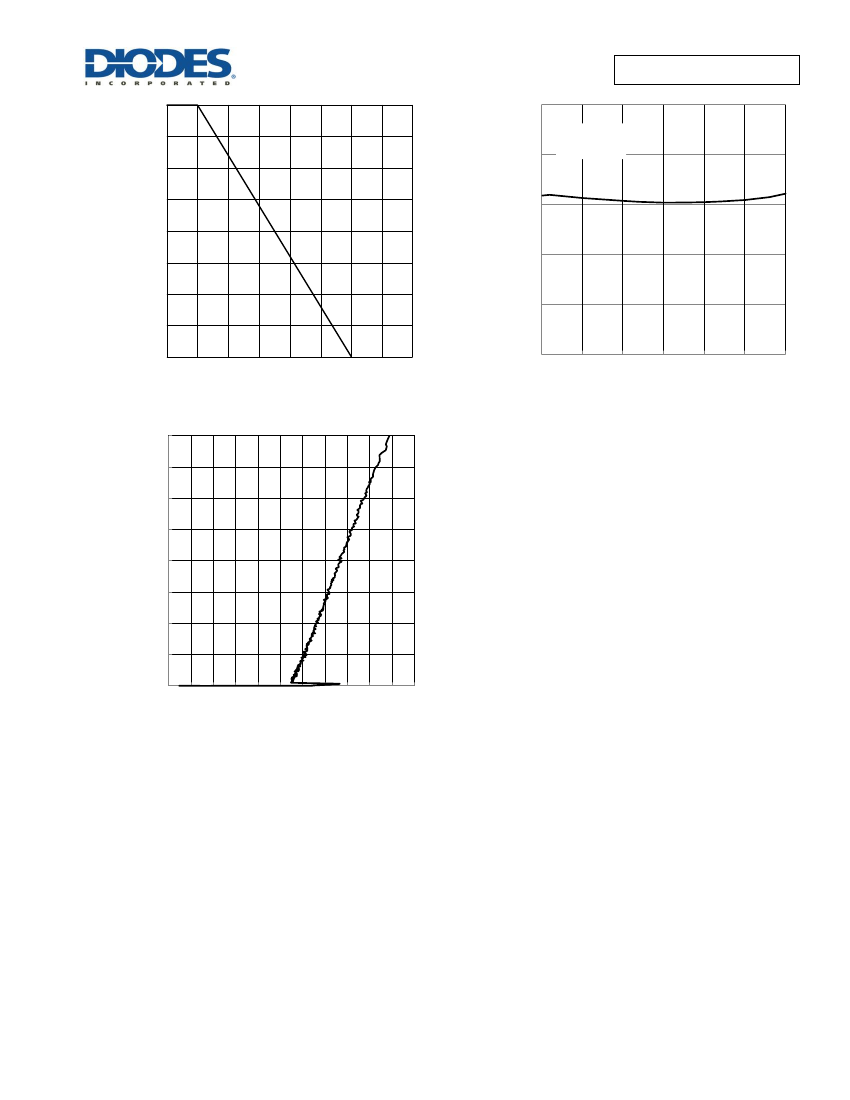

Clamping Voltage: 8.2V at 10A 100ns, TLP; 7.5V at 5.5A

(8μs/20μs)

IEC 61000-4-2 (ESD): Air – ±16kV, Contact – ±14kV

IEC 61000-4-5 (Lighting): 5.5A (8/20µs)

8 Channels of ESD Protection

Low Channel Input Capacitance of 0.6pF Typical

TLP Dynamic Resistance: 0.25Ω

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

ADVANCED INFORMATION



Description

The DT1240A-08LP3810 is a high-performance device suitable for

protecting four high-speed I/Os. These devices are assembled in U-

DFN3810-9 (Type B) package and have high ESD surge capability

and low capacitance.



Applications

Typically used at high-speed ports such as USB2.0, USB3.0, USB3.1,

IEEE1394 (Firewire®, iLink), Serial ATA, DVI™, HDMI1.4™,

HDMI2.0™ and PCI™.

Mechanical Data



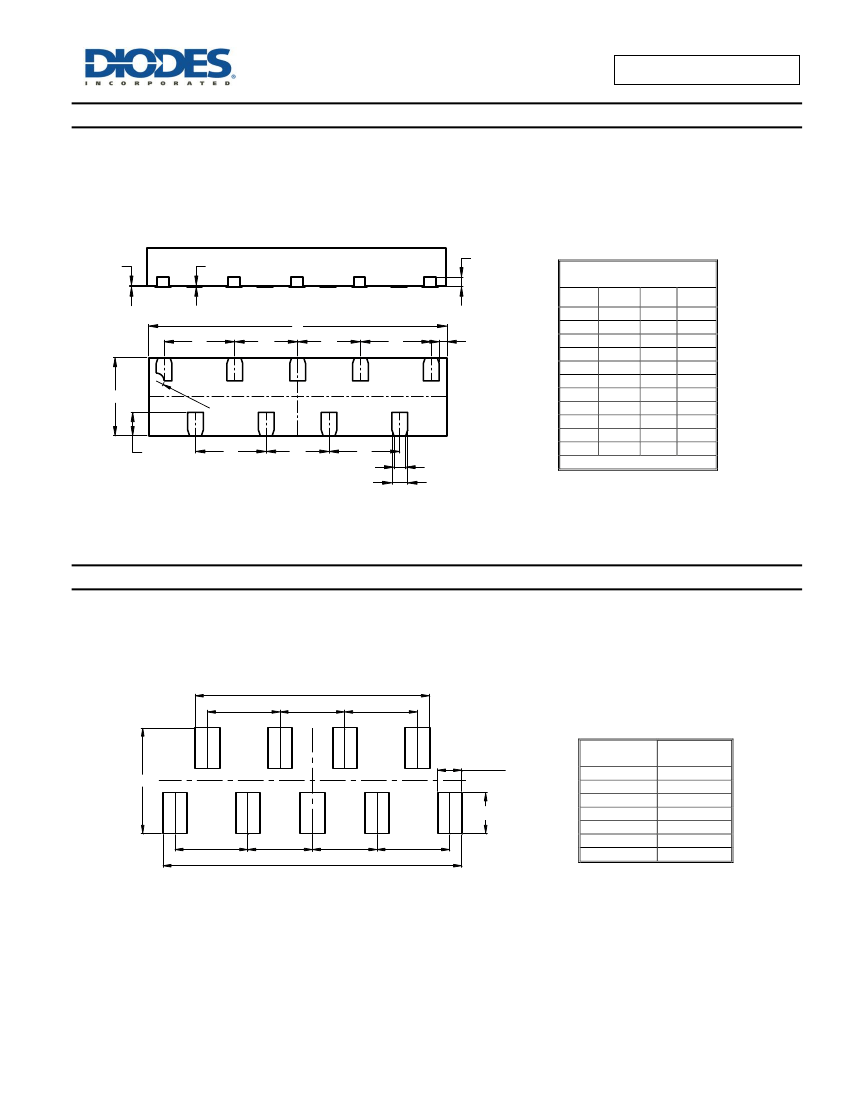

Case: U-DFN3810-9 (Type B)

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Schematic

Terminals: Finish – NiPdAu, Solderable per MIL-STD-202,

Method 208

Weight: 0.005 grams (Approximate)

Pin Description (Top View)

Device Schematic

Ordering Information

(Note 4)

Part Number

DT1240A-08LP3810-7

Notes:

Compliance

Standard

Marking

MW4

Reel Size (inches)

Tape Width (mm)

Quantity

5,000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.

Marking Information

MW4 = Product Type Marking Code

YM = Date Code Marking

Y = Year (ex: E = 2017)

M = Month (ex: 9 = September)

TF2

MW4

Date Code Key

Year

Code

Month

Code

Jan

2017

Feb

Mar

2018

Apr

May

2019

Jun

Jul

2020

Aug

Sep

2021

Oct

Nov

2022

Dec

DT1240A-08LP3810

Document number: DS39279 Rev. 2 - 2

1 of 5

www.diodes.com

September 2017

DT1240A-08LP3810
