US1JDFQ-13: DescriptionDIODE GEN PURP 600V 1A DFLAT; Categorysemiconductor Discrete semiconductor; File Size382KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

US1JDFQ-13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	US1JDFQ-13	-	-	View	Buy Now

US1JDFQ-13 Overview

DIODE GEN PURP 600V 1A DFLAT

US1JDFQ-13 Parametric

Parameter Name	Attribute value
Diode type	standard
Voltage - DC Reverse (Vr) (Maximum)	600V
Current - average rectification (Io)	1A
Voltage at different If - Forward (Vf	1.7V @ 1A
speed	Fast recovery = < 500 ns, > 200mA (Io)
Reverse recovery time (trr)	75ns
Current at different Vr - Reverse leakage current	5µA @ 600V
Capacitance at different Vr, F	10pF @ 4V，1MHz
Installation type	surface mount
Package/casing	2-SMD, flat leads
Supplier device packaging	D-Flat
Operating Temperature - Junction	-55°C ~ 150°C

Preview

Download Datasheet

View All

Green

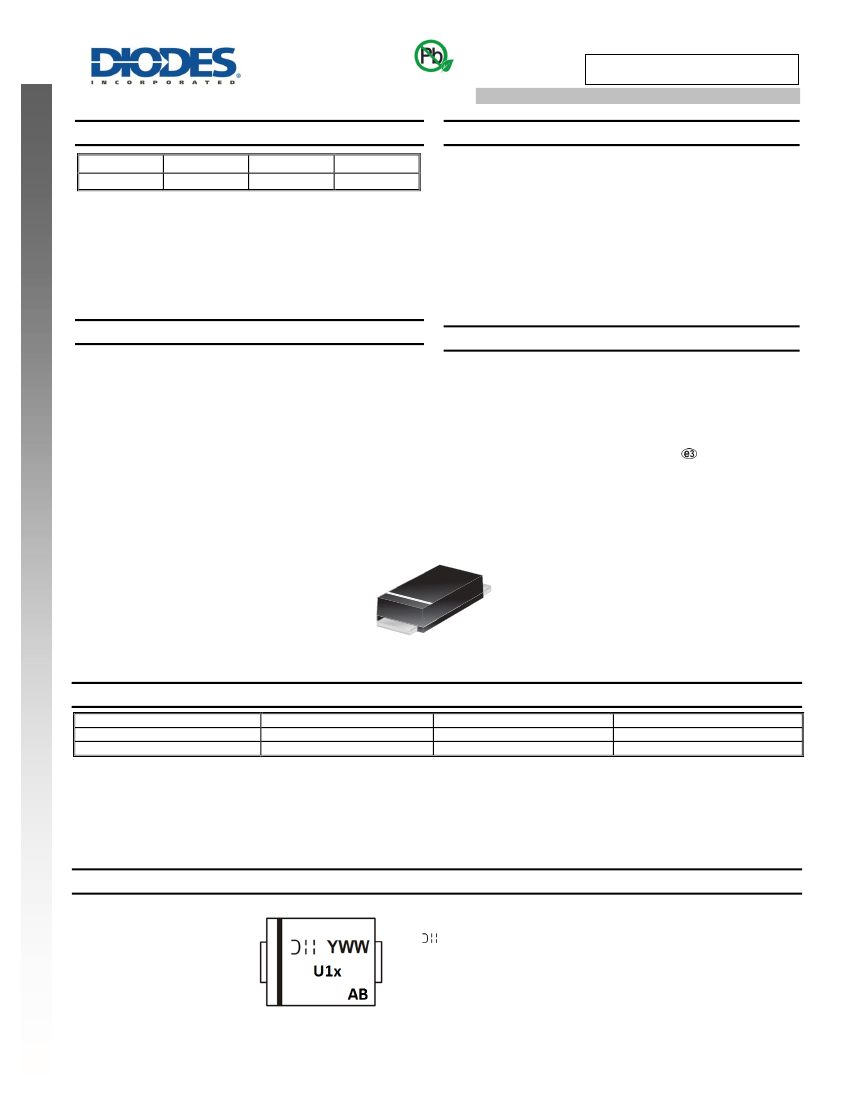

US1JDFQ / US1MDFQ

1.0A SURFACE MOUNT ULTRA-FAST RECTIFIER

Product Summary

(@T

= +25°

RRM

(V)

600, 1000

(A)

F(MAX)

(V)

1.7

R(MAX)

(µA)

Features and Benefits



Glass Passivated Die Construction

Ultra-Fast Recovery Time for High Efficiency

Surge Overload Rating to 30A Peak

High Current Capability

Low Profile Design, Package Height Less than 1.1mm

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

NEW PRODUCT

Description and Applications

The US1JDFQ and US1MDFQ are rectifiers packaged in the low

profile D-FLAT package. Providing ultra-fast recovery time for high

efficiency, this device is ideal for use in applications such as:



Reverse Protection



Switching

Blocking

Mechanical Data



Case: D-FLAT

Case Material: Molded Plastic, “Green” Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Matte Tin Annealed over Copper Leadframe.

Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: 0.035 grams (Approximate)

D-FLAT

Top View

Ordering Information

(Note 5)

Part Number

US1JDFQ-13

US1MDFQ-13

Notes:

Qualification

Automotive

Case

D-FLAT

Packaging

10,000/Tape & Reel

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

U1J or U1M = Product Type Marking Code

= Manufacturers’ Code Marking

YWW = Date Code Marking

Y = Last Digit of Year (ex: 6 for 2016)

WW = Week Code (01 to 53)

AB = Foundry and Assembly Code

US1JDFQ / US1MDFQ

Document number: DS38447 Rev. 2 - 2

1 of 5

www.diodes.com

May 2016

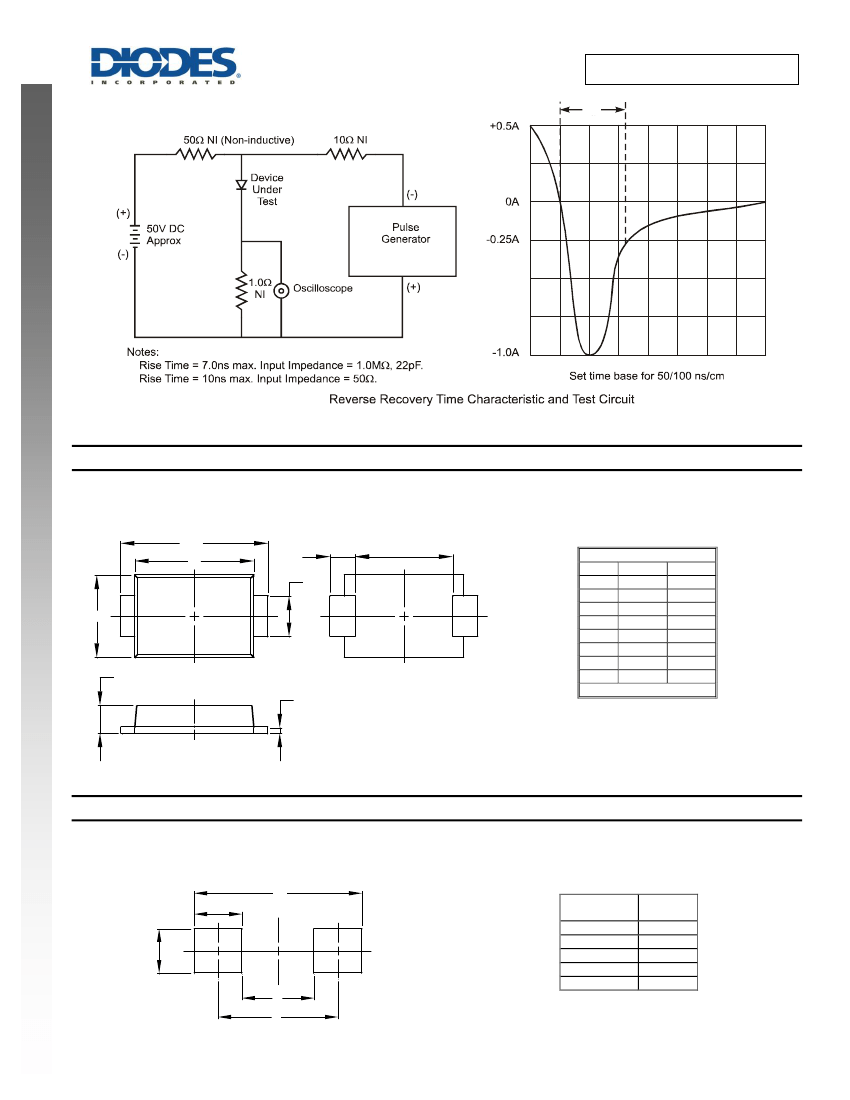

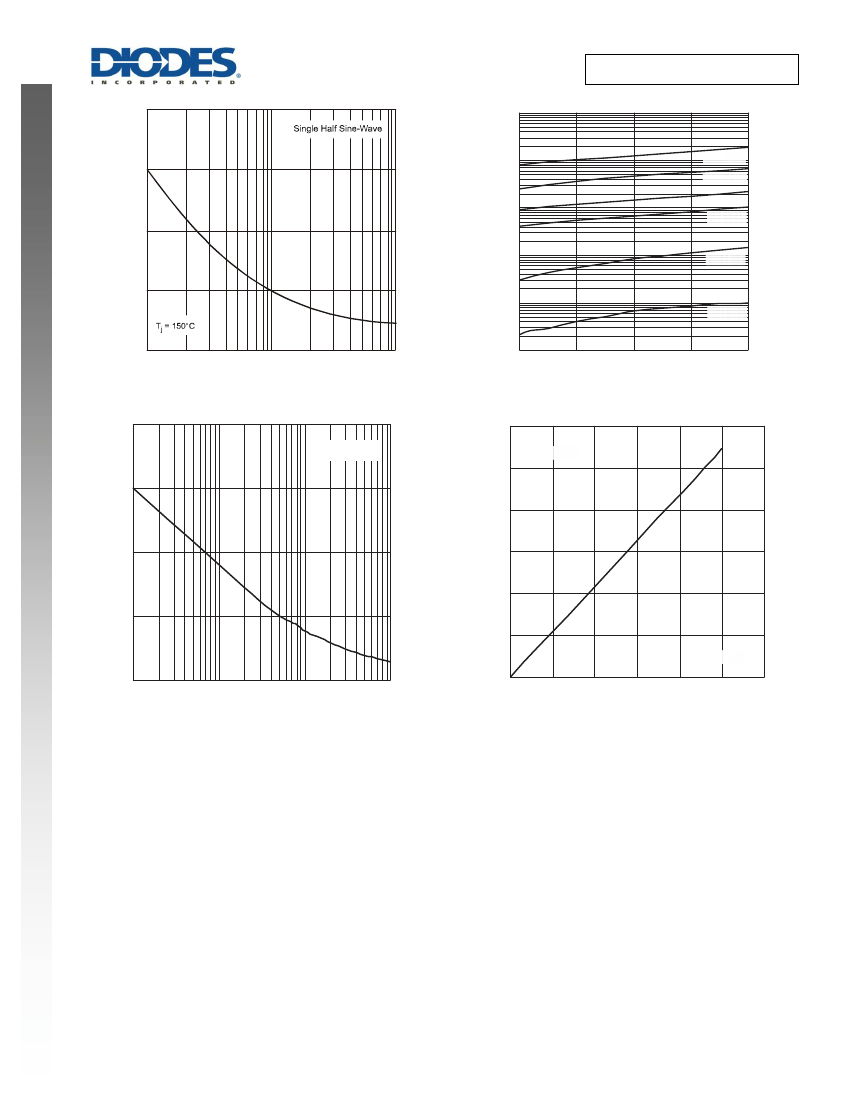

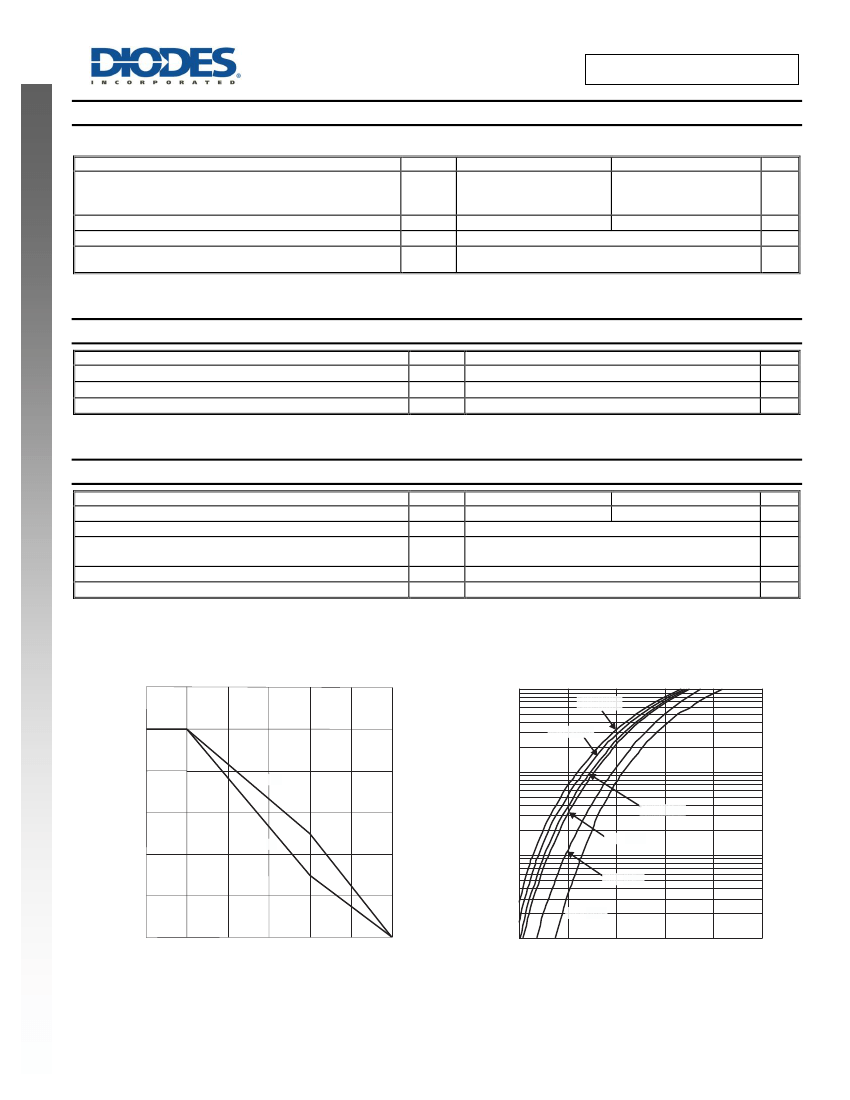

US1JDFQ / US1MDFQ

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

NEW PRODUCT

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

US1JDFQ / US1MDFQ

Document number: DS38447 Rev. 2 - 2

5 of 5

www.diodes.com

May 2016
