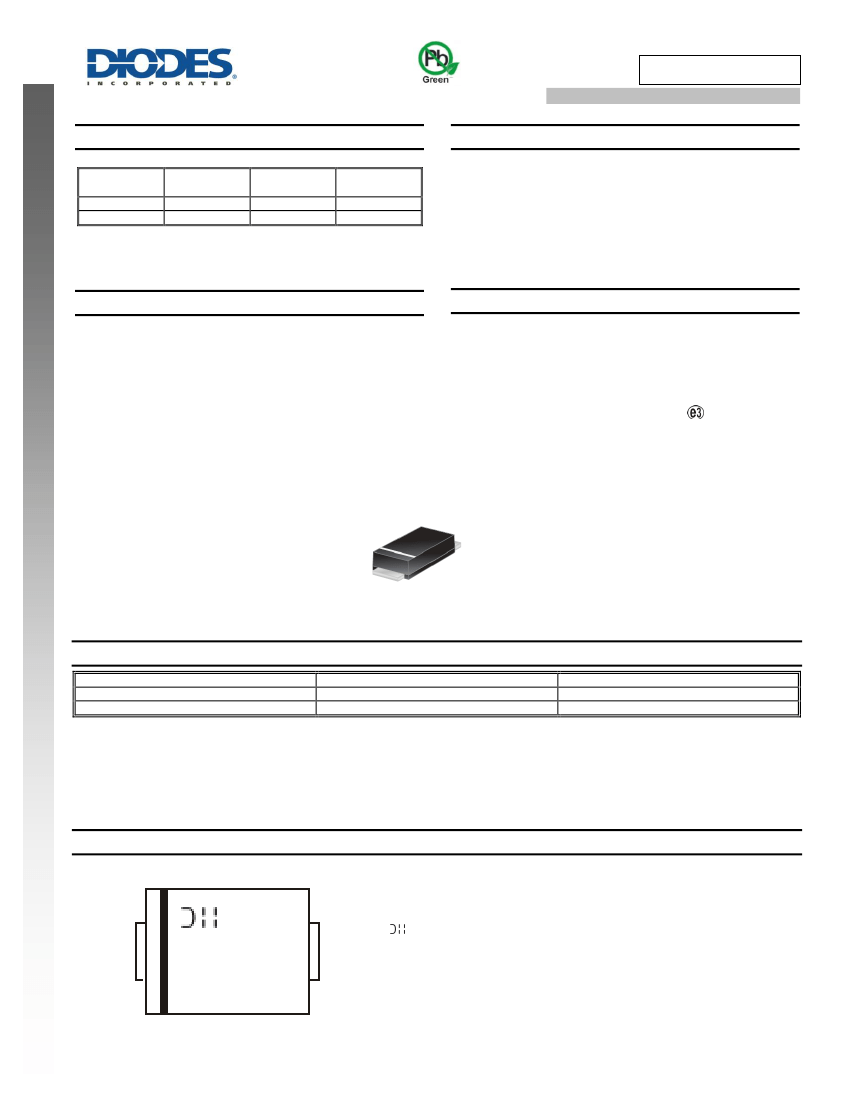

B250AF-B260AF
2.0A SCHOTTKY BARRIER RECTIFIER
Product Summary
B250AF/B260AF
V
RRM
(V)
50
60
I
O
(A)
2
2
V
F(MAX)
(V)
@ +25°
C
0.65
0.65
I
R(MAX)
(mA)
@ +25°
C
0.10
0.20
Features and Benefits
Reduced Low Forward Voltage Drop (V
F
); Better Efficiency and
Cooler Operation
Reduced High-Temperature Reverse Leakage; Increased
Reliability against Thermal Runaway Failure in High
Temperature Operation
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
ADVANCEDPRODUCT
NEW PRODUCT
ADVANCE INFORMATION
NEW INFORMATION
Description and Applications
The Schottky rectifier providing low V
F
and excellent reverse leakage
stability at high temperatures, this device is ideal for use in general
rectification applications such as:
Boost Diode
Blocking Diode
Recirculating Diode
Mechanical Data
Case: SMAF
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.036 grams (Approximate)
SMAF
Top View
Ordering Information
(Note 4)
Part Number
B250AF-13
B260AF-13
Notes:
Case
SMAF
SMAF
Packaging
10,000/Tape & Reel
10,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
YWW
B2XXAF
B2XXAF = Product Type Marking Code, ex: B250AF
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 7 for 2017)
WW = Week Code (01 to 53)
B250AF-B260AF
Document number: DS39508 Rev. 2 - 2
1 of 5
www.diodes.com
May 2017
© Diodes Incorporated
B250AF-B260AF
Maximum Ratings
(@T
A
= +25° unless otherwise specified.)
C,
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
B250AF
50
2
50
B260AF
60
Unit
V
A
A
ADVANCEDPRODUCT
NEW PRODUCT
ADVANCE INFORMATION
NEW INFORMATION
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Thermal Characteristics
Characteristic
Typical Thermal Resistance Junction to Ambient (Note 5)
Typical Thermal Resistance Junction to Case (Note 5)
Operating and Storage Temperature Range
Symbol
R
θJA
R
θJC
T
J
, T
STG
Value
95
45
-55 to +150
Unit
°
C/W
°
C/W
°
C
Electrical Characteristics
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Forward Voltage Drop
B250AF
B260AF
Symbol
V
F
Min
—
—
—
—
—
—
Typ
0.55
0.52
0.015
0.02
15
80
Max
0.65
—
0.10
0.20
—
—
Unit
V
Test Condition
I
F
= 2A, T
J
= +25°
C
I
F
= 2A, T
J
= +125°
C
V
R
= 50V, T
J
= +25°
C
V
R
= 60V, T
J
= +25°
C
V
R
= 60V, T
J
= +125°
C
V
R
= 4.0V, f = 1MHz
Leakage Current (Note 6)
Typical Capacitance
Notes:
I
R
C
T
mA
pF
5. Device mounted on FR-4 substrate, 0.4" x 0.5", 2oz, single-sided, PC boards with 0.2" x 0.25" copper pad.
6. Short duration pulse test used to minimize self-heating effect.
B250AF-B260AF
Document number: DS39508 Rev. 2 - 2
2 of 5
www.diodes.com
May 2017
© Diodes Incorporated
B250AF-B260AF
I
F
,INSTANTANEOUS FORWARD CURRENT (A)
10
I
R
,REVERSE LEAKAGE CURRENT (mA)
100
150°C
10
125°C
100°C
1
85°C
0.1
1
150°C
125°C
0.1
100°C
85°C
25°C
-55°C
0.01
0.0
0.2
0.4
0.6
0.8
ADVANCEDPRODUCT
NEW PRODUCT
ADVANCE INFORMATION
NEW INFORMATION
0.01
25°C
0.001
0
10
20
30
40
50
60
V
R
, REVERSE VOLTAGE (V)

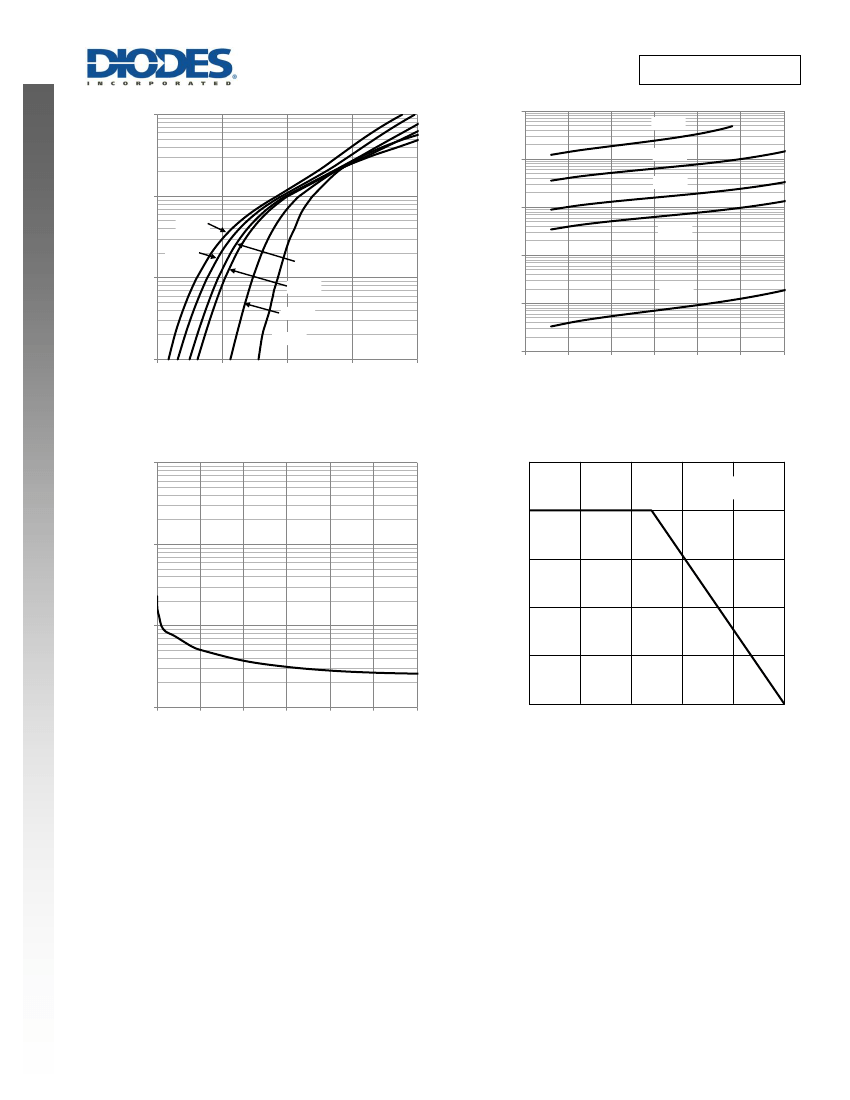

Figure 2. Typical Reverse Characteristics
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 1. Typical Forward Characteristics
10000
2.50
Note 5
C
T
, JUNCTION CAPACITANCE (pF)
I
F
, DC FORWARD CURRENT (A)
2.00
1000
1.50
1.00
100
0.50
10
0
10
20
30
40
50
60
REVERSE VOLTAGE (V)
Figure 3. Typical Junction Capacitance
0.00
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (℃)
Figure 4. DC Forward Current Derating
B250AF-B260AF
Document number: DS39508 Rev. 2 - 2
3 of 5
www.diodes.com
May 2017
© Diodes Incorporated
B250AF-B260AF
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SMAF
H
E
E
L
b
D
ADVANCEDPRODUCT
NEW PRODUCT
ADVANCE INFORMATION
NEW INFORMATION
A
c
SMAF
Dim
Min
Max
A
0.90
1.10
b
1.25
1.65
c
0.10
0.40
D
2.25
2.95
E
3.95
4.60
H
E
4.80
5.60
L
0.50
1.50
All Dimensions in mm
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SMAF
X1
X
Y
G
C
Dimensions Value (in mm)
C
4.00
G
1.50
X
2.50
X1
6.50
Y
1.70
B250AF-B260AF
Document number: DS39508 Rev. 2 - 2
4 of 5
www.diodes.com
May 2017
© Diodes Incorporated
B250AF-B260AF
