CMPT2907AE
ENHANCED SPECIFICATION
SURFACE MOUNT
PNP SILICON TRANSISTOR
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMPT2907AE
is an Enhanced version of the CMPT2907A PNP
Switching transistor in a SOT-23 surface mount
package, designed for switching applications, interface
circuit and driver circuit applications.
MARKING CODE: C2FE
FEATURED ENHANCED SPECIFICATIONS:
SOT-23 CASE
♦
BVCBO from 60V min to 90V min. (115V TYP)
♦
VCE(SAT) from 1.6V max to 0.7V max. (0.280V TYP)
♦
hFE from 50 min to 75 min. (110 TYP)
♦
Collector-Base Voltage
MAXIMUM RATINGS:
(TA=25°C)
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
VCBO
VCEO
VEBO
IC
PD
TJ, Tstg
Θ
JA
90
60
5.0
600
350
-65 to +150
357
UNITS
V
V
V
mA
mW
°C
°C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
MIN
TYP
ICBO
VCB=50V
ICBO
VCB=50V, TA=125°C
ICEV
♦
BVCBO
BVCEO
BVEBO
♦
VCE(SAT)
♦
VCE(SAT)
VBE(SAT)
VBE(SAT)
♦
hFE
hFE
hFE
hFE
♦
hFE
fT
Cob
Cib
♦
MAX
10
10
50
UNITS
nA
µA
nA
V
V
V
V
V
V
V
VCE=30V, VEB=0.5V
IC=10µA
IC=10mA
IE=10µA
IC=150mA, IB=15mA
IC=500mA, IB=50mA
IC=150mA, IB=15mA
IC=500mA, IB=50mA
VCE=10V, IC=0.1mA
VCE=10V, IC=1.0mA
VCE=10V,
VCE=10V,
VCE=10V,
VCE=20V,
IC=10mA
IC=150mA
IC=500mA
IC=50mA, f=100MHz
90
60
5.0
115
0.103
0.280
0.2
0.7
1.3
2.6
100
100
100
100
75
200
205
300
110
MHz
8.0
30
pF
pF
VCB=10V, IE=0, f=1.0MHz
VBE=2.0V, IC=0, f=1.0MHz
Enhanced specification
R2 (1-February 2010)
CMPT2907AE
ENHANCED SPECIFICATION
SURFACE MOUNT
PNP SILICON TRANSISTOR
ELECTRICAL CHARACTERISTICS - Continued:
(TA=25°C unless otherwise noted)
SYMBOL TEST CONDITIONS
MAX
ton
td
tr
toff
ts
tf
VCC=30V, VBE=0.5V,
VCC=30V, VBE=0.5V,
IC=150mA,
IC=150mA,
IB1=15mA
IB1=15mA
45
10
40
100
80
30
UNITS
ns
ns
ns
ns
ns
ns
VCC=30V, VBE=0.5V, IC=150mA, IB1=15mA
VCC=6.0V, IC=150mA, IB1=IB2=15mA
VCC=6.0V, IC=150mA, IB1=IB2=15mA
VCC=6.0V, IC=150mA, IB1=IB2=15mA

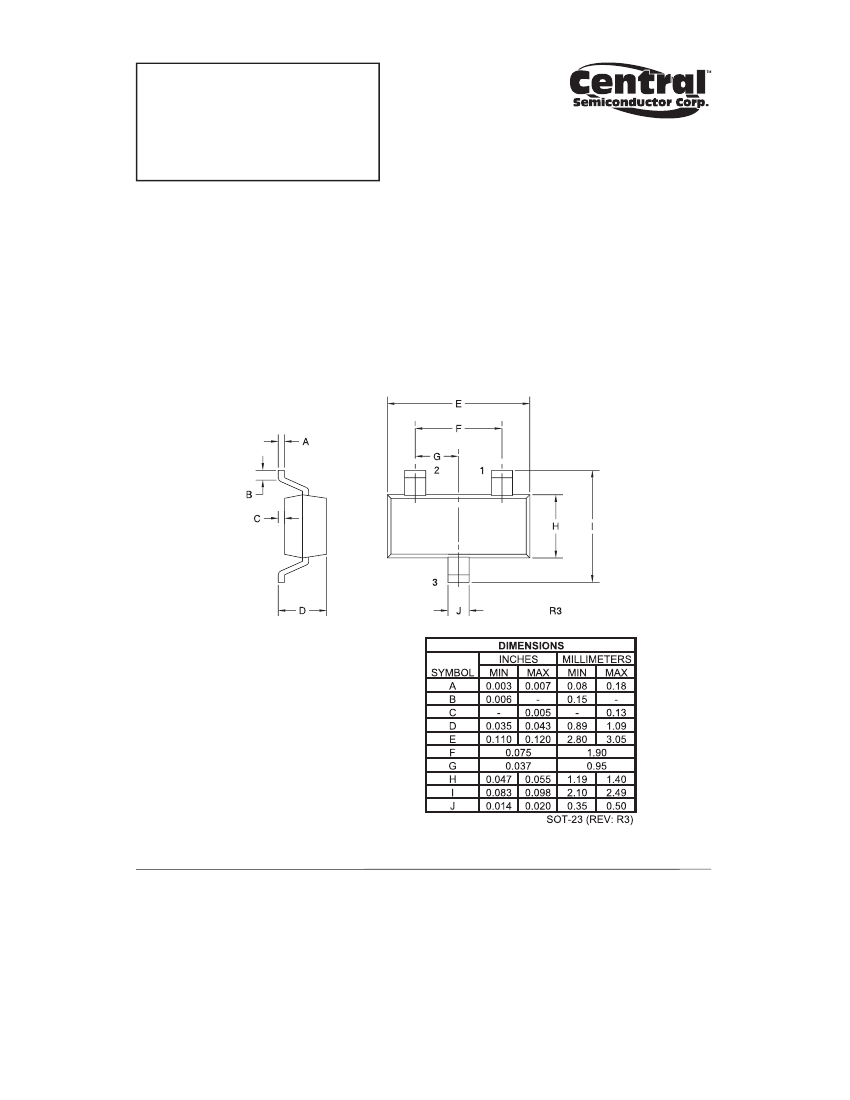

SOT-23 CASE - MECHANICAL OUTLINE
LEAD CODE:
1) Base
2) Emitter
3) Collector
MARKING CODE: C2FE
R2 (1-February 2010)
w w w. c e n t r a l s e m i . c o m
