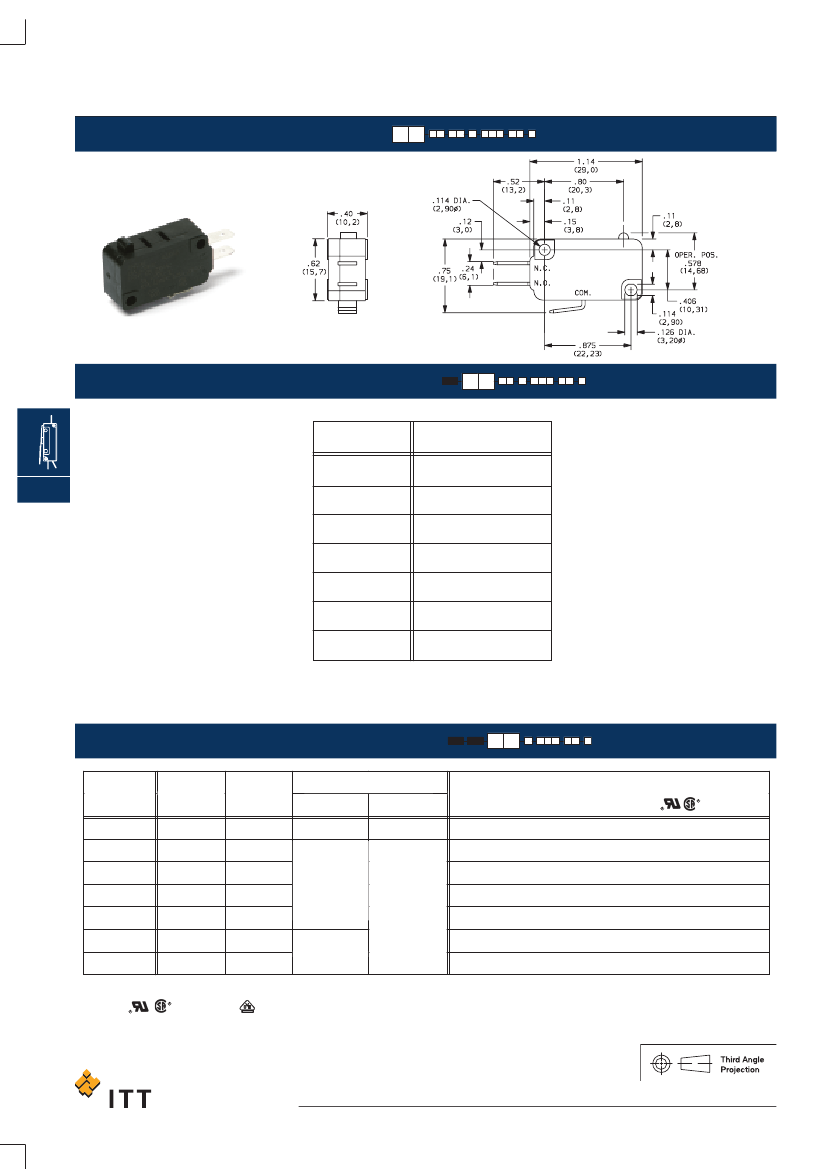

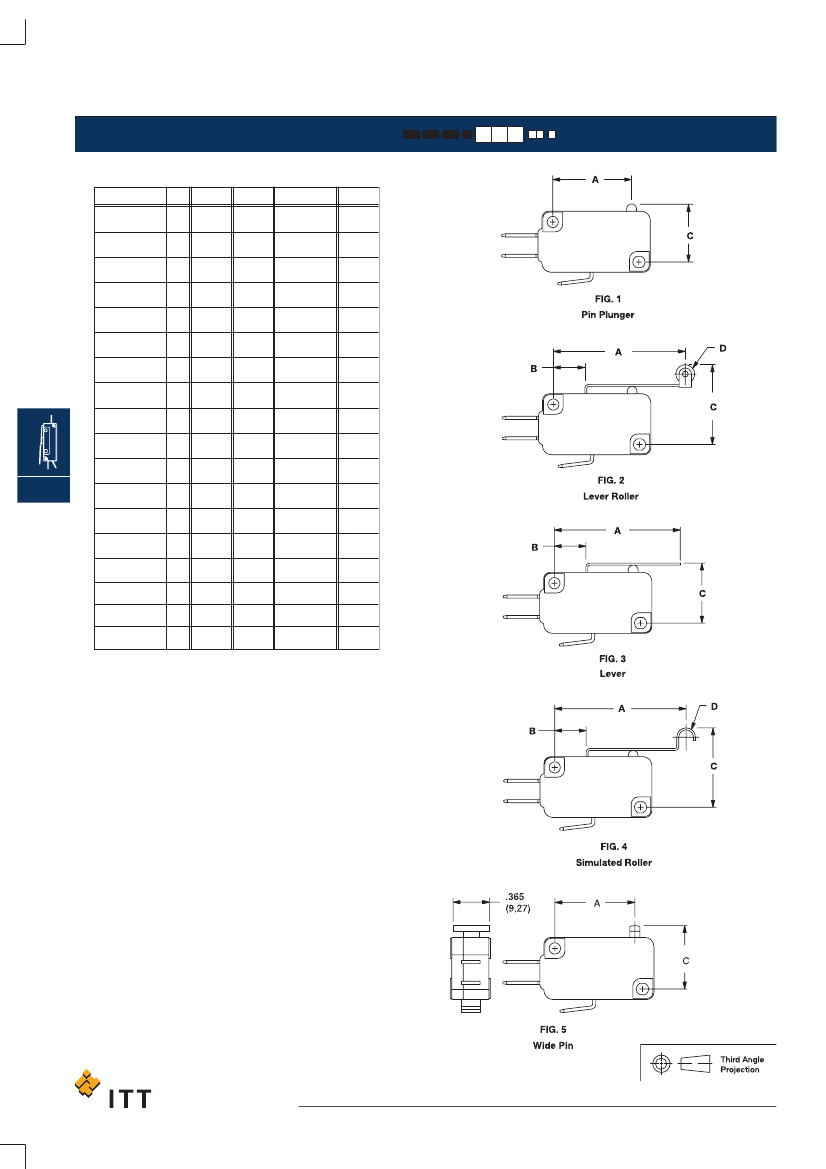

C&K TF Series
Miniature Snap-acting Switches
Features/Benefits
•
Broad range of operating forces
•
Ratings up to 25 AMPS
•
Wide variety of actuator styles
•
Quick connect terminations
Typical Applications
•
Motor controls
•
Thermostatics
•
Portable tools
Specifications
CONTACT RATING: From low level* to 25 AMPS @ 277 V AC.
ELECTRICAL LIFE: 300,000 cycles at 10 AMPS @ 250 V AC,
consult Customer Service Center for typical life of higher
rated switches.
INSULATION RESISTANCE: 1,000 M ohm min.
DIELECTRIC STRENGTH: 1,500 Vrms min. @ sea level.
OPERATING TEMPERATURE: –40ºF to 185ºF (–40ºC to 85ºC).
OPERATING FORCE: From 15 to 400 grams at actuator
button available.
MOUNTING: Torque screws 2-5 in/lbs.
* Low Level=conditions where no arcing occurs during switching, i.e., 0.4 VA max. @
20 V AC or DC max. Standard electrical life per UL 1054, rated for 6,000 operations.
Materials
SWITCH HOUSING: Thermoplastic (UL 94V-0).
ACTUATOR BUTTON: Thermoplastic (UL 94V-0).
SPRING: Copper alloy.
PIVOT: Brass alloy.
MOVABLE CONTACTS: Gold alloy for ratings 1 AMP or less.
Fine silver for ratings greater than 1 AMP up to 15 AMPS.
Precious metal alloy for ratings greater than 15 AMPS.
STATIONARY CONTACTS: Gold alloy for ratings 1 AMP or less.
Fine silver for ratings greater than 1 AMP.
TERMINALS: Brass alloy for ratings up to 10 AMPS.
Copper alloy for ratings greater than 10 AMPS.
NOTE:
For the latest information regarding RoHS compliance, please go to:
www.ittcannon.com/rohs.
NOTE:
Specifications and materials listed above are switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
K
Snap-acting
Snap-acting
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages K-6 through K-10. For additional options not shown in catalog, consult Customer Service Center.
T
Series
TF
SP, Mom.
Operating Force
CJ
5.29 oz./150 grams
CC
.53 oz./15 grams
CD
.88 oz./25 grams
CF
1.76 oz./50 grams
CG
2.65 oz./75 grams
EC
7.94 oz./225 grams
EE
14.11 oz./400 grams
F
Electrical Rating
J6
15 A, 277 V AC; 1/2 HP, 125, 250 V AC;
5 A, 125 V AC “L”, 0.5 A, 125 V DC;
0.25 A, 250 V DC
F5
1 A,125 V AC; 1 A, 3O V DC
H8
5 A, 277 V AC; 1/10 HP, 125, 250 V AC
J3
21 A, 277 V AC; 1 HP, 125 V AC; 2 HP,
250 V AC; 5 A, 125 V AC “L”
K6
11 A, 277 V AC; 1/3 HP, 125, 250 V AC;
0.5 A, 125 V DC; 0.25 A, 250 V DC
L1
25 A, 277 V AC; 1.5 HP, 125 V AC; 2 HP,
250 V AC; 5 A, 125 V AC “L”
L3
20 A, 250 V AC; 1 HP, 125 V AC;
2 HP 250 V AC
V1
1 A,125 V AC; 1 A, 3O V DC (UL/CSA)
V2
5 A, 277 V AC; 1/10 HP, 125, 250 V AC (UL/CSA);
5(2) A, 250 V AC (VDE)
V3
11 A, 277 V AC; 1/3 HP, 125, 250 V AC;
0.5 A, 125 V DC; 0.25 A, 250 V DC (UL/CSA);
10(3) A, 25O V AC (VDE)
V4
21 A, 277 V AC; 1 HP, 125 V AC; 2 HP, 25O V AC;
5 A, 125 V AC “L”; 16(3) A, 25O V AC (VDE)
Mounting Style
S
Standard
V
Metric
Actuator
P00
Pin plunger
A10
.81" lever roller, high force
A15
1.34" lever roller, high force
A20
1.05” lever roller, low force
A25
1.56" lever roller, low force
T10
.84" lever, high force
T13
1.34" simulated roller, high force
T14
1.29" simulated roller, high force
T15
1.40" lever, high force
T16
2.34" lever, high force
T18
2.75" lever, high force
T20
1.10" lever, low force
T23
1.56" simulated roller, low force
T24
1.50” simulated roller, low force
T25
1.62" lever, low force
T26
2.57" lever, low force
T28
2.97” lever, low force
WP0
Wide pin plunger
Circuitry
C
SPDT
W
SPST N.C.
Y
SPST N.O.
Terminations
40
.187" quick connect
4A
.250" quick connect
5A
.250" offset quick connect
5B
.187" offset quick connect
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–5
www.ittcannon.com
C&K TF Series
Miniature Snap-acting Switches
SERIES
TF
MINIATURE SNAP-ACTING SWITCHES – SP MOMENTARY
OPERATING FORCE
BASIC SWITCH OPERATING
FORCE (OZ./GRAMS)
.53
15
.88
25
1.76
50
2.65
75
5.29
150
7.94
225
14.11
400
OPTION CODE
CC
K
Snap-acting
CD
CF
CG
CJ
EC
EE
*
*Minimums may apply, consult Customer Service Center.
Operating Force option ‘CC’ not available with ‘T18 & T26’ Actuator options.
Operating force varies with actuator option, see ACTUATOR option section.
ELECTRICAL RATING
CONTACT MATERIAL
OPTION CODE
RoHS
COMPLIANT *
Yes
Yes
Yes
Yes
Yes
Yes
Yes
RoHS
COMPATIBLE *
Yes
Yes
Yes
Fine Silver
Fine Silver
Yes
Yes
Yes
Yes
MOVABLE
CONTACT
Gold alloy
STATIONARY
CONTACT
Gold alloy
ELECTRICAL RATING
From low level* to 1 AMP @ 125 V AC, 1 AMP @ 30 V DC.
5 AMPS @ 277 V AC; 1/10 HP @ 125 & 250 V AC.
21 AMPS @ 277 V AC; 1 HP @ 125 V AC; 2 HP @ 250 V AC;
5 AMPS @ 125 V AC “L”.
15 AMPS @ 277 V AC; 1/2 HP @ 125 & 250 V AC; 5 AMPS @ 125 V AC “L”. 0.5
AMP @ 125 V DC; 0.25 AMP @ 250 V DC.
11 AMPS @ 277 V AC; 1/3 HP @ 125 & 250 V AC; 0.5 AMP @ 125 V DC;
0.25 AMP @ 250 V DC.
Precious
metal alloy
25 AMPS @ 125 & 277 V AC; 1 1/2 HP @ 125 V AC; 2 HP @ 250 V AC
20 AMPS @ 250 V AC; 1 HP @ 125 V AC; 2 HP @ 250 V AC
F5
H8
J3
J6
K6
L1
L3
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
All models
with all options,
.
* Low Level=conditions where no arcing
occurs during switching, i.e.,
0.4 VA max. @ 20 V AC or DC max.
Consult Customer Service center for availability and delivery of nonstandard ratings.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–6
www.ittcannon.com
C&K TF Series
Miniature Snap-acting Switches
ELECTRICAL RATING
CONTACT MATERIAL
OPTION CODE
RoHS
COMPLIANT
Yes
Yes
Yes
Yes
RoHS
COMPATIBLE
Yes
Yes
Fine Silver
Yes
Yes
Precious
metal alloy
Fine Silver
MOVABLE
CONTACT
Gold alloy
STATIONARY
CONTACT
Gold alloy
INTERNATIONAL ELECTRICAL RATING
From low level* to 1 AMP @ 125 V AC; 1 AMP @ 30 V DC (UL/CSA).
0.1 (0.05) AMP @ 250 V~m T85 50E3 (VDE).
5 AMPS @ 277 V AC; 1/10 HP @ 125 & 250 V AC (UL/CSA).
5 (2) AMPS @ 250 V~m T85 50E3 (VDE).
11 AMPS @ 277 V AC; 1/3 HP @ 125 & 250 V AC; 0.5 AMP @ 125 V DC;
0.25 AMP @ 250 V DC (UL/CSA). 10 (3) AMPS @ 250 V~m 50E3 T85 (VDE).
21 AMPS @ 277 V AC; 1 HP @ 125 V AC; 2 HP @ 250 V AC;
16 (3) AMPS @ 250 V~m T85 10E3 (VDE).
V1
V2
V3
V4
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
NOTE:
V1-V4 ratings available with ‘5A or 5B’terminal styles only.
OPERATING FORCE
ELECTRICAL
RATING
F5
H8
J3
T_ _
50E3
10E3
Maximum rated use temperature.
J6
Cycles over 50,000 at rated current.
K6
Cycles over 10,000 at rated current.
L1
First number represents resistive
rating; second number represents
inductive (motor) rating.
L3
V1
V2
All models
with all options,
.
V3
V4
25
20
1
5
11
16
X
X
•
X
X
X
X
X
•
X
X
X
X
X
•
•
X
X
X
X
•
•
•
X
X
•
•
•
•
•
•
•
X
•
•
•
X
X
X
•
•
•
11
X
•
•
•
•
•
•
15
X
X
X
X
•
•
•
AMPS
(REF.)
1
5
21
CC
(15)
•
•
X
CD
(25)
•
•
X
CF
(50)
•
•
X
CG
(75)
•
•
X
CJ
(150)
•
•
•
EC
EE
(225) (400)
•
•
•
•
•
•
INTERNATIONAL RATING SYMBOLS
m
~
Microgap construction
(less than 3 mm).
Alternating current.
K
Snap-acting
Snap-acting
10(3)
Consult Customer Service center for availability and delivery of
nonstandard ratings.
* Low Level=conditions where no arcing occurs during switching, i.e.,
0.4 VA max. @ 20 V AC or DC max.
•
AVAILABLE
x
NOT AVAILABLE
** Available with 4A & 5A terminations only, see page K-10.
MOUNTING STYLE
S
STANDARD
For 4-40 screw size
V
Metric
For 3 mm screw size
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–7
www.ittcannon.com
C&K TF Series
Miniature Snap-acting Switches
ACTUATOR
SWITCH CHARACTERISTICS
MAXIMUM OPERATING FORCE
(OZ./GRAMS)
OPTION
CODE
A10
A15
A20
A25
P00
T10
T13
T14
T15
T16
T18
T20
T23
T24
CC
(15)
.63
18
.28
8
0.53
15
.18
5
.53
15
.63
18
.28
8
.28
8
.25
7
.18
5
N/A
.53
15
.18
5
0.18
5
.18
5
N/A
N/A
.53
15
CD
(25)
1.06
30
.42
12
CF
(50)
2.29
65
1.06
30
CG
(75)
3.17
90
1.59
45
2.12
60
85
24
2.65
75
3.17
90
1.59
45
1.76
50
1.41
40
.78
22
.71
20
2.12
60
.85
24
0.88
25
.88
25
.42
12
0.42
12
2.65
75
CJ
EC
EE
(150) (225) (400)
6.35
180
3
85
4.23
120
1.69
48
5.29
150
6.35
180
3
85
3.17
90
2.82
80
1.59
45
1.41
40
4.23
120
1.69
48
1.76
50
1.59
45
7.94 14.11
225 400
4.59
130
6
170
2.65
75
7.94
225
9.7
275
4.41
125
CC
(15)
.21
6
.07
2
0.07
2
.04
1
.21
6
.21
6
.07
2
.07
2
.07
2
.04
1
N/A
.21
6
.04
1
0.04
1
.04
1
N/A
N/A
.21
6
CD
(25)
.35
10
.14
4
MINIMUM RELEASE FORCE
(OZ./GRAMS)
CF
(50)
.35
10
.14
4
CG
(75)
.53
15
.18
5
0.18
5
.07
2
.53
15
.53
15
.18
5
.18
5
.18
5
.07
2
.07
2
.53
15
.07
2
0.11
3
.07
2
.05
1.5
0.04
1
.53
15
CJ
EC
EE
(150) (225) (400)
.71
20
.35
10
0.42
12
.21
6
1.23
35
.71
20
.35
10
.35
10
.28
8
.28
8
.18
5
.71
20
.21
6
0.21
6
.21
6
.12
3.5
0.11
3
1.23
35
1.98
56
.71
20
0.71
20
.35
10
1.98
56
1.98
56
.71
20
.71
20
.63
18
.35
10
.28
8
1.98
56
.35
10
0.35
10
.35
10
.21
6
0.18
5
1.97
56
3.88
110
2.82
80
1.41
40
.71
20
3.88
110
3.88
110
2.82
80
2.82
80
2.82
80
.71
20
.56
16
3.88
110
.71
20
0.71
20
.99
28
.39
11
0.32
9
3.88
110
MAXIMUM
DIFFERENTIAL
TRAVEL
ALL FORCES
.015
(0,38)
.030
(0,76)
0.025
(0,64)
.050
(1,27)
.010
(0,25)
.015
(0,38)
.030
(0,76)
.030
(0,76)
.030
(0,76)
.045
(1,14)
.062
(1,57)
.030
(0,76)
.050
(1,27)
.005
(1,27)
.055
(1,40)
.100
(2,54)
0.12
(3,05)
.010
(0.25)
MAXIMUM
PRETRAVEL
ALL FORCES
.060
(1,52)
.100
(2,54)
0.12
(3,05)
.250
(6,35)
.047
(1,19)
.060
(1,52)
.100
(2,54)
.100
(2,54)
.110
(2,59)
.250
(6,35)
.300
(7,62)
.140
(3,56)
.250
(6,35)
0.23
(5,84)
.250
(6,35)
.500
(12,70)
.0.56
(14.22)
.047
(1,19)
MINIMUM
OVERTRAVEL
ALL FORCES
.030
(0,76)
.065
(1,65)
0.055
(1,40)
.120
(3,05)
.050
(1,27)
.030
(0,76)
.065
(1,65)
.060
(1,52)
.065
(1,65)
.125
(3,18)
.155
(3,94)
.060
(1,52)
.120
(3,05)
0.11
(2.79)
.125
(3,18)
.235
(5,97)
0.285
(7,24)
.030
(0,51)
0.71 1.41
20
40
.28
8
.88
25
1.06
30
.42
12
.42
12
.42
12
.28
8
.21
6
.71
20
.28
8
56
16
1.76
50
2.29
65
1.06
30
1.23
35
1.06
30
.53
15
.42
12
1.41
40
.56
16
0.11 0.11
3
3
.07
2
.35
10
.35
10
.14
4
.14
4
.14
4
.07
2
.04
1
.35
10
.07
2
.07
2
.35
10
.35
10
.14
4
.14
4
.14
4
.07
2
.04
1
.35
10
.07
2
7.94 14.11
225 400
7.94 14.11
225 400
4.59
130
4.76
135
4.41
125
2.47
70
2.12
60
6
170
2.65
75
2.65
75
2.47
70
7.94
225
7.94
225
7.94
225
4.23
120
3.53
100
9.70
275
4.41
125
4.76
135
4.23
120
2.26
64
1.94
55
K
Snap-acting
Snap-acting
0.28 0.56
8
16
.28
8
.14
4
N/A
.88
25
.53
15
.28
8
N/A
1.76
50
0.07 0.07
2
2
.07
2
.04
1
N/A
.35
10
.07
2
.04
1
N/A
.35
10
T25
T26
T28
WP0
.85 1.27
24
36
0.71 1.06
20
30
5.29
150
7.94 14.11
225 400
NOTE:
For basic switch operating forces, see page K-6.
HIGH FORCE, LOW MOTION PIVOT POSITION
LOW FORCE, HIGH MOTION PIVOT POSITION
Available with actuators A10, A15, T10, T13, T14, T15, T16 and T18.
Available with actuators A20, A25, T20, T23, T24, T25, T26, and T28.
NOTE:
Lever actuator options are available in either of two pivot positions.
Levers located in the forward pivot position have lower forces and higher motions.
Levers located in the rear pivot position have higher forces and lower motions.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–9
www.ittcannon.com
FPGA/CPLD
京公网安备 11010802033920号
EEWORLD
