Product Data Sheet
Amphenol
®
Industrial Amphe-PPM
Quick Disconnect Connectors
No. 195

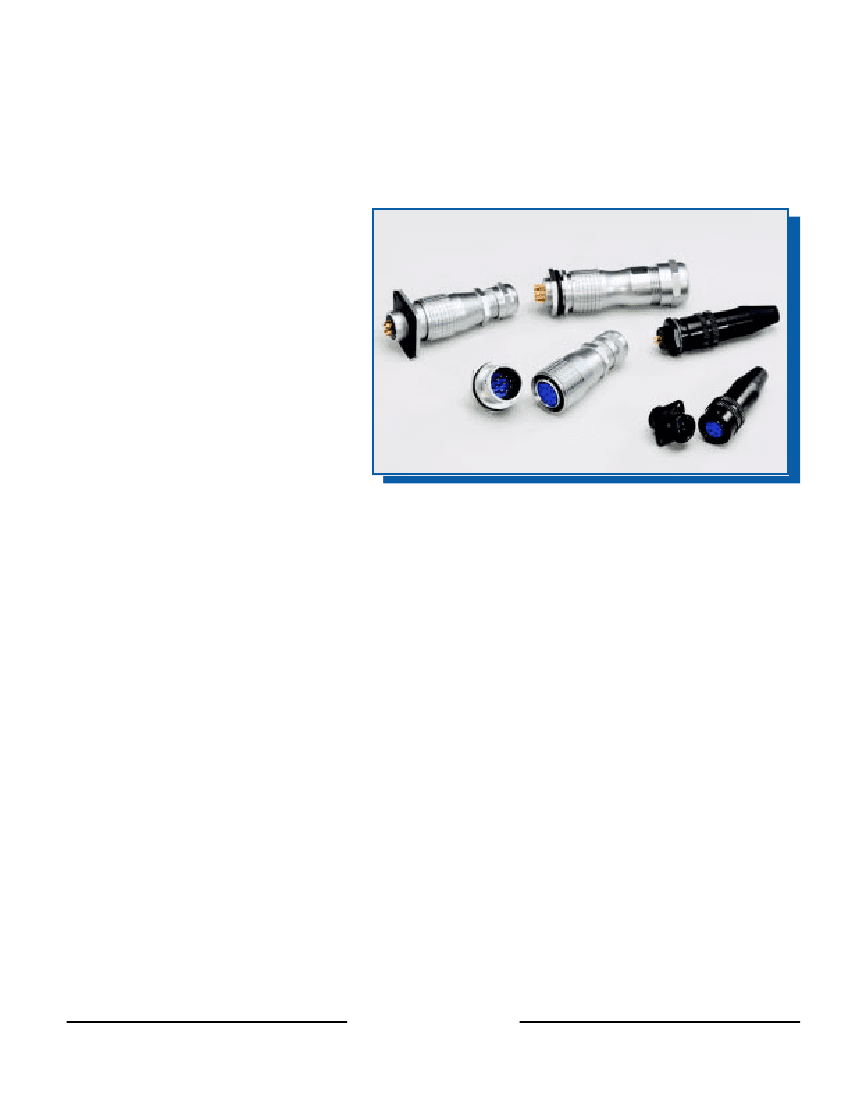

The Amphe-PPM is a rapid mate, push/pull
connector which provides positive mating in
limited space and ease of use. The design
features of the Amphe-PPM allow consumers
to save cost in space savings and in installa-
tion.
Amphe-PPM, the high performance signal and
power interconnection solution, is ideally suited
to many commercial and industrial applications
including, but not limited to:
• Medical Equipment
• Instrumentation/Test & Measurement
• Communication Equipment
The Amphe-PPM continues Amphenol’s
commitment of providing new products to meet
customer and market demands for new emerg-
ing technologies and advancing applications.
Features and Benefits of Amphe-PPM Connectors
• Push/pull rapid mate connector system - high performance of 500 + mating cycles
• Sealed or non-sealed connector versions -
NON-SEALED VERSION:
• Available in 12mm and 16mm shell sizes
• From 2 up to 12 contacts of 1.0mm to 2.5mm diameter (see back side for insert arrangement charts)
• Jam nut receptacle and straight plug are available with a rubber boot or standard
cable clamp rear accessory
• Non-reflective nickel or black epoxy finish
• IP55 rated
SEALED VERSION:
• Available in 10mm, 12mm, 16mm and 18mm shell sizes
• From 2 up to 14 contacts of 0.8mm to 2.5mm diameter (see back side for insert arrangement charts)
• Jam nut receptacle and straight plug come with jacketed cable PG sealing gland
• Non-reflective nickel finish only
• IP67 rated
• Three shell styles available: box mount and jam nut receptacles and a straight plug
• Designed to IEC 61984
• Inserts have a UL94V-0 flammability rating
• Operating temperature: –40° to 100°C
• Solder contacts standard, crimp by special request
• Non-magnetic product standard
Notice:
Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and
reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements or suggestions concerning possible use of our products are made without representation or warranty that any such
use is free of patent infringement and are not recommendations to infringe any patent. The user should assume that all safety measures are indicated or that other measures may not be required. Specifications are typical and may not
apply to all connectors.
AMPHENOL is a registered trademark of Amphenol Corporation.
@2006 Amphenol Corporation
Amphenol
Printed in U.S.A.
4/2006
HOW TO ORDER
Amphe-PPM Sealed Connectors
APS
APS
designates Amphe-PPM
Sealed Series Connectors
Shell Size:
C ..... designates 10mm shell size
D ..... designates 12mm shell size
E ...... designates 16mm shell size
F ...... designates 18mm shell size
Contact Type:
P ...... designates pin contacts
S ...... designates socket contacts
Insert Arrangement Designator
See Insert Arrangement Tables 1, 2, 3, 4
D
S
A
6
E1
Sealing Range:
Diameters in mm
Series
C
D
E
F
N/A
3 - 6.5
4-8
7 - 12
E1
N/A
PG7
PG9
PG13.5
3 - 6.5
4-8
7 - 12
10 - 14
E2
PG7
PG9
PG13.5
PG16
Shell Style:
2 ...... designates square flange receptacle
6 ...... designates straight plug
7 ...... designates jam nut receptacle
Table 1
Shell Size “C” 10mm
Contact
Insert
Diameter
No. of
Arrangement
(mm)
Contacts
A
B
C
D
1
1
0.8
0.8
2
3
4
5
Table 2
Shell Size “D” 12mm
Contact
Insert
Diameter
No. of
Arrangement
(mm)
Contacts
A
B
C
D
E
F
1.6
1
1
1
1
1
2
3
4
5
6
7
Table 3
Shell Size “E” 16mm
Contact
Insert
Diameter
No. of
Arrangement
(mm)
Contacts
A
B
C
D
E
F
G
H
I
J
1.5
2.5
1
1.5
1
1.5
1
1
1
1
2
2
3
3
4
4
5
7
9
12
Insert
Arrangement
A
B
C
D
Table 4
Shell Size “F” 18mm
Contact
Diameter
(mm)
2.5
1.5
1.5 (3 contacts), 1 (5 contacts)
1
No. of
Contacts
3
5
8
5
HOW TO ORDER
Amphe-PPM Non-Sealed Connectors
APN
APN
designates Amphe-PPM
Non-Sealed Series Connectors
Shell Size:
A ...... designates 12mm shell size
B ...... designates 16mm shell size
Contact Type:
P ...... designates pin contacts
S ...... designates socket contacts
Insert Arrangement Designator
See Insert Arrangement Tables 5 & 6
A
S
A
6
N
R
Rear Accessory:
R ..... designates with rubber boot
C ..... designates with cable clamp
Shell Finish:
N ..... designate non-reflective nickel finish
B ...... designates black epoxy finish
Shell Style:
2 ...... designates square flange receptacle
6 ...... designates straight plug
7 ...... designates jam nut receptacle
Table 5
Shell Size “A” 12mm
Contact
Insert
Diameter
No. of
Arrangement
(mm)
Contacts
A
B
C
D
E
F
1.6
1
1
1
1
1
2
3
4
5
6
7
Table 6
Shell Size “B” 16mm
Contact
Insert
Diameter
No. of
Arrangement
(mm)
Contacts
A
B
C
D
E
F
G
H
I
J
1.5
2.5
1
1.5
1
1.5
1
1
1
1
2
2
3
3
4
4
5
7
9
12
For additional information on the Amphe-PPM connectors consult Amphenol Industrial Operations.
For further information on your individual application requirements, contact:
Amphenol Corporation
Amphenol Industrial Operations
40-60 Delaware Avenue
Sidney, NY 13838-1395
Phone: 1-607-563-5011 Fax: 1-607-563-5351
Internet:
www.amphenol-industrial.com
