TDA04H0SK1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> TDA04H0SK1

TDA04H0SK1: DescriptionSLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT; CategoryMechanical and electronic products switch; File Size117KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

TDA04H0SK1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TDA04H0SK1	-	-	View	Buy Now

TDA04H0SK1 Overview

SLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT

TDA04H0SK1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator angle	180 deg
Actuator material	LIQUID CRYSTAL POLYMER
Actuator type	SLIDE
Other features	TUBE PACKAGING
body width	6.2 mm
body height	2.3 mm
Body length or diameter	6.21 mm
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	.025A@24VDC
Contact function	OFF-ON
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	300VAC V
Electrical life	1000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	GLASS FILLED POLYPHTHALAMIDE
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYPHTHALAMIDE
Manufacturer's serial number	TDA
Installation features	SURFACE MOUNT-STRAIGHT
Number of positions	4
Number of switching segments	4
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
method of packing	TUBE
seal	TAPE SEALED
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	SLIDE DIP SWITCH
Terminal surface	Gold Flash (Au) - with Nickel (Ni) barrie
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

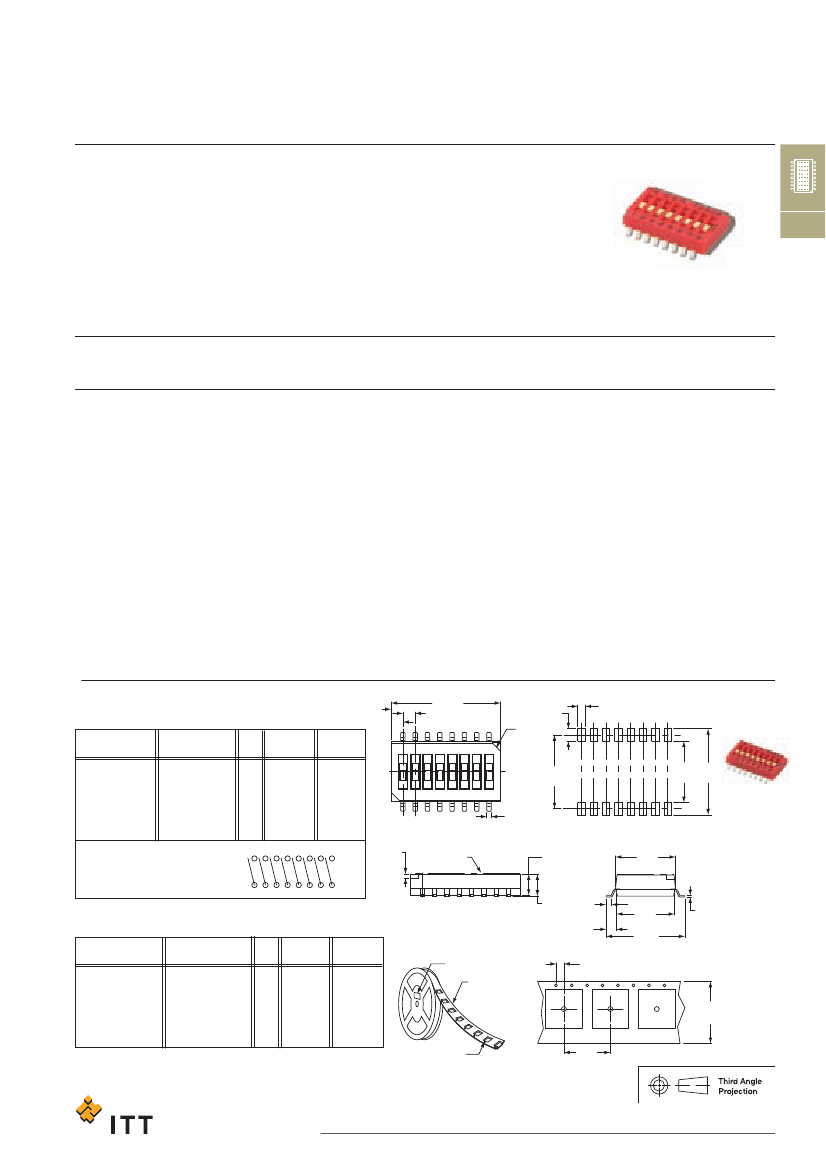

C&K TDA Series

Ultra-miniature Surface Mount Half-pitch DIP Switches

Features/Benefits

•

Bifurcated contact for increased

electrical reliability

•

Tin-lead plated terminals for

reliable solder coverage

•

Process sealed for surface

mount soldering and washable

processing

•

RoHS compliant - options available

How To Order

Complete part numbers for TDA Series are shown below. All switches supplied in “OFF” position.

Typical Applications

•

Hand-held electronic devices

•

Portable computer and

electronic devices

•

Instrumentation and controls

DIP

Specifications

SWITCH FUNCTION: SPST – 2, 4, 6, 8 & 10 positions.

CONTACT RATING:

24 V DC, 25 mA (switching).

50 V DC, 100 mA (steady state).

MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles.

CONTACT RESISTANCE: 100 milliohms max.

INSULATION RESISTANCE: 100 megohms @ 100 V DC min.

DIELECTRIC STRENGTH: 300 V AC min.

STORAGE TEMPERATURE: -40°C to 85°C.

OPERATING TEMPERATURE: -20°C to 85°C.

OPERATING FORCE: 4,9N max.

SOLDERABILITY: Per MIL-STD-202F method 208D, or

EIA RS-186E method 9 (1 hour steam aging).

PACKAGING: Switches supplied in rigid dispensing tubes in full

tube quantities only, this may affect order quantity. Numbers of

switches per tube varies with model. Tape and reel packaging

also available.

Materials

CASE & COVER: Tin Lead, Version PPA (UL94V-0)

RoHS, Version PPS (UL94V-0)

ACTUATOR: LCP (UL94V-0).

CONTACTS: Copper alloy, with gold plate over nickel plate.

TERMINALS: Copper alloy, with tin-lead alloy over nickel plate.

RoHS version, copper alloy, with gold flash over nickel plate.

All terminals are insert molded.

TAPE SEAL: Polyimide.

NOTE:

For the latest information regarding RoHS compliance, please go to:

www.ittcannon.com/rohs.

Note:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Tube Package

ROHS

PART NUMBER

TIN LEAD

PART NUMBER

NO.

POS.

DIM. ‘A’

.144 (3,67)

.244 (6,21)

.344 (8,75)

.444 (11,29)

.544 (13,83)

QUANTITY

PER TUBE

125

.047

(1,2)

DIM 'A'

.050

(1,27)

C&K

TDA08

.032

(0,8)

CHAMFER

.050

(1,27)

.030

(0,76)

TDA02H0SB1

TDA04H0SB1

TDA06H0SB1

TDA08H0SB1

TDA10H0SB1

Schematic

TDA02H0SK1

TDA04H0SK1

TDA06H0SK1

TDA08H0SK1

TDA10H0SK1

.300

(7,62)

1 2 3 4 5 6 7 8

.018

(0,45)

.016

(0,4)

TAPE SEAL

.086

(2,2)

.244

(6,2)

.250 .350

(6,35) (8,89)

TDA08H0SK1

SPST

.090

(2,3)

.022

(0,57)

.042

(1,06)

MARKING LABEL

EMBOSSED

CARRIER

.079 REF

(2,0)

.236

(6,0)

.320

(8,12)

.006

(0,15)

Tape & Reel Package

ROHS

PART NUMBER

TIN LEAD

PART NUMBER

NO.

POS.

DIM. ‘W’

.630 (16,0)

.945 (24,0)

QUANTITY

PER TUBE

2000

PIN#1

OFFSET FROM PILOT HOLE

TDA02H0SB1R

TDA04H0SB1R

TDA06H0SB1R

TDA08H0SB1R

TDA10H0SB1R

TDA02H0SK1R

TDA04H0SK1R

TDA06H0SK1R

TDA08H0SK1R

TDA10H0SK1R

DIM 'W'

SEE CHART

.472

(12,0)

Dimensions are shown: Inch (mm )

Specifications and dimensions subject to change

I-5

www.ittcannon.com
