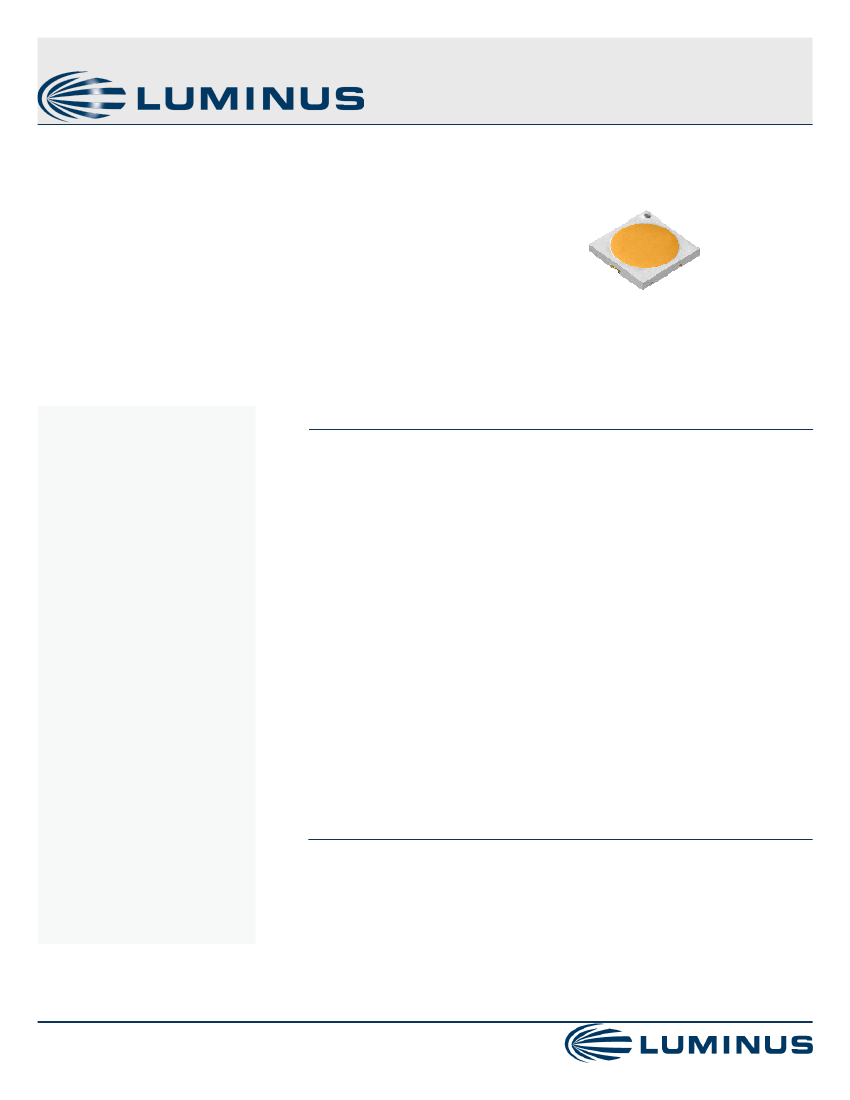

MP-5050-8100
Mid Power Product Datasheet
5050 -8100
Mid Power LED
Features:
•
High efficacy
•
Low thermal resistance
•
Compatible with automatic placement equipment
•
Compatible with infrared reflow solder process
•
RoHs and REACH compliant
Table of Contents
Technology Overview . . . . . .2
Product Selection Table . . . .3
Operating Characteristics . .4
Chromaticity Diagram . . . . . .5
Color Ranks . . . . . . . . . . . . . . . .5
Chromaticity Coordinate Group
. . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Characteristics Graphs . . . . . .7
Solder Profile . . . . . . . . . . . . . .8
Ordering Nomenclature . . . .9
Package dimension . . . . . . 10
Soldering Pad Pattern . . . . 10
Dimension and Polarity . . . 11
Packagage Dimensions . . . 12
Inner Box . . . . . . . . . . . . . . . . 13
Applications
•
Replacement lamps
•
Panel lighting
•
Down lights
•
Architectural lighting
1
PDS-002702 Rev 06
© 2018 Luminus Devices, Inc. - All Rights Reserved
MP-5050-8100
Mid Power Product Datasheet
Technology Overview
Luminus mid power LEDs are lighting class solutions designed for high performance general lighting applications . These state-of-the-art
LEDs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality .
Reliability
Luminus mid power LED is one of the most reliable light sources
in the world today . Having passed a rigorous suite of
environmental and mechanical stress tests, including
mechanical shock, vibration, temperature cycling and humidity,
it is fully qualified for use in a wide range of high performance
and high efficacy lighting applications .
REACH & RoHS Compliance
The Luminus 5050 Mid Power LED is compliant to the Restriction
of Hazardous Substances Directive or RoHS .
Understanding Luminus Mid Power LED Test Specifications
Every Luminus LED is fully tested to ensure it meets the high quality standards customers have come to expect from Luminus products .
Testing Temperature
Luminus Mid Power products are measured at a case solder point temperature of 25ºC and placed into intensity, chromaticity and
voltage bins as described here in
2
PDS-002702 Rev 07© 2018 Luminus Devices, Inc. - All Rights Reserved
MP-5050-8100
Mid Power Product Datasheet
Product Selection Table
Test condition = 200 mA, T
s
=25
ºC
Nominal CCT
Minimum CRI
70
2700K
Ordering Part Number
MP-5050-8100-27-70
MP-5050-8100-27-80
MP-5050-8100-27-90
MP-5050-8100-30-70
MP-5050-8100-30-80
MP-5050-8100-30-90
MP-5050-8100-40-70
MP-5050-8100-40-80
MP-5050-8100-40-90
MP-5050-8100-50-70
MP-5050-8100-50-80
MP-5050-8100-50-90
MP-5050-8100-57-70
MP-5050-8100-57-80
MP-5050-8100-57-90
MP-5050-8100-65-70
MP-5050-8100-65-80
MP-5050-8100-57-90
Minimum Flux
(Lumens)
600
600
520
650
650
520
700
650
560
700
650
560
700
650
560
700
650
560
Typical Flux
(Lumens)
750
675
580
740
715
610
775
745
635
775
745
635
775
745
635
775
745
635
80
90
70
80
90
70
80
90
70
80
90
70
80
90
70
80
90
3000K
4000K
5000K
5700K
6500K
*IFP condition with Pulse: Width
≤100μs
Duty cycle
≤1/10
*Tolerance of measurements of the Luminous Flux is ±7%
*Ra measurement tolerance is ±2
*Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram
*IFP condition with Pulse: Width
≤100μs
Duty cycle
≤1/10
3
PDS-002702 Rev 07© 2018 Luminus Devices, Inc. - All Rights Reserved
MP-5050-8100
Mid Power Product Datasheet
5050 Mid Power Operating Characteristics
Optical and Electrical Characteristics(Ts=250C)
Parameter
Forward Voltage
Reverse Current
View Angle
Thermal Resistance
Electrostatic Discharge
Note 1:
Note 2:
Note 3:
Symbol
V
f
I
r
2θ
1/2
Rth
j-sp
ESD
Minimum
23
Typical
26
115
2
Maximum
29
10
Unit
V
uA
º
ºC/W
V
Condition
I
f
=200mA
V
r
=5V
I
f
=200mA
I
f
=200mA
1000
To prevent damage refer to operating conditions and derating curves for appropriate maximum operating conditions
Maximum operating case temperature combined with maximum drive current defines the total maximum operating condition for the device. To
prevent damage, please follow derating curves for all operating conditions.
Mid power LEDs are designed for operation up to an absolute maximum forward drive current as specified above. Product lifetime data is specified at
typical forward drive currents. Sustained operation at absolute maximum currents will result in a reduction of device lifetime compared to typical
forward drive currents. Actual device lifetimes will also depend on case temperature. Refer to the current vs. case temperature derating curves for
further information.
Caution must be taken not to stare at the light emitted from these LEDs. Under special circumstances, the high intensity could damage the eye.
Note 4:
Absolute Maximum Ratings (Ts=250C)
Parameter
Forward Current
Pulse Forward Current
Power Dissipation
Reverse Voltage
Operating Temperature
Storage Temperature
Junction Temperature
Soldering Temperature
*IFP condition with Pulse: Width
≤100μs
Duty cycle
≤1/10
Symbol
I
f
I
fp
P
d
V
r
T
opr
T
stg
T
j
T
sld
Rating
240
300
6,960
5
-40~+85
-40~+85
125
230 °C or 260 °C for 10 sec
Unit
mA
mA
mW
V
°C
°C
°C
4
PDS-002702 Rev 07© 2018 Luminus Devices, Inc. - All Rights Reserved
MP-5050-8100
Mid Power Product Datasheet

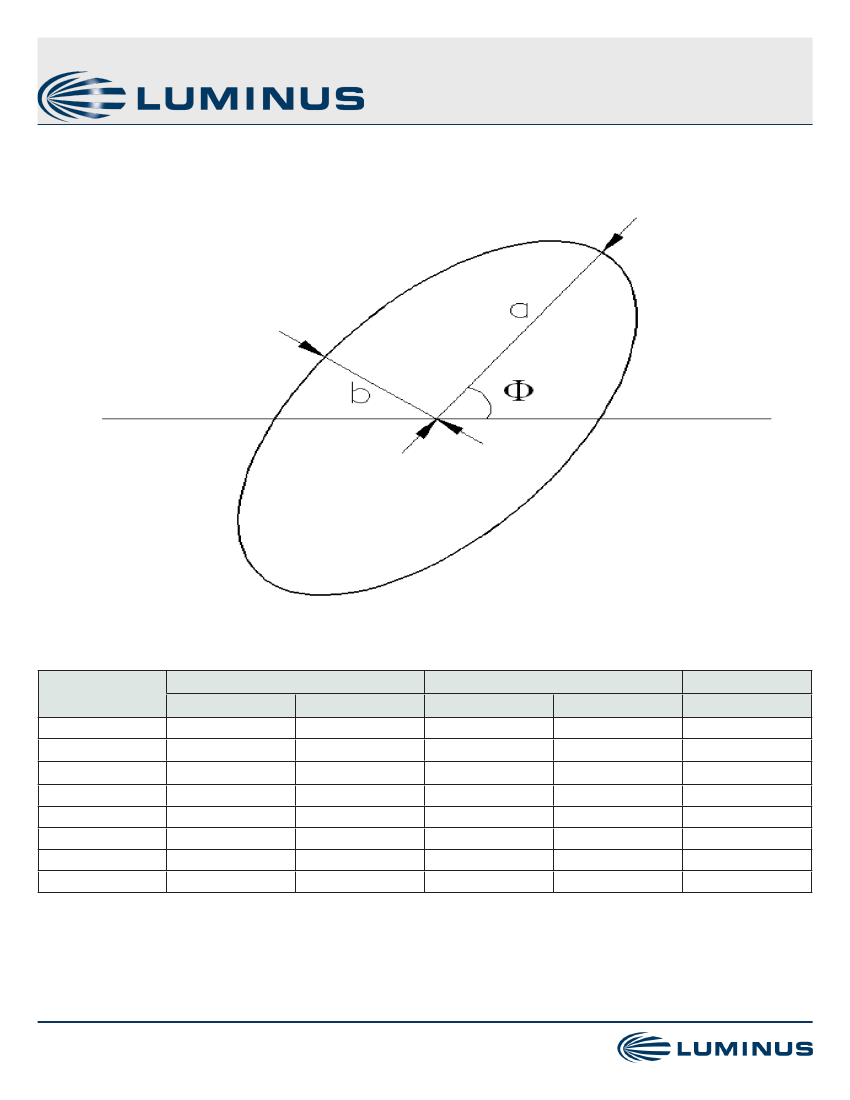

Chromaticity Diagram
Color Bins
Color Code
x
22M5
27M5
30M5
35M5
40M5
50M5
57M5
65M5
0.5065
0.4582
0.4342
0.4080
0.3825
0.3451
0.3290
0.3130
Center
y
0.4171
0.4099
0.4028
0.3916
0.3798
0.3554
0.3417
0.3290
Radius
a
0.012500
0.013500
0.013900
0.015450
0.015650
0.013700
0.011175
0.011150
b
0.00700
0.007000
0.006800
0.006900
0.006700
0.005900
0.005500
0.004750
Angle(deg)
ϕ
53.00
53.42
53.13
54.00
53.43
59.37
58.35
58.34
*Note: Tolerance of measurements of the chromaticity Coordinate is ±0.005
Chromaticity coordinates as per ANSI standard.
5
PDS-002702 Rev 07© 2018 Luminus Devices, Inc. - All Rights Reserved
