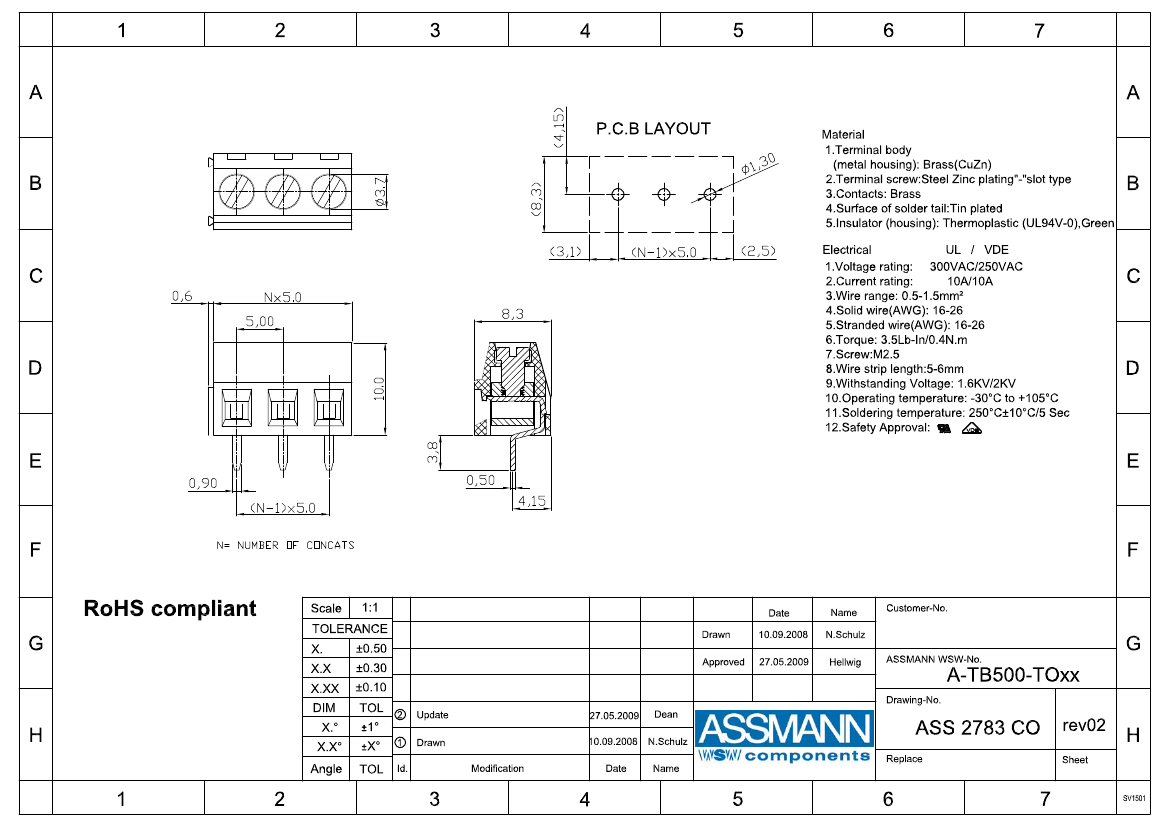

A-TB500-TO04

Description
TERMINAL BLOCK
CategoryThe connector
File Size153KB,1 Pages
ManufacturerASSMANN WSW components
Environmental Compliance
Download Datasheet Parametric View All

A-TB500-TO04 Overview

TERMINAL BLOCK

A-TB500-TO04 Parametric

Parameter NameAttribute value
Number of levels1
Number of pins per level4
spacing0.197"(5.00mm)
Mating directionHorizontal, with board
current10A
Voltage300V
Wire gauge16-26 AWG
Installation typeThrough hole
wire terminationScrews - Lift Cage Clamp
characteristicInterlocking (side)
colorgreen
Operating temperature-30°C ~ 105°C
Shell materialthermoplastic
Contact material - platingbrass
Fixture Material - Plating-
Screw material - coatingGalvanized steel
Torque - Screws0.4 Nm(3.5 Lb-In)
ThreadM2.5
