ABDFVCTCXO-10.000MHZ-L-2-CT

Description
OSC VCTCXO 10.0000MHZ LVCMOS SMD
CategoryPassive components
File Size71KB，1 Pages
ManufacturerAbracon
Websitehttp://www.abracon.com/index.htm
Environmental Compliance
Download Datasheet Parametric View All

ABDFVCTCXO-10.000MHZ-L-2-CT Overview

OSC VCTCXO 10.0000MHZ LVCMOS SMD

ABDFVCTCXO-10.000MHZ-L-2-CT Parametric

Parameter NameAttribute value
typeVCTCXO
frequency10MHz
Function-
outputLVCMOS
Voltage - Power3.3V
frequency stability±280ppb
Absolute pulling range (APR)-
Operating temperature-40°C ~ 85°C
Current - Power (maximum)20mA
grade-
Installation typesurface mount
Package/casing14-SMD, no leads
size/dimensions0.559" long x 0.360" wide (14.20mm x 9.15mm)
Height - Installation (maximum)0.122"（3.10mm）
Current - Power (disabled) (maximum)-

Preview

Download Datasheet

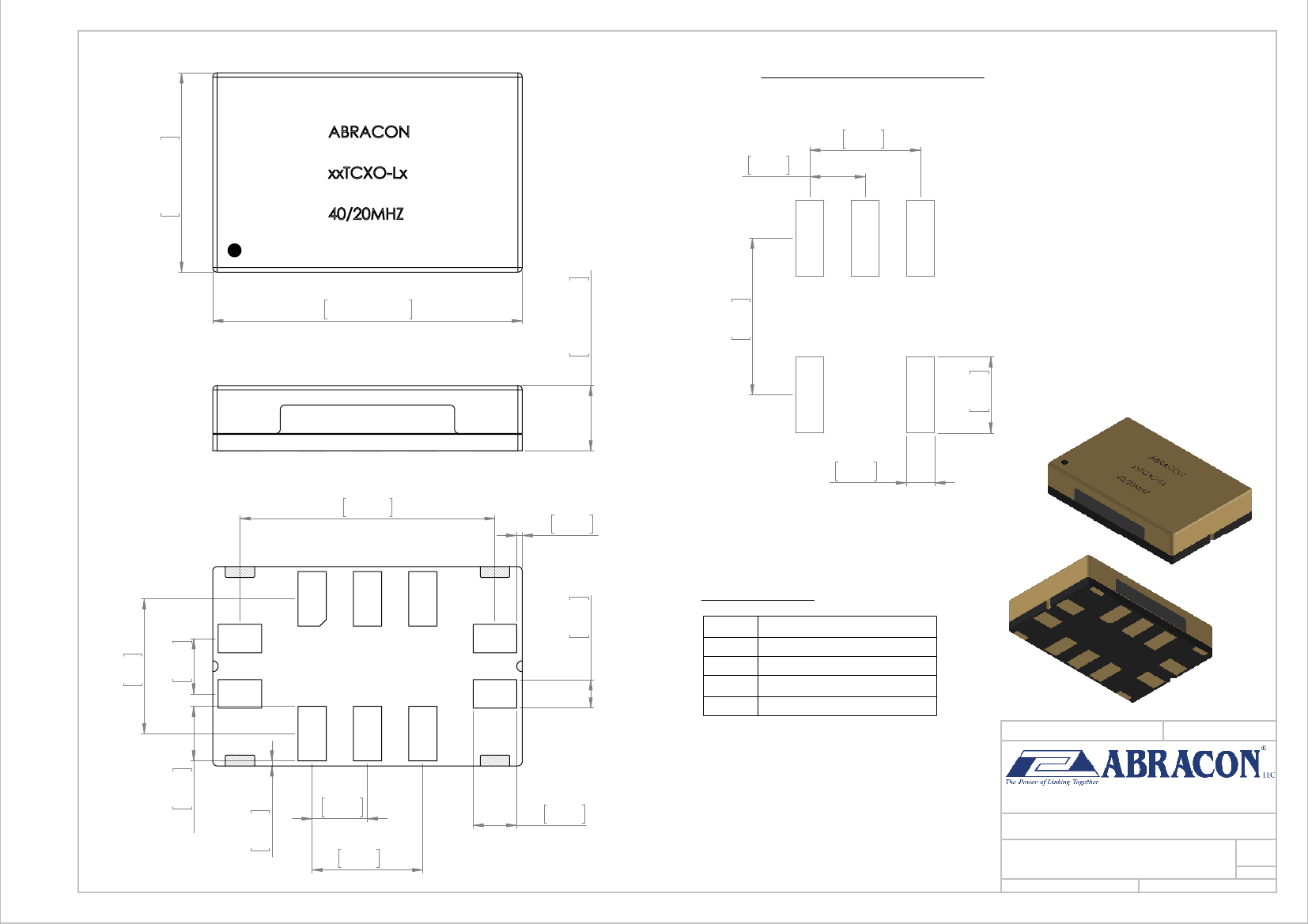

Recommended Land Pattern
0.200
5.08
0.360±0.00
9.15±0.10
0.100
2.54
0.283
7.20
0.559±0.004
14.20±0.10
0.118±0.004
3.00±0.10
0.461
11.70
0.051
1.30
0.010
0.25
10X 0.051
1.30
1
*
*
4
6X 0.098
2.50
*
2
*
*
Pin Connection
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Vcon, Control Voltage
Gnd,Ground
F
0
,Output
Vdd,Supply Voltage
F
0
/2, Output
DO NOT SCALE DRAWING
REVISION
0.244
6.2
0.100
2.54
BOTTOM VIEW
5
3
0.138
3.50
-
0.009
0.23
0.100
2.54
0.200
5.08
4X 0.079
2.00
5101 Hidden Creek Lane, Spicewood Texas-78669
TITLE:
-
DWG NO.
ABDFTCXO-ABDFVCTCXO
SHEET 1 OF 1
A3
SCALE:7:1
