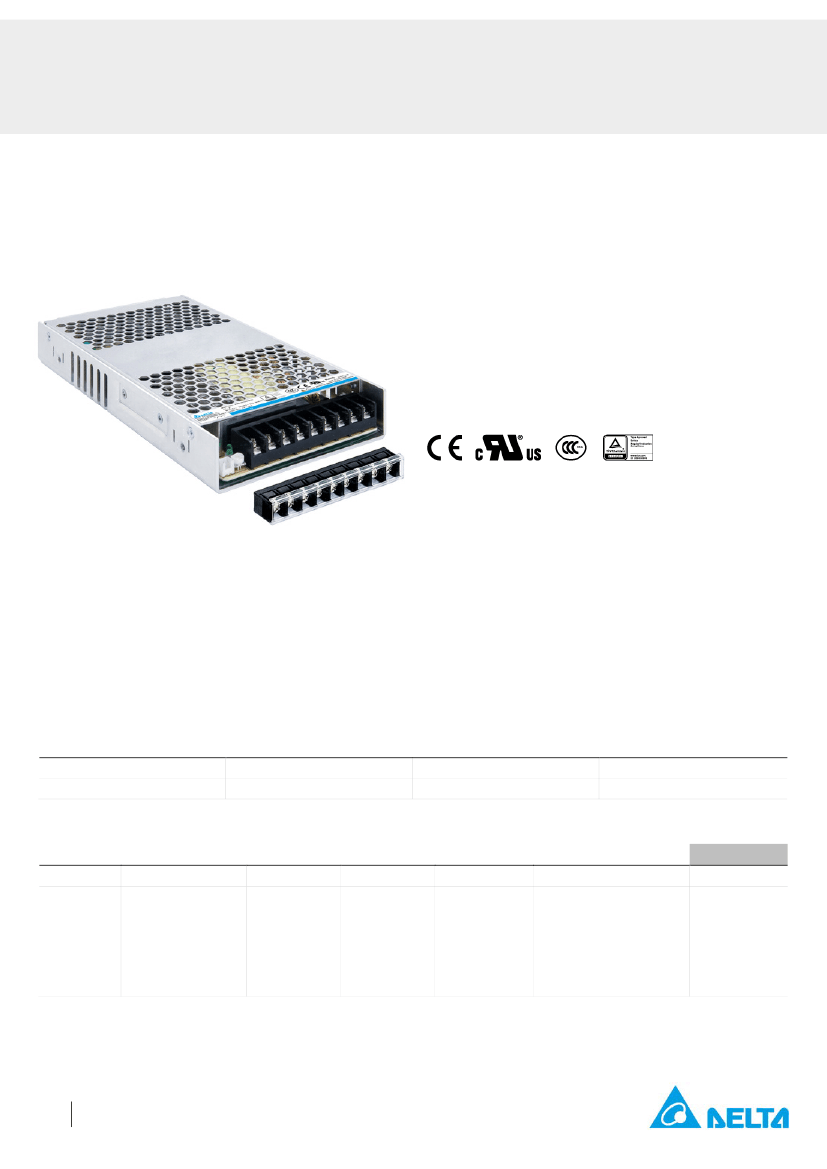

TECHNICAL DATASHEET
PMR Panel Mount Power Supply
5V 300W 1 Phase / PMR-5V320WD
□
A
PMR
Highlights & Features
–
–
–
–
–
–
Universal AC input voltage
Full corrosion resistant aluminium case and chassis
Built-in active PFC and conforms to harmonic current
IEC/EN 61000-3-2, Class A and Class D
Low profile design for 1U installation
High reliability with fanless design
Built-in DC OK relay contact and redundancy operation
(PMR-5V320WDBA and PMR-5V320WDCA)
Safety Standards
CB Certified for worldwide use
Model Number:
PMR-5V320WD☐A
Unit Weight:
0.86 kg
Dimensions (L x W x D):
215 x 115 x 30 mm
General Description
The PMR-5V320WD☐A offers nominal output voltage of 5V with a wide operating temperature range from -20°C to +70°C and can
withstand shock and vibration according to IEC 60068-2. The product comes with universal AC input voltage range at 88Vac to 264Vac.
At only 30mm height and encased in a full corrosion resistant aluminium casing, the PMR series is made for installation in narrow
space while its built-in active PFC circuit provides high power factor values and conforms to harmonic current emission according to
IEC/EN 61000-3-2, Class A and Class D.
Model Information
PMR Panel Mount Power Supply
Model Number
PMR-5V320WD☐A
Input Voltage Range
88-264Vac
Output Voltage
5Vdc
Output Current
60.0A
Model Numbering
CC Code
PM
R–
5V
320W
D
□
□
Panel Mount Product Series
R – Standard Rack
Type Series (1U)
Output Voltage Output Power
(320W series
model)
Package Type Connector Type
Variable
D – Enclosed
A – Terminal Block
A – Coating
without Fan B – Terminal Block
(Parallel Connection)*
G – Front Face*
C – Front Face
(Parallel Connection)*
*Options
1
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (October 2014, Rev. 00)
TECHNICAL DATASHEET
PMR Panel Mount Power Supply
5V 300W 1 Phase / PMR-5V320WD
□
A
Specifications
Input Ratings / Characteristics
Nominal Input Voltage
Input Voltage Range
Nominal Input Frequency
Input Frequency Range
Input Current
Efficiency at 100% Load
PMR-5V320WDAA
PMR-5V320WDGA
PMR-5V320WDBA
PMR-5V320WDCA
Max Inrush Current (Cold Start)
Power Factor at 100% Load
Leakage Current
85.0% typ. @ 115Vac, 87.0% typ. @ 230Vac
< 20A @ 115Vac, < 40A @ 230Vac
0.98 typ. @ 115Vac, 0.95 typ. @ 230Vac
< 1mA @ 240Vac
86.0% typ. @ 115Vac, 88.0% typ. @ 230Vac
100-240Vac
88-264Vac
50-60Hz
47-63Hz
< 5.00A @ 115Vac, < 2.50A @ 230Vac
Output Ratings / Characteristics
Nominal Output Voltage
Output Voltage Tolerance
Output Voltage Adjustment Range
Output Voltage Range
Output Current
Output Power
Line Regulation
Load Regulation
PARD (20MHz)
Rise Time
Start-up Time
Hold-up Time
Dynamic Response (Overshoot & Undershoot O/P Voltage)
Start-up with Capacitive Loads
Functional*
Parallel Connection
PMR-5V320WDAA
PMR-5V320WDGA
PMR-5V320WDBA
PMR-5V320WDCA
4.75-5.25Vdc (No potentiometer)
60.0A
300W
± 0.5% typ. (@ 115Vac & 230Vac, 100% load)
± 1.0% typ. (@ 115Vac & 230Vac, 0-100% load)
For PMR-5V320WDAA and PMR-5V320WDGA
< 150mVpp @ 25°C
< 300mVpp @ -20°C
100ms typ. @ 115Vac & 230Vac (100% load)
3000ms typ. @ 115Vac,
1500ms typ. @ 230Vac (100% load
)
8ms typ. @ 115Vac & 230Vac
± 1500mVpp @ 10-50% load and 50-100% load
8,000µF Max
•
•
DC OK Relay Contact
*For PMR-5V320WDBA and PMR-5V320WDCA.
5Vdc
± 1% (initial set point tolerance from factory)
For PMR-5V320WDAA and PMR-5V320WDGA
4.50-5.50Vdc
For N+1 connection, note that N ≤ 4 (difference of
coupling impedance for each power supply must be
< 5mΩ in redundancy connection).
The total output power shall be < N × 80% × rated
power.
5V / 0.1A
The relay is usually open when the output is normal.
2
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (October 2014, Rev. 00)
TECHNICAL DATASHEET
PMR Panel Mount Power Supply
5V 300W 1 Phase / PMR-5V320WD
□
A
Mechanical
Case Chassis / Cover
Dimensions (L x W x D)
Unit Weight
Indicator
Cooling System
Terminal
PMR-5V320WDAA
PMR-5V320WDGA
PMR-5V320WDBA
PMR-5V320WDCA
Wire
Noise (1 Meter from power supply)
*Only use wire that can withstand operating temperature of more than 125°C.
Aluminium
215 x 115 x 30 mm
0.86 kg
Green LED (DC OK)
Convection
M3.5 x 9 Pins (Rated 300V/15A)
M3.5 x 9 Pins (Rated 300V/20A)
M3.5 x 9 Pins (Rated 300V/15A)
M3.5 x 9 Pins (Rated 300V/20A)
AWG 14-12*
Sound Pressure Level (SPL) < 25dBA
Environment
Surrounding Air Temperature
Power De-rating
Operating
Storage
-20°C to +70°C (Cold start at -40°C)
-40°C to +85°C
> 40°C de-rate power by 1% / °C,
> 50°C de-rate power by 1.5% / °C
< 110Vac de-rate power by 1% / 1V
5 to 95% RH (Non-Condensing)
0 to 5,000 Meters
IEC 60068-2-27, Half Sine: 50G for a duration of 11ms,
3 shocks for each 3 directions
IEC 60068-2-6, Random: 5Hz to 500Hz (2.09Grms);
20 min per axis for all X, Y, Z direction
2
Operating Humidity
Operating Altitude
Shock Test (Non-Operating)
Vibration (Non-Operating)
Pollution Degree
Protections
Overvoltage
Overload / Overcurrent
Over Temperature
Short Circuit
Protection Against Shock
**PE: Primary Earth
5.75-6.50V, Hiccup Mode, Non-Latching
(Auto-Recovery)
105-150%, Hiccup Mode, Non-Latching
(Auto-Recovery)
Hiccup Mode, Non-Latching (Auto-Recovery)
Hiccup Mode, Non-Latching (Auto-Recovery)
Class I with PE** connection
Reliability Data
MTBF
Expected Cap Life Time
> 700,000 hrs. as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C
10 years (115Vac & 230Vac, 50% load @ 40°C)
3
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (October 2014, Rev. 00)
TECHNICAL DATASHEET
PMR Panel Mount Power Supply
5V 300W 1 Phase / PMR-5V320WD
□
A
Safety Standards / Directives
Electrical Safety
TUV Bauart to EN 60950-1, UL/cUL recognized to
UL 60950-1 and CSA C22.2 No. 60950-1 (File No.
E131881), CB scheme to IEC 60950-1,
CCC to GB 4943
In conformance with EMC Directive 2004/108/EC and
Low Voltage Directive 2006/95/EC
RoHS Directive 2011/65/EU Compliant
Input to Output
Input to Ground
Output to Ground
3.0KVac
2.0KVac
0.5KVac
CE
Material and Parts
Galvanic Isolation
EMC
EMC / Emissions
Immunity to
Electrostatic Discharge
IEC 61000-4-2
CISPR 22, EN 55022, FCC Title 47: Class B
EN 55024
Level 4 Criteria A
Air Discharge: 15kV
Contact Discharge: 8kV
Level 3 Criteria A
80MHz-1GHz, 10V/M with 1kHz tone / 80% modulation
Level 3 Criteria A
2kV
1)
1)
1)
Radiated Field
Electrical Fast Transient / Burst
Surge
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
Level 3 Criteria A
2)
Common Mode : 2kV
3)
Differential Mode : 1kV
Level 3 Criteria A
150kHz-80MHz, 10Vrms
Criteria A
10A/Meter
1)
1)
1)
Conducted
Power Frequency Magnetic Fields
Voltage Dips
Low Energy Pulse Test (Ring Wave)
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
IEC61000-4-12
100% dip; 1 cycle (20ms); Self Recoverable
Level 3 Criteria A
2)
Common Mode : 2kV
3)
Differential Mode : 1kV
IEC/EN 61000-3-2, Class A and Class D
IEC/EN 61000-3-3
1)
Harmonic Current Emission
Voltage Fluctuation and Flicker
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common mode (Line to earth)
3) Symmetrical: Differential mode (Line to line)
4
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (October 2014, Rev. 00)
TECHNICAL DATASHEET
PMR Panel Mount Power Supply
5V 300W 1 Phase / PMR-5V320WD
□
A

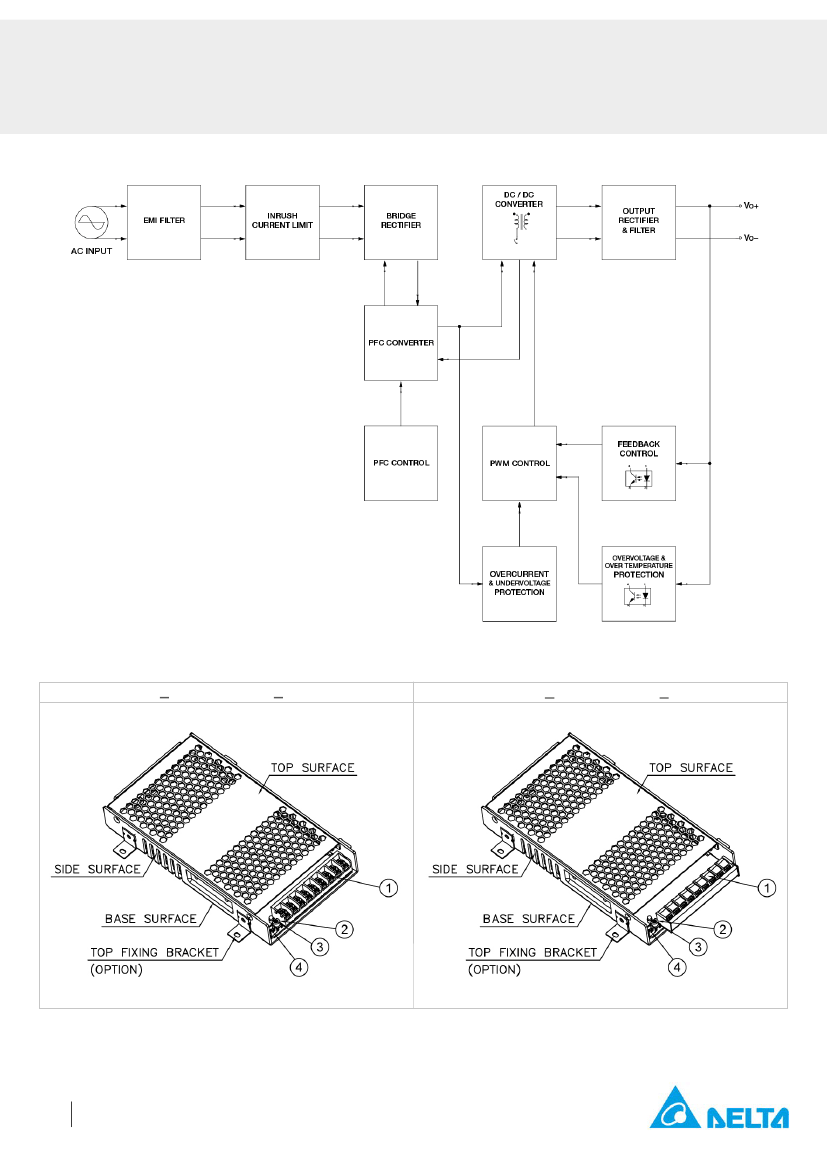

Block Diagram
Device Descriptions
PMR-5V320WDAA, PMR-5V320WDBA:
Terminal Block
PMR-5V320WDGA, PMR-5V320WDCA:
Front Face
1)
2)
3)
4)
Input & Output terminal block connector
DC voltage adjustment potentiometer (Option)
DC OK control LED (Green)
DC OK relay contact (Option)
All parameters are specified at 25°C ambient unless otherwise indicated.
www.DeltaPSU.com (October 2014, Rev. 00)
5
