Preview

1774092: DescriptionCONN BASE SIDE SZHV10/16 PG21; CategoryThe connector; File Size108KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1774092 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1774092	-	-	View	Buy Now

1774092 Overview

CONN BASE SIDE SZHV10/16 PG21

1774092 Parametric

Parameter Name	Attribute value
Connector type	Base - In-box installation
style	Side insertion
size	HV10/16
lock position	Base bottom locking clip (1)
Thread size	PG21
size/dimensions	5.669" long x 2.244" wide x 2.638" high (144.00mm x 57.00mm x 67.00mm)
Shell color	grey
characteristic	cover, feedthrough
Intrusion protection	IP65 - dust and water resistant
Shell material	Aluminum, casting
Shell surface	powder coating
Operating temperature	-40°C ~ 125°C

Preview

Download Datasheet

View All

Extract from the online

catalog

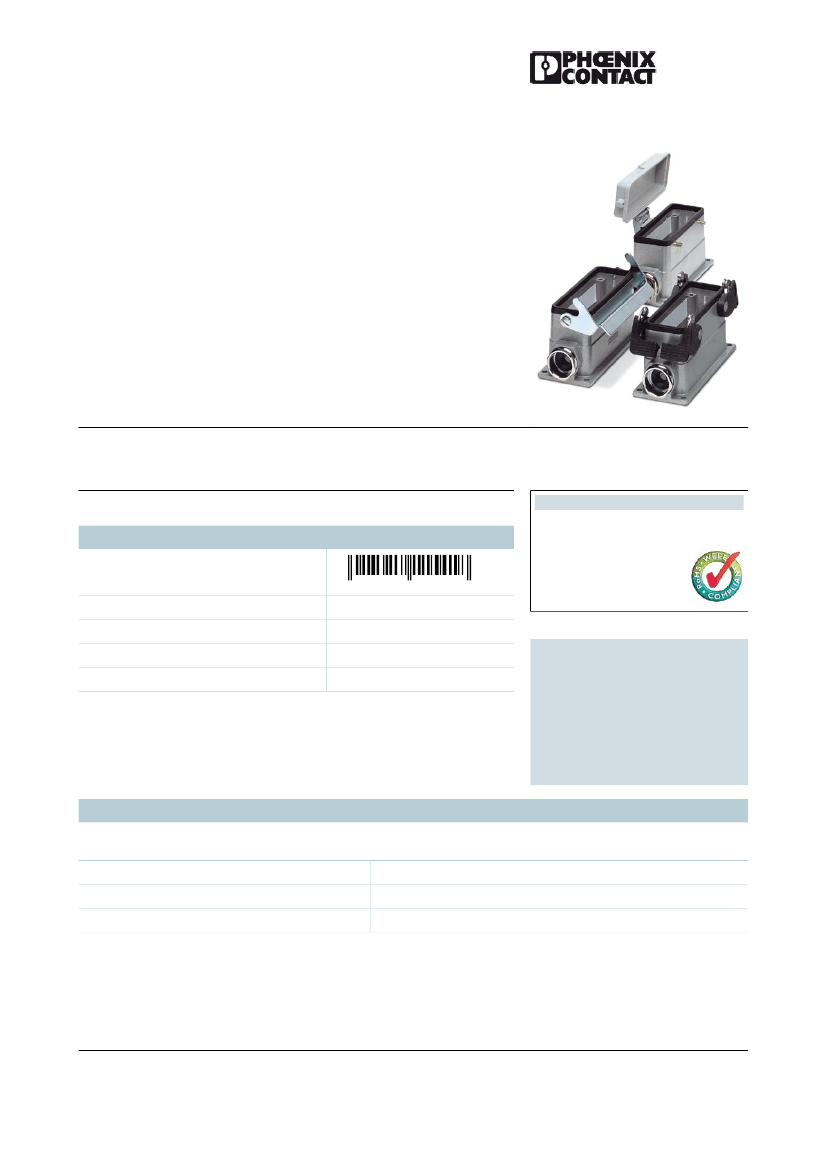

HC-HV 10/16-SMLD-67/M2PG21

Order No.: 1774092

The illustration shows box mounting bases in the versions with double locking

latch and single locking latch, for double locking latch with protective cover

http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1774092

Box mounting base, with single locking latch, height 67 mm, with

screw connection, 2x Pg21, with protective covers

Product notes

Commercial data

GTIN (EAN)

4

017918

115418

WEEE/RoHS-compliant since:

06/28/2006

sales group

Pack

Customs tariff

Catalog page information

D003

10 pcs.

85389099

Page 249 (PC-2005)

http://

www.download.phoenixcontact.com

Please note that the data given

here has been taken from the

online catalog. For comprehensive

information and data, please refer

to the user documentation. The

General Terms and Conditions of

Use apply to Internet downloads.

Technical data

General data

Note

Design

Height

For contact inserts HC-HV10/16

HV10/16

67 mm

PHOENIX CONTACT Deutschland GmbH

http://www.phoenixcontact.de

Page 1 / 3

Jan 27, 2011
