AP9101CK-AATRG1 datasheet, PDF

Datasheet> All Categories > semiconductor> Power management> AP9101CK-AATRG1

AP9101CK-AATRG1: DescriptionIC BATT PROT LI-ION 1-CELL SOT25; Categorysemiconductor Power management; File Size648KB，26 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric View All

AP9101CK-AATRG1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AP9101CK-AATRG1	-	-	View	Buy Now

AP9101CK-AATRG1 Overview

IC BATT PROT LI-ION 1-CELL SOT25

AP9101CK-AATRG1 Parametric

Parameter Name	Attribute value
Function	battery protection
battery chemistry	Li-ion/polymer
Number of batteries	1
failsafe	overcurrent, overvoltage
interface	-
Operating temperature	-40°C ~ 85°C（TA）
Package/casing	SC-74A，SOT-753
Supplier device packaging	SOT-25

Preview

Download Datasheet

View All

AP9101C

SINGLE CHIP SOLUTION FOR 1-CELL Li+ BATTERY PACK

Description

The AP9101C is a protection IC developed for lithium-ion/lithium

polymer rechargeable battery with a high-precision voltage detection

circuit.

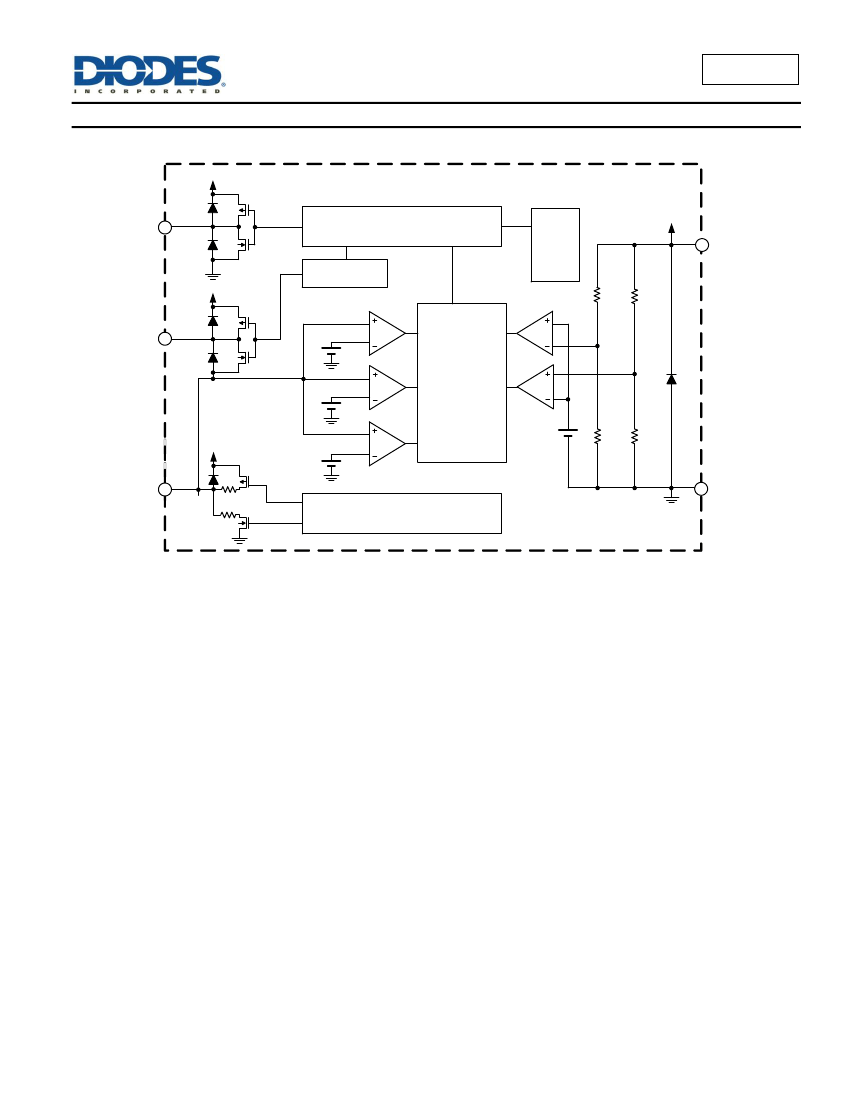

The AP9101C provides a function to protect batteries by detecting

overcharge voltage, overdischarge voltage, overcharge current,

overdischarge current and other abnormalities and turning off the

external MOSFET switch.

The AP9101C also has a built-in fixed time circuit (external capacitors

are unnecessary); the protection circuitry can be comprised with fewer

external components.

The AP9101C is available in standard packages of SOT25 and

SOT26.

Features



Low Current Consumption (+25°



Operation Mode: 3.0µA (Typ) V

= 3.5V



Power-Down Mode: 0.01µA (Typ)

High-Accuracy Voltage Detection Circuit (+25°



Overcharge Detection Voltage: 3.5V to 4.5V (5mV Steps)

Accuracy ±25mV



Overcharge Hysteresis Voltage Range: 0.1V to 0.4V (50mV

Steps) Accuracy ±50mV



Overdischarge Detection Voltage: 2.0V to 3.4V (10mV Steps)

Accuracy ±35mV



Overdischarge Hysteresis Voltage Range: 0V to 0.7V (40mV

Steps) Accuracy ±65mV



Discharge Overcurrent Detection Voltage: 0.05V to 0.32V

(10mV Steps) Accuracy ±15mV



Short Current Detection Voltage: 0.45V to 0.7V (50mV Steps)

Accuracy ±100mV



Charge Overcurrent Detection Voltage: -0.2V to -0.05V (10mV

Steps) Accuracy ±15mV



Overcharger Detection Voltage: 8.0V (Fixed) Accuracy ±2V



Overcharger Release Voltage: 7.3V (Fixed) Accuracy ±2V

Built-In Fixed Detection Delay Time (+25° Accuracy ±20%

C):

Power-Down Mode can be Selectable: Available/Unavailable

Battery

Charge

Function

can

Selectable:

Available/Unavailable

Overcharge Protection Mode: Release

High-Voltage CMOS Process: Up to 30V between VDD and VM

Pins

Totally Lead-free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)



Applications



Lithium-Ion Battery Packs

Lithium Polymer Battery Packs



Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.

2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and

Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

Pin Assignments

(Top View)

Pin 1 Mark

(Top View)

Pin 1 Mark

VSS

VDD

VSS

SOT25

SOT26

1 of 26

www.diodes.com

November 2018

AP9101C

Document number: DS37771 Rev. 7 - 2
