HC2702UD/B datasheet, PDF - EEWORLD Datasheet

HC2702UD/B: DescriptionThree Terminal Voltage Reference, 2 Output, 10V, Trim/Adjustable, Hybrid, PDIP14, DIP-14; CategoryThe power supply circuit; File Size926KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric View All

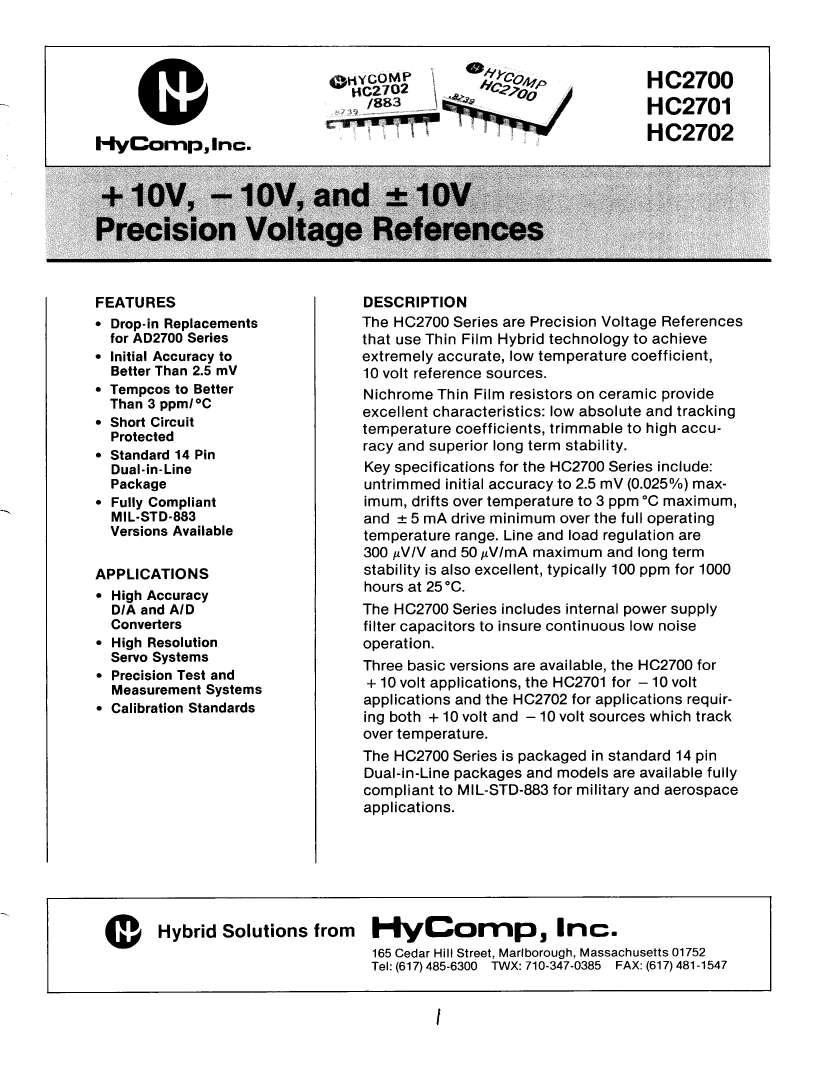

HC2702UD/B Overview

Three Terminal Voltage Reference, 2 Output, 10V, Trim/Adjustable, Hybrid, PDIP14, DIP-14

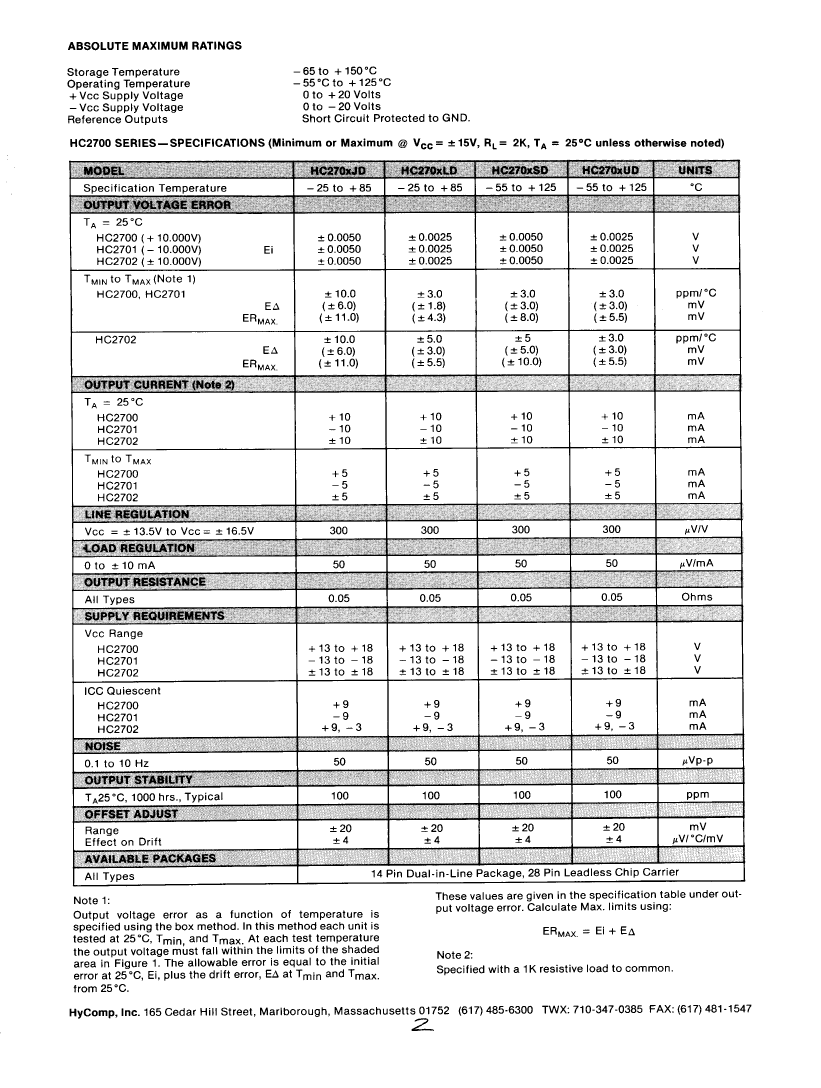

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	ALSO REQUIRES -13V TO -18V SUPPLY; -10V OUTPUT IS ALSO AVAILABLE
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDIP-T14
JESD-609 code	e0

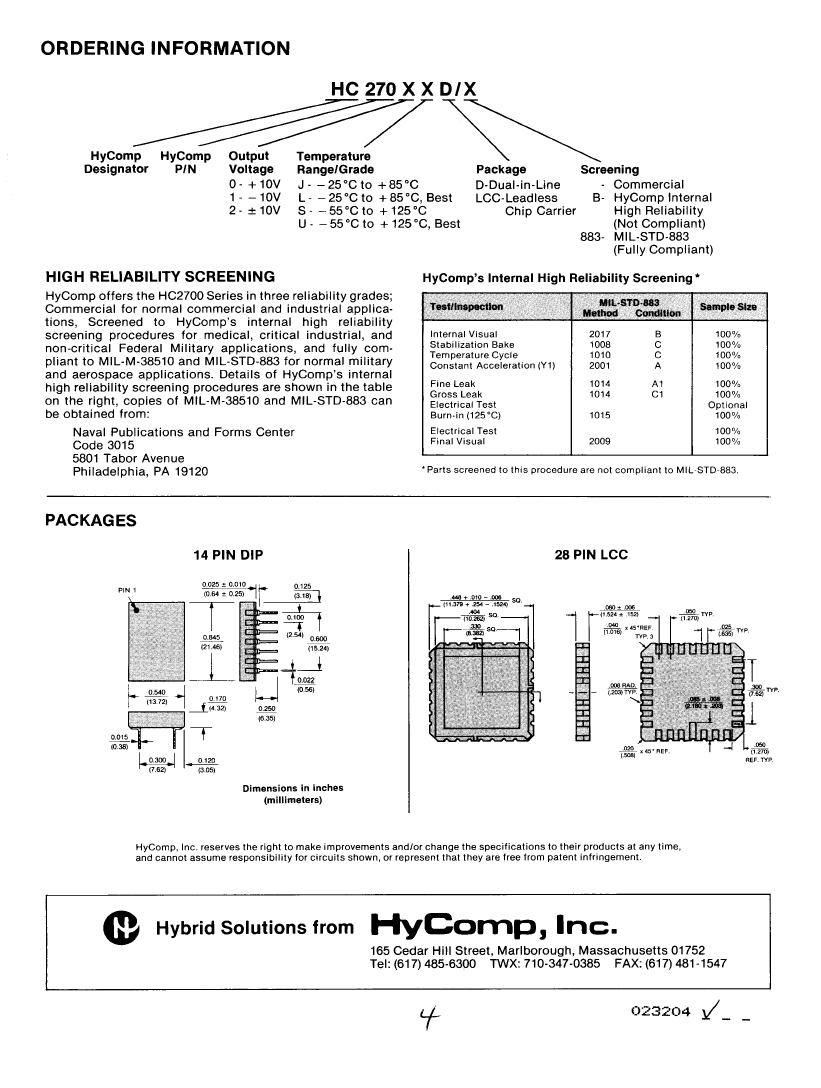

length	21.46 mm
Number of functions	1
Output times	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	10.0025 V
Minimum output voltage	9.9975 V
Nominal output voltage	10 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	13 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	HYBRID
Maximum voltage temperature coefficient	3 ppm/°C
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

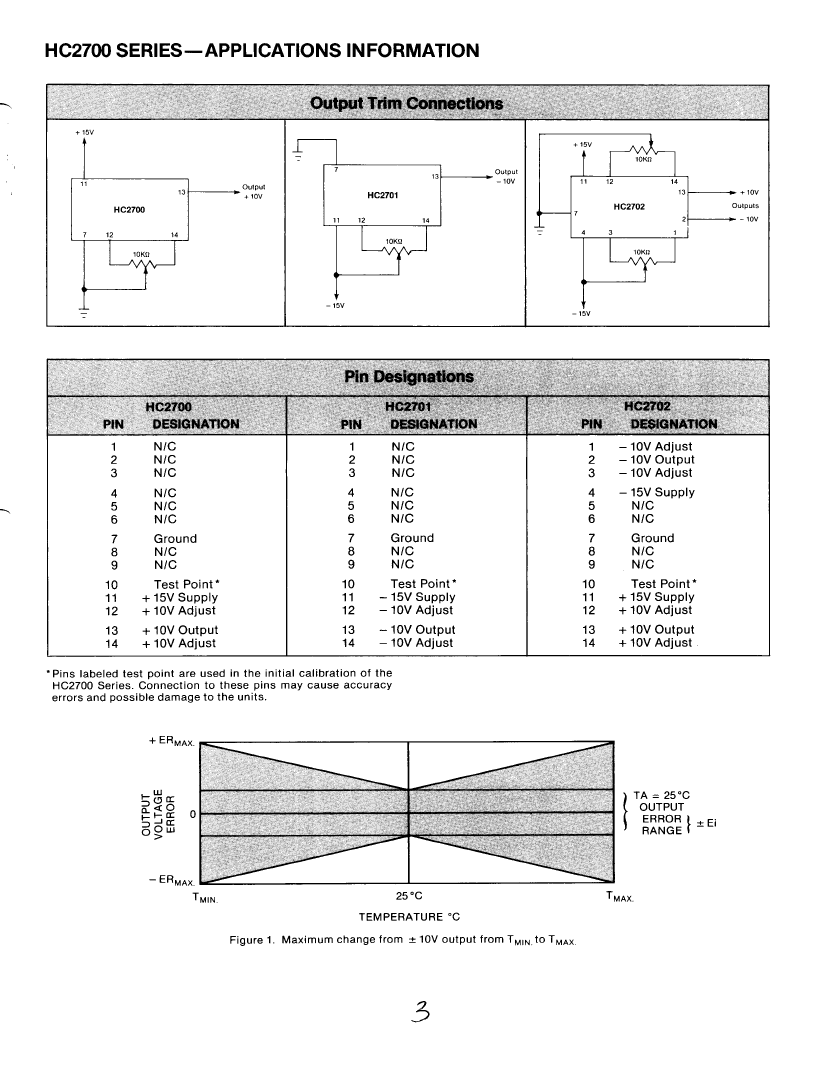

Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.055%
width	7.62 mm
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer
