5923131814F Overview

BI-LEVEL Y/G-Y/G 13" REEL BIN

5923131814F Parametric

Parameter Name	Attribute value
color	Green, Yellow (x 2)
Wavelength - Peak	570nm，586nm
Configuration	2 high
current	30mA
millicandela level	8mcd green, 6.5mcd yellow
perspective	40°
Lens type	scattering
Lens style/size	Round, with dome, 3mm (T-1)
Rated voltage	2V
Installation type	Surface mount, right angle

Preview

Download Datasheet

View All

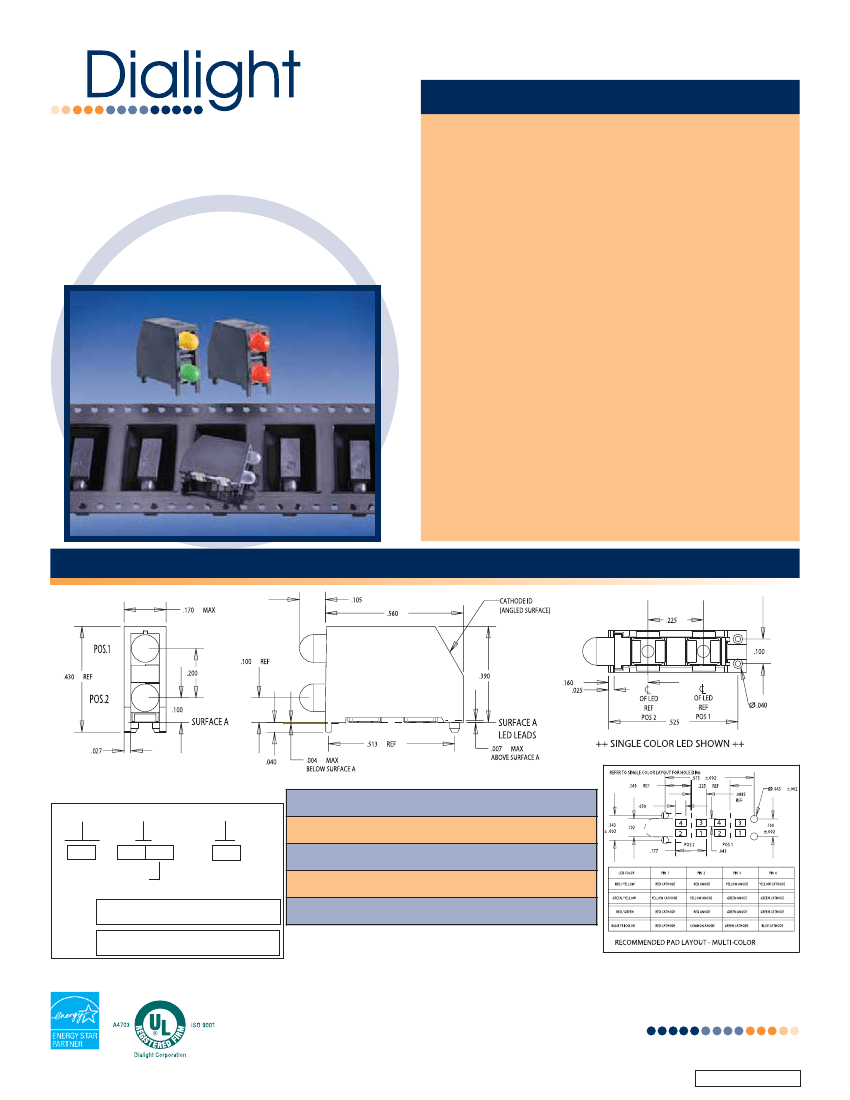

FEATURES / BENEFITS

Available as a Lead (Pb) Free product - RoHS Compliant.

592 SERIES

3mm Bi-level Prism

CBI

Surface Mount LED

BI-COLOR

Incorporates latest LED technology, specifically designed for

surface mounting.

Compatible with automatic placement equipment.

Compatible with surface mount reflow soldering processes.

Black housing enhances contrast ratio.

Housing material meet UL-94V-0 flammability ratings.

Patented Bi-level design provides increased indication

without increased space.

Illumination areas compatible with industry standard 3mm

through-hole Bi-level Circuit Board Indicators.

Packaged in moisture barrier bags for dry packaging per

IPC/JEDEC J-STD-033.

Helps to eliminate mixed technology pc board processing.

SPECIFICATIONS

PART NUMBER CODE*

SERIES

Position 1

Package option

PART NUMBER* COLOR COMBO

592-3030-0XX

RED/GREEN-RED/GREEN

YELLOW/GREEN-YELLOW/GREEN

RED/YELLOW-RED/YELLOW

RED/GREEN-YELLOW GREEN

592

Position 2

0XX

592-3131-0XX

592-3232-0XX

592-3031-0XX

Color = 30) Red/Green 31) Yellow/Green

32) Red/Yellow 00) blank

Package Size Options

-002 = 10 piece strip -013 = 13” reel dia.

Note: Custom color combinations available upon

request. Check with factory for details.

* Part Number with “F” suffix ending is a Lead (Pb) Free

Product - RoHS Compliant.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

a Roxboro Group Company

MDEF592B001_B
