NTMFS4827NET1G

Description
MOSFET N-CH 30V 58.5A SO-8FL
CategoryDiscrete semiconductor    The transistor
File Size110KB,7 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric Compare View All

NTMFS4827NET1G Online Shopping

Suppliers Part Number Price MOQ In stock
NTMFS4827NET1G - - View Buy Now

NTMFS4827NET1G Overview

MOSFET N-CH 30V 58.5A SO-8FL

NTMFS4827NET1G Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerON Semiconductor
Parts packaging codeDFN
package instructionSMALL OUTLINE, R-PDSO-F5
Contacts8
Manufacturer packaging codeCASE 488AA-01
Reach Compliance Codenot_compliant
ECCN codeEAR99
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage30 V
Maximum drain current (ID)8.8 A
Maximum drain-source on-resistance0.0108 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PDSO-F5
JESD-609 codee3
Humidity sensitivity level3
Number of components1
Number of terminals5
Operating modeENHANCEMENT MODE
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin (Sn)
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
NTMFS4827NE

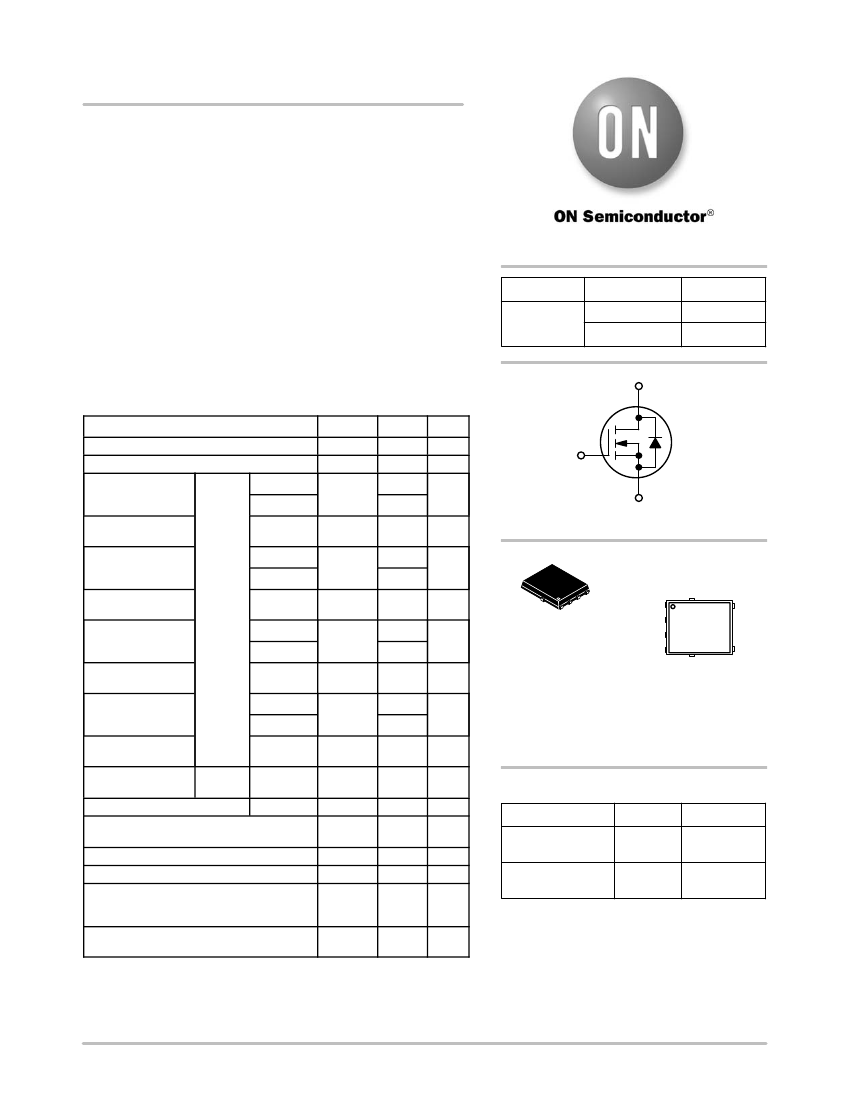

Power MOSFET
Features
30 V, 58.5 A, Single N−Channel, SO−8 FL
Low R
DS(on)
to Minimize Conduction Losses
Low Capacitance to Minimize Driver Losses
Optimized Gate Charge to Minimize Switching Losses
Dual Sided Cooling Capability
These are Pb−Free Device
http://onsemi.com
V
(BR)DSS
30 V
R
DS(ON)
MAX
6.95 mW @ 10 V
10.8 mW @ 4.5 V
I
D
MAX
58.5 A
46.9 A
Applications
CPU Power Delivery
DC−DC Converters
High Side Switching
MAXIMUM RATINGS
(T
J
= 25°C unless otherwise stated)
Parameter
Drain−to−Source Voltage
Gate−to−Source Voltage
Continuous Drain
Current R
qJA
(Note 1)
Power Dissipation
R
qJA
(Note 1)
Continuous Drain
Current R
qJA
v
10 sec
Power Dissipation
R
qJA,
t
v
10 sec
Continuous Drain
Current R
qJA
(Note 2)
Power Dissipation
R
qJA
(Note 2)
Continuous Drain
Current R
qJC
(Note 1)
Power Dissipation
R
qJC
(Note 1)
Pulsed Drain
Current
t
p
=10ms
Steady
State
T
A
= 25°C
T
A
= 85°C
T
A
= 25°C
T
A
= 25°C
T
A
= 85°C
T
A
= 25°C
T
A
= 25°C
T
A
= 85°C
T
A
= 25°C
T
C
= 25°C
T
C
= 85°C
T
C
= 25°C
T
A
= 25°C
T
A
= 25°C
P
D
I
DM
I
Dmaxpkg
T
J
,
T
STG
I
S
dV/dt
EAS
P
D
I
D
P
D
I
D
P
D
I
D
Symbol
V
DSS
V
GS
I
D
Value
30
±20
13.8
10
2.14
22.4
16.1
5.61
8.8
6.4
0.87
58.5
42.3
38.5
117
100
−40
to
+150
38.5
6
86
W
A
W
A
W
W
A
Unit
V
V
A
D (5,6)
G (4)
S (1,2,3)
N−CHANNEL MOSFET
MARKING
DIAGRAM
D
1
A
SO−8 FLAT LEAD
CASE 488AA
STYLE 1
S
S
S
G
4827NE
AYWWG
G
D
D
D
A
= Assembly Location
Y
= Year
WW
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
A
°C
A
V/ns
mJ
NTMFS4827NET3G
Device
NTMFS4827NET1G
Package
SO−8FL
(Pb−Free)
SO−8FL
(Pb−Free)
Shipping
1500 /
Tape & Reel
5000 /
Tape & Reel
Current limited by package
Operating Junction and Storage
Temperature
Source Current (Body Diode)
Drain to Source dV/dt
Single Pulse Drain−to−Source Avalanche
Energy (V
DD
= 50 V, V
GS
= 10 V,
I
L
= 24 A
pk
, L = 0.3 mH, R
G
= 25
W)
Lead Temperature for Soldering Purposes
(1/8” from case for 10 s)
T
L
260
°C
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
*For additional information on our Pb−Free strategy
and soldering details, please download the ON
Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
©
Semiconductor Components Industries, LLC, 2010
December, 2010
Rev. 0
1
Publication Order Number:
NTMFS4827NE/D
