310188S datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 310188S

Preview

310188S: DescriptionINSERT RJ45 JACK COUPLER; CategoryThe connector; File Size48KB，1 Pages; ManufacturerWinchester Interconnect; Websitehttps://www.winconn.com/; Environmental Compliance

Download Datasheet Parametric View All

310188S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	310188S	-	-	View	Buy Now

310188S Overview

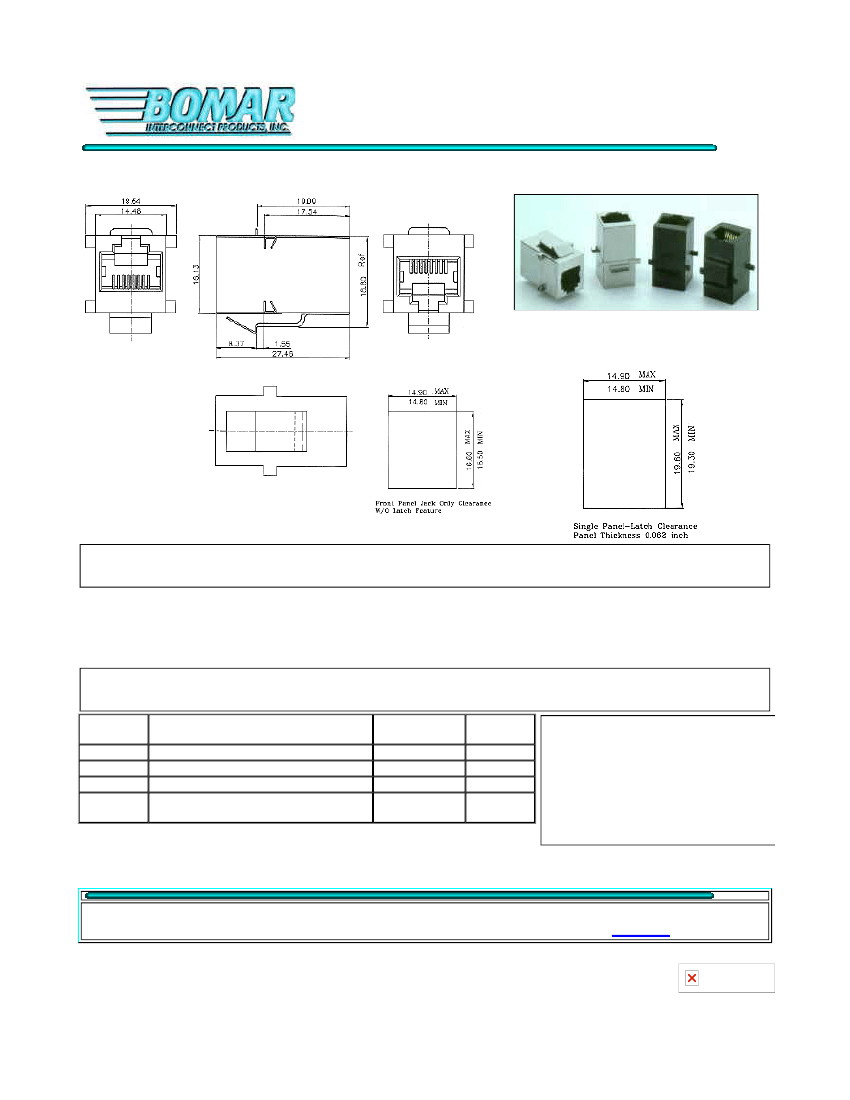

INSERT RJ45 JACK COUPLER

310188S Parametric

Parameter Name	Attribute value
style	module
External type (adapter side)	Module jack 8p8c (RJ45 Ethernet)
Internal type (adapter side)	Module jack 8p8c (RJ45 Ethernet)
External housing material	Polyester, fiberglass reinforced
Internal housing material	Polyester, fiberglass reinforced
External housing color	black
Internal shell color	black
External contact material	-
Internal contact material	-
External contact plating	gold
Internal contact plating	gold
Operating temperature	-
grade	-
Specification	-
characteristic	shield
External contact plating thickness	30µin（0.76µm）
After internal contact plating	30µin（0.76µm）

Preview

Download Datasheet

View All

Modular Couplers

s

Materials

Shielded:

Stainless Steel

Housing:

Standard Material Glass Filled Polyester UL 94V-0

Standard Color Black

Contact:

0.35mm (0.014”) Thickness Alloy C5210. Gold Plating Over Nickel.

Gold Plating:

0.76 u m / 30 u inch

Ordering Information

Positions/

Contacts

6P2C

6P4C

6P6C

8P8C

Description

Modular Coupler, Snap-In

Unshielded

310162BK ‡

310164BK ‡

310166BK ‡

310188BK ‡

Shielded

310162S*

310164S*

310166S*

310188S*

‡

Black (BK) is standard.

Optional colors may require minimum

Red, Green

Blue, Yellow

Gray

White, Ivory

‡ Add Letter “K” To Denote Keyed

See Page 21 For Keystone Wall Plates

FOR TECHNICAL SUPPORT:

PHONE 973-347-4040 / FAX973-347-2111

Back to Index
