Contact insert - HC-M-08-GBIT-STC - 1587713
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

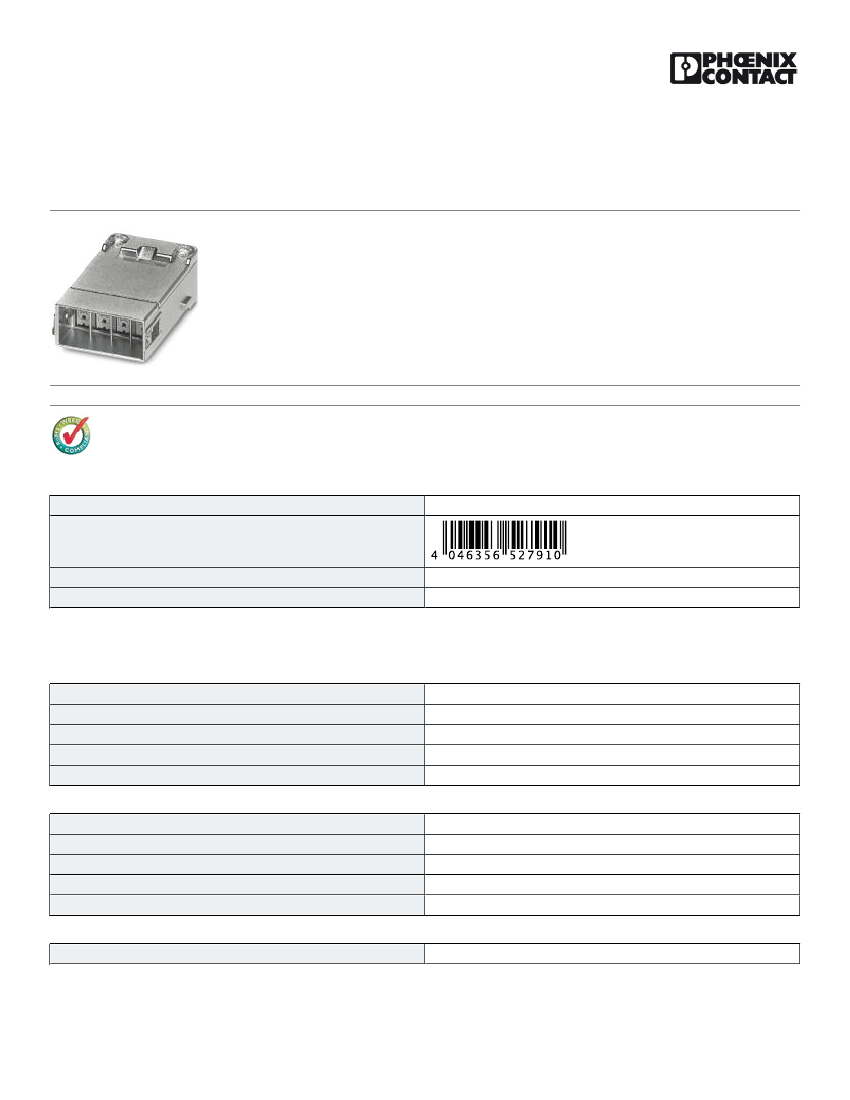

Gigabit connector, 8-pos., male connector, without crimp contacts, for CAT5. Cable to be used: Order No.
1416457.
Key commercial data
Packing unit
GTIN
Custom tariff number
Country of origin
85389099
GERMANY
1 PCE
Technical data
Electrical characteristics
Rated voltage (III/3)
Rated current
Rated surge voltage
Ambient temperature (operation)
Number of positions
50 V
5A
0.8 kV
-40 °C ... 85 °C (including heating up of contacts)
8
Mechanical characteristics
Conductor cross section
Connection cross section AWG
Stripping length of the individual wire
External cable diameter
Insertion/withdrawal cycles
0.08 mm² ... 0.5 mm²
28 ... 20
3.8 mm
5 mm ... 7 mm
≥ 500
General characteristics
Series
HC-M-08-GBIT
19.04.2013 Page 1 / 3
https://www.phoenixcontact.com/us/produkte/1587713
Contact insert - HC-M-08-GBIT-STC - 1587713
Technical data
General characteristics
Number of module slots
Connection method
Inflammability class according to UL 94
Pollution degree
Surge voltage category
Assembly instructions
Connection
1
Crimp connection
V0
3
III
Um CAT5e sicherzustellen, ist die Leitung VS-94-F/... (Artikelnummer
1416457) einzusetzen!!
Um CAT5e sicherzustellen ist der Crimpkontakt mit der Artikelnummer
1688971 und die Crimpzange mit der Artikelnummer 1205448
einzusetzen!!
Material data
Contact material
Contact surface material
Contact carrier material
Phase conductor material
Phase conductor material surface
Copper alloy
Au
PC
Zinc alloy
Nickel
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001031
EC000437
EC000437
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
39121522
39121522
39121522
30211923
39121522
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27180401
27180401
27180401
27180401
27180802
27182702
19.04.2013 Page 2 / 3
https://www.phoenixcontact.com/us/produkte/1587713
Contact insert - HC-M-08-GBIT-STC - 1587713
Approvals
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
Approval details
GOST

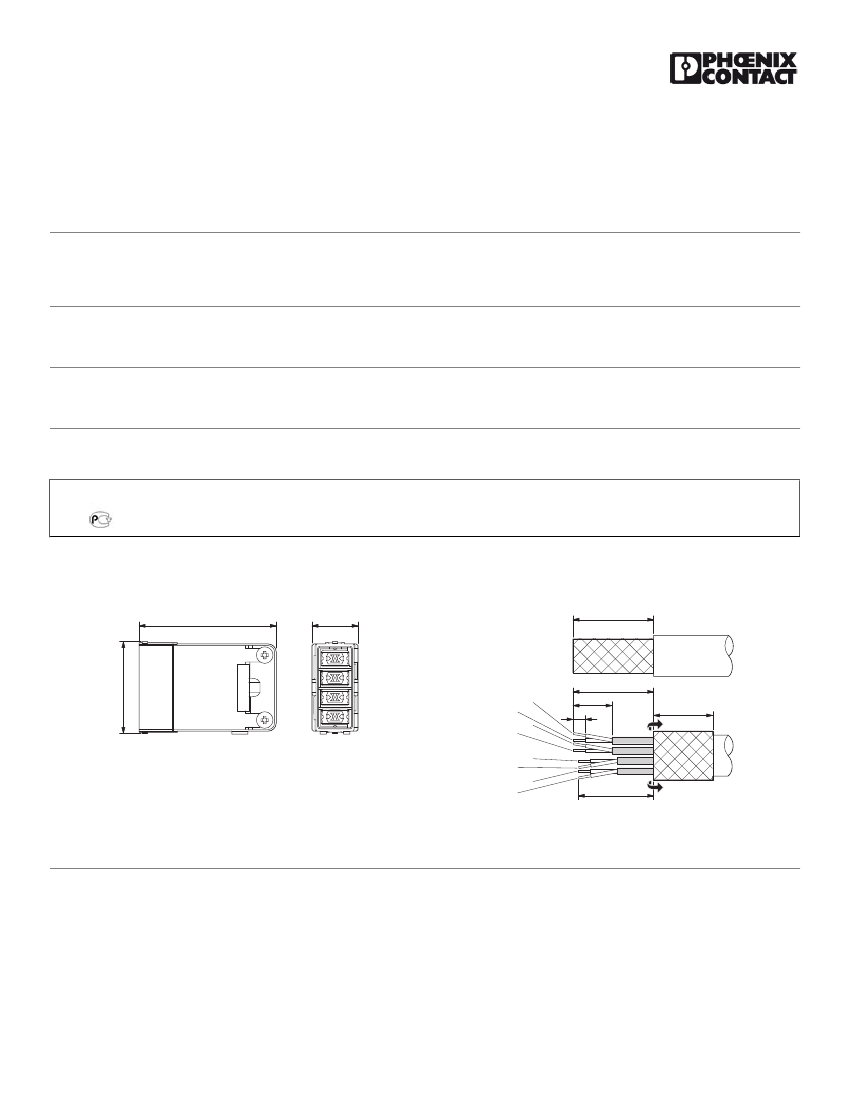

Drawings
Dimensioned drawing
41,4
13,9
Dimensioned drawing
30
26,35
(30)
GN/WH (1)
GN (2)
BN/WH (7)
BN (8)
OG/WH (3)
OG (6)
BU/WH (5)
BU (4)
28
10
4
20
Male insert
Stripping length specifications; pin assignment. Cable to be used: Order No.
1416457
© Phoenix Contact 2013 - all rights reserved
