0.4mm Pitch, 1.5mm Mated Height, Board-to-Fine Coaxial Cable Connectors
DF36 Series
High contact reliability –
Effective mating length of 0.4mm
1.5±0.15 (Mated height)
(0.4) (Effective mating length)
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Enhanced shielding (standard type)

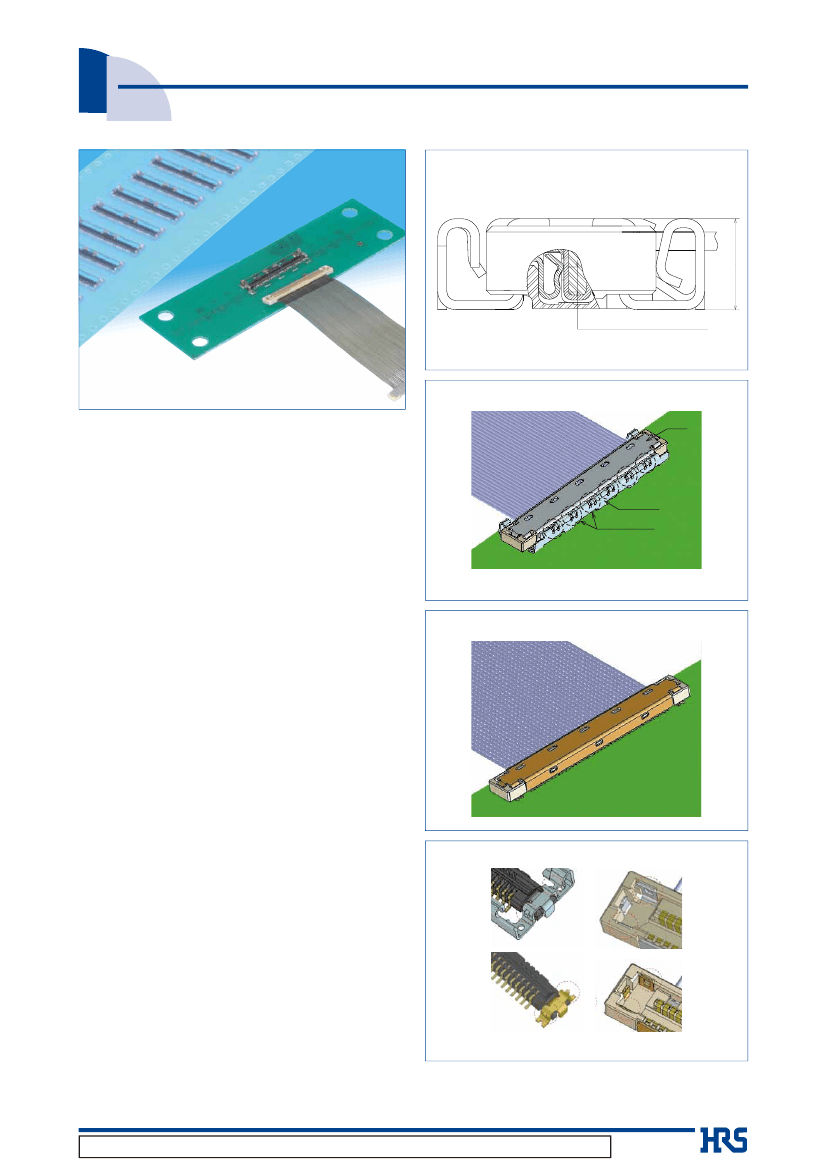

■Features
1. Small mated height and board occupied
space
Small pitch (0.4mm) and mated height (1.5mm)
allows use in space-restricted areas.
Standard type : mated height 1.5mm, depth 4.4mm
Saving space type: mated height 1.5mm, depth
2.8mm Plug : Height 1.33mm, depth 2.8mm
Receptacle
Ground contacts
Plug
Fully mated
Multi-point contacts
Enhanced shielding (Space Saving type)
2. Enhanced shielding and ground connections
Metal covers on the plug and receptacle connect to
each other with a reliable multi-point ground
contacts, assuring reliable ground connection and
EMC protection.
3. Reliable lock
Fully mated condition is assured with reliable
locks at 4 locations, confirming it with a distinct
tactile click.
4. Reliable electrical and mechanical connection
Despite it’s small mated height, unique contact
configuration assures highly reliable connection,
with effective mating length of 0.4mm.
Fully mated
4-point lock: 2 points at each end
5. Solder wicking prevention
Nickel barriers prevent solder wicking in the
critical contact areas.
6. Durable plug construction
Formed metal shells on the top and side surfaces
form a strong and rigid assembly.
7. RoHS, Halogen-free*
*As
defined by IEC61249-2-21
Br-900 ppm maximum,Cl-900 ppm maximum,
Cl+Br combined-1,500 ppm maximum
■Receptacle
for conductivity tests
We have a line-up of connectors for inspection,
usable for electrical testing of both standard type
and space saving type.
Distinct tactile click
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2017.6e
1
DF36 Series●0.4mm Pitch, 1.5mm Mated Height, Board-to-Fine Coaxial Cable Connectors
■Product
Specifications
Current rating
Ratings
Voltage rating
Item
1.Insulation resistance 50Mø min
3.Contact resistance
0.25A (42 AWG)
0.25A (44 AWG) (Note 3)
0.1A (46 AWG)
30V AC
Specification
100V DC
100V AC / 1 minute
100mA (DC or 1,000Hz)
Frequency : 10 to 55Hz, single amplitude of 0.75
mm, 10 cycles in each of the 3 axial directions
96 hours at 40 ±2°C, and humidity of 90 to
95%
Temperature : -55°C
/
5 to 35°C
/
85°C
/
5 to 35°C
Time : 30 min.
/
2 to 3 min.
/
30 min.
/
2 to 3 min.
5 cycles
Operating temperature range
Operating humidity range
Storage temperature range
Storage humidity range
-35 to +85°C (Note 1)
20 to 80%
-10 to +60°C (Note 2)
40 to 70% (Note 2)
Conditions
2.Withstanding voltage No flashover or insulation breakdown
Signal : 80mø max., Ground : 80mø max.
No electrical discontinuity of 1μs or longer
No damage, cracks or parts dislocation.
Contact resistance (Change from initial value) 50mø max.
Insulation resistance : 25Mø min.
No damage, cracks or parts dislocation.
Contact resistance (Change from initial value) 50mø max.
Insulation resistance : 25Mø min.
No damage, cracks or parts dislocation.
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
4.Vibration
5.Humidity
6.Temperature cycle
7.Durability
8.Resistance to
soldering heat
Contact resistance (Change from initial value) 50mø max.
30 cycles
No damage, cracks or parts dislocation.
No deformation of components affecting
performance.
Reflow : At the recommended temperature profile
Manual soldering : 350°C for 3 seconds
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of connectors after board mounting
and the temporary storage conditions of transportation, etc.
Note 3 : With only the connector portion at an elevated temperature level, the rated current value is set.
■Materials
/ Finish
Item
Receptacle
(Standard)
Plug
(Standard)
Item
Receptacle
(Space-saving)
Plug
(Space-saving)
Part
Insulator
Contacts
Metal cover
Insulator
Contacts
Metal shell
Part
Insulator
Contacts
Metal cover
Insulator
Contacts
Metal shell
Material
LCP
Phosphor bronze
Phosphor bronze
LCP
Phosphor bronze
Phosphor bronze
Material
LCP
Phosphor bronze
Phosphor bronze
LCP
Phosphor bronze
Phosphor bronze
Finish
Color : Black
Gold plating
Tin plating
Color : Natural (Beige), Black
Gold plating
Tin plating
Finish
Color: Black
Gold plating
Gold plating
Color : Natural (Beige), Black
Gold plating
Gold plating
Remarks
UL94V-0
-------
-------
UL94V-0
-------
-------
Remarks
UL94V-0
-------
-------
UL94V-0
-------
-------
2
DF36 Series●0.4mm Pitch, 1.5mm Mated Height, Board-to-Fine Coaxial Cable Connectors
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Connector
DF 36 A J –
*
S – 0.4 V (
**
)
1
2
3
4
5
6
7
8
9
DF 36 A J –
*
P – SHL
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1
1
2
3
2
3
4
5
6
4
10
Insulator type
J
: Receptacles for conductivity
tests
Blank : Standard or space-saving
P
: Single-row plug
Number of contacts
Standard
: 15 to 50
Space-saving
: 15 to 25
Receptacles for conductivity tests : 15 to 50
Series name : DF
Series No. : 36
Connector style
Receptacle/shell
A : Standard
Blank : Space-saving
Plug
Blank : Standard
6
7
8
9
10
5
Connector style
S
: Single-row receptacle
P
: Single-row plug
Contact pitch: 0.4mm
Termination type
V
: Straight SMT
SD : Fine coaxial cable plug
Packaging
(51) : Embossed tape packaging
Installation item (separate)
SHL : Metal cover
■Combinations
●Standard
use
DF36(A)-*S-0.4V(**)
+
DF36(A)-*P-ASSY
DF36-*P-0.4SD(**)
DF36(A)-*P-SHL
Note: The product specification of the above combination is shown on page 2.
(
)
●Receptacle
test
DF36(A)J-*P-ASSY • • Note
DF36-*P-0.4SD(**)
DF36(A)J-*P-SHL
Note: This harness item is only usable for the receptacle test.
For the product specification of the above combination, please contact our sales department.
DF36(A)-*S-0.4V(**)
+
(
)
●Plug
test
DF36(A)J-*S-0.4V(**) • • Note
DF36(A)-*P-ASSY
DF36-*P-0.4SD(**)
DF36(A)-*P-SHL
Note : This harness item is only usable for the plug test.
For the product specification of the above combination, please contact our sales department.
π
: ASSY means a harness item.
+
(
)
3
DF36 Series●0.4mm Pitch, 1.5mm Mated Height, Board-to-Fine Coaxial Cable Connectors
■

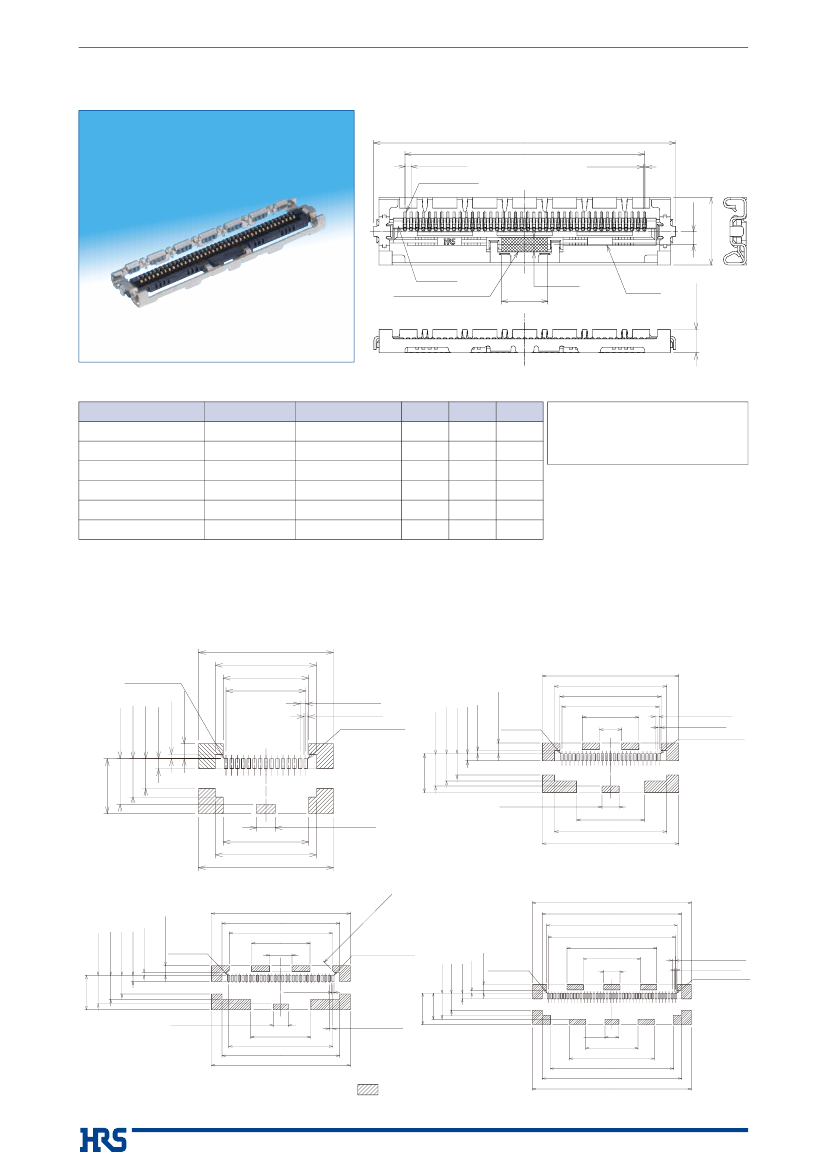

Receptacles - Standard, with metal cover
B±0.2
A±0.15
P=0.4±0.1
Contact No.1
(0.87)
CAV No.
0.15±0.05
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Vacuum pick-up area
(C)
All dimensions : mm
Part No.
DF36A-15S-0.4V(**)
DF36A-25S-0.4V(**)
DF36A-30S-0.4V(**)
DF36A-40S-0.4V(**)
DF36A-45S-0.4V(**)
DF36A-50S-0.4V(**)
HRS No.
662-4509-5-**
662-4011-4-**
662-4017-0-**
662-4003-6-**
662-4008-0-**
662-4043-0-**
No. of Contacts
15
25
30
40
45
50
A
5.6
9.6
11.6
15.6
17.6
19.6
B
9.66
13.66
15.66
19.66
21.66
23.66
C
2.6
2.6
3.0
3.0
3.0
3.0
[Specifications number] - * *, (* *)
(51) : Embossed tape packaging
(4,000 pcs/reel)
Note 1 : Tape and reel packaging (4,000 pcs/reel).
Order by number of reels.
Note 2 : The 15 pos. does not have a lot stamp.
BRecommended
PCB mounting pattern
●15
pos.
Contact No.1
3.2±0.05
2.7±0.05
2.1±0.05
0.7±0.05
0.3±0.05
1.05±0.05
9.47±0.05
7.09±0.05
6±0.05
5.6±0.02
0.4±0.02
0.25±0.02
Contact No.15
●25
pos.
1.05±0.05
13.47±0.05
11.09±0.05
10±0.05
9.6±0.02
5.6±0.05
2.2±0.05
3.85±0.05
3.2±0.05
2.7±0.05
2.1±0.05
0.7±0.05
0.3±0.05
Contact No.1
P=0.4±0.02
0.25±0.02
Contact No.25
3.85±0.05
1.7±0.05
1.3±0.05
6±0.05
7.09±0.05
9.47±0.05
6.7±0.05
11.09±0.05
13.47±0.05
1.05±0.05
3.85±0.05
3.2±0.05
2.7±0.05
2.1±0.05
0.7±0.05
0.3±0.05
Contact No.1
Contact No.30
2.7±0.05
2.1±0.05
0.7±0.05
0.3±0.05
1.05±0.05
15.47±0.05
13.09±0.05
11.5±0.05
6.5±0.05
2.5±0.05
C
0.
25
±
0.
●30
pos.
●40
pos.
05
Contact No.1
19.47±0.05
17.09±0.05
16±0.05
15.6±0.02
11±0.05
7±0.05
2±0.05
0.25±0.02
1.7±0.05
6.7±0.05
11.6±0.02
13.09±0.05
15.47±0.05
P=0.4±0.02
3.85±0.05
3.2±0.05
Ground areas
1.7±0.05
6.4±0.05
10.4±0.05
15.1±0.05
17.09±0.05
19.47±0.05
4
1.5±0.15
(0.95)
Lot No.
P=0.4±0.02
0.25±0.02
Contact No.40
4.4±0.2
DF36 Series●0.4mm Pitch, 1.5mm Mated Height, Board-to-Fine Coaxial Cable Connectors
BRecommended
PCB mounting patterns
●45
pos.
21.47±0.05
19.09±0.05
18±0.05
17.6±0.02
13.4±0.05
10±0.05
5.6±0.05
2.2±0.05
●50
pos.
Contact No.1
3.85±0.05
3.2±0.05
2.7±0.05
2.1±0.05
0.7±0.05
0.3±0.05
1.05±0.05
P=0.4±0.02
0.25±0.02
Contact No.45
23.47±0.05
21.09±0.05
20±0.05
19.6±0.02
16±0.05
12.8±0.05
8.8±0.05
5.6±0.05
1.6±0.05
3.85±0.05
3.2±0.05
2.7±0.05
2.1±0.05
0.7±0.05
0.3±0.05
1.05±0.05
Contact No.1
P=0.4±0.02
0.25±0.05
Contact No.50
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1.7±0.05
6.7±0.05
12.1±0.05
17.1±0.05
19.09±0.05
21.47±0.05
1.7±0.05
6.7±0.05
14.1±0.05
19.1±0.05
21.09±0.05
23.47±0.05
Ground areas
■

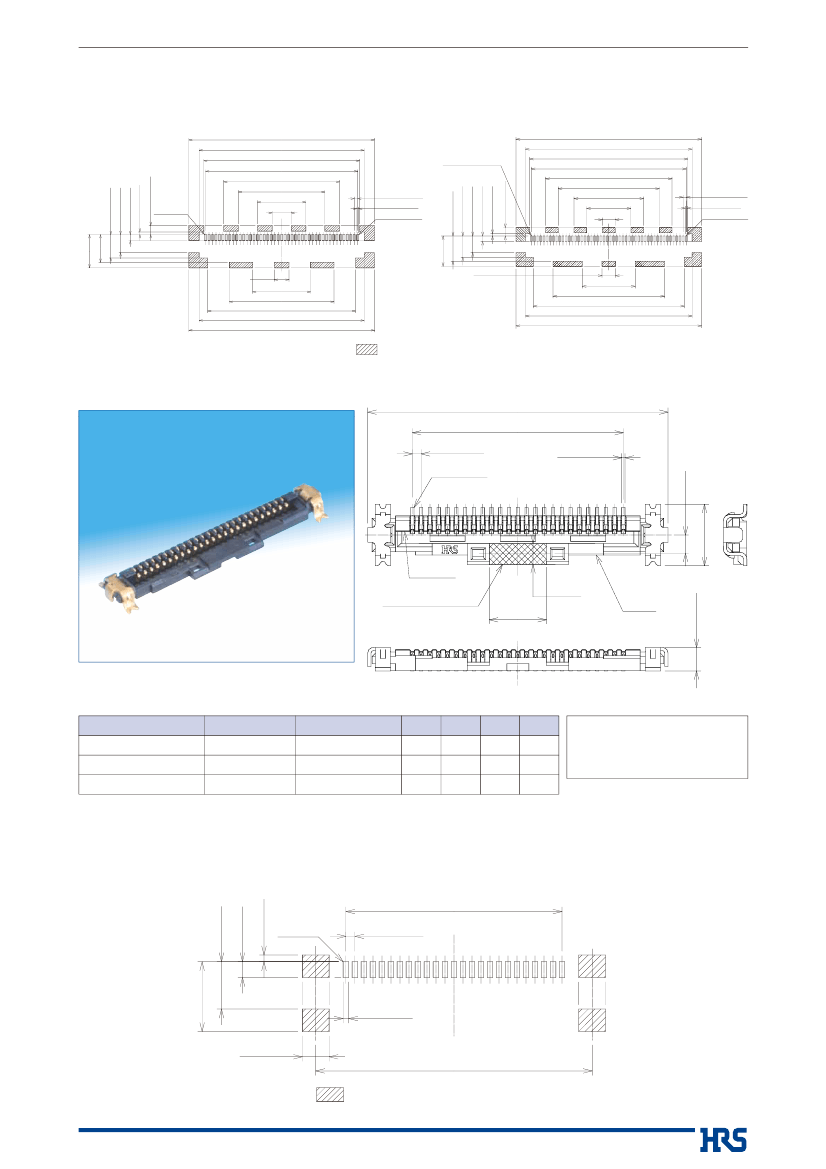

Receptacles - Space-saving
B±0.2
A±0.15
P=0.4±0.1
Contact No.1
0.15±0.05
(0.87)
(0.95)
(C)
Lot No.
1.5±0.15
Vacuum pick-up area
CAV No.
All dimensions : mm
Part No.
DF36-15S-0.4V(**)
DF36-20S-0.4V(**)
DF36-25S-0.4V(**)
HRS No.
662-4031-1-**
662-4039-3-**
662-4005-1-**
No. of Contacts
15
20
25
A
5.6
7.6
9.6
B
9.66
11.66
13.66
C
2.6
2.6
2.6
D
8.28
10.28
12.28
[Specifications number] - * *, (* *)
(51) : Embossed tape packaging
(5,000 pcs/reel)
Note 1 : Tape and reel packaging (5,000 pcs/reel).
Order by number of reels.
BRecommended
PCB mounting pattern
2.1±0.05
0.7±0.05
0.3±0.05
A±0.02
Contact No.1
P=0.4±0.02
3.1±0.05
0.25±0.02
1.19±0.05
D±0.05
Ground areas
(2.8)
5
