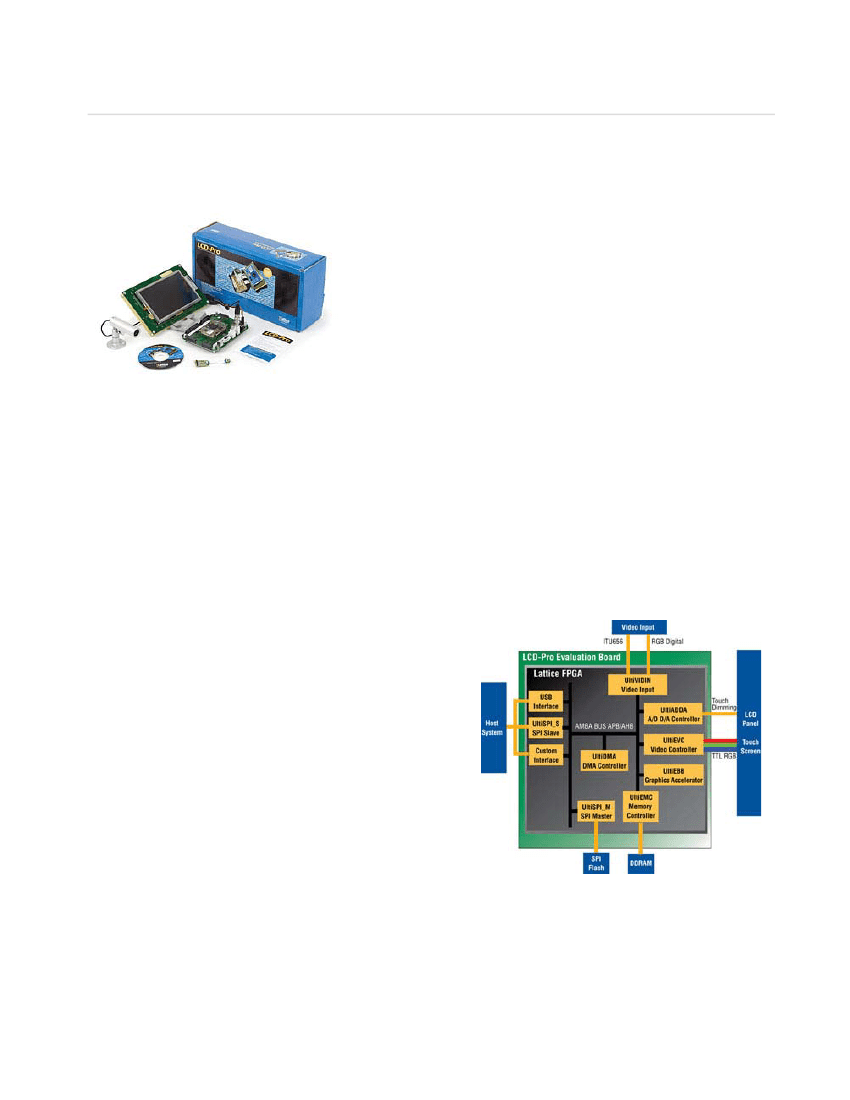

Lattice LCD-Pro Advanced Video Graphics Controller Evaluation Kit
The LCD-Pro Evaluation Kit enables evaluation and demonstration of the functions of the LCD-Pro Library, a set of flexible, configurable IP
cores which can be used to implement versatile and powerful display control, graphics and video applications. The library is based around
the industry standard AMBA™ bus architecture, allowing interconnection of the LCD-Pro IP with a wide range of system components
compatible with the AMBA™ bus. The LCD-Pro IP cores are targeted to Lattice FPGAs, specially optimized for the LatticeECP2 low-cost FPGA
family. The library contains several IP providing advanced graphics system functionalities.
Key Features
Fast Time-to-Market
Easy Core Integration into LatticeECP2 and LatticeXP2 FPGAs
Field-Proven IP
High-Performance Advanced Video Architecture
Design Optimized for Cost-Sensitive Applications
Video Controller supports LCD Displays from 2 inches to 23 inches and larger
Easy to add Custom or Proprietary IP Cores from Third Parties
Manufacturer
Exor International
Kit Contents
Carrier Board including 2x CVBS and 1x VGA Video Input Ports
LatticeECP2-50 based FPGA module
7" WVGA LCD Color Touch Display
Color Video Camera
12 VDC Power Supply
USB 2.0 Cable
Adapter for Lattice JTAG Cable
SPI Flash
M25P32 - 4Mx8bit DDR Video Memory 64MB (32Mx16bit)
48MHz Oscillator
JTAG port
Analog circuits for A/D – D/A converters,
Analog front end for Video Input,
Universal LCD and Touch Screen connectors
CD-ROM
Applications
Industrial and automated control
Automotive graphics and video systems
Medical monitors and instrumentation
Household Appliances (Washers, Refrigerators)
Building Automation HMI
Marine automation systems
Consumer automation (Kiosks, Vending Machines, ATMs)
http://www.latticesemi.com/products/developmenthardware/verticalmarketsolutions/lcdpro... 10/6/2011
LCD-Pro Evaluation Kit
Page 2 of 3
Extensive LCD-Pro IP Library
The library offers simplified system and host interfacing due to the use of the widely adopted, industry standard, AMBA® bus architecture
and included system interface cores. The cores, which are configurable with various implementation options available, offer a high degree of
solution scalability. Additionally, the cores are designed and optimized for high speed required in state-of-the-art graphics systems,
providing simplified timing closure and short development time.
Lattice LCD-Pro IP Library
Suite 1:
Base Video
Controller
(BVC)
Suite 2:
BVC +2D
Accelerator
Suite 3:
BVC +2D
Accelerator
+Video Input IP
LCD-Pro IP
Description
UltiEVC Video Controller
UltiEMC Memory Controller
UltiADDA
Advanced flat panel display controller
Low slice cost, high bandwidth, DDR memory
controller
FPGA based AD/DA/touch screen controller
(coupled with external analog circuitry). These
cores are supported by a reliable and efficient
set of system IP
AMBA 3 AHB™ multi-layer switch matrix
interconnect
AMBA 3 AHB™ to APB™ bridge
SPI master controller
SPI slave core providing AMBA® bus access to
external host
I2C master controller
USB to AMBA® AHB™ interface - versatile test
and debug link
Advanced BITBLT core providing ROP and
Alpha blending operations
Advanced video input/frame grabber core
UltiAHB_I
UltiAPB_B
UltiSPI_M
UltiSPI_S
UltiI2C_M
UltiUSBDMA
UltiEBB 2D Graphics
Accelerator
UltiVIDIN Video Input
The library allows easy integration of advanced FPGA-based graphics systems with powerful features:
Ability to control of a wide range of flat panel displays ranging from low end CIF and QVGA up to high definition TFT, in 8, 16 or 24 bit
color (fi led proven with more than 30 commercially available displays)
Multi-layer image compositing available in display controller, supporting simple overlaying, color keyed transparency, alpha blending and
alpha masking
Variable layer color depth, size, positioning, memory geometry and location, smooth scrolling
Display refresh synchronization
Support for fast hardware BITBLT operations with standard ROP or Alpha composition
Support for 8,16, 24 and 32 bit bitmap formatting, variable and independent memory geometry for source and destination bitmaps
Powerful alpha blending operations supporting the Porter-Duff alpha composition rules.
Solid and Pattern fill operations
Hardware color expansion of monochromatic bitmaps, color channel mixing support.
Versatile video input allowing multiple video input channels with multiple input muxing, supporting ITU-R BT.656 (ITU656) or Digital RGB
video inputs
Real-time down-scaling of input video stream
Variable video image memory geometry, cropping and positioning
Frame grabbing, video input signal synchronization
High bandwidth DDR frame buffer memory support
FPGA-based AD/DA controller employing external analog circuitry.
Touch sensing, Backlight and dimming control
http://www.latticesemi.com/products/developmenthardware/verticalmarketsolutions/lcdpro... 10/6/2011
LCD-Pro Evaluation Kit
Page 3 of 3
Control of embedded peripheral memories over SPI and I2C buses.
System interfacing over peripheral SPI bus or via USB link from an external USB host
Required Software
STEP 1 - Configurator:
The Lattice LCD-Pro Advanced Touch-Screen Video Graphics Controller Evaluation Kit comes complete with the full
LCD-Pro library of time-limited IP and LCD-Pro Configurator software and Plugins on CD-ROM. The LCD-Pro Configurator software can be
installed on a PC and the LCD-Pro Evaluation Kit connected to the PC via the included USB cable. The kit does not require any additional
software for evaluation of the functionality of the included IP.
To download the latest version of the LCD-Pro Configurator software,
visit this link.
STEP 2 - LCD Pro IP Cores:
: The LCD-Pro IP library comprises 11 cores from Exor-Sitek which offer a variety of functions for use with the
LCD-Pro Evaluation Kit. A single download from IP Express provides access to all cores for evaluation. To purchase, customers can buy one
of 3 suites which comprise various IP as shown in the table above.
Evaluate:
Similar to other Lattice IP cores, the IP cores for LCD Pro can be evaluated free of charge. The IP ("Display Controller Suite")
download from IP Express includes all the IP cores listed in the table above. Some or all the cores can be selected during the installation
process.
Purchase:
To purchase one of the 3 suites, please contact your
local Lattice Sales Representative.
Download IP Core User Manuals (zip)
STEP 3 - Tutorial and Supporting Software:
For building an FPGA design successfully using the LCD-Pro IP cores, a few other supporting
IP cores and logic modules are provided along with the top level RTL templates. A tutorial document has also been created to work you
through an example design using these IP cores. To use the tutorial, the user must have the LCD-Pro Evaluation Kit and have the LCD-Pro
IP cores downloaded and installed.
Download Tutorial Document (pdf)
Download Supporting IP Cores, Modules and Top Level RTL Templates (zip)
Ordering Part Number
LCD-Pro Evaluation Kit: LFE2-50E-LCDPRO-EVN
(To purchase, please visit our
online store.)
IP Suite 1:
IP Suite 2:
IP Suite 3:
BVC-BASE-P2-N
BVC-2DACC-P2-N
BVC-2DACCVI-P2-N
