Feed-through terminal block - STS 4-TWIN/L BU - 3036589
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 6 mm²,
AWG: 28 - 10, Width: 6.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
The illustration shows the product
version STS 4-TWIN/L
Product Features
Same shape and pitch as the feed-through terminal blocks
Cross connection to adjacent feed-through terminal blocks with the consistent FBS ... plug-in bridge system
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
11.69 GRM
85369010
Germany
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Surge voltage category
Insulating material group
Connection in acc. with standard
1
3
blue
PA
V0
38 A (with 6 mm² conductor cross section)
8 kV
III
I
IEC 60947-7-1
19.11.2013 Page 1 / 12
https://www.phoenixcontact.com/us/products/3036589
Feed-through terminal block - STS 4-TWIN/L BU - 3036589
Technical data
General
Nominal current I
N
Nominal voltage U
N
Open side panel
32 A (the maximum load current must not be exceeded by the total current
of all connected conductors)
800 V
ja
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
64.6 mm
43 mm
50.5 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
0.08 mm²
6 mm²
28
10
0.08 mm²
4 mm²
28
12
0.14 mm²
4 mm²
0.14 mm²
4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1 mm²
sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Spring-cage connection
10 mm
A4
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
27141121
27141121
27141120
27141120
19.11.2013 Page 2 / 12
https://www.phoenixcontact.com/us/products/3036589
Feed-through terminal block - STS 4-TWIN/L BU - 3036589
Classifications
eCl@ss
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141120
27141120
27141120
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
VDE Gutachten mit Fertigungsüberwachung / GOST / DNV / KR / IECEE CB Scheme / UL Recognized / GOST / VDE Gutachten mit
Fertigungsüberwachung / IECEE CB Scheme
Ex Approvals
Approvals submitted
Approval details
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
0.2-4
19.11.2013 Page 3 / 12
https://www.phoenixcontact.com/us/products/3036589
Feed-through terminal block - STS 4-TWIN/L BU - 3036589
Approvals
Nominal current IN
Nominal voltage UN
32 A
800 V
GOST
DNV
KR
IECEE CB Scheme
mm²/AWG/kcmil
Nominal voltage UN
4
800 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
28-10
30 A
600 V
C
28-10
30 A
600 V
GOST
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.2-4
32 A
800 V
19.11.2013 Page 4 / 12
https://www.phoenixcontact.com/us/products/3036589
Feed-through terminal block - STS 4-TWIN/L BU - 3036589
Approvals
IECEE CB Scheme
mm²/AWG/kcmil
Nominal voltage UN
4
800 V

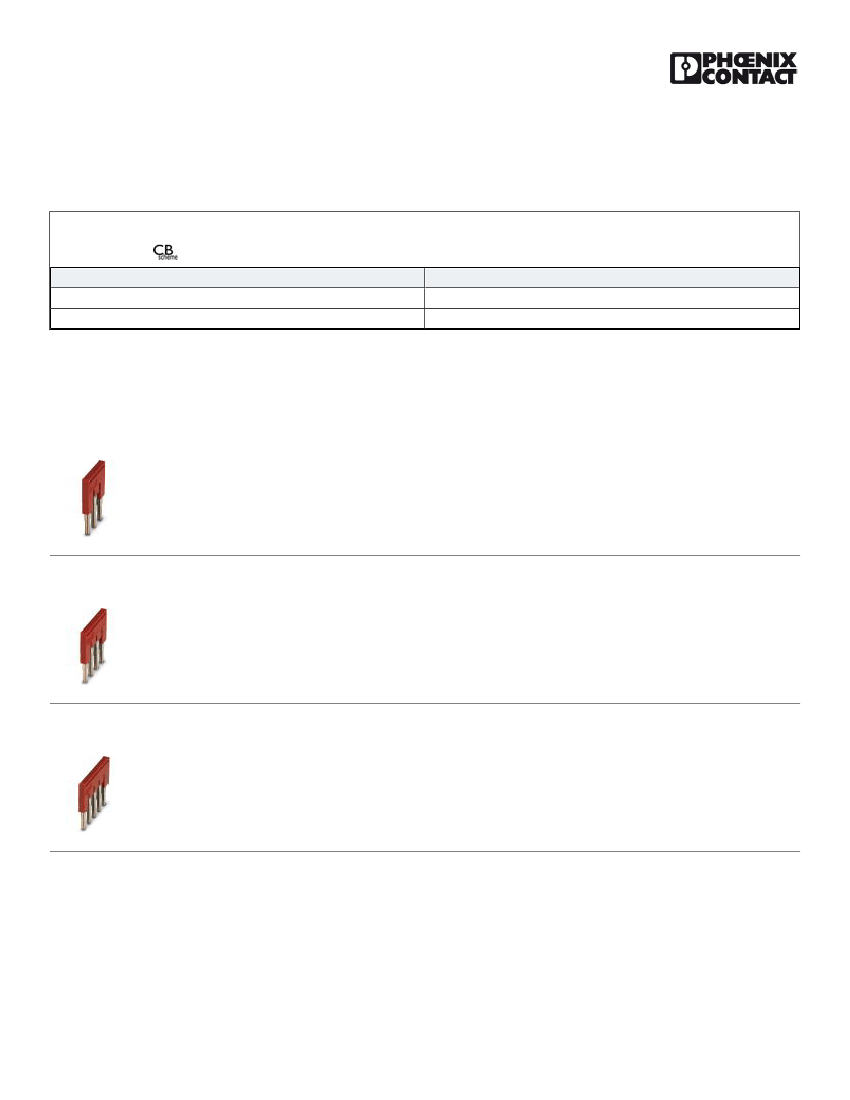

Accessories
Accessories
Bridge
Plug-in bridge - FBS 3-6 - 3030242
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge - FBS 4-6 - 3030255
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge - FBS 5-6 - 3030349
Plug-in bridge, Number of positions: 5, Color: red
19.11.2013 Page 5 / 12
