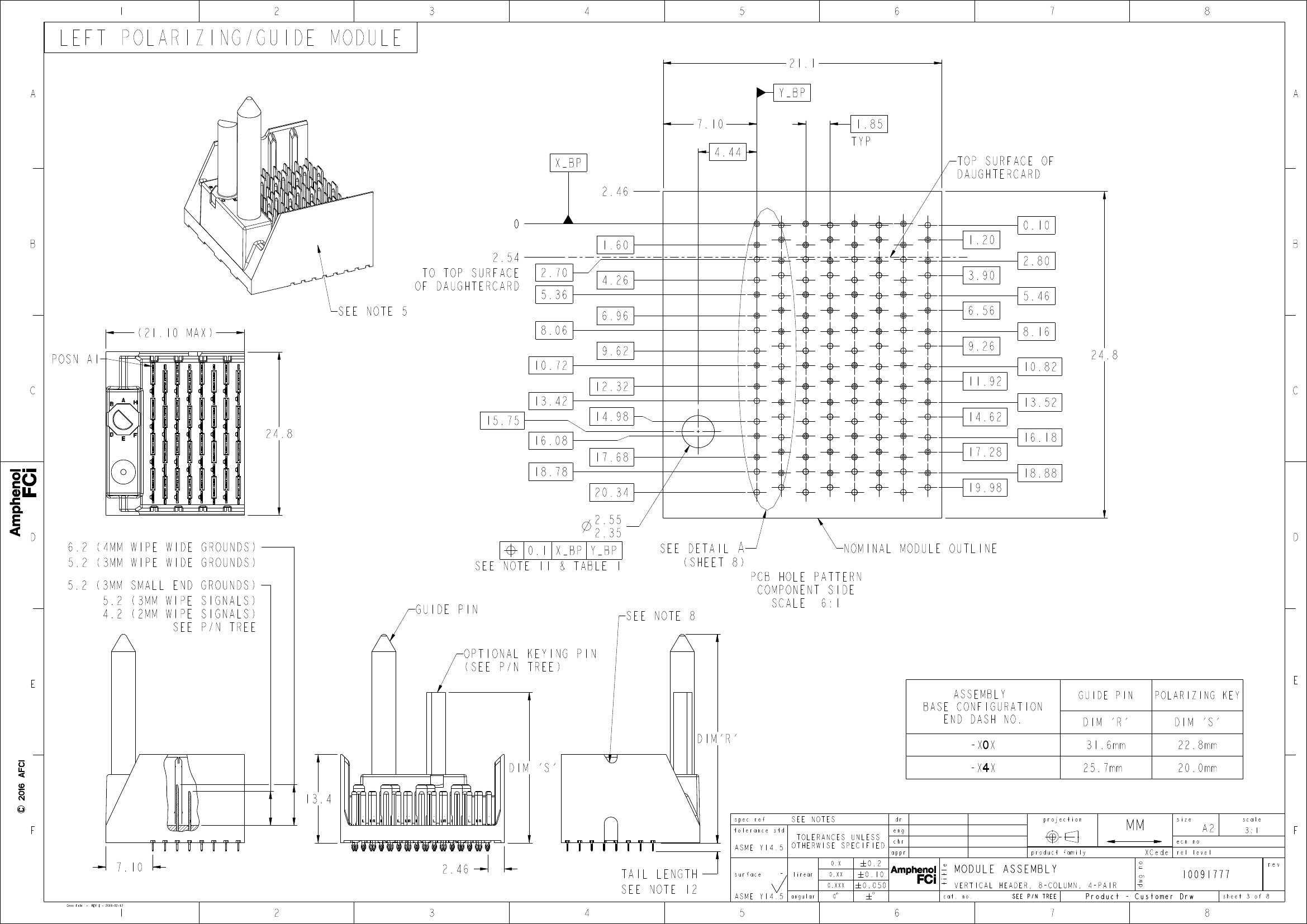

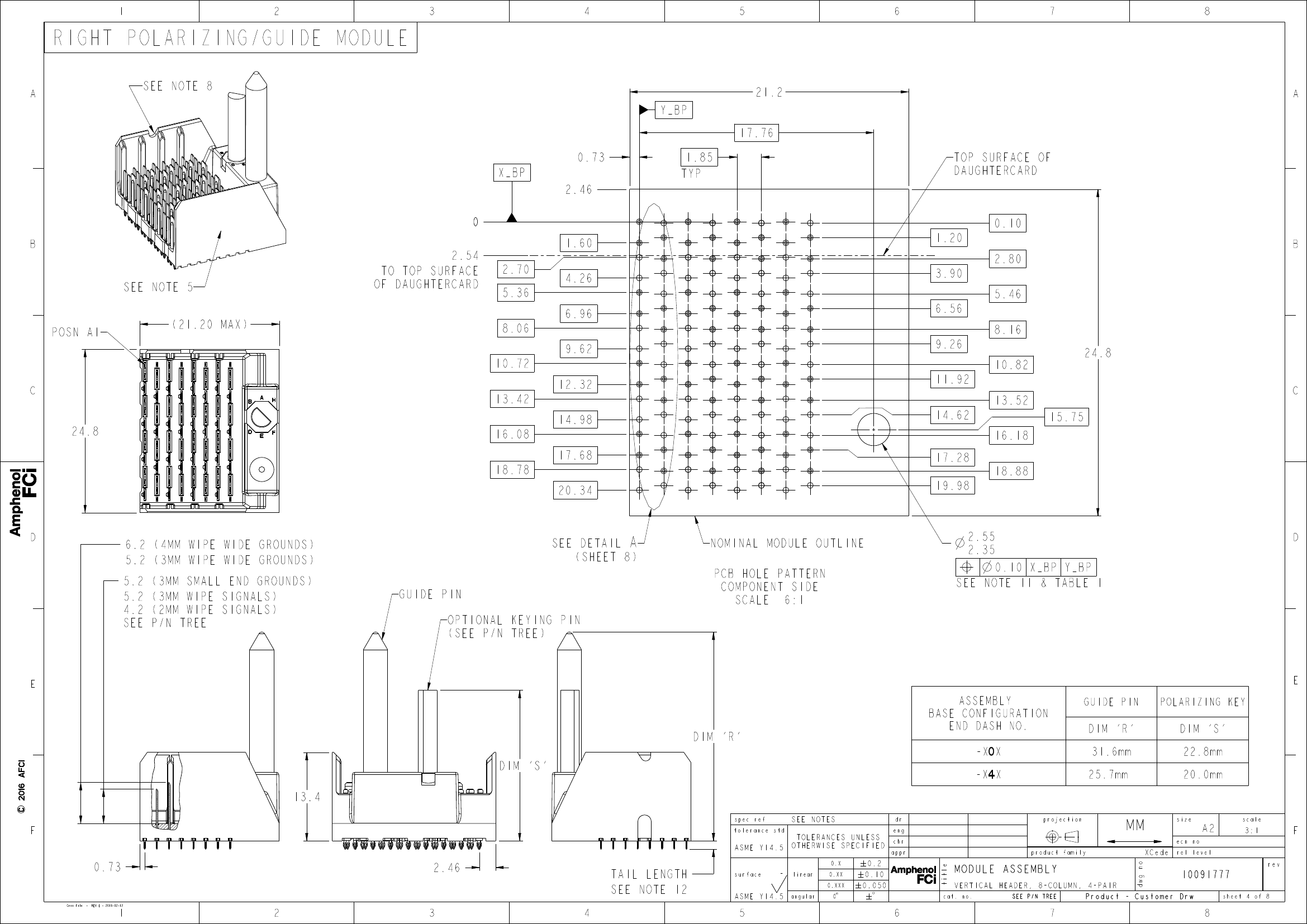

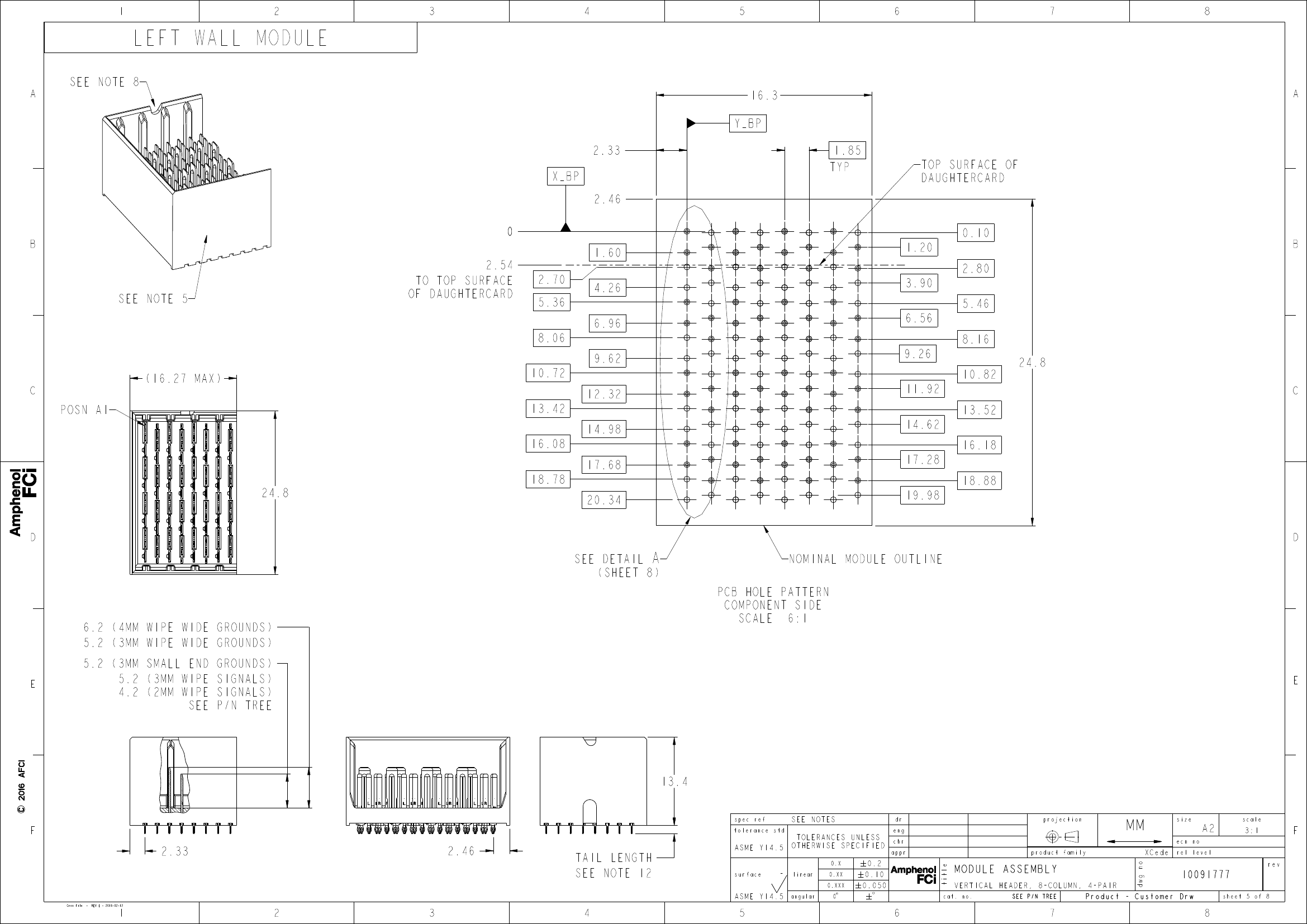

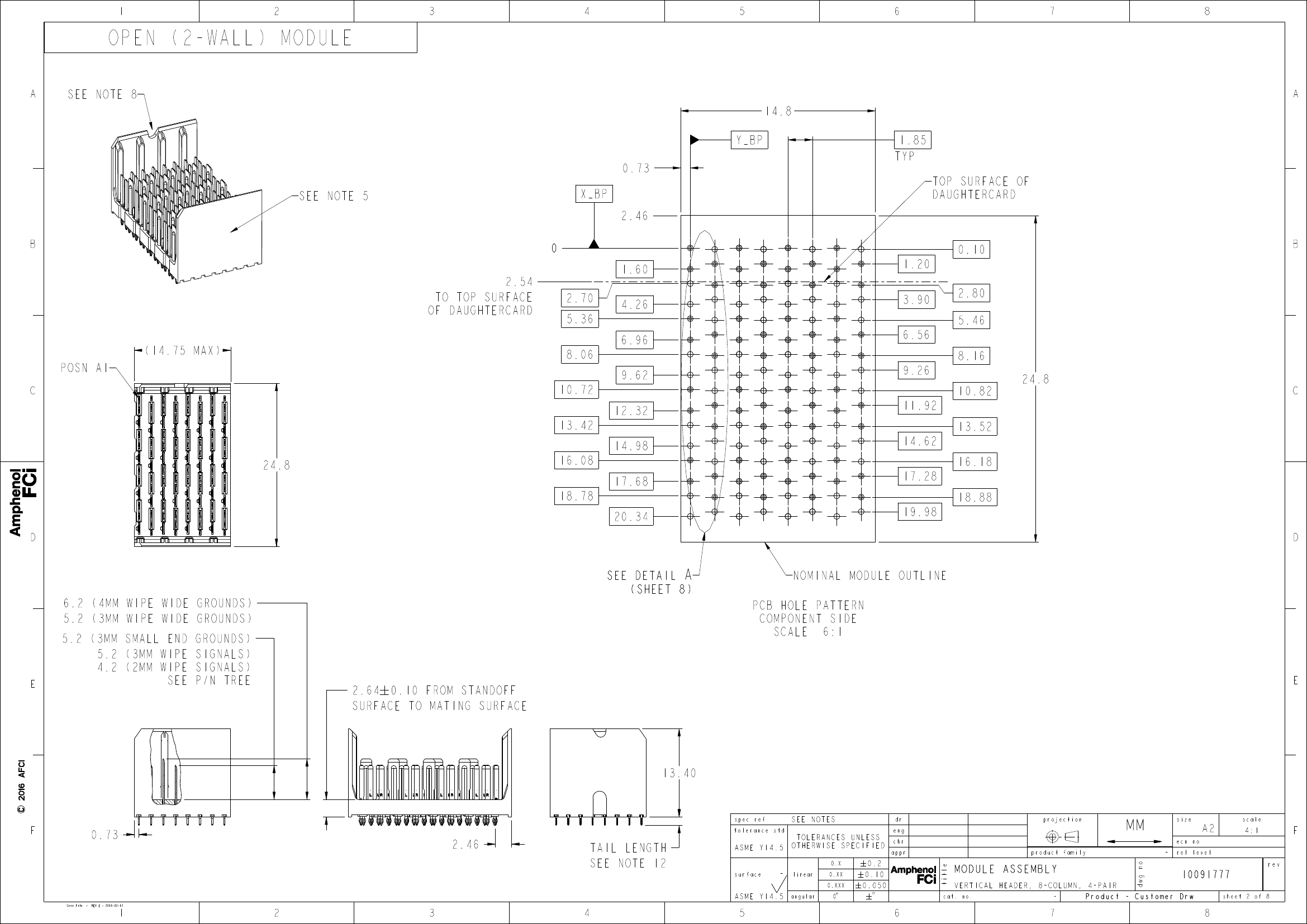

XCEDE LEFT 4PVH 8COL

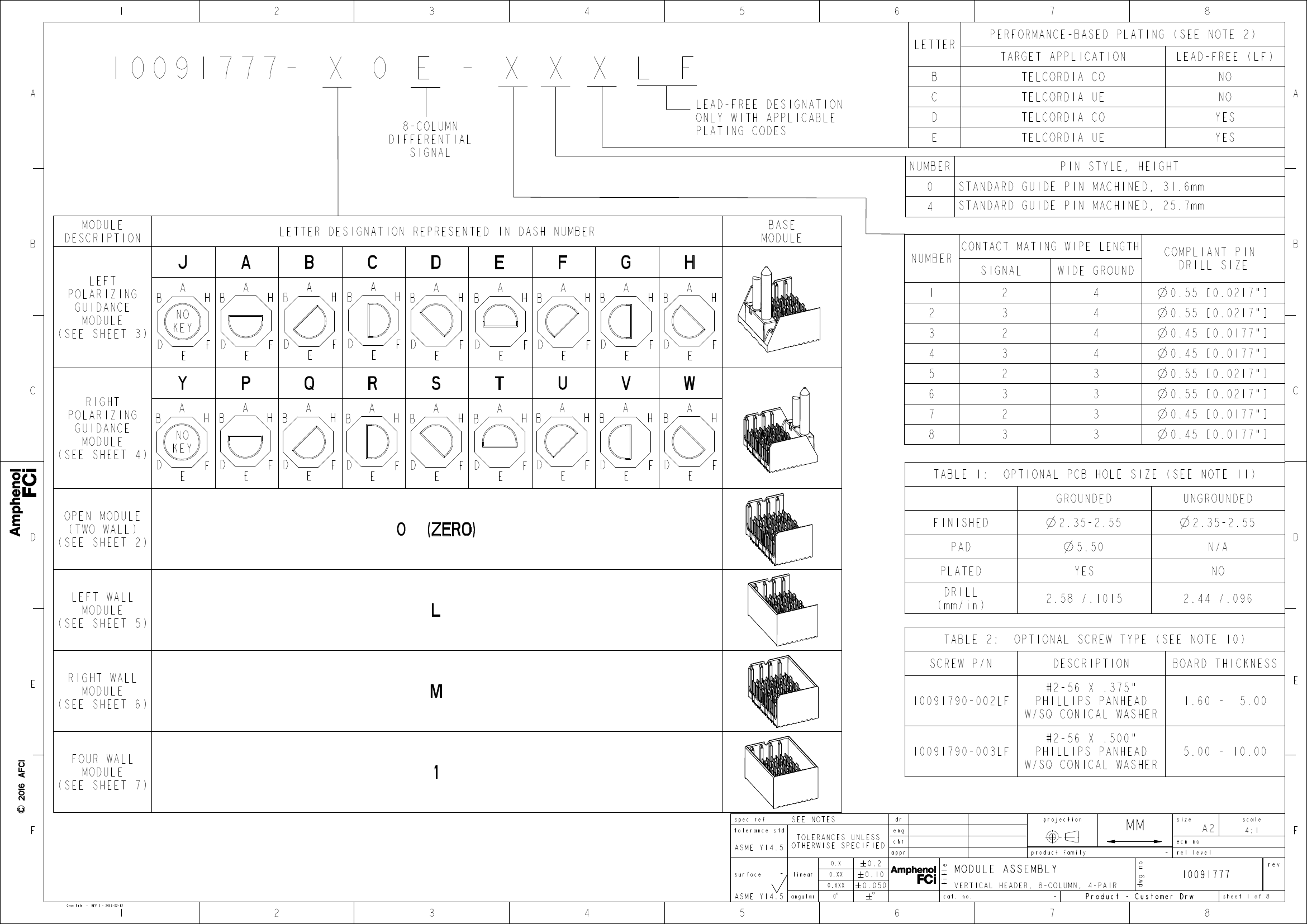

| Parameter Name | Attribute value |
| Connector usage | backplane |
| Connector type | Headers, Male Pins and Blades |
| Connector style | XCede®, left rail |
| Number of pins | - |
| Number of pins loaded | all |
| spacing | - |
| Number of rows | - |
| Number of columns | 8 |
| Installation type | Through hole |
| Termination | Press fit |
| Contact layout (typical) | 48 differential pairs |
| characteristic | key |
| Contact plating | gold |
| Contact plating thickness | 15.0µin（0.38µm） |
| color | grey |
| Rated current | - |
| Material flammability rating | UL94 V-0 |
| Operating temperature | -55°C ~ 85°C |
| Rated voltage | - |
| 10091777-J0E-24DLF | 10091777-J0E-10BLF | 10091777-J0E-10CLF | |
|---|---|---|---|
| Description | XCEDE LEFT 4PVH 8COL | Board Connector, 64 Contact(s), Male, Straight, Press Fit Terminal, Guide Pin, Gray Insulator | Board Connector, 64 Contact(s), Male, Straight, Press Fit Terminal, Guide Pin, Gray Insulator |
| Connector type | Headers, Male Pins and Blades | BOARD CONNECTOR | BOARD CONNECTOR |
| Installation type | Through hole | BOARD | BOARD |
| Reach Compliance Code | - | compliant | compliant |
| body width | - | 0.978 inch | 0.978 inch |
| subject depth | - | 0.528 inch | 0.528 inch |
| body length | - | 0.831 inch | 0.831 inch |
| Contact completed and terminated | - | TIN OVER NICKEL | TIN OVER NICKEL |
| Contact point gender | - | MALE | MALE |
| Contact material | - | COPPER ALLOY | COPPER ALLOY |
| contact mode | - | STAGGERED | STAGGERED |
| Contact resistance | - | 55 mΩ | 55 mΩ |
| Contact style | - | BLADE PIN-SKT | BLADE PIN-SKT |
| maximum insertion force | - | .6394 N | .6394 N |
| Insulation resistance | - | 1000000000 Ω | 1000000000 Ω |
| Insulator color | - | GRAY | GRAY |
| insulator material | - | THERMOPLASTIC | THERMOPLASTIC |
| JESD-609 code | - | e3 | e3 |
| Installation option 1 | - | GUIDE PIN | GUIDE PIN |
| Installation option 2 | - | LOCKING | LOCKING |
| Installation method | - | STRAIGHT | STRAIGHT |
| Number of connectors | - | ONE | ONE |
| PCB contact pattern | - | STAGGERED | STAGGERED |
| polarization key | - | POLARIZED KEY | POLARIZED KEY |
| Guideline | - | UL | UL |
| reliability | - | COMMERCIAL | COMMERCIAL |
| Terminal length | - | 0.051 inch | 0.051 inch |
| Terminal pitch | - | 1.8542 mm | 1.8542 mm |
| Termination type | - | PRESS FIT | PRESS FIT |
| Total number of contacts | - | 64 | 64 |
| Evacuation force-minimum value | - | .14734 N | .14734 N |
| Base Number Matches | - | 1 | 1 |
