51K507-803N5

Description
BNC BULKHEAD JACK
CategoryThe connector    The connector
File Size35KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

51K507-803N5 Online Shopping

Suppliers Part Number Price MOQ In stock
51K507-803N5 - - View Buy Now

51K507-803N5 Overview

BNC BULKHEAD JACK

51K507-803N5 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerRosenberger
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresAPPLICABLE CABLE: RG 316/U-D, INSERTION LOSS AND VSWR MAX AT: 4 GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF BNC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.1 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency10 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeCRIMP
voltage standing wave ratio1.33
Base Number Matches1

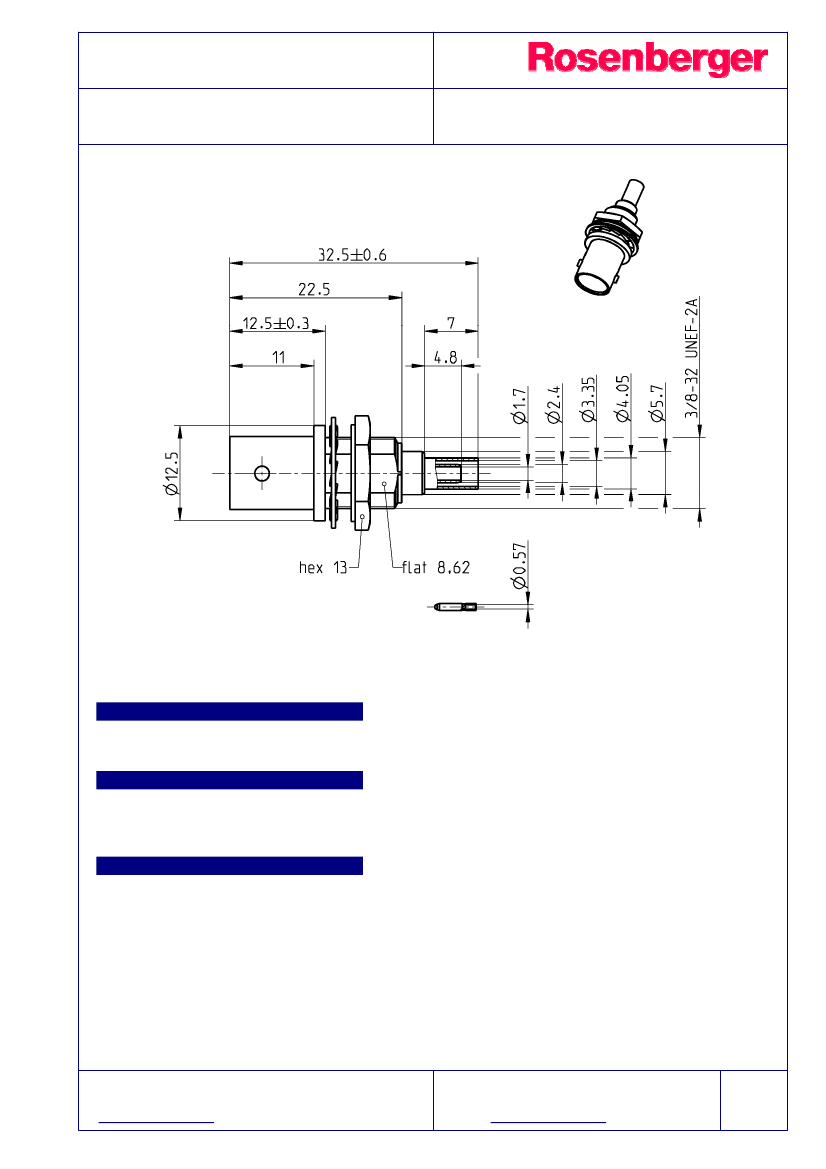

TECHNICAL DATA SHEET
BNC 50
BULKHEAD JACK
51K507-803N5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-8, MIL-PRF-39012, CECC 22120
Documents
Assembly instruction
Panel piercing
51 T
B2
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Crimping ferrule
Material
Cu Be
Brass
Brass
PTFE
Copper
Plating
AuroDur®, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
