TECHNICAL DATA SHEET
SMA
RIGHT ANGLE PLUG
32S207-303N5

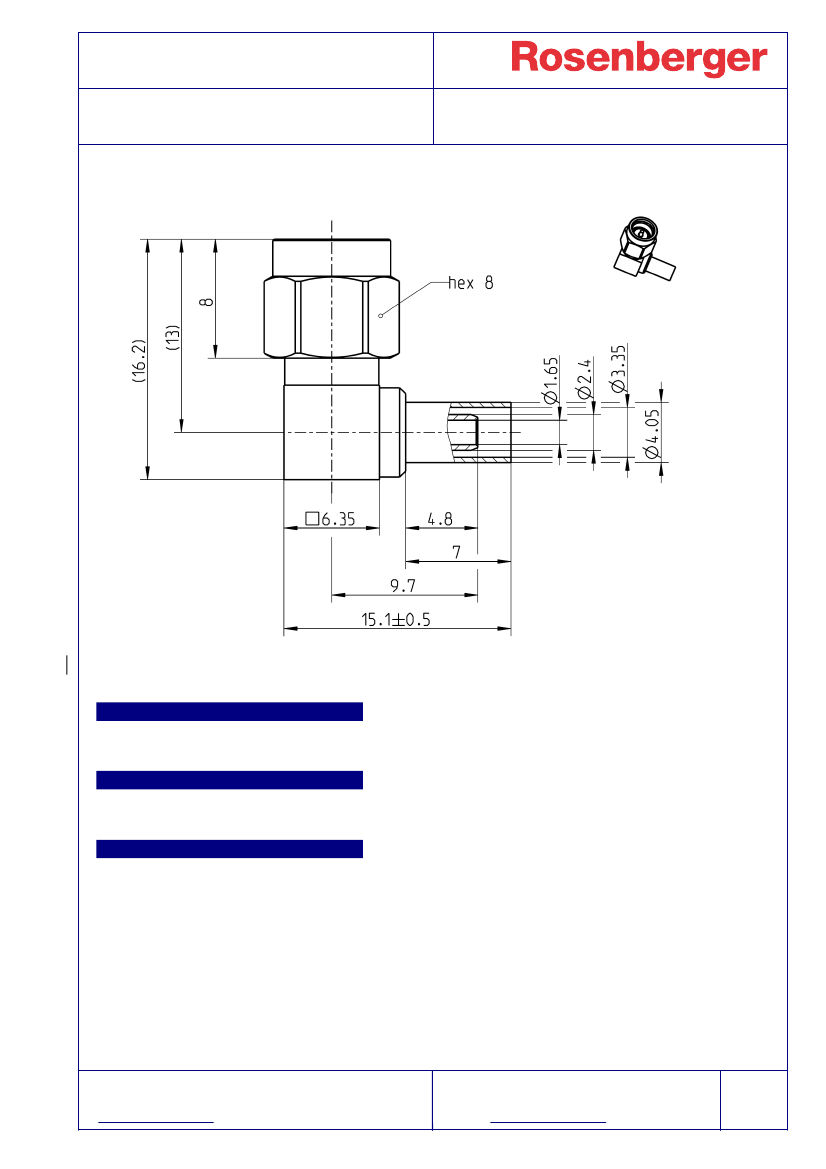

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-15; EN 122110; MIL-STD-348
Documents
Assembly instruction
32 B6
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Coupling nut
Crimping ferrule
Material
Brass
CuBe or equivalent
Brass
PTFE
Silicone
CuBe or equivalent
Copper
Plating
AuroDur®, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
White bronze(e.g. Optalloy®)
White bronze(e.g. Optalloy®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
SMA
RIGHT ANGLE PLUG
32S207-303N5
Electrical data
Impedance
Frequency
VSWR
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
- Limitations are possible due to the used cable type -
50
Ω
DC to 12.4 GHz
≤
1.05 + 0.01 x f [GHz], DC to 5 GHz
≤
0.04 x
f(GHz)
dB, DC to 5 GHz
≥
5 x10
3
MΩ
≤
3 mΩ
≤
2 mΩ
1000 V rms
480 V rms
≤
200 W @ 2 GHz
≥
100 dB up to 1 GHz
Mechanical data
Mating cycles
Coupling nut retention
Center contact captivation: axial
Coupling test torque
Recommended torque
min. 500
≥
270 N
≥
20 N
max. 1.7 Nm
0.8 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-65°C to +165°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
D
I
Tooling
Crimping tool
Crimp insert
11W150-000
11W150-102
Suitable cables
TZC 502 2101, RG 316 /U-d, K 02252 D
Weight
Weight
4.70 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
E. Truc-Vallet
Date
25.02.14
Approved
J_Krautenbacher
Date
21.07.16
Rev.
b00
Engineering change number
15-1629
Name
I_Wallner
Date
21.07.16
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
2/2
