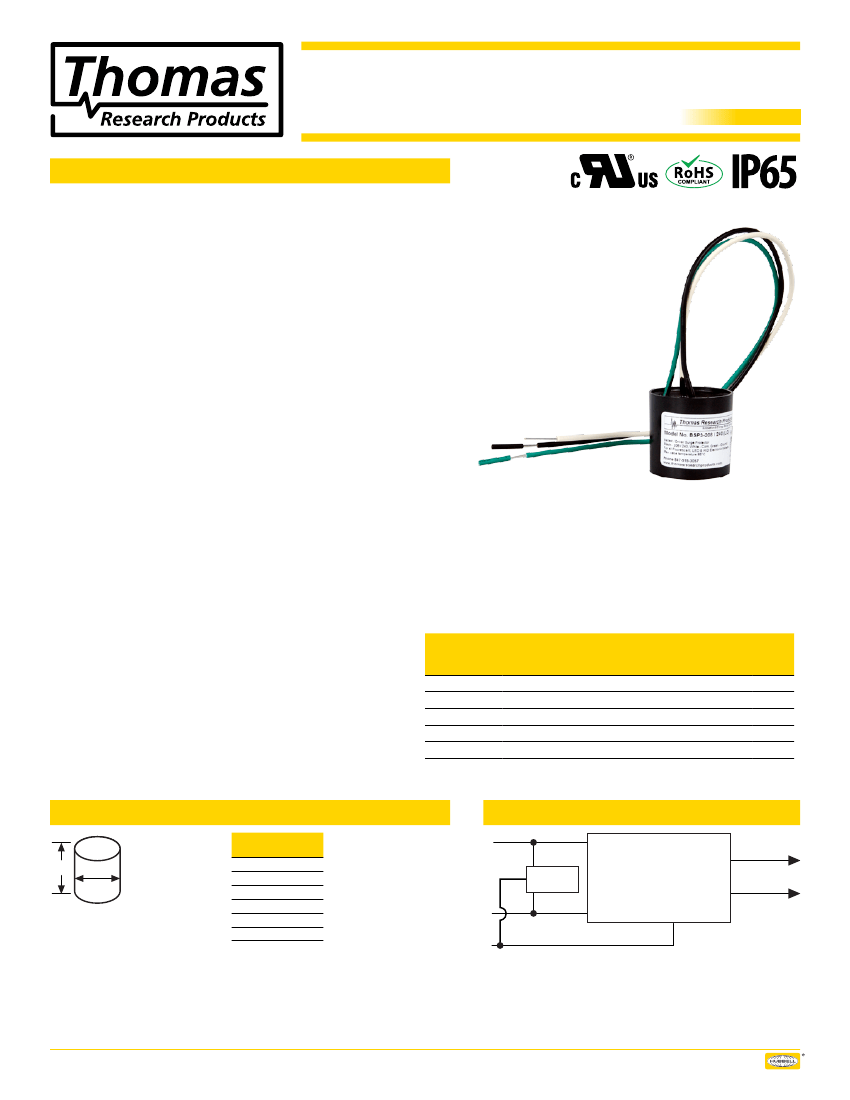

BSP3-120(LC) / BSP3-208-240(LC)
BSP3-277(LC) / BSP3-347(LC) / BSP3-480(LC)
Compact 3-Pole LED Driver Surge Protectors
BSP3 (LC) Series
Rev 8-10-2017
ECOSYSTEM
classic
Intelligent Device
Features
BSP3(LC) series products are designed for use in conjunction with LED Drivers and
electronic fluorescent and HID ballasts to provide an additional level of protection
against powerline disturbances in industrial and commercial applications. The main
product feature of the LC series is being smaller and lower cost than our standard BSP3
series. TheLC series also protect electronic fluorescent and HID ballasts.
• The BSP3 LC Series are 3-leaded devices that protect: Line-Ground, Line-Neutral,
and Neutral-Ground connections
• Protects against surges and transients per ANSI C62.41-2002 category C low (6KV,
1.2/50μS & 3KA, 8/20μS) standard Combo waves and (6KV, 100KHz) Ring wave
• UL Recognized Component in the United States and Canada (UL935, UL1029),
Some models Recognized to UL1449 (see below)
• High temperature, flameproof plastic enclosure, 85ºC max surface temp rating
• 120V Model: Protection for LED drivers capable of operating at 120V nominal input
voltage.
• 240V Model: Protection for LED drivers capable of operating at 240V nominal
input voltage or with universal input range of 120V through 240V. Not suitable for
120V-only devices.
• 347V Model: Protection for LED drivers capable of operating at 347V nominal input
voltage or with universal input range of 277V through 347V. Not suitable for 120V,
240V or 277V -only devices.
• 277V Model: Protection for LED drivers capable of operating at 277V input voltage
or with universal input range of 120V through 277V. Not suitable for 120V- or
240V-only devices.
• 480V Model: Protection for LED drivers capable of operating at 480V input voltage
or with universal input ranges of 277V through 480V or 347V through 480V.
Not suitable for 277V- or 347V-only devices.
Continuous
Mains Max Voltage Rating
Voltage
AC
DC
120V
240V
277V
347V
480V
150
275
320
420
550
200
350
420
560
715
Max Clamping
Voltage
8/20 µS @ 10kA
E355018
Model
BSP3-120 (LC)
BSP3-208-240 (LC)
BSP3-277 (LC)
BSP3-347 (LC)
BSP3-480 (LC)
UL935/
UL1449 UL1029
600
1000
1500
1900
2500
•
•
•
•
•
•
•
Note: While the standard BSP3-277 is Recognized to UL1449, the BSP3-277(LC) is not
Dimensions
Leads:
12”, stripped 0.63”
Leadwire:
AWG#18 solid
Weight:
0.22 lbs / 87g
Pulse rating
(8 x 20 μSec)
Wiring
Vin
Green
Strikes
1
2
10
100
1,000
Surge
10,000 A
6,500 A
3,000 A
1,500 A
700 A
Black
BSP3
White
COM
GROUND
1.51”
1.55”
LED Driver
or electronic ballast
LOAD
Output
to Lamp
MADE
IN USA
Of Imported And Domestic Components
© 2017 Thomas Research Products. Specifications subject to change without notice.
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
