G6K-2F-RF-S DC24 datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> G6K-2F-RF-S DC24

G6K-2F-RF-S DC24: DescriptionRELAY RF DPDT 1A 24V; CategoryTopical application Mechanical and electrical/engineering/automation; File Size2MB，8 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric View All

G6K-2F-RF-S DC24 Overview

RELAY RF DPDT 1A 24V

G6K-2F-RF-S DC24 Parametric

Parameter Name	Attribute value
Coil type	No latch
coil current	4.6mA
coil voltage	24VDC
Contact shape	DPDT（2 Form C）
Rated contact (current)	1A
switching voltage	125VAC, 60VDC - Max
Turn-on voltage (maximum value)	19.2 VDC
Shut-off voltage (minimum value)	2.4 VDC
operating hours	3ms
release time	3ms
characteristic	-
Installation type	surface mount
Terminal type	gullwing
Operating temperature	-40°C ~ 70°C
Contact material	Silver（Ag），Gold（Au）
Coil power	100 mW
Coil resistance	5.22 kOhms

Preview

Download Datasheet

View All

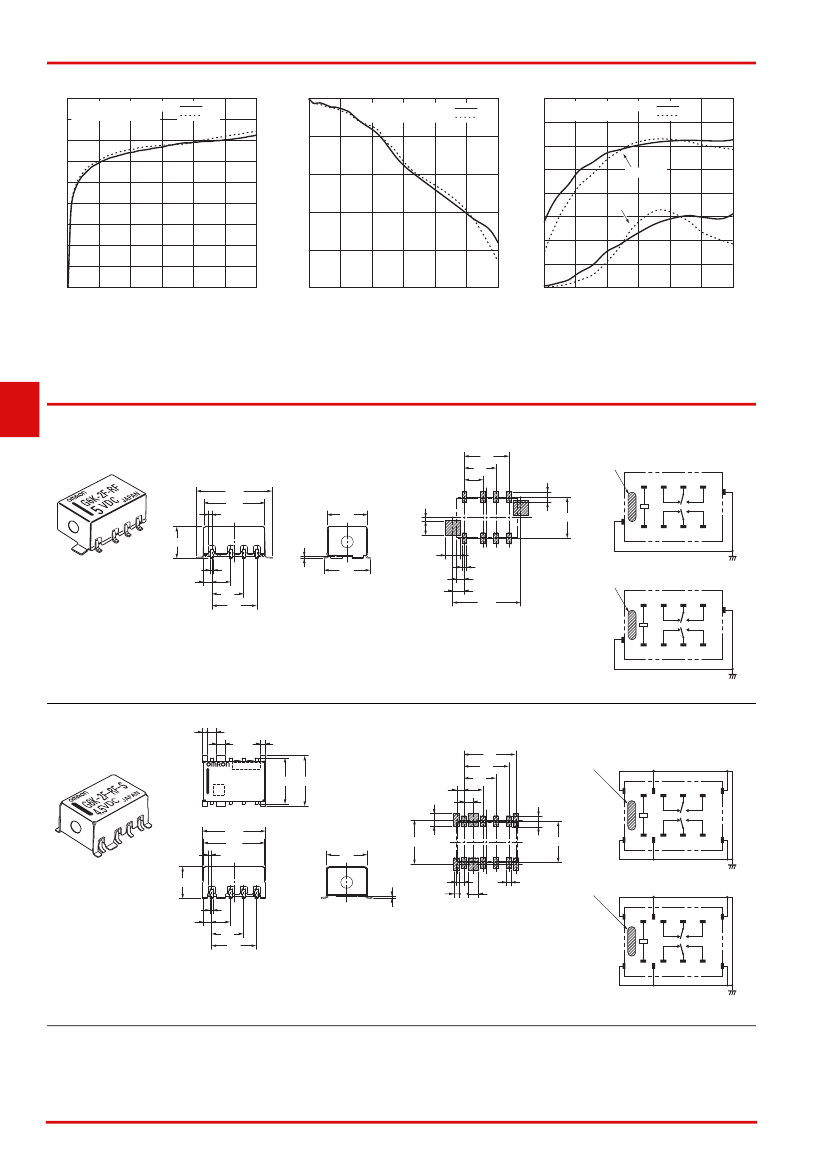

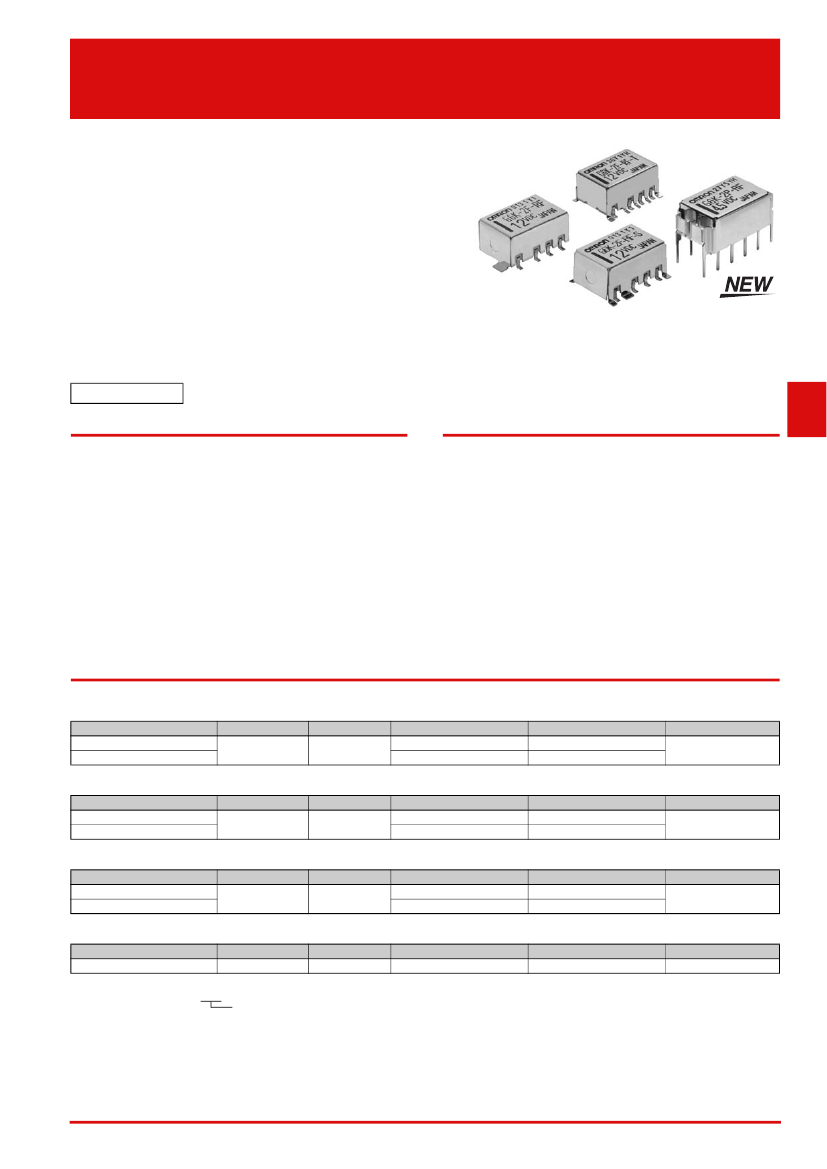

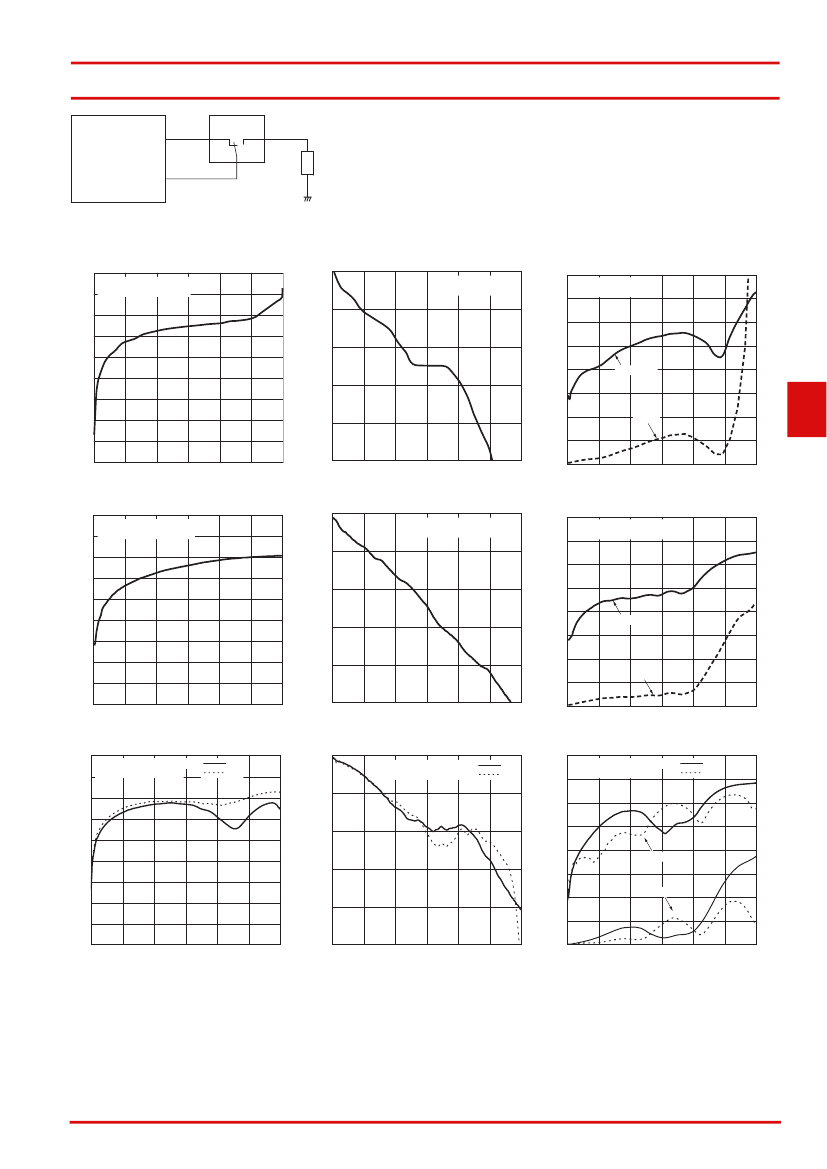

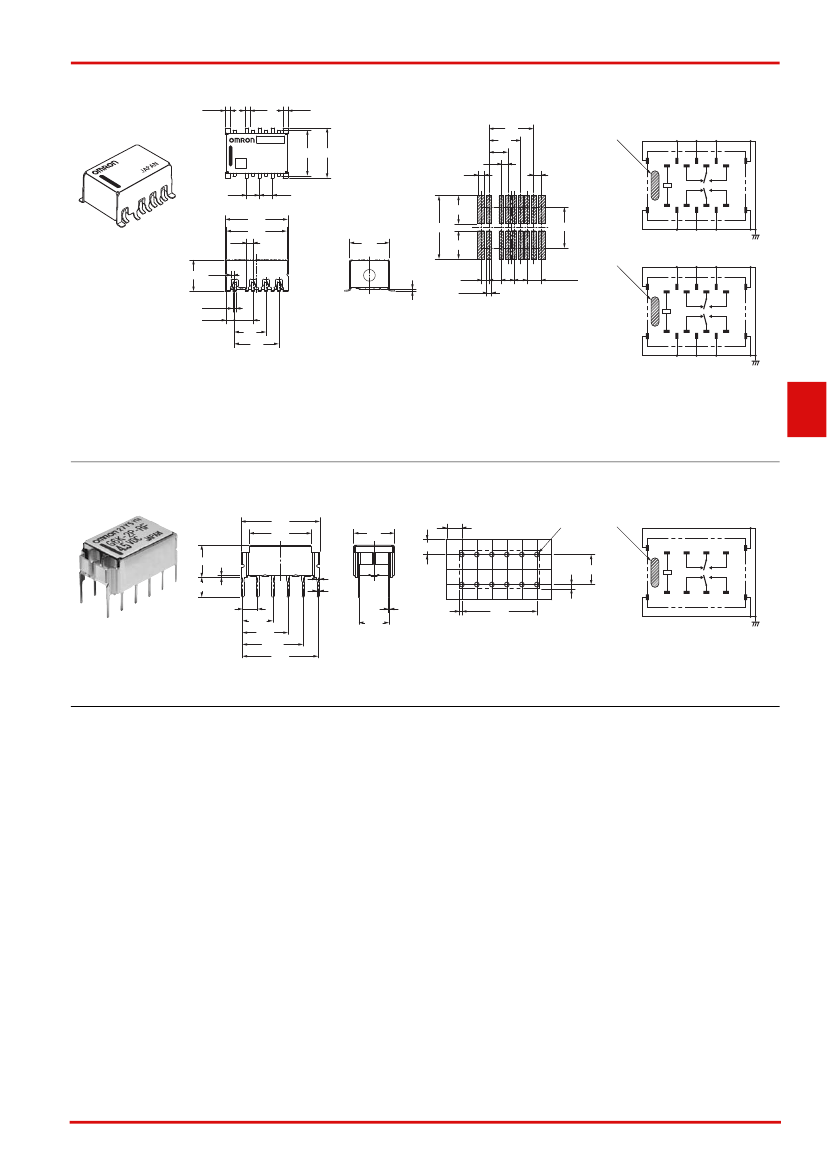

G6K(U)-2F(P)-RF(-S, -T)

Surface-mounting High-frequency Relay

Surface-mounting, 1-GHz-Band/

3-GHz-Band, Miniature, DPDT,

High-frequency Relay

• Superior high-frequency characteristics (at 1 GHz), such as an isolation

of 20 dB min. between contacts of the same polarity of 30 dB min. be-

tween contacts of different polarity with an insertion loss of 0.2 dB max.

• Miniaturized to 10.3

6.9

5.4 mm (L

H).

• Rated power consumption of 100 mW with high sensitivity

• Single-side stable and single-winding latching models are available.

• Models with a smaller footprint (G6K(U)-2F-RF-S) are available to help save space.

• G6K(U)-2F-RF-T models for 3-GHz band join the lineup with a downsized footprint.

• New PCB terminals models are available.

RoHS Compliant

■Model

Number Legend

G 6 K@ -@

-@ -@

— —— — —

2 3

1. Relay Function

None: Single-side stable

U: Single-winding latching

2. Number of poles/

Contact Form

2: 2-pole/ DPDT (2c)

3. Terminal Shape

F: Outside-L surface mount-

ing terminals

P: PCB terminals

4. Special Function

RF: High-frequency compatible

5. Terminal Shape

None: Standard

S: Small footprint

T: Compatible with 3 GHz

■Application

Examples

• Communications equipment

• Broadcasting and audio-visual equipment

• Test & measurement equipment

( )-

)

■Ordering

Information

●Standard

Models with Surface-mounting Terminals

Standard Specifications

Relay Function

Single-side stable

Single-winding latching

Enclosure rating

Fully sealed

Contact form

DPDT

(2c)

Model

G6K-2F-RF

G6KU-2F-RF

Rated coil voltage

3, 4.5, 5, 12, 24 VDC

Minimum packing unit

300 pcs/tray

300 pcs/reel

Board space-saving model

Relay Function

Single-side stable

Single-winding latching

Enclosure rating

Fully sealed

Contact form

DPDT

(2c)

Model

G6K-2F-RF-S

G6KU-2F-RF-S

Rated coil voltage

3, 4.5, 5, 12, 24 VDC

Minimum packing unit

300 pcs/tray

300 pcs/reel

Compatible with 3 GHz

Relay Function

Single-side stable

Single-winding latching

Enclosure rating

Fully sealed

Contact form

DPDT

(2c)

Model

G6K-2F-RF-T

G6KU-2F-RF-T

Rated coil voltage

3, 4.5, 5, 12, 24 VDC

Minimum packing unit

300 pcs/tray

300 pcs/reel

PCB terminals

Relay Function

Single-side stable

Enclosure rating

Fully sealed

Contact form

DPDT (2c)

Model

G6K-2P-RF

Rated coil voltage

3, 4.5, 5, 12, 24 VDC

Minimum packing unit

30 pcs/tube

Note 1. When ordering, add the rated coil voltage to the model number.

Example: G6K-2F-RF DC3

Rated coil voltage

However, the notation of the coil voltage on the product case as well as on the packing will be marked as

VDC.

Note 2. When ordering Relays in tape packing, add "-TR03" to the end of the model number.

Example: G6K-2F-RF-TR03 DC3

Relays per reel: 300 pcs for -TR03

Be sure since "-TR" is not part of the relay model number, it is not marked on the relay case.

When ordering tape packing, minimum order unit is 1 reel (300 pcs

1 = 300 pcs).

Note 3. Surface mounting terminal (SMT) standard models are shipped in moisture-proof package.

PCB terminal standard types do not require moisture proof packaging and therefore shipped in non-moisture-proof package.
