Ceramic Plate Series CP2-31-06
Thermoelectric Modules
The Ceramic Plate (CP) Series of Thermoelectric Modules (TEMs) is
considered ‘the standard’ in the thermoelectric industry.
This broad product line of high-performance and highly reliable
TEMs is available in numerous heat pumping capacities, geometric
shapes, and input power ranges. Assembled with Bismuth Telluride
semiconductor material and thermally conductive Aluminum Oxide
ceramics, the CP Series is designed for higher current and large
heat-pumping applications.
Americas: +1.919.597.7300
Europe: +46.31.420530
Asia: +86.755.2714.1166
ets.sales@lairdtech.com
www.lairdtech.com
FEATURES
•
•
•
•
•
•
•
Precise temperature control
Compact geometric sizes
Reliable solid state operation
No sound or vibration
Environmentally friendly
DC operation
RoHS compliant
Medical lasers
Lab science instrumentation
Clinical diagnostics systems
Photonics laser systems
Electronic enclosure cooling
•
Food & beverage cooling
•
Chillers (liquid cooling)
•
•
•
•
•
APPLICATIONS
SPECIFICATIONS
TECHNICAL

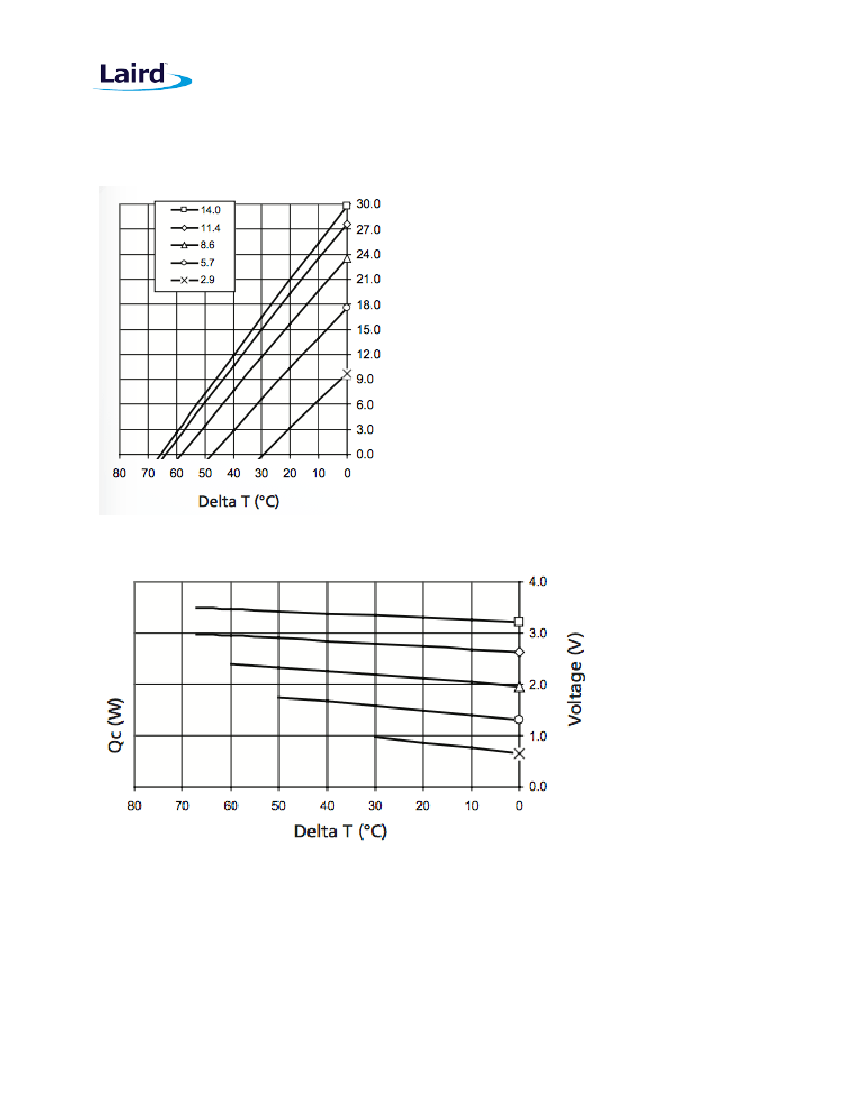

Hot Side Temperature (°C)
Qmax (Watts)
Delta Tmax (°C)
Imax (Amps)
Vmax (Volts)
Module Resistance (Ohms)
25°C
29.3
68
14.0
3.5
0.84
50°C
33.8
75
14.0
4.0
0.95
SUFFIX
L
L1
L2
ML
LM
MM
THICKNESS
(PRIOR TO
TINNING)
FLATNESS &
PARALLELISM
0.0015”/0.0015”
0.001”/0.001”
0.0005”/0.0005”
0.002”/0.002”
0.002”/0.002”
0.002”/0.002”
HOT FACE
Lapped
Lapped
Lapped
Metallized
Lapped
Metallized
COLD FACE
Lapped
Lapped
Lapped
Lapped
Metallized
Metallized
LEAD LENGTH
4.5”
4.5”
4.5”
4.5”
4.5”
4.5”
0.180”±0.010”
0.180”±0.010”
0.180”±0.0005”
0.184”±0.010”
0.184”±0.010”
0.188”±0.010”
SEALING OPTIONS
SUFFIX SEALANT COLOR TEMP RANGE DESCRIPTION
RT
EP
RTV
Epoxy
White
Black
-60 to 204 °C
-55 to 150 °C
Non-corrosive, silicone adhesive
Low density syntactic foam epoxy encapsulant
Page
1
of
3
CP2-31-06

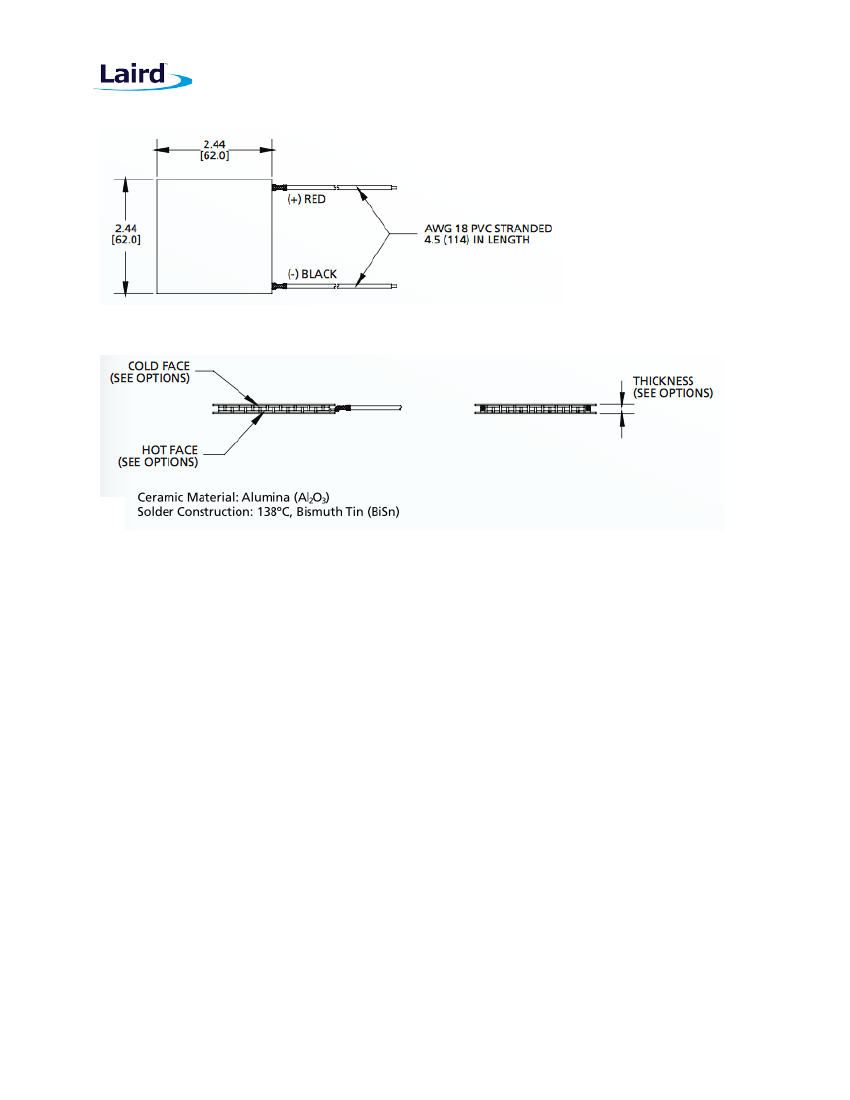

NOTES
1. Max Operating Temperature: 80°C
2. Do not exceed Imax or Vmax when operating module
3
. Reference assembly guidelines for recommended installation
4. Solder tinning also available on metallized ceramics
LAIRD-ETS-CP2-31-06-DATA-SHEET-101416
