30WQ15FN
Technical Data
Data Sheet N0688, Rev. A
30WQ15FN SCHOTTKY RECTIFIER
Features
Small foot print, surface mountable
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
Green products in compliance with the ROHS directive
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
DPAK

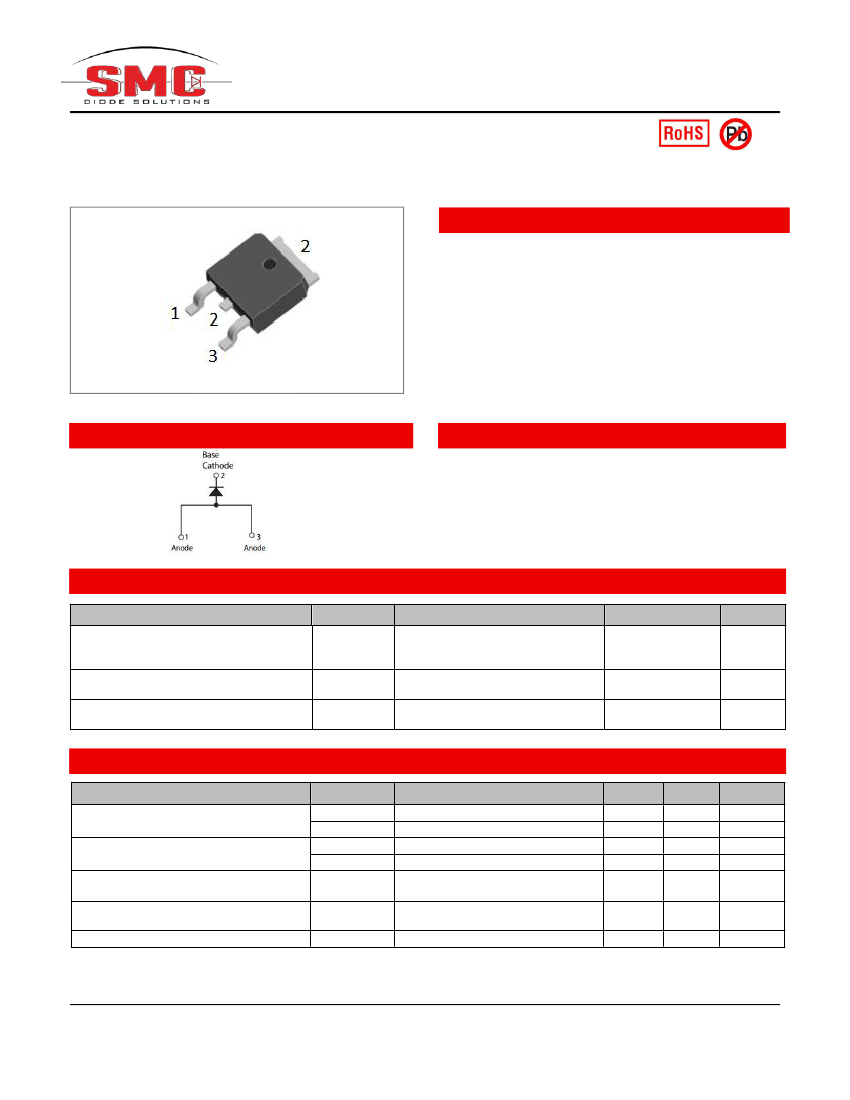

Circuit Diagram
Applications
Disk drives
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
Battery charging
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive Surge
Current
Symbol
V
RRM
V
RWM
V
R
I
F (AV)
I
FSM
Condition
-
50% duty cycle @Tc=134°C,
rectangular wave form
8.3ms, Half Sine pulse
Max.
150
3.5
84
Units
V
A
A
Electrical Characteristics:
Characteristics
Forward Voltage Drop*
Reverse Current *
Junction Capacitance
Typical Series Inductance
Voltage Rate of Change
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
F1
V
F2
I
R1
I
R2
C
T
L
S
dv/dt
Condition
@ 3A, Pulse, T
J
= 25
C
@ 3A, Pulse, T
J
= 125
C
@V
R
= rated V
R,
T
J
= 25
C
@V
R
= rated V
R,
T
J
= 125
C
@V
R
= 5V, T
C
= 25
C
f
SIG
= 1MHz
Measured lead to lead 5 mm from
package body
-
Typ.
0.79
0.62
0.0001
0.03
80
5.0
-
Max.
0.83
0.65
1.00
5
200
-
10,000
Units
V
V
mA
mA
pF
nH
V/s
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
30WQ15FN
Technical Data
Data Sheet N0688, Rev. A
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance Junction to
Case
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
JC
wt
Condition
-
-
-
-
DPAK
Specification
-40 to +175
-40 to +175
5.0
0.39
Units
C
C
C/W
g

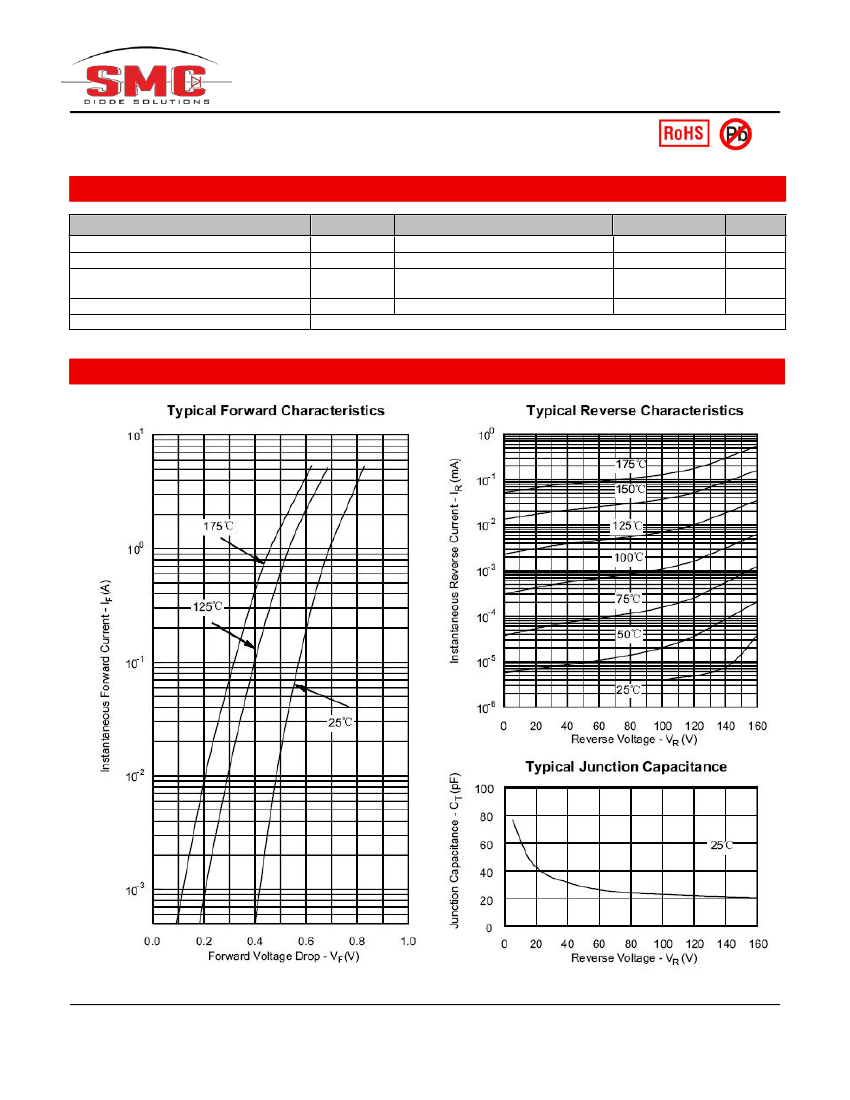

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
30WQ15FN
Technical Data
Data Sheet N0688, Rev. A

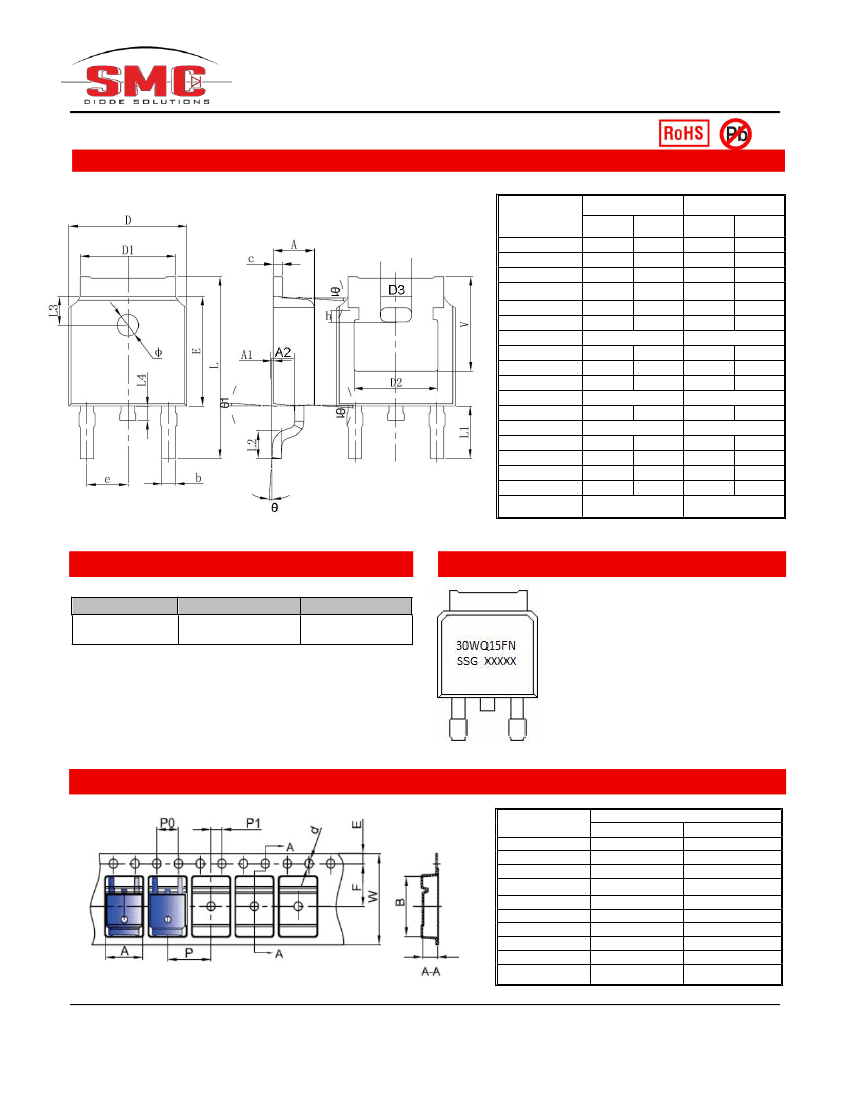

Mechanical Dimensions DPAK
SYMBOL
A
A1
b
c
D
D1
D2
E
e
L
L1
L2
L3
L4
Φ
Θ
h
V
Millimeters
Min.
Max.
2.20
2.40
0.00
0.127
0.66
0.86
0.46
0.60
6.50
6.70
5.13
5.46
4.83 REF.
6.00
6.20
2.186
2.386
9.70
10.40
2.90 REF.
1.40
1.70
1.60 REF.
0.60
1.00
1.10
1.30
0°
8°
0.00
0.30
5.35 REF.
Inches
Min.
Max.
0.087
0.094
0.000
0.005
0.026
0.034
0.018
0.024
0.256
0.264
0.202
0.215
0.190 REF.
0.236
0.244
0.086
0.094
0.381
0.409
0.144 REF.
0.055
0.067
0.063 REF.
0.024
0.039
0.043
0.051
0°
8°
0.000
0.012
0.211 REF.
Ordering Information
Device
30WQ15FN
Marking Diagram
Shipping
2500pcs / reel
Where XXXXX is YYWWL
30
W
Q
15
FN
SSG
YY
WW
L
= Forward Current (3A)
= Configuration
= Device Type
= Reverse Voltage (150V)
= Package type
= SSG
= Year
= Week
= Lot Number
Package
DPAK
(Pb-Free)
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding
resin
Epoxy resin UL:94V-0
Carrier Tape & Reel Specification DPAK
SYMBOL
A
B
C
d
E
F
P0
P
P1
W
6.80
10.40
2.60
Φ1.45
1.65
7.40
3.90
7.90
1.90
15.90
Millimeters
Min.
Max.
7.00
10.60
2.80
Φ1.65
1.85
7.60
4.10
8.10
2.10
16.30
