0022280200 datasheet, PDF - EEWORLD Datasheet

0022280200: DescriptionKK 100 HDR FRLK VERT 20POS TIN; CategoryThe connector; File Size220KB，4 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric View All

0022280200 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0022280200	-	-	View	Buy Now

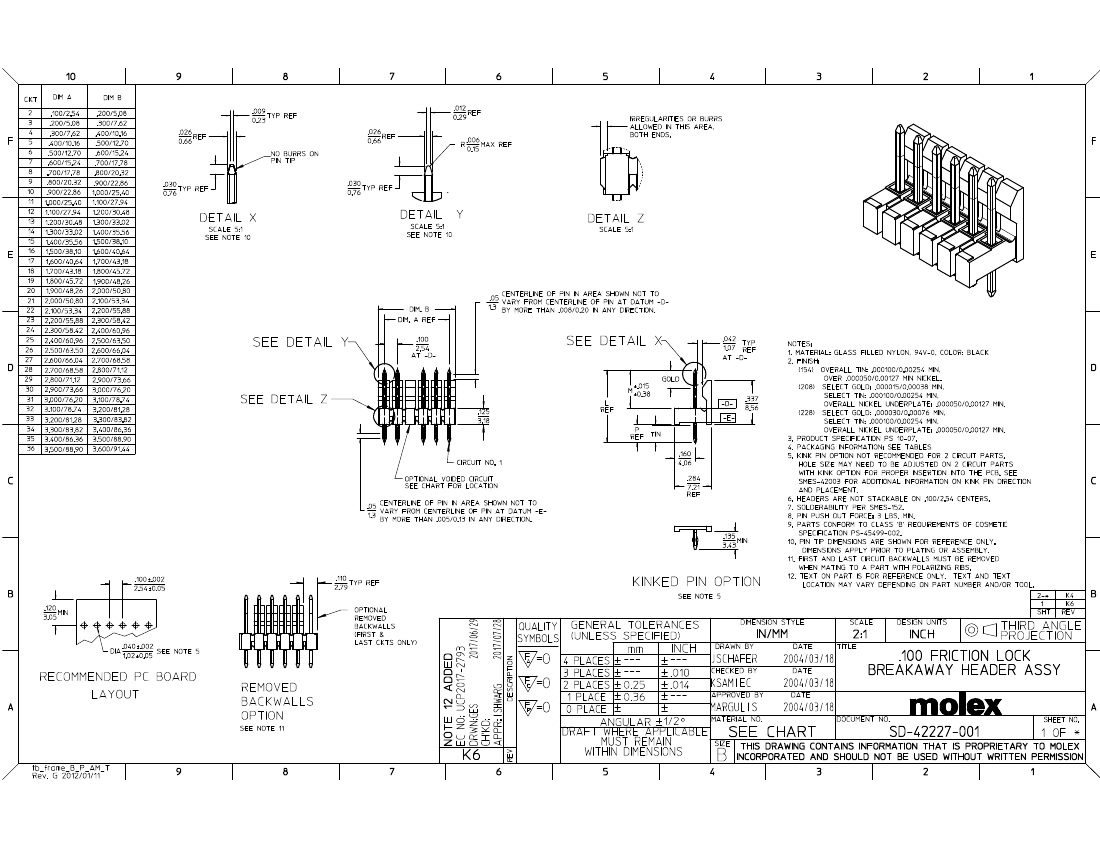

KK 100 HDR FRLK VERT 20POS TIN

Parameter Name	Attribute value
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	20
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to Board or Cable
shield	Covered - 1 wall
Installation type	Through hole
Termination	welding
Fastening type	friction lock
Contact Length - Mating	0.295"（7.49mm）
Contact length - terminal	0.120"（3.05mm）
Overall contact length	0.540"（13.72mm）
Insulation height	0.337"（8.56mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	100.0µin（2.54µm）
Contact Surface Preparation - Column	tin
Contact material	-
Insulation Materials	Polyamide (PA), nylon, glass fiber reinforced
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）
application	Automotive, general, medical, telecommunications
