33TS3004HS-88B datasheet, PDF - EEWORLD Datasheet

33TS3004HS-88B: DescriptionCONN MOD JACK 8P8C R/A SHIELDED; CategoryThe connector; File Size238KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com; Environmental Compliance

Download Datasheet Parametric View All

33TS3004HS-88B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	33TS3004HS-88B	-	-	View	Buy Now

CONN MOD JACK 8P8C R/A SHIELDED

Parameter Name	Attribute value
Connector type	Jack
Number of pins/contacts	8p8c (RJ45, Ethernet)
Number of ports	1
Number of rows	1
Installation type	Through hole
towards	90° angle (right angle)
Termination	welding
shield	shield
grade	-
characteristic	plate lock
LED color	LED not included
Intrusion protection	-
tab direction	Down
Contact material	-
Contact plating	gold
Contact plating thickness	6.00µin（0.152µm）
Shell material	Polybutylene terephthalate (PBT), glass fiber reinforced
Operating temperature	-

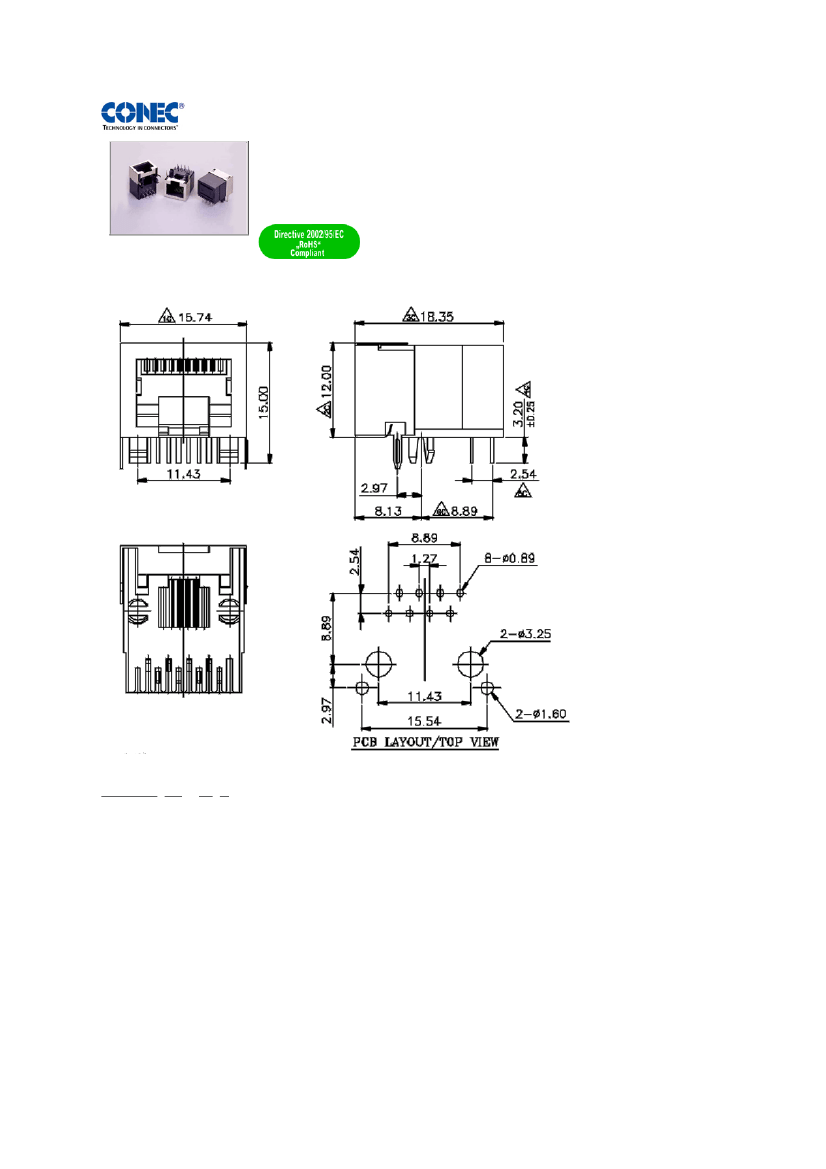

Very Low Profile PCB Jack(Side Entry)

Materials

Housing: PBT+30% glass-fiber UL94V-0 Black

Contacts: 0.35mm thickness alloy, gold plating over nickel in contact area

Tin Plating over nickel in solder area

Order Information--------------------------------------------------------------------

33TS3004 HS - 88 B

1

2

3

4

1. Series No.

33TS3004

2. Contact Type

HS:Half shielded

3. No. of Contacts

88:8P8C

4. Gold Plating

B: 6µ''

For other plating options

contact factory

Note:

Packed in tray

1 von 1
