2
STUD
SIZE
ENGLISH
DIMENSIONS
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
in.
[mm]
M
W
PANDUIT
H DIA
PART
#
METRIC
L
.03
[0,76]
W
.01
[0,25]
C
.02
[0,51]
.03
[0,76]
H
.01
[0,25]
STAMPING
B
PNF10-6F
PNF10-8F
PNF10-10F
PMNF6-5F
*
PNF10-14F
#6
#8
#10
--
1/4"
M3,5
M4
--
M5
M6
1.01
[25,65]
.31
[7,87]
1.02
[25,91]
1.04
[26,42]
1.06
[26,90]
1.15
[29.21]
.37 [9,40]
.37 [9,40]
.37 [9,50]
.50
[12,7]
.24
[6,10]
.24
[6,10]
.24
[6,10]
.24
[6,19]
.31
[7,87]
.80 [20,32]
.80 [20,32]
.80 [20,32]
.84
[21,31]
.90 [22,86]
.15
[3,81]
.17
[4,32]
.21
[5,33]
.21
[5,33]
C RAD
L
M
.27 [6,86]
B
* NOT UL LISTED OR CSA CERTIFIED
NOTES:
1. USED FOR:
A. 12-10 AWG [ 4,0-6,0 mm
2
] STRANDED COPPER WIRE
B. 221 F [105 C] MAX. OPERATING TEMPERATURE
C. 600V. MAX. BLDG WIRE
(1000 V. MAX. IN SIGNS, FIXTURES & LUMINAIRES)
2. INSTALLATION TOOLS:
A. UL APPROVED: CT-600-A (CT-550CH)
CT-1550, CT-1551, CT-2500(CT-2550CH)
B. PANDUIT APPROVED: CT-100A, CT-160, CT-260, CT-460
3. WIRE STRIP LENGTH: 9/32
+1/32
[7,1
+0,8
]
-0
-0
4. MATERIAL:
A. STAMPING: .04" [1,0 ] THK COPPER, TIN PLATED
B. HOUSING: VINYL, YELLOW
C. SLEEVE:
BRASS, TIN PLATED
5. SEE www.panduit.com FOR PACKAGE QUANTITIES
INDICATED BY PART NUMBER SUFFIX
6. DIMENSIONS IN BRACKETS ARE METRIC EQUIVALENT
HOUSING
BRAZED
SEAM
FUNNEL WIRE
ENTRY
SLEEVE
.23 [5,8 ]
MAX. WIRE
INSUL. DIA.
.12 [3,0 ]
MIN. WIRE
INSUL. DIA.
LISTED
587H
E52164
TITLE
CERTIFIED
LR31212
A
FORK
TERMINALS,
NYLON
FUNNEL
ENTRY,

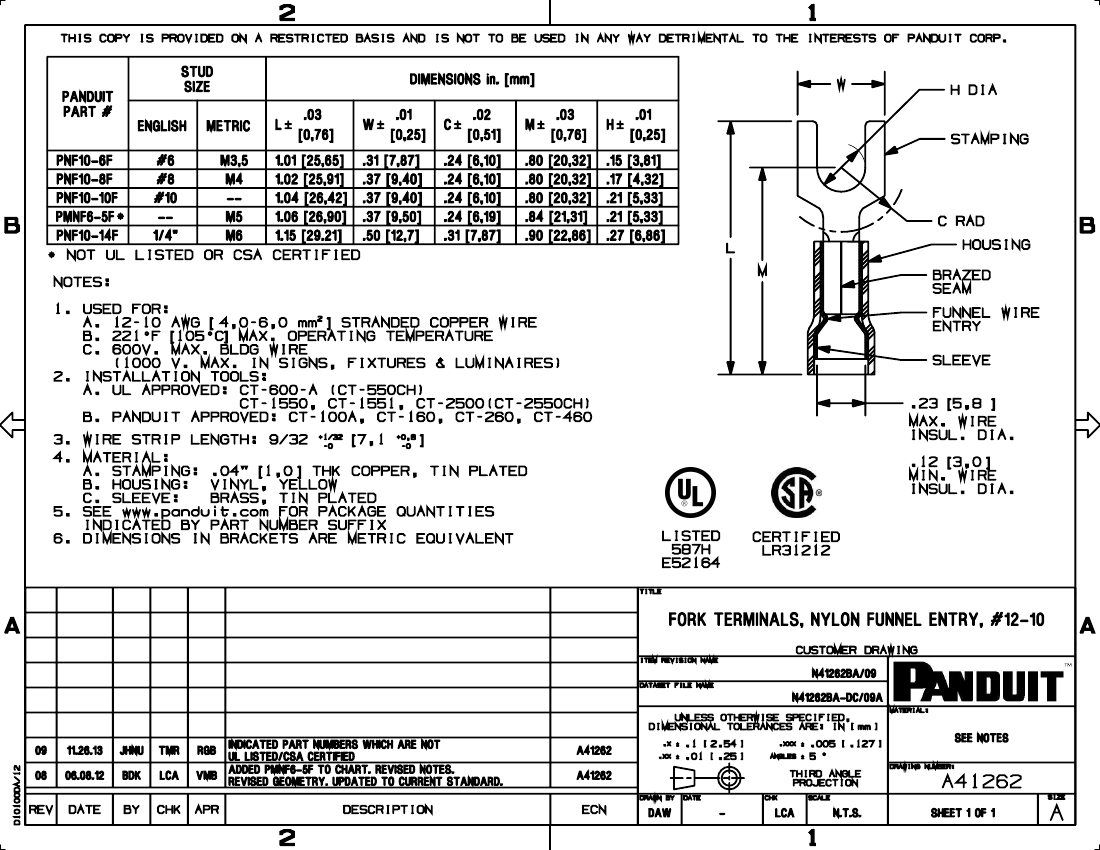

CUSTOMER DRAWING
ITEM REVISION NAME
#12-10
A
N41262BA/09
DATASET FILE NAME
N41262BA-DC/09A
MATERIAL:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
09
D10100DA/12
11.26.13
JHNU
TMR
RGB
08
REV
06.08.12
BDK
LCA
VMB
INDICATED
PART
NUMBERS
WHICH
ARE
NOT
UL
LISTED/CSA
CERTIFIED
ADDED
PMNF6-5F
TO
CHART.
REVISED
NOTES.
REVISED
GEOMETRY.
UPDATED
TO
CURRENT
STANDARD.
A41262
A41262
.X
.XX
.1 [2.54]
.01 [.25]
.XXX
ANGLES
.005 [.127]
5
DRAWING NUMBER:
SEE
NOTES
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
A41262
SIZE
DATE
BY
CHK
APR
DESCRIPTION
ECN
DAW
-
LCA
N.T.S.
SHEET
1
OF
1
A
2
1
