1210B104K251CT

Description
CAP CER 0.1UF 250V X7R 1210
CategoryPassive components    capacitor
File Size62KB,1 Pages
ManufacturerWalsin Technology Corporation
Environmental Compliance
Download Datasheet Parametric View All

1210B104K251CT Online Shopping

Suppliers Part Number Price MOQ In stock
1210B104K251CT - - View Buy Now

1210B104K251CT Overview

CAP CER 0.1UF 250V X7R 1210

1210B104K251CT Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerWalsin Technology Corporation
package instruction, 1210
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance0.1 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high1.6 mm
JESD-609 codee3
length3.2 mm
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, PLASTIC, 7 INCH
positive tolerance10%
Rated (DC) voltage (URdc)250 V
size code1210
surface mountYES
Temperature characteristic codeX7R
Temperature Coefficient15% ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
width2.5 mm

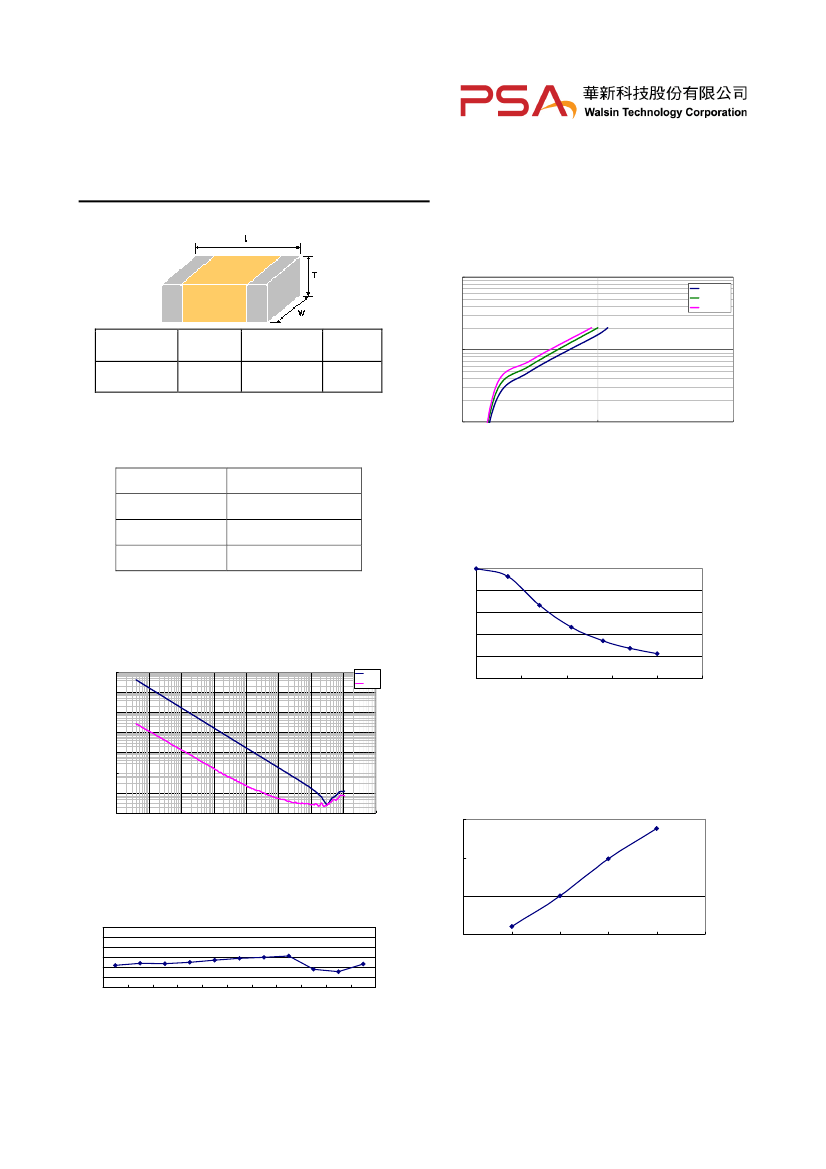

Chip Monolithic Ceramic Capacitor
Electrical Characteristics Data
1210 X7R 100nF 250V(1210B104K251CT)
1. Dimension
5. Temperature Rise – Ripple Current
(Equipment: 11810)
100
1000KHz
750KHz
500KHz
Size
Inch (mm)
1210 (3225)
L (mm)
3.2±0.40
W (mm)
2.50±0.30
T (mm)
1.60±0.20
Temperature Rise (deg.C)
10
2. Cap, DF, IR @25℃
(Cap, DF @1KHz, 1Vrms ; IR @250V, 120sec)
Item
Cap [nF]
DF
IR [G-ohm]
Spec
100 (±10%)
≦2.5%
≥1.00
1
0
1
Ripple Current (Arms)
2
6. Capacitance – DC Voltage Characteristics
(Equipment: 4284A; DC charge 60±5sec)
105V : -53.58% ; 200V : -77.60%
C/C(%)
0.0
-20.0
3. Impedance/ESR-Frequency
(Equipment: 4294A)
100000
10000
1000
ESR,Z(ohm)
100
10
1
0.1
Z
ESR
-40.0
-60.0
-80.0
-100.0
0
50
100
150
DC Voltage (V)
200
250
7. Capacitance – AC Voltage Characteristics
(Equipment: 4284A)
C/C(%)
0.01
0.01
0.1
1
10
100
1000
Frequency(KHz)
10000
100000
1000000
2.0
4. Capacitance – Temperature Characteristics
(Equipment: 4284A)
1.0
0.0
C/C(% )
15
10
5
0
-5
-10
-15
-55℃ -30℃ -25℃ -10℃
10℃
20℃
25℃
45℃
85℃ 105℃ 125℃
-1.0
0
0.5
1
1.5
AC Voltage (V)
2
2.5
Lasted updated : 2017/02/16
