5973405507F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> 5973405507F

5973405507F: DescriptionLED YELLOW 0603 SMD; CategoryLED optoelectronic/LED; File Size485KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric View All

5973405507F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5973405507F	-	-	View	Buy Now

5973405507F Overview

LED YELLOW 0603 SMD

5973405507F Parametric

Parameter Name	Attribute value
color	yellow
Configuration	-
Lens color	-
Lens transparency	-
millicandela level	224mcd
Lens style/size	Rectangular, with flat top, 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typical)	2.1V
Current - Test	20mA
perspective	-
Installation type	surface mount
Wavelength - Main	590nm
Wavelength - Peak	-
characteristic	-
Package/casing	0603 (1608 Metric)
Supplier device packaging	603
size/dimensions	1.60mm length x 0.80mm width
Height (maximum value)	0.68mm

Preview

Download Datasheet

View All

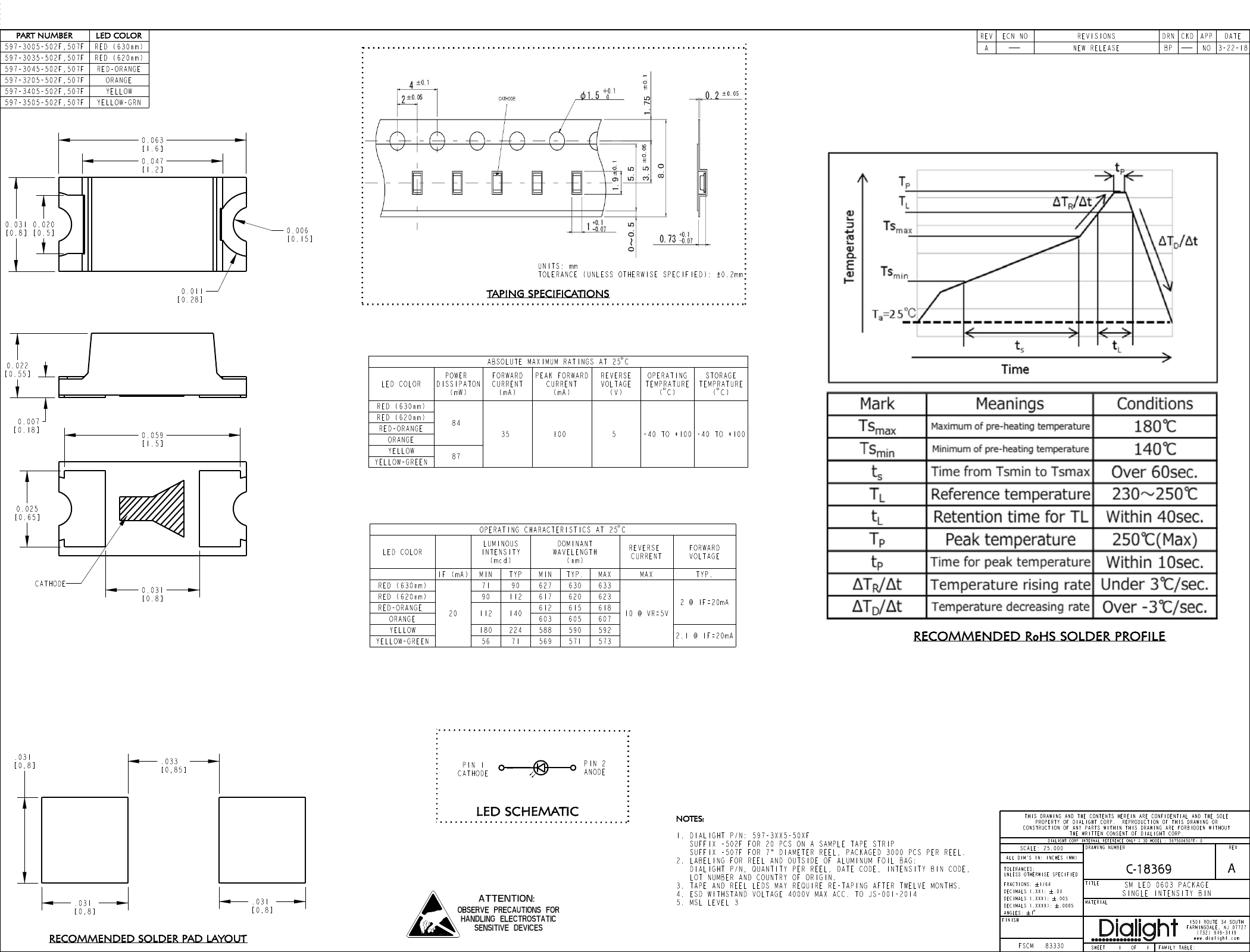

PART NUMBER

597-3005-502F,507F

597-3035-502F,507F

597-3045-502F,507F

597-3205-502F,507F

597-3405-502F,507F

597-3505-502F,507F

LED COLOR

RED (630nm)

RED (620nm)

RED-ORANGE

ORANGE

YELLOW

REV

ECN NO

REVISIONS

NEW RELEASE

DRN CKD APP

DATE

3-22-18

YELLOW-GRN

0.063

[1.6]

0.047

[1.2]

0.031 0.020

[0.8] [0.5]

0.006

[0.15]

UNITS: mm

TOLERANCE (UNLESS OTHERWISE SPECIFIED): ±0.2mm

0.011

[0.28]

TAPING SPECIFICATIONS

0.022

[0.55]

ABSOLUTE MAXIMUM RATINGS AT 25 $ C

LED COLOR

RED (630nm)

POWER

DISSIPATON

(mW)

FORWARD

CURRENT

(mA)

PEAK FORWARD

CURRENT

(mA)

REVERSE

VOLTAGE

(V)

OPERATING

TEMPRATURE

( $ C)

STORAGE

TEMPRATURE

( $ C)

0.007

[0.18]

RED (620nm)

0.059

[1.5]

RED-ORANGE

ORANGE

YELLOW

100

-40 TO +100 -40 TO +100

YELLOW-GREEN

0.025

[0.65]

OPERATING CHARACTERISTICS AT 25 $ C

LED COLOR

IF (mA)

LUMINOUS

INTENSITY

(mcd)

MIN

112

180

TYP

112

140

224

MIN

627

617

612

603

588

569

DOMINANT

WAVELENGTH

(nm)

TYP.

630

620

615

605

590

571

MAX

633

623

618

607

592

573

10 @ VR=5V

REVERSE

CURRENT

MAX

FORWARD

VOLTAGE

TYP.

2 @ IF=20mA

CATHODE

0.031

[0.8]

RED (630nm)

RED (620nm)

RED-ORANGE

ORANGE

YELLOW

YELLOW-GREEN

2.1 @ IF=20mA

RECOMMENDED RoHS SOLDER PROFILE

.031

[0,8 ]

.033

[0,85 ]

PIN 1

CATHODE

PIN 2

ANODE

LED SCHEMATIC

NOTES:

1. DIALIGHT P/N: 597-3XX5-50XF

SUFFIX -502F FOR 20 PCS ON A SAMPLE TAPE STRIP

SUFFIX -507F FOR 7" DIAMETER REEL, PACKAGED 3000 PCS PER REEL.

2. LABELING FOR REEL AND OUTSIDE OF ALUMINUM FOIL BAG:

DIALIGHT P/N, QUANTITY PER REEL, DATE CODE, INTENSITY BIN CODE,

LOT NUMBER AND COUNTRY OF ORIGIN.

3. TAPE AND REEL LEDS MAY REQUIRE RE-TAPING AFTER TWELVE MONTHS.

4. ESD WITHSTAND VOLTAGE 4000V MAX ACC. TO JS-001-2014

5. MSL LEVEL 3

THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND THE SOLE

PROPERTY OF DIALIGHT CORP. REPRODUCTION OF THIS DRAWING OR

CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE FORBIDDEN WITHOUT

THE WRITTEN CONSENT OF DIALIGHT CORP.

SCALE: 25.000

DIALIGHT CORP INTERNAL REFERENCE ONLY = 3D MODEL :

DRAWING NUMBER

5975006507F-.0

REV

ALL DIM'S IN: INCHES (MM)

TOLERANCES:

UNLESS OTHERWISE SPECIFIED

FRACTIONS:

DECIMALS (.XX):

# 1/64

TITLE

# .005

MATERIAL

# .01

C-18369

SM LED 0603 PACKAGE

SINGLE INTENSITY BIN

.031

[0,8 ]

.031

[0,8 ]

RECOMMENDED SOLDER PAD LAYOUT

OBSERVE PRECAUTIONS FOR

HANDLING ELECTROSTATIC

SENSITIVE DEVICES

ATTENTION:

DECIMALS (.XXX):

ANGLES:

# 1 $

DECIMALS (.XXXX):

FINISH

# .0005

FSCM

83330

1501 ROUTE 34 SOUTH

FARMINGDALE, NJ 07727

(732) 919-3119

www.dialight.com

SHEET

FAMILY TABLE:
