1210B224K251CT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 1210B224K251CT

Preview

1210B224K251CT: DescriptionCAP CER 0.22UF 250V X7R 1210; CategoryPassive components capacitor; File Size312KB，1 Pages; ManufacturerWalsin Technology Corporation; Environmental Compliance

Download Datasheet Parametric View All

1210B224K251CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1210B224K251CT	-	-	View	Buy Now

1210B224K251CT Overview

CAP CER 0.22UF 250V X7R 1210

1210B224K251CT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Walsin Technology Corporation
package instruction	, 1210
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.22 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.5 mm
JESD-609 code	e3
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PLASTIC, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	250 V
size code	1210
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	2.5 mm

Preview

Download Datasheet

View All

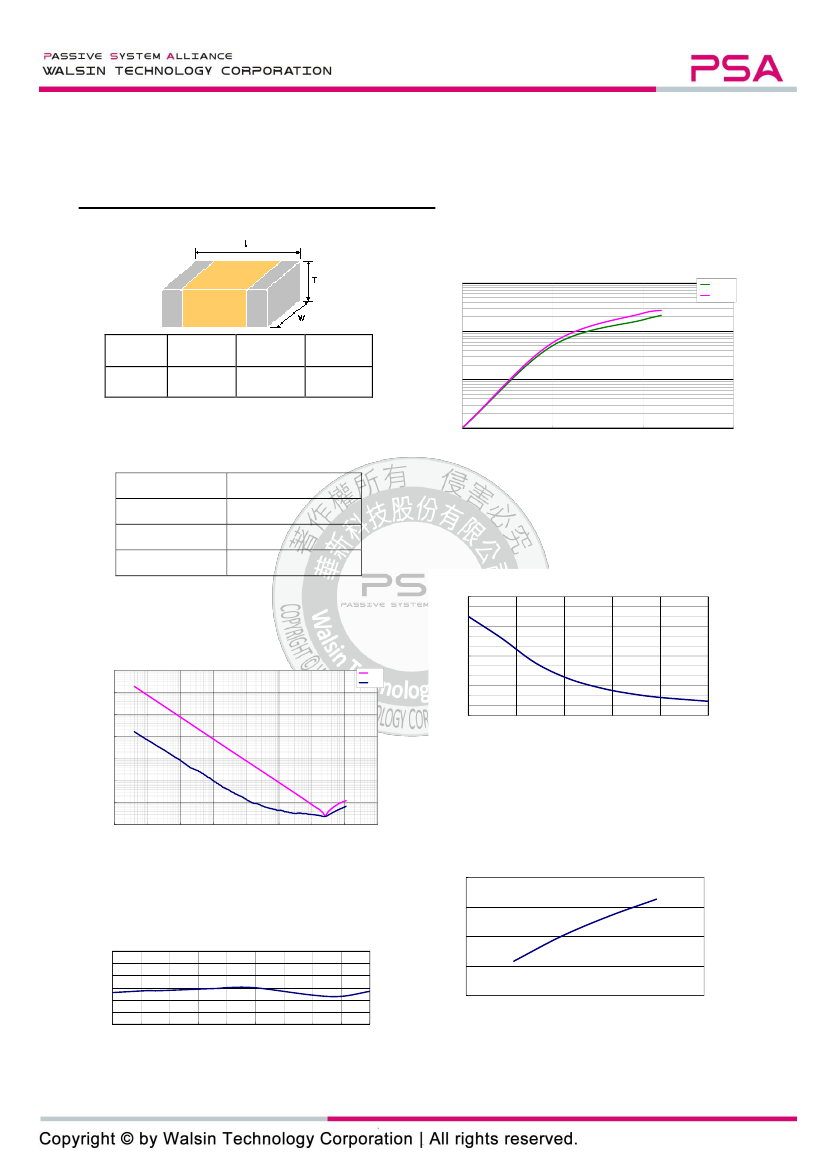

Chip Monolithic Ceramic Capacitor

Electrical Characteristics Data

1210 X7R 0.22uF 250V(1210B224K251CT)

1. Dimension

5. Temperature Rise – Ripple Current

(Equipment: 11810)

100

750KHz

500KHz

Temperature Rise (deg.C)

10

Size

Inch (mm)

1210

(3225)

L (mm)

3.20±0.40

W (mm)

2.50±0.30

T (mm)

2.50±0.30

1

0.1

2. Cap, DF, IR @25℃

(Cap, DF @1KHz, 1Vrms ; IR @250V, 120sec)

Item

Cap [uF]

DF

IR [G-ohm]

Spec

0.22(±10%)

≦2.5%

≧0.455

0

1

Ripple Current (Arms)

2

3

6. Capacitance – DC Voltage Characteristics

(Equipment: 4284A; DC charge 60±5sec)

125V : -68.50% ; 250V : -85.63%

△C/C(%)

20

3. Impedance/ESR-Frequency

(Equipment: 4294A)

100000

10000

1000

Z

ESR

0

-20

-40

-60

-80

-100

0

50

100

150

DC Voltage (V)

200

250

ESR,Z(ohm)

100

10

1

0.1

0.01

7. Capacitance – AC Voltage Characteristics

0.1

1

10

100

1000

Frequency(KHz)

10000

100000

1000000

(Equipment: 4284A)

△C/C(%)

5

4. Capacitance – Temperature Characteristics

2.5

(Equipment: 4284A)

△C/C(％)

30

20

0

-2.5

10

0

-10

-20

-5

0

0.5

1

1.5

AC Voltage (V)

2

2.5

-30

-55

-35

-15

5

25

45

65

85

105

125

℃

Last updated : 2018/10/01
