Standard Product Specifications
FKA1105W-TR/-RR
Features
Package

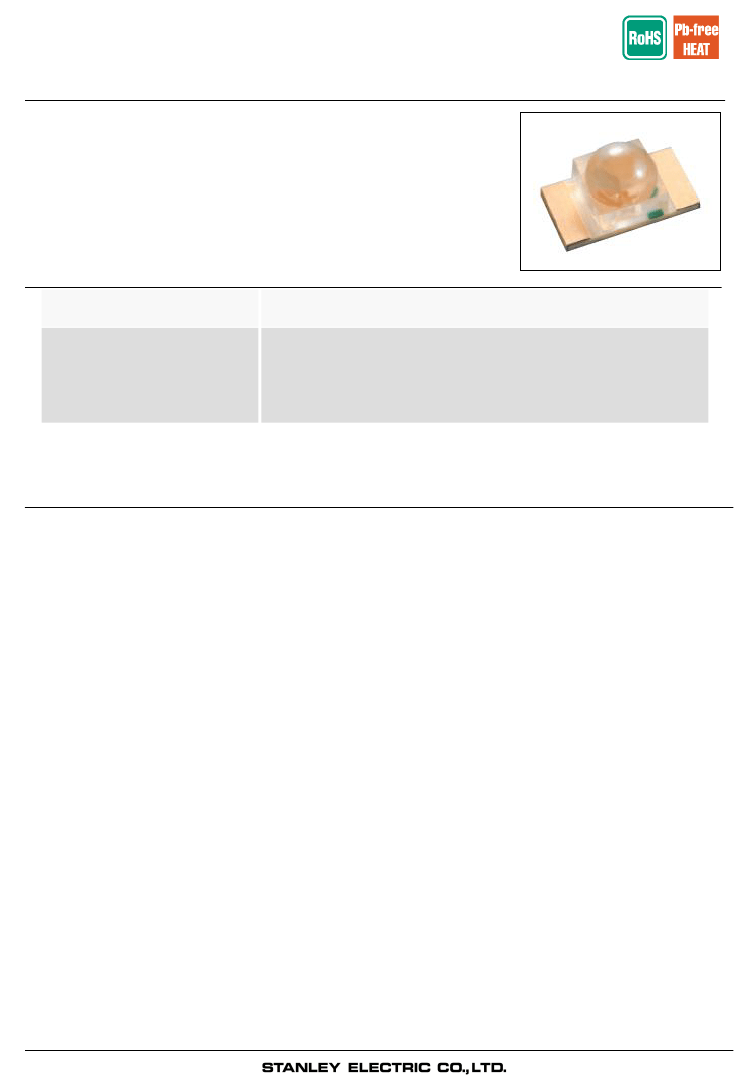

Product features
3216 Dome lens type, Water clear epoxy
・Outer
dimension 3.2 x 1.6 x 1.85mm ( L x W x H )
・Surface
mounting(-TR) / Reverse mounting(-RR) available
・16
times brighter than current product (TYP. brightness)
・Lead-free
soldering compatible
・RoHS
compliant
Recommended Applications
・Amusement
equipment, Home appliances, OA/FA, other general applications
2014/6/20
Page : 1

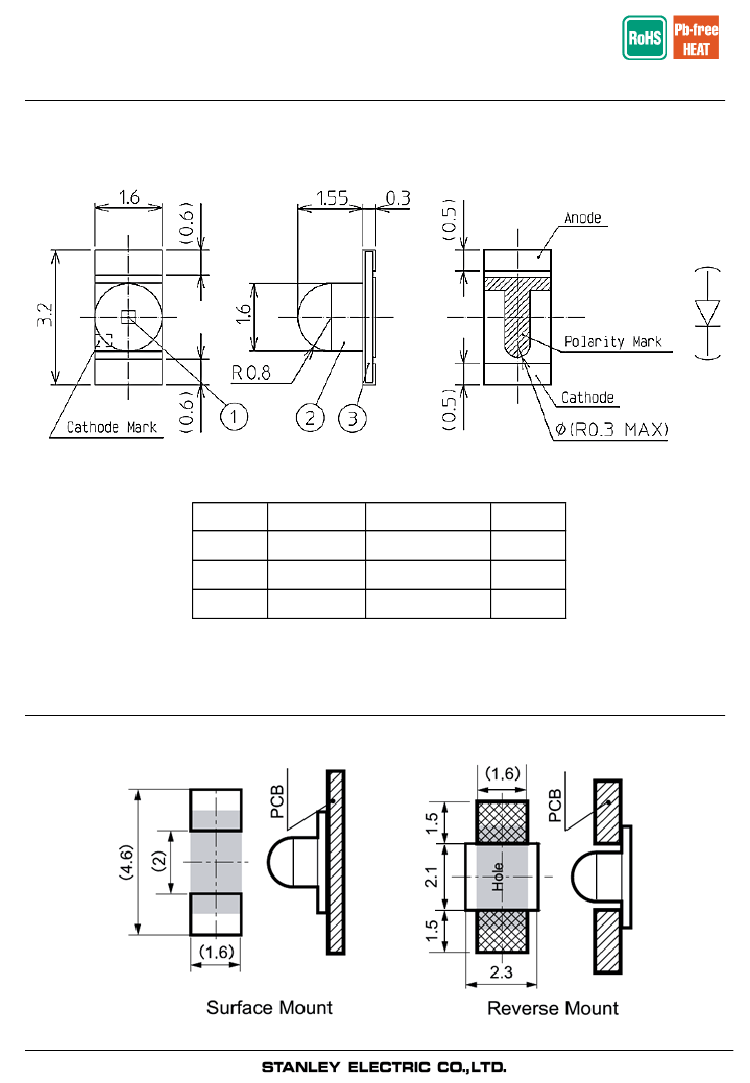

Outline Dimensions
FKA1105W-TR/-RR
Unit
Weight
Tolerance
：mm
：7.81mg
：±0.1
SYM.
①
②
③
PART NAME
LED Die
Plastic
Substance
MATAL.
AlGaInP
Epoxy Resin
Glass Fabrics
QTY.
1
1
1
Recommended Pad
Unit：mm
Tolerance
：±0.1
2014/6/20
(-TR)
(-RR)
Page : 2
Specifications
【
Product Overview
】
Die Material
Emitting Color
Resin Color 【Emitting Area】
AlGaInP
Orange
Water Clear
FKA1105W-TR/-RR
【
Absolute Maximum Ratings
】
ITEM
Power Dissipation
Forward Current
Repetitive Peak Forward Current
"1ms, 1/20duty"
I
F
Derate Linearly from "75℃"
I
FRM
Derate Linearly from "75℃"
Reverse Voltage
Operating Temperature
Storage Temperature
Notes
Notes
Soldering Temperature
"Reflow Soldering"
SYMBOL
P
d
I
F
I
FRM
Δ
I
F
Δ
I
FRM
V
R
Topr
Tstg
Tsld
MAXIMUM RATINGS
81
30
100
1.00
3.33
5
-40 ½ +100
-40 ½ +105
260
a
(Ta=25℃)
UNITS
mW
mA
mA
mA/℃
mA/ ℃
V
℃
℃
℃
Please refer to Page 8, Soldering Conditions.
【
Electro and Optical Characteristics
】
(Ta=25℃)
ITEM
Forward Voltage
Reverse Current
Luminous Intensity
Peak Wavelength
Dominant Wavelength
Spectral Line Half Width
SYMBOL
V
F
I
R
I
V
λ
p
λ
d
Δλ
CONDITIONS
I
F
= 20mA
V
R
= 5V
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
MIN.
1.7
-
1,500
-
597
-
TYP.
2.2
-
-
610
-
15
MAX.
2.6
100
6,800
-
612
-
UNITS
V
μ
A
mcd
nm
nm
nm
Above Luminous Intensity (Iv) values and Dominant Wavelength (λd) values are the setup value of the
selection machine.
【Tolerance
: Iv…±10%,
λd…±1nm】
2014/6/20
Page : 3
Specifications
【
Sorting For Luminous Intensity and Dominant Wavelength
】
FKA1105W-TR/-RR
LEDs shall be sorted out into the following ranks of Luminous Intensity and Dominant Wavelength.
Luminous Intensity (Iv) Rank
Iv(mcd)
MIN.
DB
DC
DD
DE
1,500
2,200
3,300
4,700
MAX.
2,200
3,300
4,700
6,800
I
F
=20mA
Ta=25℃
Dominant Wavelength (λ d) Rank
λ
d (nm)
MIN.
597
600
603
606
609
MAX.
600
603
606
609
612
I
F
=20mA
Ta=25℃
Rank
CONDITIONS
Rank
A
B
C
D
E
CONDITIONS
Notes Above Luminous Intensity (I
V
) values and Dominant Wavelength (λd) values are the setup value of
the selection machine.
【Tolerance
: I
V
…±10%,
λd…±1nm】
2014/6/20
Page : 4
Technical Data
FKA1105W-TR/-RR

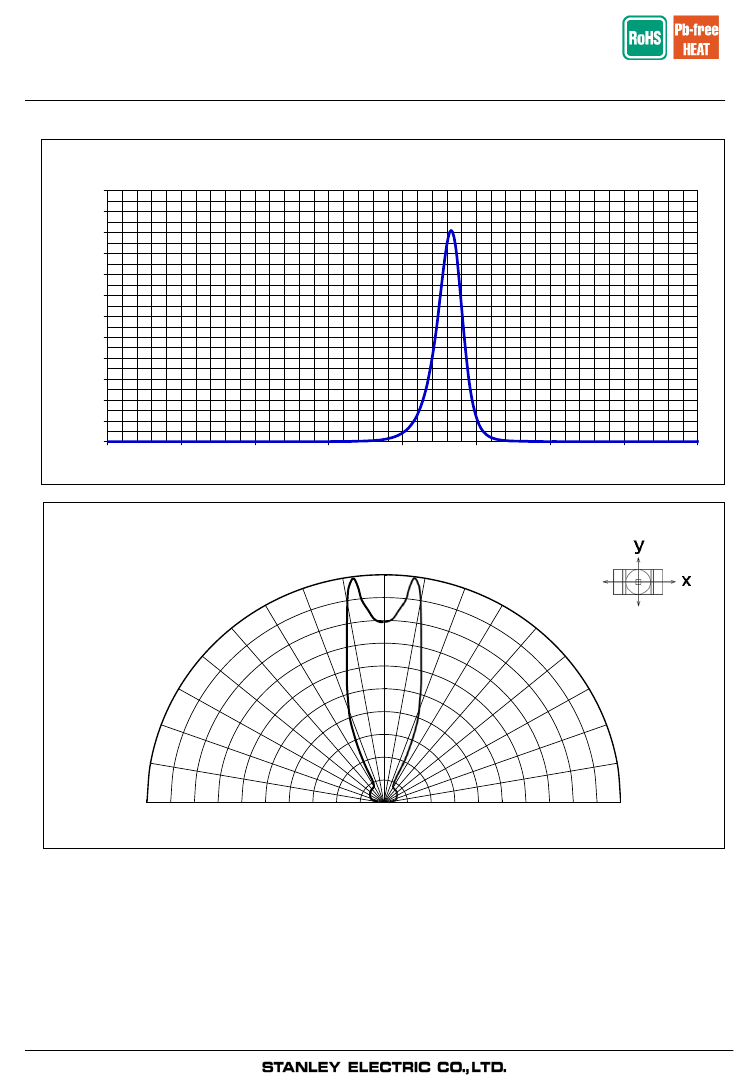

Relative Intensity vs. wave Length
Conditions: Ta = 25℃, I
F
=20mA
1.2
1.1
1
0.9
0.8
Relative Intensity
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
380
430
480
530
580
Wavelength : (nm)
630
680
730
780
Spatial Distribution
(Common shape for x/y direction)
Conditions: Ta = 25℃, I
F
=20mA
100
0
-30
30
-60
50
60
-90
100
100
50
50
0
0
50
50
90
100
100
Relative Radiant Intensity : (%)
2014/6/20
Page : 5
