P6SMAJ5.0ADF – P6SMAJ85ADF
600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Features
Packaged in the Low Profile D-FLAT Package to Optimize Board
Space
Glass Passivated Die Construction
Excellent Clamping Capability
Fast Response Time
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: D-FLAT
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
P4SSMAJ200(C)A
Solderable per MIL-STD-202, Method 208
Polarity Indicator: Cathode Band
Weight: 0.035 grams (Approximate)
NEW PRODUCT
ADVANCED INFORMATION
1
2
1 = Cathode
2 = Anode
Top View
Device Schematic
Ordering Information
(Note 4)
Part Number
P6SMAJXXADF-13
*XX = Device Voltage, for example: P6SMAJ17ADF-13.
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Compliance
Commercial
Case
D-FLAT
Packaging
10,000/Tape & Reel
Marking Information
xx = Product Type Marking Code
(See Electrical Characteristics Table)
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 7 for 2017)
WW = Week Code (01 to 53)
YWW
xx
P6SMAJ5.0ADF – P6SMAJ85ADF
Document number: DS38930 Rev. 2 - 2
1 of 6
www.diodes.com
June 2017
© Diodes Incorporated
P6SMAJ5.0ADF – P6SMAJ85ADF
Maximum Ratings
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Peak Pulse Power Dissipation
(Non Repetitive Current Pulse Derated Above T
A
= +25° (Note 5)
C)
Peak Forward Surge Current, 8.3ms Single Half Sine Wave
Superimposed on Rated Load (Notes 5 & 6 )
Steady State Power Dissipation @ T
L
= +75°
C
Instantaneous Forward Voltage @ I
PP
= 35A (Notes 5 & 6)
Notes:
Symbol
P
PK
I
FSM
PM
(AV)
V
F
Value
600
60
1.5
3.5
Unit
W
A
W
V
NEW PRODUCT
ADVANCED INFORMATION
5. Valid provided that terminals are kept at ambient temperature.
6. Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum.
P4SSMAJ200(C)A
Thermal Characteristics
Characteristic
Typical Thermal Resistance, Junction to Terminal (Note 7)
Typical Thermal Resistance, Junction to Terminal (Note 8)
Typical Thermal Resistance, Junction to Ambient (Note 7)
Typical Thermal Resistance, Junction to Ambient (Note 8)
Operating and Storage Temperature Range
Notes:
Symbol
R
JT
R
JT
R
JA
R
JA
T
J
, T
STG
Value
64
57
115
92
-55 to +150
Unit
°
C/W
°
C/W
°
C/W
°
C/W
°
C
7. Device mounted on FR-4 substrate, 1" x 1", 2oz, single-sided, PC boards with 0.06" x 0.09" copper pad.
8. Device mounted on FR-4 substrate, 0.4" x 0.5", 2oz, single-sided, PC boards with 0.2" x 0.25" copper pad.
Electrical Characteristics
(@T
A
= +25° unless otherwise specified.)
C,
Part Number
Reverse
Standoff
Voltage
V
RWM
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
Breakdown
Voltage
V
BR
@ I
T
(Note 9)
Min (V) Max (V)
6.40
7.23
6.67
7.67
7.22
8.30
7.78
8.95
8.33
9.58
8.89
10.23
9.44
10.82
10.00
11.50
11.10
12.80
12.20
14.40
13.30
15.30
14.40
16.50
15.60
17.90
16.70
19.20
17.80
20.50
18.90
21.70
20.00
23.30
22.20
25.50
24.40
28.00
26.70
30.70
28.90
33.20
31.10
35.80
33.30
38.30
36.70
42.20
40.00
46.00
Test
Current
I
T
(mA)
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Max. Reverse
Leakage @
V
RWM
I
R
(µA)
800
800
500
200
100
50
10
5.0
5.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Max. Clamping
Voltage @ I
PP
(Note 10)
V
C
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
Max. Peak Pulse
Current
I
PP
(Note 10)
(A)
65.2
58.3
53.6
50.0
46.5
44.1
41.7
39.0
35.3
33.0
30.2
27.9
25.8
24.0
23.1
21.7
20.5
18.5
16.9
15.4
14.2
13.2
12.4
11.3
10.3
Marking Code
P6SMAJ5.0ADF
P6SMAJ6.0ADF
P6SMAJ6.5ADF
P6SMAJ7.0ADF
P6SMAJ7.5ADF
P6SMAJ8.0ADF
P6SMAJ8.5ADF
P6SMAJ9.0ADF
P6SMAJ10ADF
P6SMAJ11ADF
P6SMAJ12ADF
P6SMAJ13ADF
P6SMAJ14ADF
P6SMAJ15ADF
P6SMAJ16ADF
P6SMAJ17ADF
P6SMAJ18ADF
P6SMAJ20ADF
P6SMAJ22ADF
P6SMAJ24ADF
P6SMAJ26ADF
P6SMAJ28ADF
P6SMAJ30ADF
P6SMAJ33ADF
P6SMAJ36ADF
Notes:
KE
KG
KK
KM
KP
KR
KT
KV
KX
KZ
LE
LG
LK
LM
LP
LR
LT
LV
LX
LZ
ME
MG
MK
MM
MP
9. V
BR
measured with I
T
current pulse = 10 ~ 15ms.
10. Per 10 x 1000µs waveform. See Figure 4.
P6SMAJ5.0ADF – P6SMAJ85ADF
Document number: DS38930 Rev. 2 - 2
2 of 6
www.diodes.com
June 2017
© Diodes Incorporated
P6SMAJ5.0ADF – P6SMAJ85ADF
Electrical Characteristics
(@T
A
= +25° unless otherwise specified.) (Cont.)
C,
Part Number
Reverse
Standoff
Voltage
V
RWM
(V)
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
Breakdown
Voltage
V
BR
@ I
T
(Note 9)
Min (V) Max (V)
44.40
51.10
47.80
54.90
50.00
57.50
53.30
61.30
56.70
65.20
60.00
69.00
64.40
74.60
66.70
76.70
71.10
81.80
77.80
89.50
83.30
95.80
86.70
99.70
94.40
108.20
Test
Current
I
T
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Max. Reverse
Leakage @
V
RWM
I
R
(µA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Max. Clamping
Voltage @ I
PP
(Note 10)
V
C
(V)
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
Max. Peak Pulse
Current
Marking Code
I
PP
(Note 10)
(A)
9.3
MR
8.6
MT
8.3
MV
P4SSMAJ200(C)A
7.7
MX
7.3
MZ
6.9
NE
6.4
NG
6.2
NK
5.8
NM
5.3
NP
4.9
NR
4.7
NT
4.4
NV
NEW PRODUCT
ADVANCED INFORMATION
P6SMAJ40ADF
P6SMAJ43ADF
P6SMAJ45ADF
P6SMAJ48ADF
P6SMAJ51ADF
P6SMAJ54ADF
P6SMAJ58ADF
P6SMAJ60ADF
P6SMAJ64ADF
P6SMAJ70ADF
P6SMAJ75ADF
P6SMAJ78ADF
P6SMAJ85ADF
Notes:
9. V
BR
measured with I
T
current pulse = 10 ~ 15ms.
10. Per 10 x 1000µs waveform. See Figure 4.
2500
100
C
T
, TOTAL CAPACITANCE (pF)
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
75
50
25
10 X 1000 Waveform
as defined by REA
)
F
p
(
E
C
N
A
T
I
C
A
P
A
C
L
A
T
O
T
,
T
C
2000
Measure at T
A
=+25
°
f = 1MHz,
C,
V
BIAS
= 0V DC
1500
1000
500
0
0
25
50
75
100
125
150
175
200
T
A
, AMBIENT TEMPERATURE (°
C)

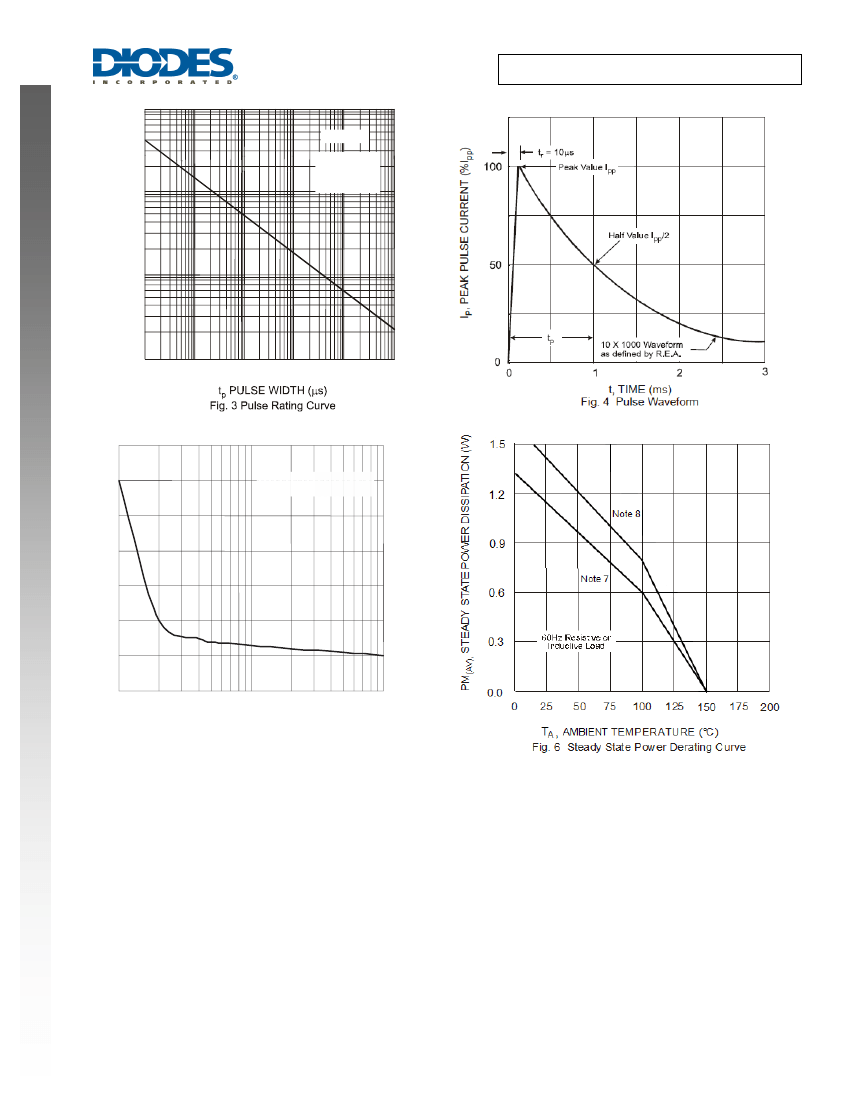

Fig. 1 Pulse Derating Curve
0
5
25
35
45
55
65
75
V
RWM
, REVERSE STANDOFF VOLTAGE (V)
Fig. 2 Typical Total Capacitance vs.
Reverse Standoff Voltage
15
85
P6SMAJ5.0ADF – P6SMAJ85ADF
Document number: DS38930 Rev. 2 - 2
3 of 6
www.diodes.com
June 2017
© Diodes Incorporated
P6SMAJ5.0ADF – P6SMAJ85ADF
100
T
J
= +25
°
C
P
PK
, PEAK PULSE POWER (kW)
NEW PRODUCT
ADVANCED INFORMATION
)
W
k
(
R
E
W
O
P
E
S
L
U
P
K
A
E
P
,
K
P
P
Non Repetitive
Pulse Waveform
Shown in Fig. 4
10
P4SSMAJ200(C)A
1.0
0.1
0.1
1.0
10
100
1000
10000
70
PEAK FORWARD SURGE CURRENT (A)
)
A
(
T
N
E
R
R
U
C
E
G
R
U
S
D
R
A
W
R
O
F
K
A
E
P
60
50
40
30
20
10
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 5 Maximum Non-Repetitive Forward Surge Current
T
J
= +25
°
8.3ms Single Half
C
Sine Wave JEDEC Method
Notes:
7. Device mounted on FR-4 substrate, 1" x 1", 2oz, single-sided, PC boards with 0.06" x 0.09" copper pad.
8. Device mounted on FR-4 substrate, 0.4" x 0.5", 2oz, single-sided, PC boards with 0.2" x 0.25" copper pad.
P6SMAJ5.0ADF – P6SMAJ85ADF
Document number: DS38930 Rev. 2 - 2
4 of 6
www.diodes.com
June 2017
© Diodes Incorporated
P6SMAJ5.0ADF – P6SMAJ85ADF
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
D-FLAT
H
E
E
L
b
k
D-FLAT
P4SSMAJ200(C)A
Dim
Min
Max
A
0.90
1.10
b
1.25
1.65
c
0.10
0.40
D
2.25
2.95
E
3.95
4.60
k
2.80
-
H
E
5.00
5.60
L
0.50
1.30
All Dimensions in mm
NEW PRODUCT
ADVANCED INFORMATION
D
A
c
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
D-FLAT
X1
X
Dimensions
C
G
X
X1
Y
Value
(in mm)
4.65
2.80
1.85
6.50
1.70
Y
G
C
P6SMAJ5.0ADF – P6SMAJ85ADF
Document number: DS38930 Rev. 2 - 2
5 of 6
www.diodes.com
June 2017
© Diodes Incorporated
