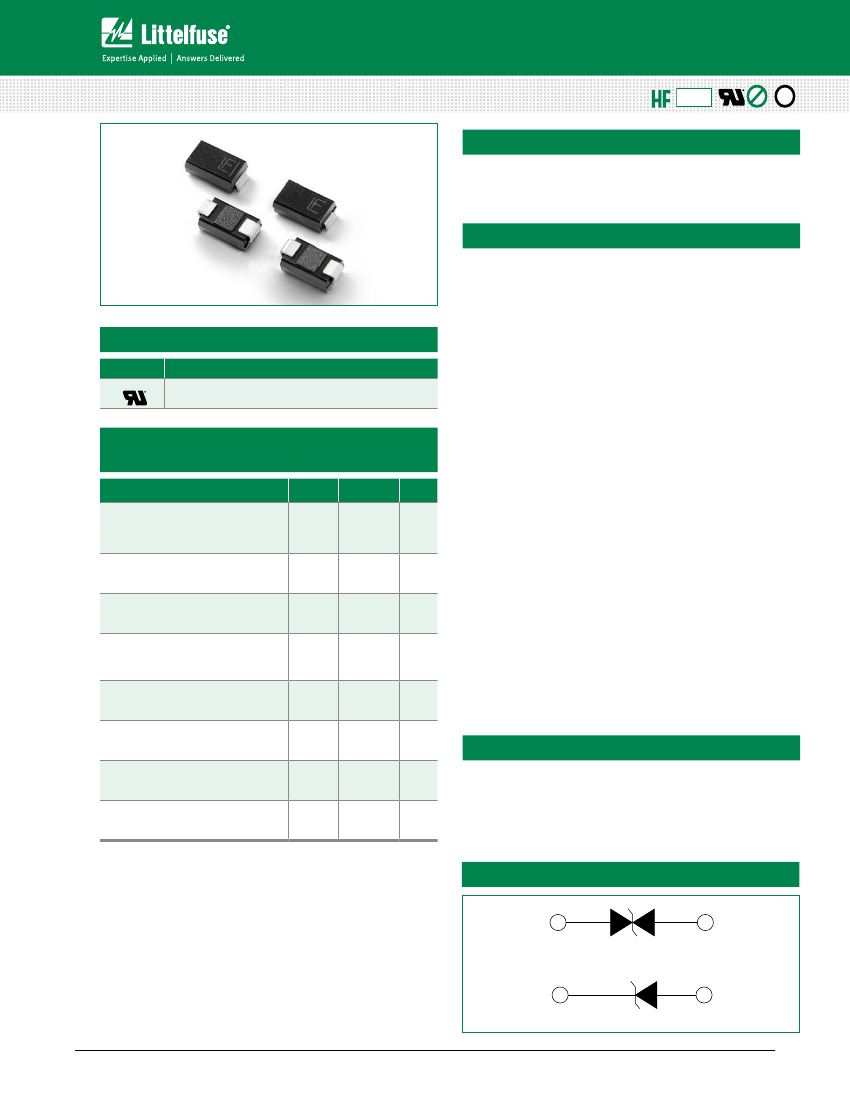

TVS Diodes
Surface Mount – 600W > SMA6J series
RoHS
SMA6J Series
Uni-directional
Bi-directional
Description
Pb
e3
The SMA6J series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Features
• Small DO-214AC SMT
footprint for minimal board
space requirement
• Typical failure mode is a
short circuit condition for
current events exceeding
component rating
• Whisker test is conducted
based on JEDEC
JESD201A per its table 4a
and 4c
• IEC 61000-4-2 ESD
30kV(Air), 30kV (Contact)
• ESD protection of data
lines in accordance with
IEC 61000-4-2
• Built-in strain relief
• Glass passivated junction
• Low inductance
• Excellent clamping
capability
• 600W peak pulsepower
capability at 10/1000μs
waveform, repetition rate
(duty cycle): 0.01%
• Fast response time:
typically less than 1.0ps
from 0 Volts to V
BR
min
• Typical I
R
< 1µA when
V
BR
min > 12 V
• High temperature reflow
soldering guaranteed:
260°C/40sec
• V
BR
@ T
J
= V
BR
@25°C
x (1+
α
T x (T
J
- 25))
(
α
T:Temperature
Coefficient, typical value
is 0.1%)
• UL Recognized compound
meeting flammability
rating V-0
• Meet MSL level1, per
J-STD-020, lead-frame
maximun peak of 260
°
C
• Matte tin lead–free plated
• Pb-free E3 means 2
nd
level
interconnect is Pb-free
and the terminal finish
material is tin(Sn) (IPC/
JEDEC J-STD-609A.01)
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
Maximum Ratings and Thermal Characteristics
(T
A
=25
O
C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation by
10/1000μs Waveform (Fig.2)
(Note 1), (Note 2)
Power Dissipation on Infinite Heat
Sink at T
L
=50
O
C
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
Maximum Instantaneous Forward
Voltage at 25A for Unidirectional
Only
Operating Temperature Range
Storage Temperature Range
Typical Thermal Resistance
Junction to Lead
Typical Thermal Resistance
Junction to Ambient
Symbol
P
PPM
Value
600
Unit
W
P
D
I
FSM
V
F
T
J
T
STG
R
θJL
R
θJA
3.3
60
W
A
3.5
V
-65 to 150
-65 to 175
30
120
°C
°C
°C/W
°C/W
Applications
TVS components are ideal for the protection of I/O
Interfaces, V
CC
bus and other vulnerable circuits used in
Telecom, Computer, Industrial and Consumer electronic
applications.
Notes:
1. Non-repetitive current pulse, per Fig.4 and derated above T
J
(initial) =25ºC per Fig. 3.
2. Mounted on 5.0x5.0mm copper pad to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
component only.
Functional Diagram
Bi-directional
Cathode
Uni-directional
Anode
© 2018 Littelfuse, Inc. Revised: 05/08/18
Specifications are subject to change without notice.
littelfuse.com
TVS Diodes
Surface Mount – 600W > SMA6J series
Electrical Characteristics
(T =25°C unless otherwise noted)
A
Part
Number
(Uni)
SMA6J5.0A
SMA6J6.0A
SMA6J6.5A
SMA6J7
.0A
SMA6J7
.5A
SMA6J8.0A
SMA6J8.5A
SMA6J9.0A
SMA6J10A
SMA6J11A
SMA6J12A
SMA6J13A
SMA6J14A
SMA6J15A
SMA6J16A
SMA6J17A
SMA6J18A
SMA6J20A
SMA6J22A
SMA6J24A
SMA6J26A
SMA6J28A
SMA6J30A
SMA6J33A
SMA6J36A
SMA6J40A
SMA6J43A
SMA6J45A
SMA6J48A
SMA6J51A
SMA6J54A
SMA6J58A
SMA6J60A
SMA6J64A
SMA6J70A
SMA6J75A
SMA6J78A
SMA6J85A
SMA6J90A
SMA6J100A
SMA6J110A
SMA6J120A
SMA6J130A
Part
Number
(Bi)
SMA6J5.0CA
SMA6J6.0CA
SMA6J6.5CA
SMA6J7
.0CA
SMA6J7
.5CA
SMA6J8.0CA
SMA6J8.5CA
SMA6J9.0CA
SMA6J10CA
SMA6J11CA
SMA6J12CA
SMA6J13CA
SMA6J14CA
SMA6J15CA
SMA6J16CA
SMA6J17CA
SMA6J18CA
SMA6J20CA
SMA6J22CA
SMA6J24CA
SMA6J26CA
SMA6J28CA
SMA6J30CA
SMA6J33CA
SMA6J36CA
SMA6J40CA
SMA6J43CA
SMA6J45CA
SMA6J48CA
SMA6J51CA
SMA6J54CA
SMA6J58CA
SMA6J60CA
SMA6J64CA
SMA6J70CA
SMA6J75CA
SMA6J78CA
SMA6J85CA
SMA6J90CA
-
-
-
-
Marking
UNI
6BA
6AG
6AK
6AM
6AP
6AR
6AT
6AV
6AX
6AZ
6BE
6BG
6BK
6BM
6BP
6BR
6BT
6BV
6BX
6BZ
6CE
6CG
6CK
6CM
6CP
6CR
6CT
6CV
6CX
6CZ
6RE
6RG
6RK
6RM
6RP
6RR
6RT
6RV
6RX
6RZ
6SE
6SG
6SK
BI
6WE
6WG
6WK
6WM
6WP
6WR
6WT
6WV
6WX
6WZ
6XE
6XG
6XK
6XM
6XP
6XR
6XT
6XV
6XX
6XZ
6YE
6YG
6YK
6YM
6YP
6YR
6YT
6YV
6YX
6YZ
6ZE
6ZG
6ZK
6ZM
6ZP
6ZR
6ZT
6ZV
6ZX
-
-
-
-
Reverse
Stand off
Voltage V
R
(Volts)
5
6
6.5
7
7
.5
8
8.5
9
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
Breakdown
Voltage V
BR
(Volts) @ I
T
MIN
6.40
6.67
7
.22
7
.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
15.6
16.7
17
.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40.0
44.4
47
.8
50.0
53.3
56.7
60.0
64.4
66.7
71.1
77
.8
83.3
86.7
94.4
100
111
122
133
144
MAX
7
.00
7
.37
7
.98
8.60
9.21
9.83
10.40
11.1
12.3
13.5
14.7
15.9
17
.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86.0
92.1
95.8
104
111
123
135
147
159
Test
Current
I
T
(mA)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Clamping
Voltage V
C
@ I
pp
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17
.0
18.2
19.9
21.5
23.2
24.4
26.0
27
.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77
.4
82.4
87
.1
93.6
96.8
103
113
121
126
137
146
162
177
193
209
Maximum
Peak
Pulse
Current I
pp
(A)
66.0
61.0
56.0
50.0
46.5
44.1
41.7
39.0
37
.0
33.0
31.0
29.0
25.8
25.1
23.1
22.6
21.5
19.4
17
.0
16.0
14.9
13.8
12.5
11.8
10.4
9.7
8.7
8.3
8.1
7
.4
6.9
6.7
6.2
5.9
5.5
5.0
4.8
4.6
4.2
3.8
3.5
3.2
2.9
Maximum
Reverse
Leakage I
R
@ V
R
(µA)
800
800
500
200
100
50
20
10
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Agency
Recognition
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
For bidirectional type having V
R
of 10 volts and less, the I
R
limit is double.
© 2018 Littelfuse, Inc. Revised: 05/08/18
Specifications are subject to change without notice.
littelfuse.com
TVS Diodes
Surface Mount – 600W > SMA6J series

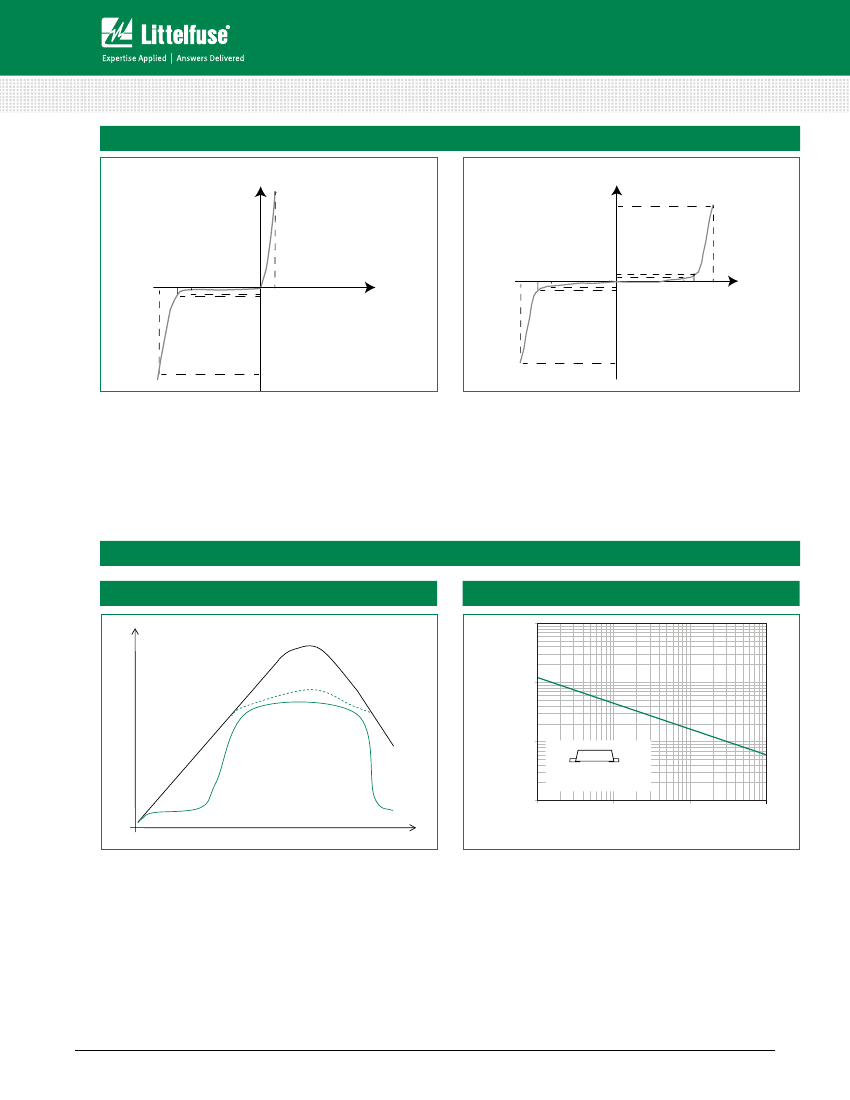

I-V Curve Characteristics
I
I
I
pp
Uni-directional
Bi-directional
Vc V
BR
V
R
I
R
V
F
I
T
V
Vc V
BR
V
R
I
T
I
R
I
R
I
T
V
R
V
BR
Vc
V
I
pp
I
pp
P
PPM
V
R
V
BR
V
C
I
R
V
F
Peak Pulse Power Dissipation
-- Max power dissipation
Stand-off Voltage
-- Maximum voltage that can be applied to the TVS without operation
Breakdown Voltage
-- Maximum voltage that flows though the TVS at a specified test current (I
T
)
Clamping Voltage
-- Peak voltage measured across the TVS at a specified I
PPM
(peak impulse current @ 10/1000)
Reverse Leakage Current
-- Current measured at V
R
Forward Voltage Drop for Uni-directional

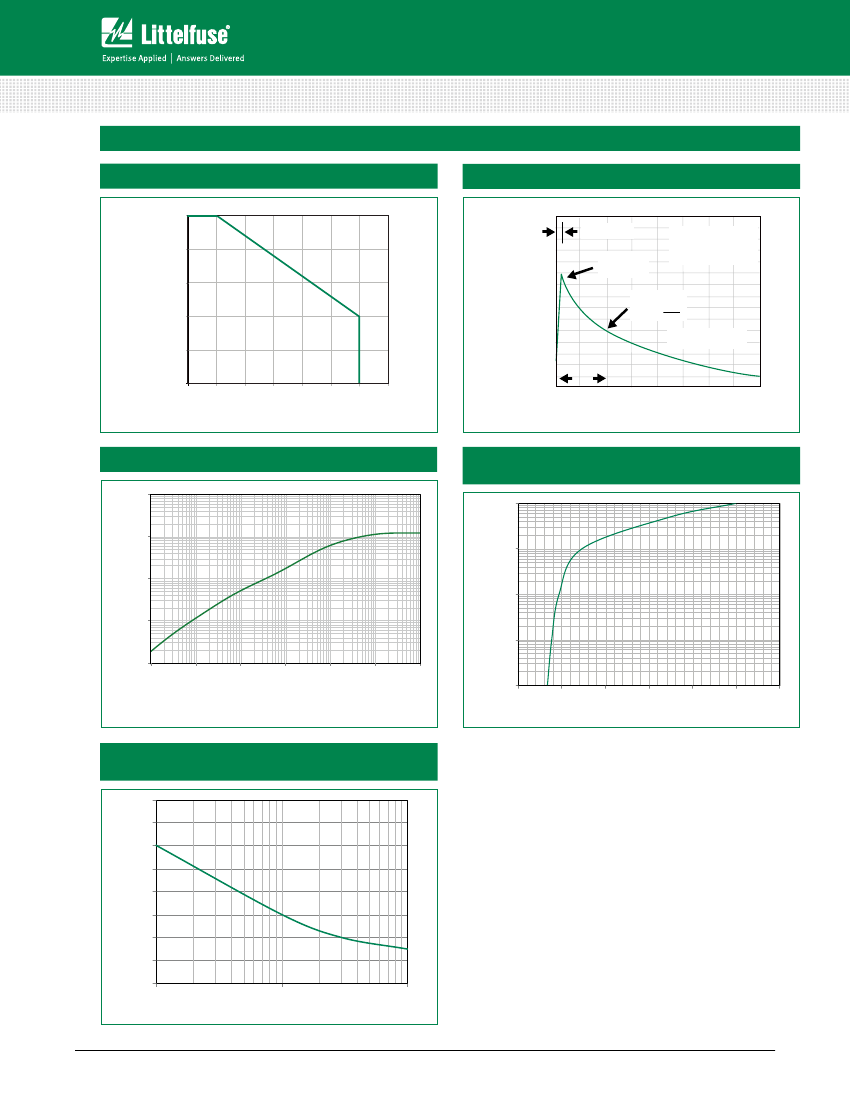

Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
A
Figure 1 - TVS Transients Clamping Waveform
Voltage Transients
Figure 2 - Peak Pulse Power Rating Curve
100
Voltage Across TVS
Voltage or Current
P
PPM
-Peak Pulse Power (kW)
10
Current Through TVS
1
0.2x0.2" (5.0x5.0mm)
Copper Pad Area
0.1
0.001
0.01
0.1
1
Time
t
d
-Pulse Width (ms.)
continues on next page.
© 2018 Littelfuse, Inc. Revised: 05/08/18
Specifications are subject to change without notice.
littelfuse.com
TVS Diodes
Surface Mount – 600W > SMA6J series
Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
(Continued)
A
Figure 3 - Peak Pulse Power Derating Curve
100
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
80
60
40
20
0
Figure 4 - Pulse Waveform
150
I
PPM
- Peak Pulse Current, % I
RSM
tr=10µsec
Peak Value
IPPM
TJ=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of IPPM
100
Half Value
IPPM
IPPM
2
( )
10/1000µsec. Waveform
as defined by R.E.A
50
0
25
50
75
100
125 150
T
J
- Initial Junction Temperature (ºC)
175
0
td
0
1.0
2.0
t-Time (ms)
3.0
4.0
Figure 5 - Typical Transient Thermal Impedance
1000
Transient Thermal Impedance (
°
C/W)
Figure 6 - Peak Forward Voltage Drop vs Peak
Forward Current (typical values)
100
I
F
- Peak Forward Current(A)
0.01
0.1
1
10
100
1000
100
10
10
1
1
0.1
0.1
0.001
T
P
- Pulse Duration (s)
0.01
0
1
2
3
4
5
6
V
F
- Peak Forward Voltage(V)
Figure 7 - Maximum Non-Repetitive Forward Surge
Current Uni-Directional Only
80
IFSM - Peak Forward Surve Current(A)
70
60
50
40
30
20
10
0
1
10
Number of Cycles at 60 Hz
100
© 2018 Littelfuse, Inc. Revised: 05/08/18
Specifications are subject to change without notice.
littelfuse.com
TVS Diodes
Surface Mount – 600W > SMA6J series
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus Temp (T
A
)
to peak
T
S(max)
to T
A
- Ramp-up Rate
Reflow
- Temperature (T
A
) (Liquidus)
- Time (min to max) (t
s
)
Lead–free assembly
150°C
200°C
60 – 180 secs
3°C/second max
3°C/second max
217°C
60 – 150 seconds
260
+0/-5
°C
20 – 40 seconds
6°C/second max
8 minutes Max.
260°C
High Temp. Storage
JESD22-A103
JESD22-A108
JESD22-A104
JEDEC-J-STD-020, Level 1
JESD22-A101
JESD22-A111
Temperature (T)
T
P
Ramp-up
t
p
Critical Zone
T
L
to T
P
T
L
T
s(max)
t
L
T
s(min)
Ramp-down
Preheat
t
s
25˚C
t 25˚C to Peak
Time (t)
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
Environmental Specifications
Physical Specifications
Weight
Case
Polarity
Terminal
0.002 ounce, 0.061 gram
JEDEC DO-214AC Molded Plastic over glass
passivated junction
Color band denotes cathode except Bipolar
Matte Tin-plated leads, Solderable per
JESD22-B102
HTRB
Temperature Cycling
MSL
H3TRB
RSH
Dimensions
DO-214AC (SMA)
Cathode Band
Dimensions
A
B
C
D
Inches
Min
0.049
0.157
0.095
0.075
0.030
-
0.189
0.006
0.070
0.082
-
0.082
Max
0.065
0.181
0.110
0.090
0.060
0.008
0.208
0.012
-
-
0.090
-
Millimeters
Min
1.250
3.990
2.400
1.900
0.780
-
4.800
0.152
1.800
2.100
-
2.100
Max
1.650
4.600
2.790
2.290
1.520
0.203
5.280
0.305
-
-
2.300
-
A
B
H
D
F
G
J
K
L
C
E
F
G
H
I
J
K
L
E
I
Solder Pads
(all dimensions in mm)
© 2018 Littelfuse, Inc. Revised: 05/08/18
Specifications are subject to change without notice.
littelfuse.com
京公网安备 11010802033920号
EEWORLD
