PART NUMBER
597-3006-502F, 507F
597-3036-502F, 507F
597-3206-502F, 507F
LED COLOR
RED (630nm)
RED (620nm)
ORANGE
REV
A
ECN NO
REVISIONS
NEW RELEASE
DRN CKD APP
BP
NO
DATE
4-2-18
597-3408-502F, 507F YELLOW (590nm)
597-3409-502F, 507F YELLOW (587nm)
597-3506-502F, 507F
597-3316-502F, 507F
GREEN (560nm)
YELLOW-GREEN
CATHODE MARK
0.063
[1.6]
UNITS: mm
TOLERANCE (UNLESS OTHERWISE SPECIFIED): ±0.2mm
TAPING SPECIFICATIONS
0.029
[0.75]
0.049
[1.24]
ABSOLUTE MAXIMUM RATINGS AT 25 $ C
LED COLOR
RED (630nm)
RED (620nm)
YELLOW (590nm)
YLLLOW (587nm)
YELLOW-GREEN
GREEN
ORANGE
50
20
100
12
-40 TO +100 -40 TO +100
POWER
DISSIPATON
(mW)
FORWARD
CURRENT
(mA)
PEAK FORWARD
CURRENT
(mA)
REVERSE
VOLTAGE
(V)
OPERATING
TEMPRATURE
( $ C)
STORAGE
TEMPRATURE
( $ C)
MARK
Ts
Ts
max
min
s
L
L
P
P
MEANING
MAXIMUM OF PRE-HEATING TEMP.
MINIMUM OF PRE-HEATING TEMP.
TIME FROM Tsmin TO Tsmax
REFERENCE TEMP
RETENTION TIME FOR TL
PEAK TEMP
TIME FOR PEAK TEMP
TEMP. RISING RATE
TEMP. DECREASING RATE
CONDITIONS
180
140
$ C
$ C
t
T
OVER 60 sec.
230-260
$ C
0.016
[0.4]
0.016
[0.4]
LED COLOR
0.032
[0.8]
IF (mA)
t
WITHIN 40 sec.
260
$ C (MAX)
OPERATING CHARACTERISTICS AT 25 $ C
LUMINOUS
INTENSITY
(mcd)
MIN.
TYP.
174
185
320
290
140
34
MIN
DOMINANT
WAVELENGTH
(nm)
TYP.
630
620
605
590
587
571
560
10 @ VR=12V
2 @ IF=20mA
MAX
REVERSE
CURRENT
MAX
FORWARD
VOLTAGE
TYP.
T
t
WITHIN 10 sec.
UNDER 3 $ C/sec.
OVER -3 $ C/sec.
T / t
R
T / t
D
RED (630nm)
RED (620nm)
YELLOW (590nm)
YLW GREEN
GREEN
ORANGE
YELLOW (587nm)
20
405
RECOMMENDED RoHS SOLDER PROFILE
.031
[0,8 ]
PIN 2
ANODE
PIN 1
CATHODE
LED SCHEMATIC
NOTES:
.031
[0,8 ]
.033
[0,85 ]
.031
[0,8 ]
1. DIALIGHT P/N: 597-3XXX-50XF
SUFFIX -502F FOR 20 PCS ON A SAMPLE TAPE STRIP
SUFFIX -507F FOR 7" DUANETER REEL, PACKAGED 2000 PCS PER REEL.
2. LABELING FOR REEL AND OUTSIDE OF ALUMINUM FOIL BAG:
DIALIGHT P/N, QUANTITY PER REEL, DATE CODE, INTENSITY BIN CODE,
LOT NUMBER AND COUNTRY OF ORIGIN.
3. TAPE AND REEL LEDS MAY REQUIRE RE-TAPING AFTER TWELVE MONTHS.
4. ESD WITHSTAND VOLTAGE UP TO 6KV MAX ACC. TO JS-001-2014
5. MSL 3
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND THE SOLE
PROPERTY OF DIALIGHT CORP. REPRODUCTION OF THIS DRAWING OR
CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE FORBIDDEN WITHOUT
THE WRITTEN CONSENT OF DIALIGHT CORP.
SCALE: 25.000
DIALIGHT CORP INTERNAL REFERENCE ONLY = 3D MODEL :
DRAWING NUMBER
5975006507F-.0
REV
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
FRACTIONS:
DECIMALS (.XX):
# 1/64
TITLE
# .005
MATERIAL
# .01
C-18371

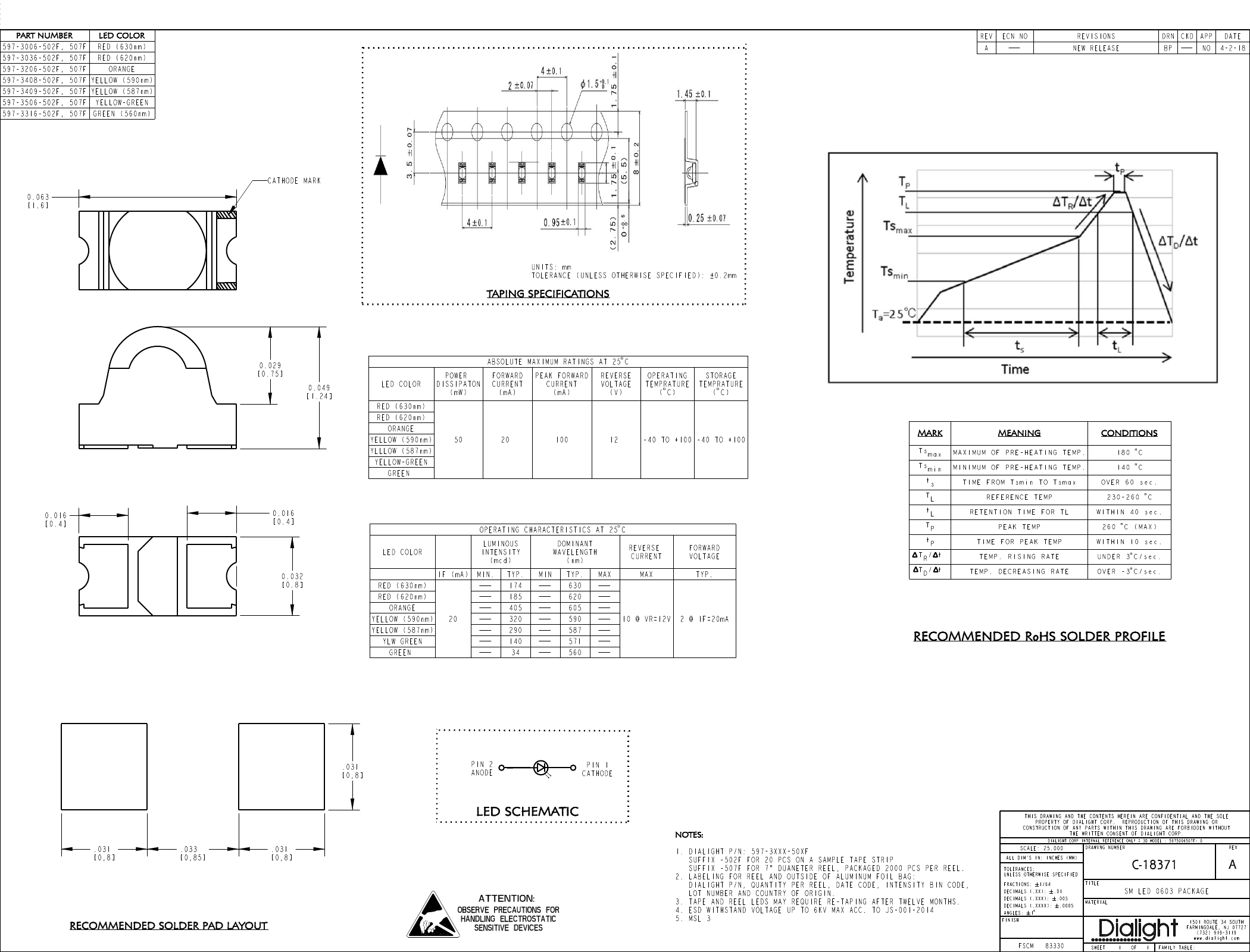

SM LED 0603 PACKAGE
A
RECOMMENDED SOLDER PAD LAYOUT
OBSERVE PRECAUTIONS FOR
HANDLING ELECTROSTATIC
SENSITIVE DEVICES
ATTENTION:
DECIMALS (.XXX):
ANGLES:
# 1 $
DECIMALS (.XXXX):
FINISH
# .0005
FSCM
83330
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
(732) 919-3119
www.dialight.com
SHEET
1
OF
1
FAMILY TABLE:
