DF57H-2S-1.2C(15) datasheet, PDF

Datasheet> All Categories > The connector> DF57H-2S-1.2C(15)

DF57H-2S-1.2C(15): DescriptionCONN RCPT 1.2MM 2POS; CategoryThe connector; File Size277KB，8 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric View All

DF57H-2S-1.2C(15) Overview

CONN RCPT 1.2MM 2POS

DF57H-2S-1.2C(15) Parametric

Parameter Name	Attribute value
Connector type	socket
Contact type	female socket
Number of pins	2
spacing	0.047"（1.20mm）
Number of rows	1
spacing	-
Installation type	free hanging
Contact termination	crimp
Fastening type	twist lock
color	black
characteristic	-
Remark	Does not include contacts

Preview

Download Datasheet

View All

Low Profile “Swing-Lock” Board to Wire Connector for Power

DF57 Series

(Compliant with UL, C-UL standards)

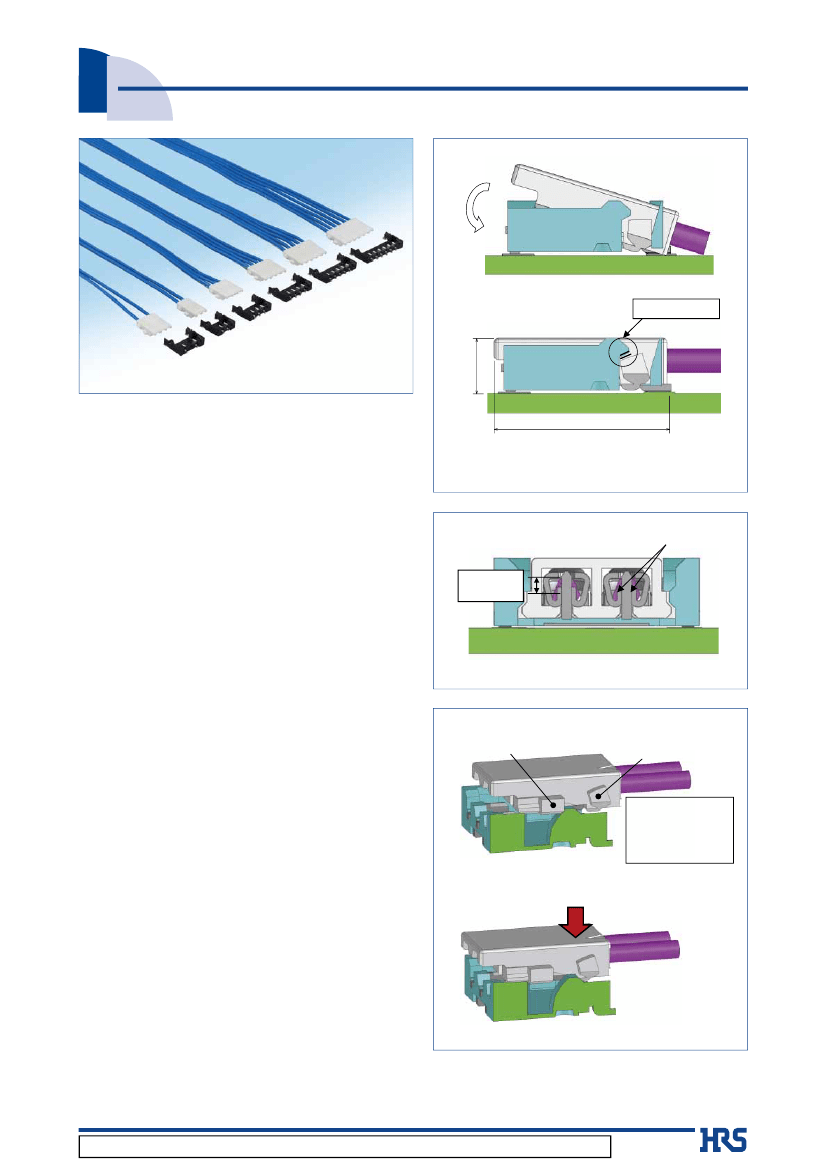

Swing-Lock Structure explanatory drawing

Before mating

Lock portion

■

Features

1.Reinforced lock structure with swing lock

A swing-lock structure, featuring our own unique

connection method, reinforces the lock structure of

the electric cable side, with a structure resistant to

tough electric cable routing and disengagement of

cables under load.

In addition, the connection surface has a guide

insertion to facilitate insertability (patented)

4.65mm

After mating

Mating HeightA : DF57H

DF57AH

1.4mm

1.6mm

Fig.1

Contact Structure

2.Header lock improves plug retention

When connecting, the header connector secures the

molded-lance. Play of molded lance is prevented for

added strength. (patented)

3.Highly reliable contact structure

Despite the low-profile design, with a stacking height

of 1.4mm, an effective mating length of 0.42mm is

achieved. The structure features two-point contact

terminal geometry with high contact reliability.

Fig.2

Incorrect Positioning

Insert Guide Key

Positive Lock

4.Insert guide key prevents misalignment

Insert guide key guides the crimp socket to the

correct mating position and prevents misalignment,

which improves mating operation and prevents

possible connector breakage with incorrect mating.

5.Solder wicking prevention

The integral molding eliminates any gap between the

terminals and case to prevent solder wicking.

Insert guide key touches to

the header prior to the

positive lock, which guides

the socket to the correct

mating position.

6.Case disengagement prevention

Reinforcing hardware (metal fittings) are integrated in

the molding, which help prevent the case from

disengaging with the terminals due to tough electric

cable routing and load.

Starts mating after the socket is aligned to

the correct position

7.Cost effective

Terminals and metal fittings are collectively integrated

into the molding to reduce assembly cost.

Insert Guide Key Structure

Fig.3

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

2018.6③
