Standard Product Specifications
TDN1105W-23-RR

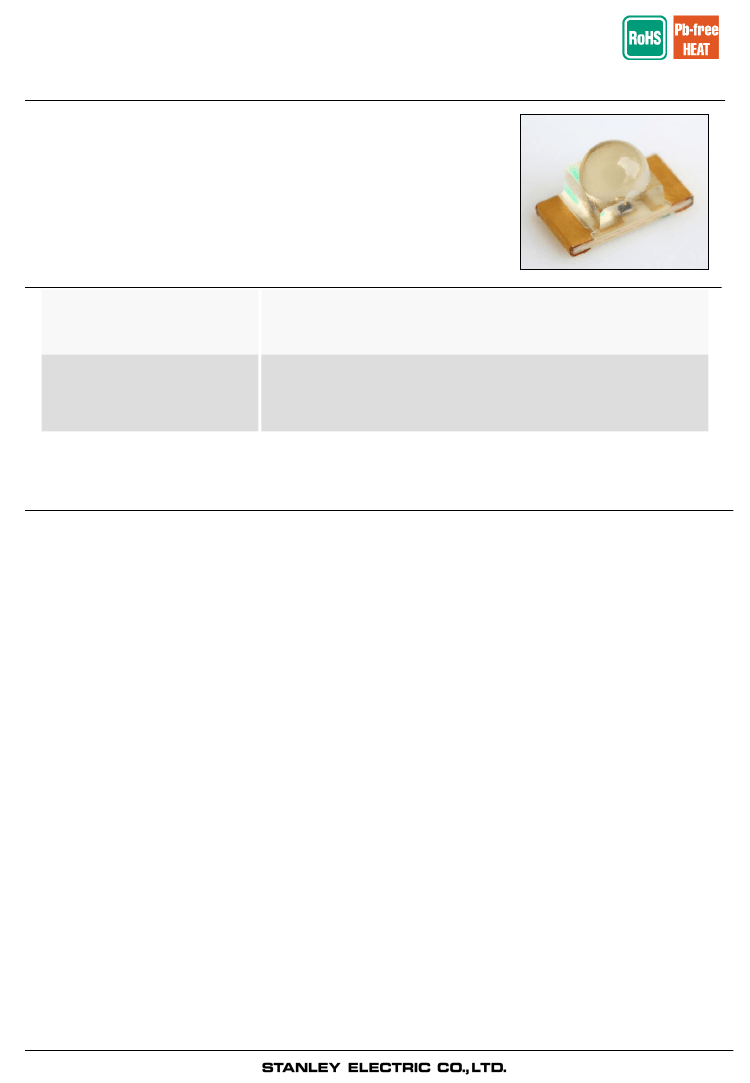

Features
Package
3216 size, with dome lens package,
For reverse mount taping
Infrared emitting diode (Wavelength : 870nm)
Drive current : 20mA
・
Outer Dimension 3.2 x 1.6 x 1.85 mm ( L x W x H )
・Lead–free
soldering compatible
・RoHS
compliant
Product features
Recommended Applications
・Infrared
data communication, Home appliances, OA/FA, Other general data communication etc.
2014.11.11
Page : 1

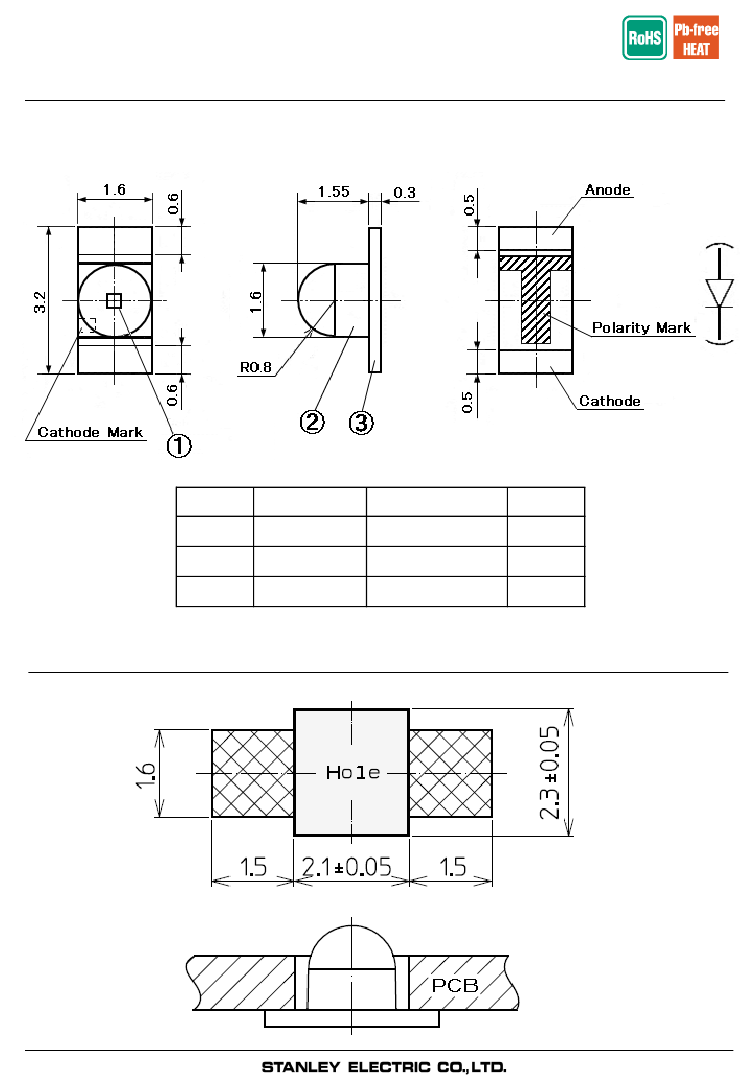

Outline Dimensions
TDN1105W-23-RR
Unit
Weight
Tolerance
：mm
：7.81mg
：±0.1
NO.
①
②
③
PART NAME
LED die
Mold resin
Substrate
MATERIALS
GaAlAs
Epoxy resin
Glass fabrics
QTY.
1
1
1
Recommended Pad
Unit：mm
2014.11.11
Page : 2
Specifications
【
Absolute Maximum Ratings
】
ITEM
Power dissipation
Forward current
Repetitive peak forward current
"0.1ms,1/100duty"
Forward current derating factor from 25℃
Repetitive peak forward current
derating factor from 25℃
Reverse voltage
Operating temperature
Storage temperature
Soldering temperature
"Reflow
soldering"
SYMBOL
P
d
I
F
I
FRM
Δ
I
F
Δ
I
FRM
V
R
T
opr
T
stg
T
sld
TDN1105W-23-RR
(Ta=25℃)
MAXIMUM RATINGS
95
50
300
0.67
4
5
-30 ½
+85
-40 ½
+100
260
UNIT
mW
mA
mA
mA/℃
mA/℃
V
℃
℃
℃
Note1
Note1
Please refer to page 10, soldering Conditions.
2014.11.11
Page : 3
Specifications
【
Electro-Optical Characteristics
】
ITEM
Forward voltage
Reserve current
Capacitance
Radiant intensity
Total power
Peak wavelength
Spectral line half width
Half intensity angle
Cut-off Frequency
SYMBOL
V
F
I
R
Co
I
E
Po
λ
p
Δλ
2θ1/2
fc
CONDITION
I
F
= 20mA
V
R
= 5V
V=0V, f=1MHz
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
IF = 20mADC +10mAp-p
-3db from 1MHz
TDN1105W-23-RR
(Ta=25℃)
MIN.
1.2
-
-
5.6
-
850
-
-
-
TYP.
1.4
-
55
11.0
8.0
870
50
30
50
MAX.
1.7
100
-
16.0
-
890
-
-
-
UNIT
V
μA
pF
mW/sr
mW
nm
nm
deg.
MHz
【 Sorting Chart for Radiant Intensity 】
LEDs shall be sorted out into the following chart.
Radiant Intensity (I
E
)
Radiant intensity
Rank
MIN.
A
B
5.6
8.0
I
E
(mW/sr)
MAX.
11.2
16.0
I
F
= 20mA
Ta = 25℃
Conditions
【 Shipment 】
The each shipping lot shall consist of mixed rank (A, B, )
and the quantity of LEDs in each rank can not be specified.
2014.11.11
Page : 4

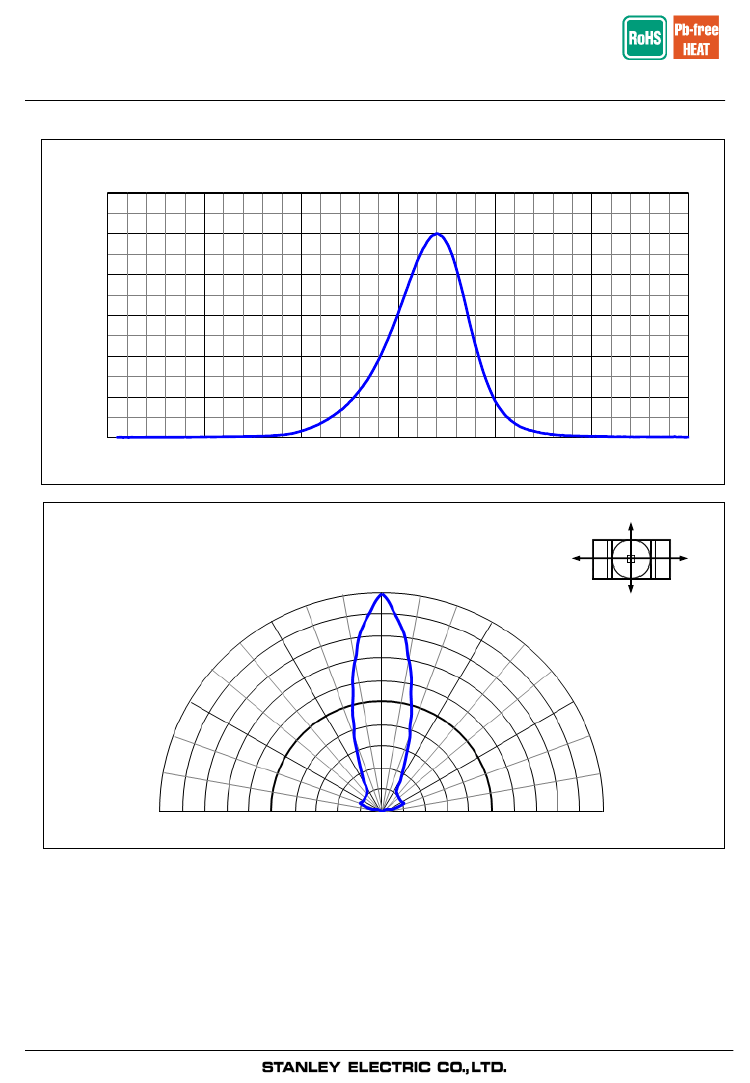

Technical Data
TDN1105W-23-RR
Wavelength vs. Relative Intensity
Conditions: Ta = 25℃, I
F
=20mA
1.2
1.0
0.8
Relative Intensity
0.6
0.4
0.2
0.0
700
750
800
850
Wavelength : (nm)
900
950
1,000
Spatial Distribution
Conditions: Ta = 25℃, I
F
= 20mA
x
100 0
-30
30
y
Spatial distribution：
Same shape for x , y
direction
-60
50
60
-90
100
50
0
Relative radiant intensity : (%)
50
90
100
2014.11.11
Page : 5
