Green
DFLT5V0AQ – DFLT40AQ
225W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
PowerDI
Features
225W Peak Pulse Power Dissipation (10µs x 1000µs Waveform)
Excellent Clamping Capability
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: PowerDI 123
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.01 grams (Approximate)
®
PowerDI123
Top View
Ordering Information
(Note 5)
Product
DFLTxxAQ-7*
Compliance
Automotive
Marking
Fxx
Reel Size(inches)
7
Tape Width(mm)
8
Quantity per Reel
3,000/Tape & Reel
* Add "-7" to the appropriate type number in Electrical Characteristics Table on Page 2. Example: 18V reverse standoff device = DFLT18AQ-7.
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Fxx = Product Type Marking Code
See Electrical Characteristics Table on Page 2
YM = Date Code Marking
Y = Year (ex: E = 2017)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2016
D
Jan
1
2017
E
Feb
2
2018
F
Mar
3
2019
G
Apr
4
2020
H
May
5
2021
I
Jun
6
2022
J
Jul
7
Aug
8
2023
K
Sep
9
2024
L
Oct
O
2025
M
Nov
N
2026
N
Dec
D
PowerDI is a registered trademark of Diodes Incorporated.
DFLT5V0AQ – DFLT40AQ
Document number: DS39043 Rev. 3 - 2
1 of 5
www.diodes.com
November 2017
© Diodes Incorporated

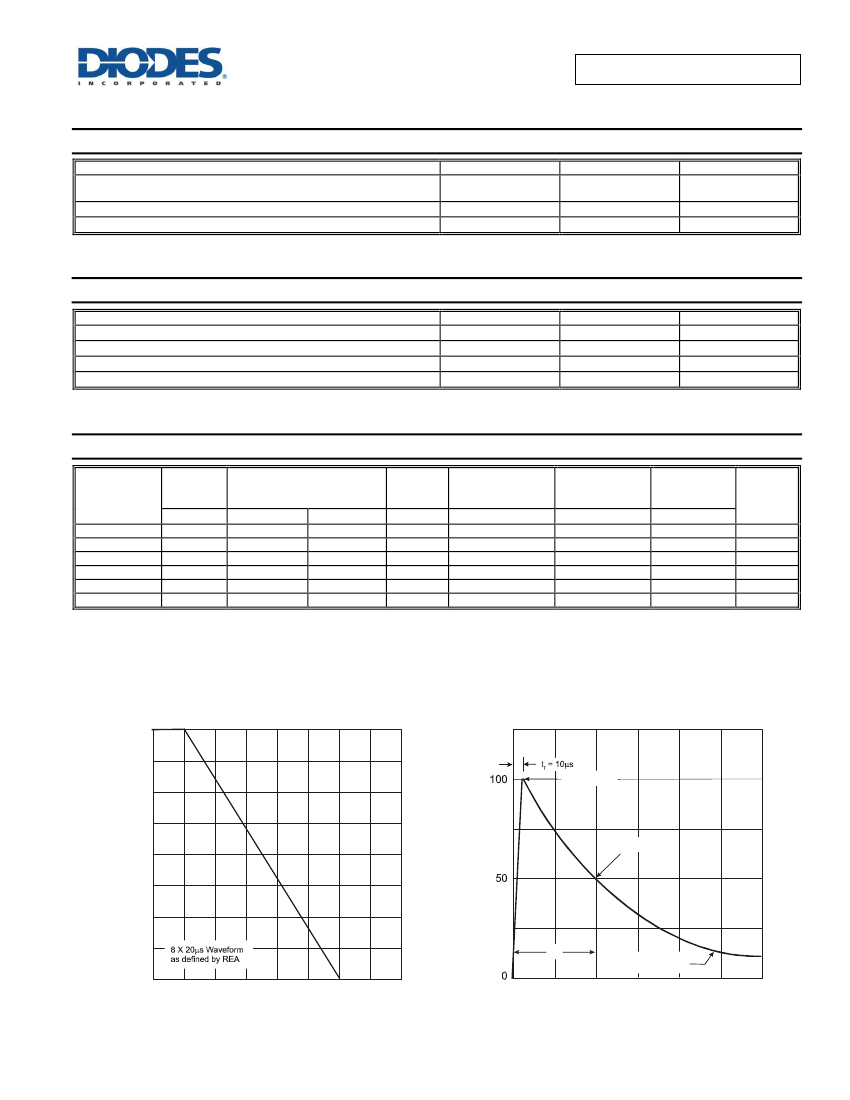

DFLT5V0AQ – DFLT40AQ
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Pulse Power Dissipation (Note 6) 10/1000µs
(Note 7) 8/20µs
Peak Forward Surge Current, 8.3ms Single Half Sine Wave
Instantaneous Forward Voltage @ I
PP
= 12A (Note 8)
Symbol
P
PK
I
FSM
V
F
Value
225
1,125
50
3.5
Unit
W
A
V
Thermal Characteristics
Characteristic
DC Steady-State Power Dissipation (Note 9)
Thermal Resistance, Junction to Ambient (Note 9)
Thermal Resistance, Junction to Soldering Point (Note 10)
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
R
θJS
T
J
, T
STG
Value
1.0
120
6
-65 to +150
Unit
W
°C/W
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Part Number
DFLT5V0AQ
DFLT18AQ
DFLT20AQ
DFLT22AQ
DFLT33AQ
DFLT40AQ
Notes:
Reverse
Standoff
Voltage
V
RWM
(V)
5.0
18
20
22
33
40
Breakdown
Voltage
V
BR
@ I
T
(Note 11)
Min (V)
Max (V)
6.40
7.0
20.0
22.1
22.2
24.5
24.4
26.9
36.7
40.6
44.4
49.1
Test
Current
I
T
(mA)
10
1.0
1.0
1.0
1.0
1.0
Max. Reverse
Leakage @ V
RWM
I
R
(µA)
400
1.0
1.0
1.0
1.0
1.0
Max. Clamping
Voltage @ I
PP
V
C
(V)
9.2
29.2
32.4
35.5
53.3
64.5
Max. Peak
Pulse Current
I
PP
(A)
24.5
7.71
6.94
6.34
4.22
3.49
Marking
Code
FAE
FBT
FBV
FBX
FCM
FCR
6. Non-Repetitive current pulse as shown in Figure 2 and derated above T
A
= +25°C as per Figure 1.
7. Non-Repetitive current pulse as shown in Figure 3 and derated above T
A
= +25°C as per Figure 1.
8. 1/2 sine wave (or equivalent square wave), pulse width = 8.3ms, duty cycle = 4 pulses/minute maximum.
9. Device mounted on FR-4 substrate printed circuit board with 1 inch square 2oz copper pad area.
10. Theoretical R
θJS
calculated from the top center of the die straight down to the PCB/cathode tab solder junction.
11. V
BR
measured at pulse test current I
T
with tp
5.0ms
at T
A
= +25°C.
100
I
PP
, PEAK PULSE CURRENT (%I
pp
)
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
Peak Value I
pp
75
50
Half Value I
pp
/2
25
t
p
10 X 1000 Waveform
as defined by R.E.A.
0
0
25
50
75 100 125 150 175 200
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Pulse Derating Curve
0
1
2
3
t, TIME (ms)
Fig. 2 Pulse Waveform
DFLT5V0AQ – DFLT40AQ
Document number: DS39043 Rev. 3 - 2
2 of 5
www.diodes.com
November 2017
© Diodes Incorporated

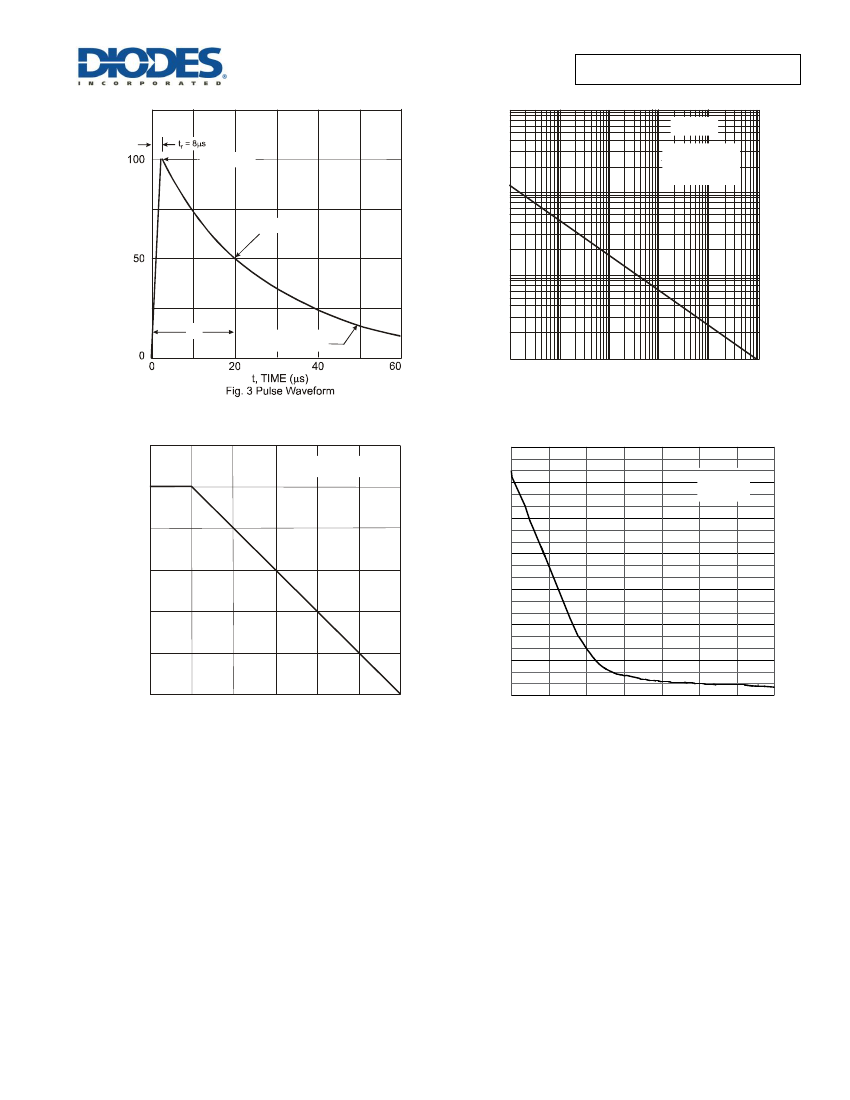

DFLT5V0AQ – DFLT40AQ
100
T
J
= 25°C
I
PP
, PEAK PULSE CURRENT (%I
pp
)
P
D
, PEAK PULSE POWER (kW)
Peak Value I
pp
Non Repetitive
Pulse Waveform
Shown in Fig. 3
10
Half Value I
pp
/2
1.0
t
p
8x20 Waveform
as defined by R.E.A.
0.1
0.1
1.0
100
10
1,000 10,000
(µs)
t
p
, PULSE WIDTH
Fig. 4 Pulse Rating Curve
P
(AV),
STEADY STATE POWER DISSIPATION (W)
1.2
Note 9
2400
2100
V
BIAS
= 0V
f = 1MH
Z
1.0
C
T
, TOTAL CAPACITANCE (pF)
0
25
75
125 150
50
100
T
T
, TERMINAL TEMPERATURE (°C)
Fig. 5 Steady State Power Derating Curve
0.8
1800
1500
0.6
1200
900
600
300
0.4
0.2
0
5
10
15
20
25
30
35
40
V
RWM
, REVERSE STANDOFF VOLTAGE (V)
Fig. 6 Total Capacitance vs. Reverse Standoff Voltage
DFLT5V0AQ – DFLT40AQ
Document number: DS39043 Rev. 3 - 2
3 of 5
www.diodes.com
November 2017
© Diodes Incorporated
DFLT5V0AQ – DFLT40AQ

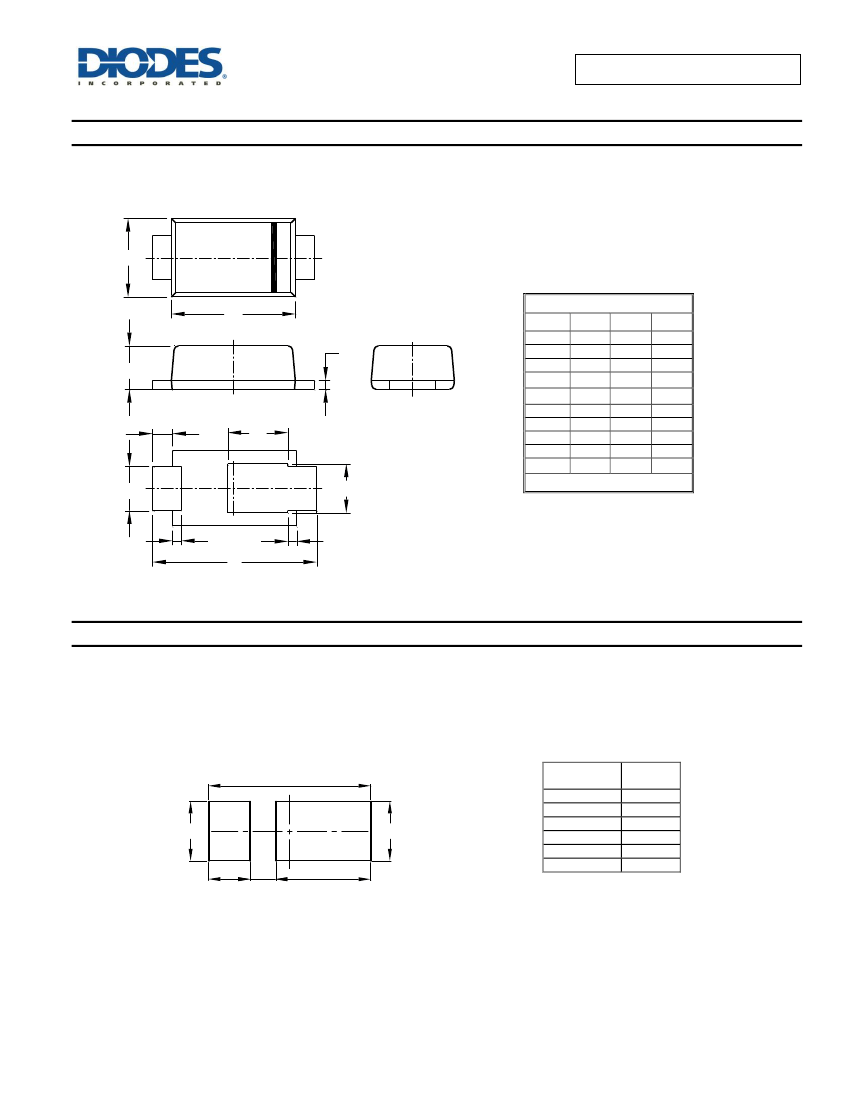

Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI123
D
E1
PowerDI123
Dim
Min
Max
Typ
A
0.93
1.00
0.98
A3
0.15
0.25
0.20
b
0.85
1.25
1.00
b2
1.025 1.125 1.10
D
1.63
1.93
1.78
E
3.50
3.90
3.70
E1
2.60
3.00
2.80
L
0.40
0.50
0.45
L1
1.25
1.40
1.35
L3
0.125 0.275 0.20
All Dimensions in mm
A3
A
L(2X)
L1
b
b2
L3
E
L3
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI123
X2
Dimensions
G
X
X1
X2
Y
Y1
Y
Y1
X
G
X1
Value
(in mm)
0.65
1.05
2.40
4.10
1.50
1.50
DFLT5V0AQ – DFLT40AQ
Document number: DS39043 Rev. 3 - 2
4 of 5
www.diodes.com
November 2017
© Diodes Incorporated
DFLT5V0AQ – DFLT40AQ
