Drilling in Panel
O
4,8
Panel thickness 1,2~1,7
A
1,9
3,4

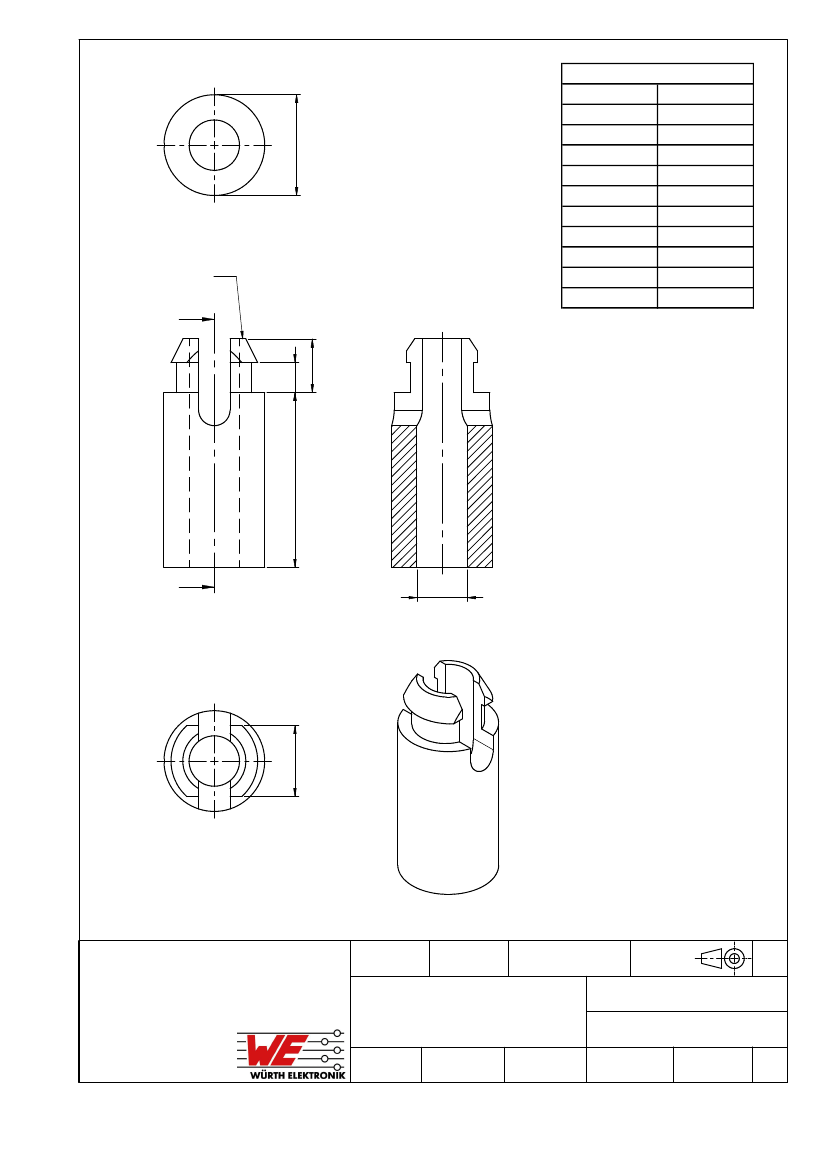

sectional drawing A-A
Dimensions M3
Oder Code
L (mm)
702930000
4.0
702931000
6.4
702932000
7.9
702933000
9.5
702934000
11.1
702935000
12.7
702936000
15.9
702937000
19.1
702938000
22.2
702939000
25.4
A
L
O
6,4
O
3,2
4,5
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
com. +49 79 42 945 - 0
www.we-online.de
eiSos@we-online.de
CREATED
CHECKED
GENERAL TOLERANCE
DaF
DESCRIPTION
SKl
DIN ISO 2768-1m
MATERIAL
PROJECTION
METHOD
SCALE
4:1
AsSNSR
Self-retaining spacer
SIZE
WEIGHT
STATUS
Nylon 66, natural
ORDER CODE
702 93x xxx
DATE
BUSINESS UNIT
PAGE
Screw M3,0
xxx
Released
2015-05-20
eiCan
1 /1
