X2 PCI EXPRESS® DUAL-PORT GIGABIT ETHERNET CONTROLLER
Overview
The BCM5718 is a twelfth-generation 10/100/
1000BASE-T Ethernet LAN controller solution suit-
able for high-performance server applications. The
BCM5718 combines dual triple-speed IEEE 802.3-
compliant Media Access Controllers (MACs) with
dual 1000BASE-X/SGMII SerDes transceivers or
dual 10/100/1000 Ethernet transceivers (PHYs),
selectable individually per port, a Network Control-
ler Sideband Interface (NC-SI) and on-chip memory
buffer in a single device. The device provides a PCI
Express® v2.0-compliant host interface, which can
operate at 5 GTs at x1 link width or at 2.5 GT/s at x2
link width. The PCI Express supports MSI and MSI-X
capabilities and Function Level Reset (FLR). The
host interface supports a separate PCI Express
function for each LAN interface. The BCM5718
includes I/O Virtualization (IOV) features such as
17 receive and 16 transmit queues, 17 MSI-X vec-
tors with flexible vector-to-queue association.
These IOV features enable the BCM5718 to support
the VMWare
®
NetQueue and Microsoft® VMQ
technologies.
Architectural Features
•
Flexible MSI-X vector to transmit/receive
queue association
•
Function level reset (FLR)
•
Receive Side Scaling (RSS) with per queue MSI-
X vector support
•
Transmit Side Scaling (TSS) and multi-Tx queue
with per queue MSI-X vector support
•
Jumbo frame support for up to 9600B payload
•
Virtual LAN (VLAN) support — IEEE 802.1q
VLAN tagging
•
TCP, IP, UDP checksum offload
•
Large Send Offload (LSO), TCP Segmentation
Offload (TSO)
•
IEEE 802.3x flow control
•
SMBus 2.0 Interface
•
Network Controller Sideband Interface (NC-SI)
•
Statistics for SNMP MIB II, Ethernet-like MIB
and Ethernet MIB (IEEE 802.3z, Clause 30)
•
ACPI power management compliance
•
Advanced power management by a Central
Power Management Unit (CPMU)
•
Efficient integrated switching regulator con-
troller
•
PCI Express CLKREQ support
•
Power Management Offload (PM Offload)
•
65 nm low-power CMOS design
•
Serial flash and EEPROM NVRAM support;
flash auto-configure
•
ECC error detection and correction on internal
SRAM
•
JTAG boundary scan support
•
169-ball FBGA (1.0 mm pitch)
Highlights
•
Integrated dual 10/100/
1000BASE-T transceivers.
•
Energy Efficient Ethernet
™
(EEE)-compliant with IEEE Std
802.3az-2010
•
Dual 10/100/1000BASE-T full-
duplex/half-duplex MACs
•
Dual 1000BASE-X/SGMII full-
duplex/half-duplex MACs
•
Automatic MDI crossover
•
x2 PCI Express® v2.0
•
x1 at 5 GT/s
•
x2 at 2.5 GT/s
•
MSI and MSI-X capabilities - up
to 17 MSI-X vectors
•
I/O Virtualization support for
VMWare® NetQueue®, and
Microsoft® VMQ
•
17 receive queues and 16 trans-
mit queues
•
17 MSI-X vectors supporting per
queue interrupt to host
BCM5718
1G
10G
NetXtreme® I
NetXtreme® II
Ports
Dual
Target Applications
•
LAN on motherboard (LOM) for servers and
workstations
•
PCI Express Gigabit Ethernet Add-in NIC
Supported
Best Choice
REFCLK +/-
P0_TXD +/-
P0_RXD +/-
P1_TXD +/-
P1_RXD +/-
SO/SDA, SI, CS#,
SCLK/SCK
NC-SI
GPIO [2:0],
APE_GPIO [6:0]
SMBDATA
SMBCLK
LOW_PWR
PLL
PCI Express
NVRAM Interface
RMII MAC
GPIO
SMBus
POR
APE
EMACO
CPMU
EMAC1
SerDes
GPHY
LED
SerDes
GPHY
LED
Voltage Regulator
Control
PLL
TXD/RXD +/-
TRD [3:0] +/-
10/100/1000/
TRAFFIC LED
TXD/RXD +/-
TRD [3:0] +/-
10/100/1000/
TRAFFIC LED
NDRIVE, PDRIVE,
FB, SENSE
25 MHz
Port 0
Port 1

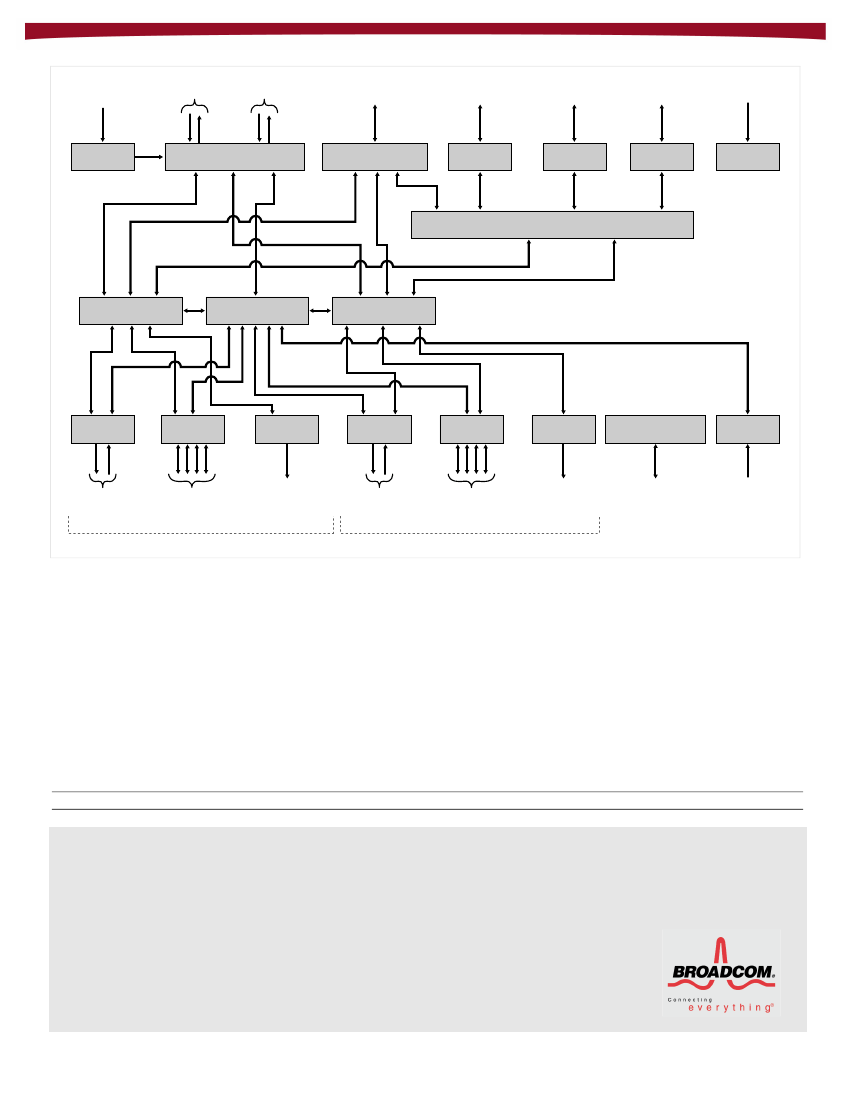

BCM5718 Block Diagram
The BCM5718 is fabricated in a low-volt-
age 65 nm CMOS process, and integrates
an efficient switching voltage regulator
controller for core power supplies.
Advanced power management features
built into the BCM5718 enable minimiz-
ing the power consumption of the net-
work controller subsystem by lowering
the controller's power consumption
under lighter network traffic without
compromising performance. The
BCM5718 implements Energy Efficient
Ethernet-compliant with IEEE Std
802.3az-2010, which further reduces the
power consumption with idle 100 Mbit or
1 Gbit GPHY links. These features provide
a low system power consumption Ether-
net network interface controller solution.
Ordering Information
Package
169-ball FBGA (14 mm x 14 mm, lead-free)
Ambient Temperature
0°C to 55°C
These solutions support our core mission:
Connecting everything®.
Broadcom, one of the world's largest fabless
communications semiconductor companies,
with 2009 revenue of $4.49 billion, holds
more than 4,300 U.S. and 1,800 foreign pat-
ents, and has more than 7,900 additional
pending patent applications, and one of the
broadest intellectual property portfolios
addressing both wired and wireless transmis-
sion of voice, video, data and multimedia.
Part Number
BCM5718B0KFBG
A FORTUNE 500® company, Broadcom is
headquartered in Irvine, Calif., and has offices
and research facilities in North America, Asia
and Europe. Broadcom may be contacted at
+1.949.926.5000 or at www.broadcom.com.
