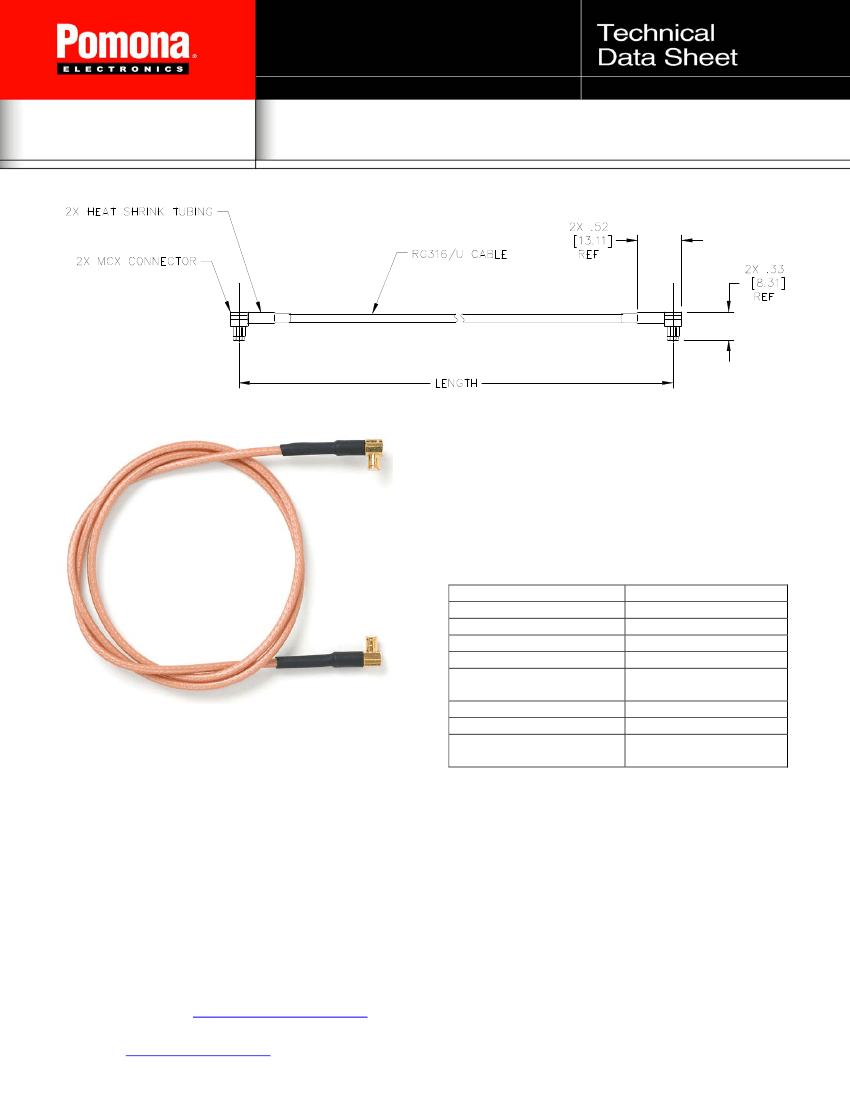

Model 73068
MCX Right-Angle Plug to MCX Right-Angle Plug, RG316/U
Materials
MCX Male Connectors:
Center Contact: Phosphor Bronze, Gold Plated
Connector Body: Brass, Gold Plated
Crimp Ferrule: Copper, Nickel Plated
Insulators: PTFE
Specifications
Cable Type
Impedance
Frequency Range
Insulation Resistance
Insulator Withstand
Temperature Range
Jacket
Cable O.D.
Center Conductor (mm)
RG316/U
50Ω
DC - 3GHz
≥
1000 MΩ
750V
-55º C to +155ºC
(-67ºF to +311ºF)
FEP
0.098” (2.5mm)
7 x .18 silver coated
copper covered steel
Model 73068
MCX Right-Angle Plug to MCX Right-Angle Plug,
RG316/U
Snap-on coupling and miniature
size for fast connect and
disconnect where space is limited
Features
•
•
•
DC - 3GHz bandwidth.
Connectors are precision machined and gold-plated
for low loss.
Perfect for applications where space, weight,
performance and ease of connection are required.
Ordering Information
Model:
73068
Cable Designator:
BB
= RG316/U
Standard Lengths:
6”, 12”, 24”, 36”
- 6” ± .118” (152mm ± 3mm)
- 12” ± .157” (305mm ± 4mm)
- 24” ± .275” (610mm ± 7mm)
- 36” ± .394” (914mm ± 10mm)
Ordering Example:
73068-BB-24,
Cable is RG316/U
with length of 24” (610mm)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2009
D2018847 Rev. 002
Page 1 of 1
