334MABA05KHL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 334MABA05KHL

334MABA05KHL: DescriptionCAP FILM 0.33UF 10% 1.2KVDC RAD; CategoryPassive components; File Size536KB，4 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric View All

334MABA05KHL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	334MABA05KHL	-	-	View	Buy Now

334MABA05KHL Overview

CAP FILM 0.33UF 10% 1.2KVDC RAD

334MABA05KHL Parametric

Parameter Name	Attribute value
capacitance	.33µF
Tolerance	±10%
Rated voltage - AC	500V
Rated voltage - DC	1200V（1.2kV）
dielectric materials	Polypropylene (PP), metallized
Operating temperature	-40°C ~ 100°C
Installation type	Through hole
Package/casing	Radial
size/dimensions	1.260" long x 0.512" wide (32.00mm x 13.00mm)
Height - Installation (maximum)	0.866"（22.00mm）
Termination	PC pin
lead spacing	1.083"（27.50mm）
application	Motor running
grade	-
characteristic	-

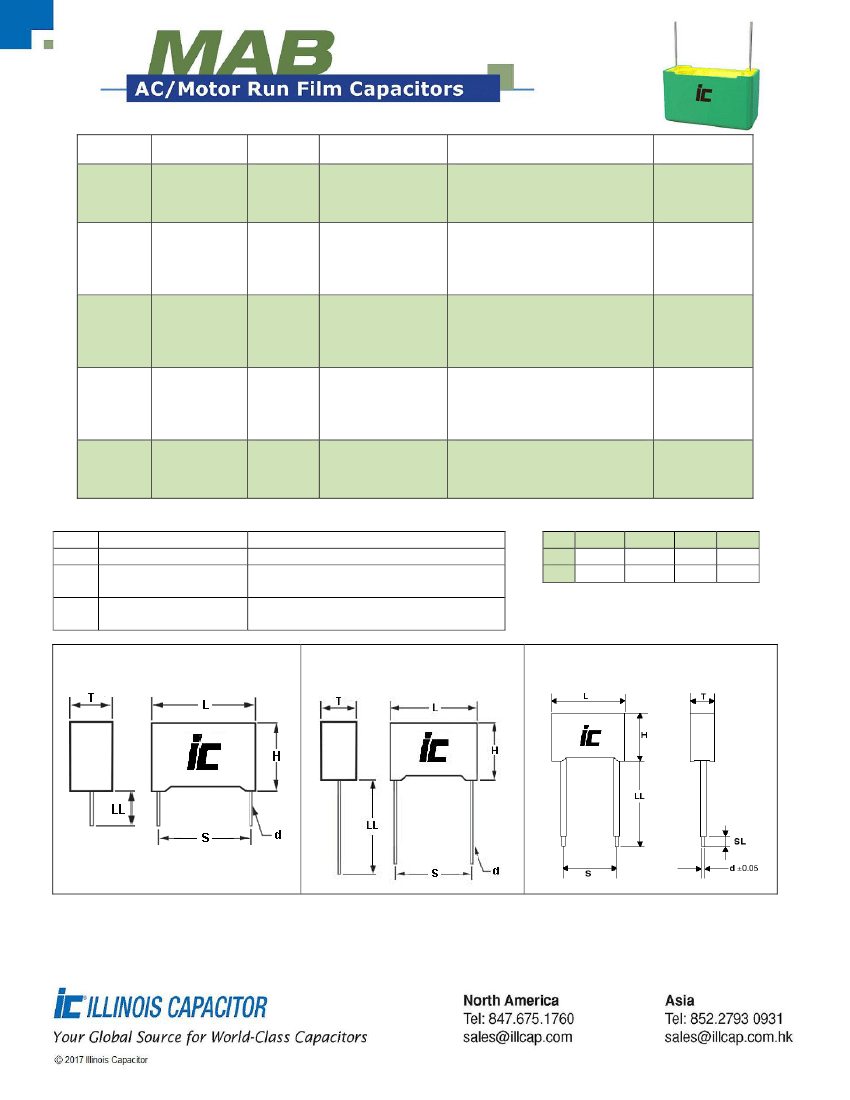

Preview

Download Datasheet

View All

FEATURES

APPLICATIONS

Small Size

–

Good dvdt

–

EN60252-1 rated

AC Application

–

Motor Run

–

AC/DC Motor Controls

–

Switching Power Supplies

Operating Temperature Range

Capacitance Tolerance

Code

WVDC

Peak, AC voltage

(50/60 Hz)

SVDC

VAC

Dissipation Factor (MAX)

Tan δ

at 1 kHz and 25°C

Insulation Resistance

@25°C (<70% RH)for 1 minute

at 100VDC applied

Self Inductance

Dielectric Strength

A04

370

470

160/200

C<2.2uF

.06%

-40°C to +100°C without approvals

-25°C to +85°C with approvals

+10% at 1 kHz, 25°C

+5% optional

A03

A02

A01

A05

500

600

800

1200

625

750

1050

1500

250/320

320/400/430

400/432/500

500/600

2.2<C<15uF

15<C<22uF

C>22uF

.1%

.12%

.15%

10000 MΩ,

C<1uF

3000 MΩxuF,

C>1uF

<1 nano-Henry per mm of lead spacing

Terminal to Terminal

Terminal to Case

160% of VAC for 60 Seconds and 25°C

or 200% VAC applied for 60 Seconds and

25°C for EN 60252-1 approval

3kVAC (50/60 Hz) applied

for 60 Seconds and 25°C

Damp Heat

WVDC

Hours

test

Failure quota

Construction

Coating

Lead terminations

56 days with no voltage applied at +40C and 93%(+2%) relative humidity

Capacitance Change

<+2% of initially measured value

Dissipation Factor

<.001 at 1 kHz for C>0.1uF

Insulation Resistance

>50% of minimum specified value

Class A

Class B

Class C

Class D

Reliability

30000

6000

10000

2000

3000

600

500/10

1000

200

component hours

metallized film

Flame Retardant Plastic box with epoxy end fill(UL94V0)

Lead free tinned copper leads
