BP0805 Thin Film Band Pass Filter
BP0805A1308ASTR
ITF TECHNOLOGY

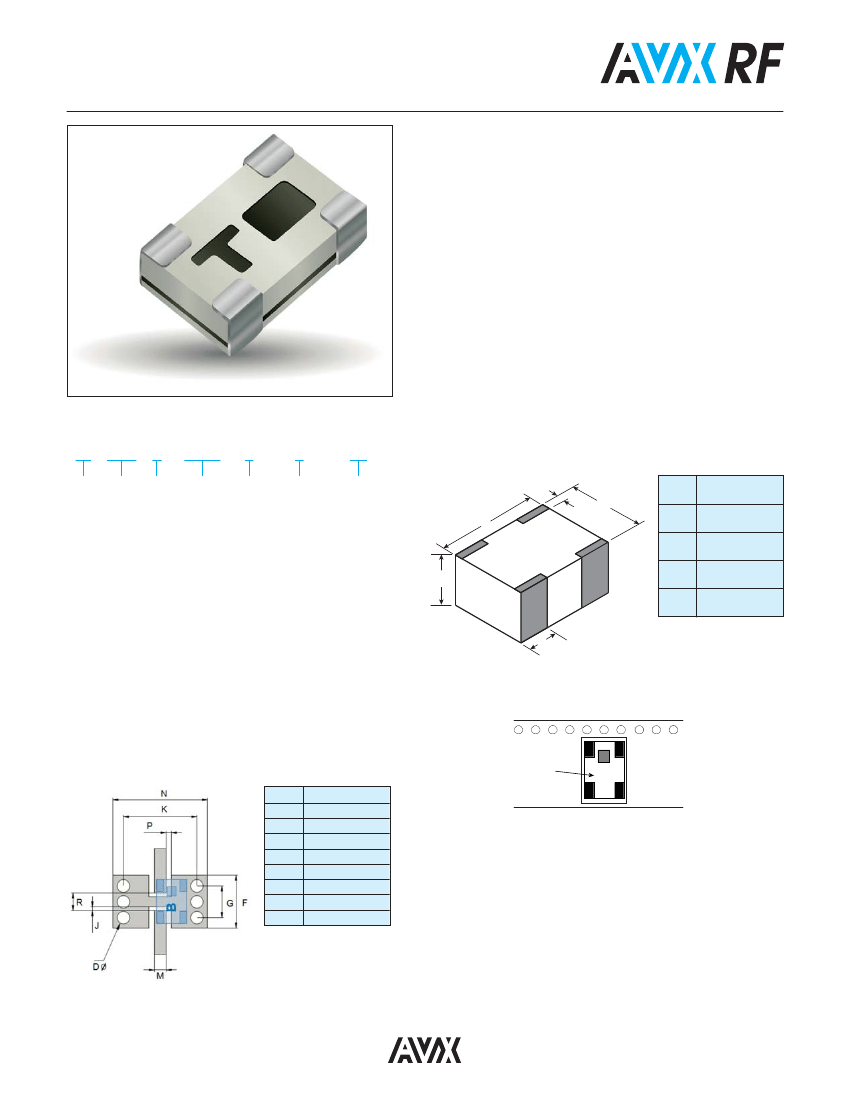

The BP0805 Band Pass Filter is based on thin-film multilayer
technology. The technology provides a miniature part with excellent
high frequency performance and rugged construction for reliable
automatic assembly.
The ITF Filter is offered in a variety of frequency bands compatible with
various types of high frequency wireless systems.
FEATURES
•
•
•
•
•
•
•
•
•
Small size: 0805
Frequency: 1308MHz
Band: 1220-1420MHz
Characteristic impedance: 50Ω
Operating / Storage temp: -40°C – +85°C
Low profile
Rugged construction
Taped and reeled
RoHS compliant
APPLICATIONS
•
•
•
•
•
Mobile communications
Satellite TV receivers
GPS
Vehicle location systems
Wireless LAN’s
HOW TO ORDER
BP
Series
0805
Size
A
1308
A
S
TR
DIMENSIONS (Top View)
mm (inches)
L
B
W
L
W
T
2.03±0.1
(0.080±0.004)
1.55±0.1
(0.061±0.004)
0.80±0.1
(0.032±0.004)
0.56±0.25
(0.022±0.010)
0.35±0.15
(0.014±0.006)
Type Frequency Sub- Termination Taped &
Reeled
(MHz)
Type
FINAL QUALITY INSPECTION
Finished parts are 100% tested for electrical parameters
and visual/mechanical characteristics. Each production
lot is evaluated on a sample basis for:
• Static Humidity: 85°C, 85% RH, 160 hours
• Endurance : 125°C, IR, 4 hours
T
A
B
A
TERMINATION
Nickel/ Lead freeSolder coating (Sn100) compatible with
automatic soldering technologies: reflow, wave soldering,
vapor phase and manual.
TERMINALS AND LAYOUT (Top View)
IN
Orientation
Marking
OUT
GND
A
GND
RECOMMENDED PAD LAYOUT
mm
F
G
J
K
M
N
P
R
D
2.5±0.05
1.5±0.05
0.19±0.05
3.48±0.05
0.54±0.25
4.48±0.05
0.25±0.05
0.85±0.05
0.6±0.05
061118
1
BP0805 Thin Film Band Pass Filter
BP0805A1308ASTR
ELECTRICAL CHARACTERISTICS
Description
Center frequency
Impedance
Band
I. loss at center frequency
In-band insertion loss flatness
In-band return loss
Rejection in [760-945 MHz]
Rejection in [2920-3105 MHz]
Power handling (CW)
Operating temperature range
Package
Value
1308 MHz
50 Ohm
1220-1420MHz
1.2dB max.
0.8dB
12dB
16dBc min.
30dBc min
5W
-40/+85ºC
SMD, standard 0805 size

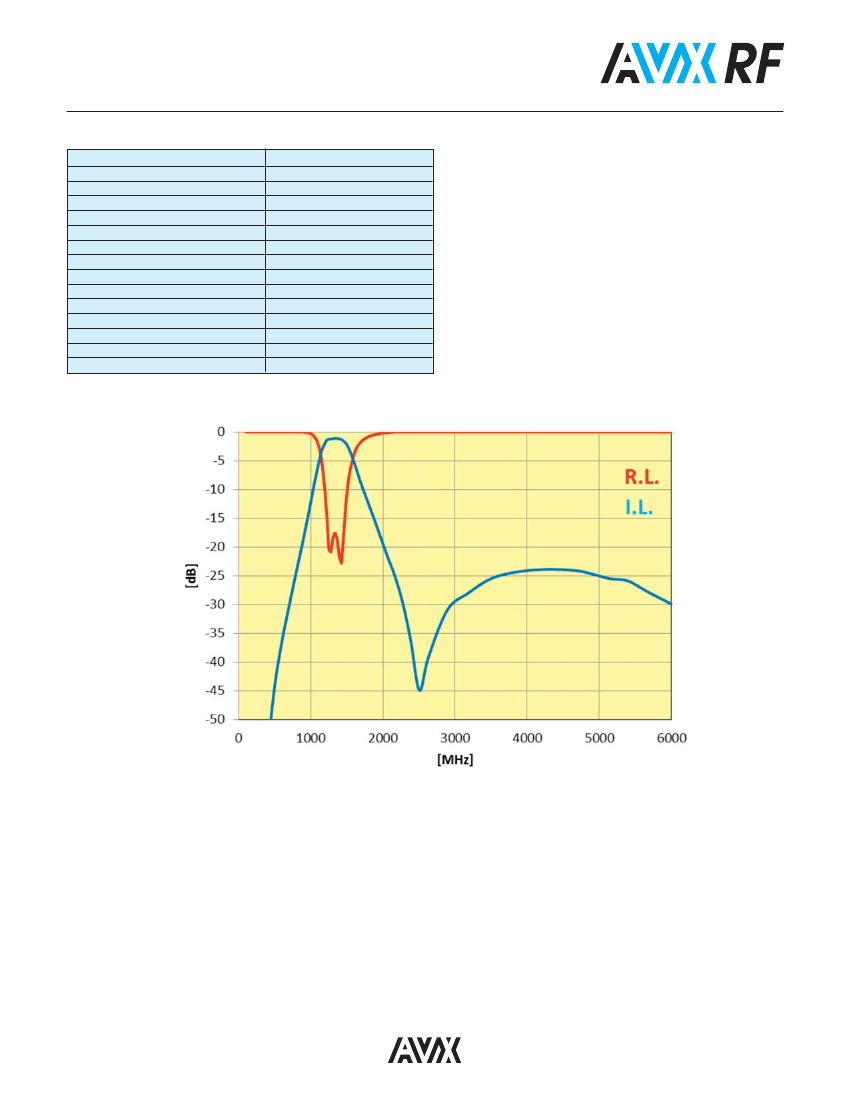

TYPICAL ELECTRICAL PERFORMANCE
2
061118
BP0805 Thin Film Band Pass Filter
BP0805A1457ASTR
ITF TECHNOLOGY
The BP0805 Band Pass Filter is based on thin-film multilayer
technology. The technology provides a miniature part with excellent
high frequency performance and rugged construction for reliable
automatic assembly.
The ITF Filter is offered in a variety of frequency bands compatible with
various types of high frequency wireless systems.
FEATURES
•
•
•
•
•
•
•
•
•
Small size: 0805
Frequency: 1457MHz
Band: 1447-1467MHz
Characteristic impedance: 50Ω
Operating / Storage temp: -40°C – +85°C
Low profile
Rugged construction
Taped and reeled
RoHS compliant
APPLICATIONS
•
•
•
•
•
Mobile communications
Satellite TV receivers
GPS
Vehicle location systems
Wireless LAN’s
HOW TO ORDER
BP
Series
0805
Size
A
1457
A
S
TR
DIMENSIONS (Top View)
mm (inches)
L
B
W
L
W
T
2.03±0.1
(0.080±0.004)
1.55±0.1
(0.061±0.004)
0.80±0.1
(0.032±0.004)
0.56±0.25
(0.022±0.010)
0.35±0.15
(0.014±0.006)
Type Frequency Sub- Termination Taped &
Reeled
(MHz)
Type
FINAL QUALITY INSPECTION
Finished parts are 100% tested for electrical parameters
and visual/mechanical characteristics. Each production
lot is evaluated on a sample basis for:
• Static Humidity: 85°C, 85% RH, 160 hours
• Endurance: 125°C, IR, 4 hours
T
A
B
A
TERMINATION
Nickel/ Lead freeSolder coating (Sn100) compatible with
automatic soldering technologies: reflow, wave soldering,
vapor phase and manual.
TERMINALS AND LAYOUT (Top View)
IN
Orientation
Marking
OUT
GND
RECOMMENDED PAD LAYOUT
mm
F
G
J
K
M
N
P
R
D
2.5±0.05
1.5±0.05
0.19±0.05
3.48±0.05
0.54±0.25
4.48±0.05
0.25±0.05
0.85±0.05
0.6±0.05
T
GND
061118
3
BP0805 Thin Film Band Pass Filter
BP0805A1457ASTR
ELECTRICAL CHARACTERISTICS
Description
Center frequency
Impedance
Band
I. loss 1447-1467MHz
In-band VSWR (return loss)
Rejection 925-960MHz
Rejection in 2110-2170MHz
Rejection in 2300-2400MHz
Rejection in 2500-2690MHz
Rejection 3400-3600MHz
Rejection 5150-5925MHz
Power handling (CW)
Operating temperature range
Package
Value
1457 MHz
50 Ohm
1447-1467MHz
-1.5dB max.
<1.8 (-11dB)
>=20dB
>=25dB
>=25dB
>=30dB
>=30dB
>=19dB
5 Watt
-40/+85ºC
SMD, standard 0805 size

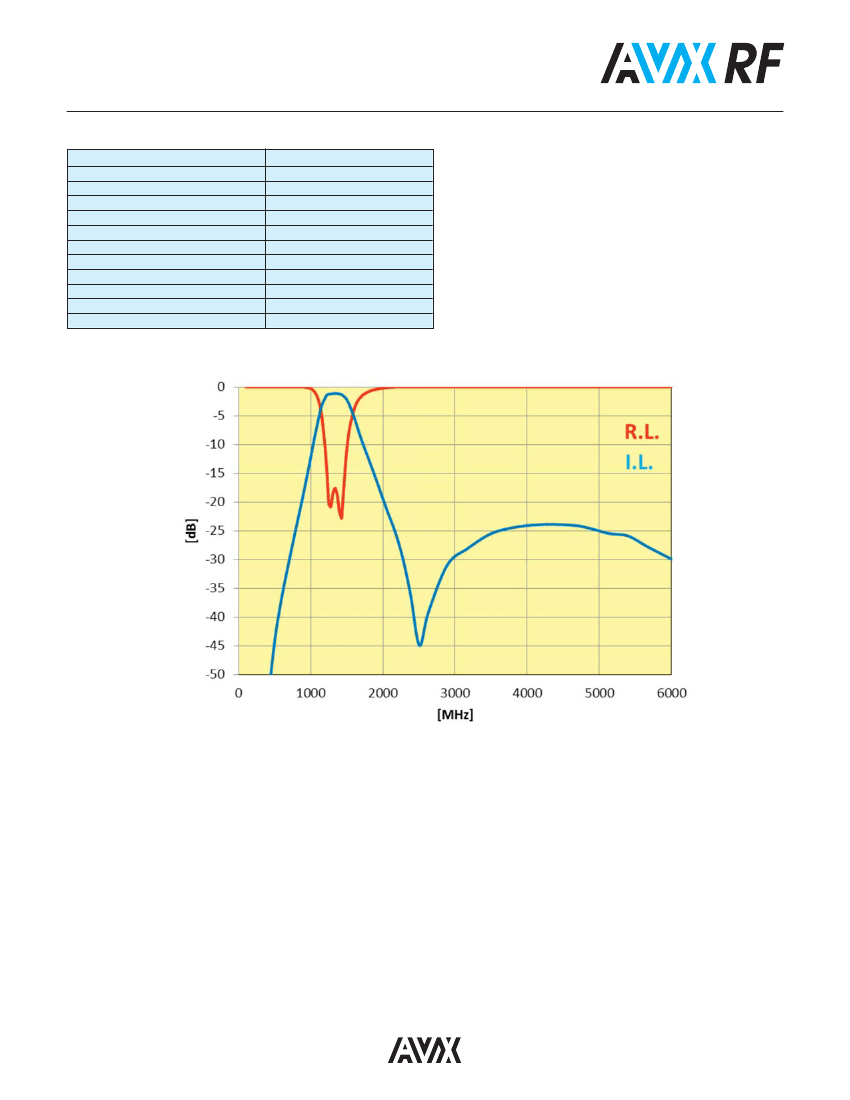

TYPICAL ELECTRICAL PERFORMANCE
4
061118
BP0805 Thin Film Band Pass Filter
BP0805A1795ASTR
ITF TECHNOLOGY
The BP0805 Band Pass Filter is based on thin-film multilayer
technology. The technology provides a miniature part with excellent
high frequency performance and rugged construction for reliable
automatic assembly.
The ITF Filter is offered in a variety of frequency bands compatible with
various types of high frequency wireless systems.
FEATURES
•
•
•
•
•
•
•
•
•
Small size: 0805
Frequency 1795MHz
Band: 1785-1805MHz
Characteristic impedance: 50Ω
Operating / Storage temp: -40°C – +85°C
Low profile
Rugged construction
Taped and reeled
RoHS compliant
APPLICATIONS
•
•
•
•
•
Mobile communications
Satellite TV receivers
GPS
Vehicle location systems
Wireless LAN’s
HOW TO ORDER
BP
Series
0805
Size
A
1795
A
S
TR
DIMENSIONS (Top View)
mm (inches)
L
B
W
L
W
T
2.03±0.1
(0.080±0.004)
1.55±0.1
(0.061±0.004)
0.80±0.1
(0.032±0.004)
0.56±0.25
(0.022±0.010)
0.35±0.15
(0.014±0.006)
Type Frequency Sub- Termination Taped &
Reeled
(MHz)
Type
FINAL QUALITY INSPECTION
Finished parts are 100% tested for electrical parameters
and visual/mechanical characteristics. Each production
lot is evaluated on a sample basis for:
• Static Humidity: 85°C, 85% RH, 160 hours
• Endurance: 125°C, IR, 4 hours
T
A
B
A
TERMINATION
Nickel/ Lead free Solder coating (Sn100) compatible with
automatic soldering technologies: reflow, wave soldering,
vapor phase and manual.
TERMINALS AND LAYOUT (Top View)
IN
Orientation
Marking
OUT
GND
RECOMMENDED PAD LAYOUT
mm
F
G
J
K
M
N
P
R
D
2.5±0.05
1.5±0.05
0.19±0.05
3.48±0.05
0.54±0.25
4.48±0.05
0.25±0.05
0.85±0.05
0.6±0.05
L
GND
061118
5
