MTE8760NK2

Description
EMITTER IR 870NM TO-46
CategoryLED optoelectronic/LED
File Size453KB，3 Pages
ManufacturerMarktech
Websitehttps://www.marktechopto.com/
Environmental Compliance
Download Datasheet Parametric View All

MTE8760NK2 Online Shopping

Suppliers Part Number Price MOQ In stock
MTE8760NK2 - - View Buy Now

MTE8760NK2 Overview

EMITTER IR 870NM TO-46

MTE8760NK2 Parametric

Parameter NameAttribute value
typeInfrared (IR)
Current - DC Forward (If)100mA
Radiation intensity (Ie) at different If (minimum value)-
wavelength870nm
Voltage - Forward (Vf) (Typical)1.5V
perspective12°
towardstop view
Operating temperature-30°C ~ 100°C（TA）
Installation typeThrough hole
Package/casingTO-46-2 Lens Top Metal Can

Preview

Download Datasheet

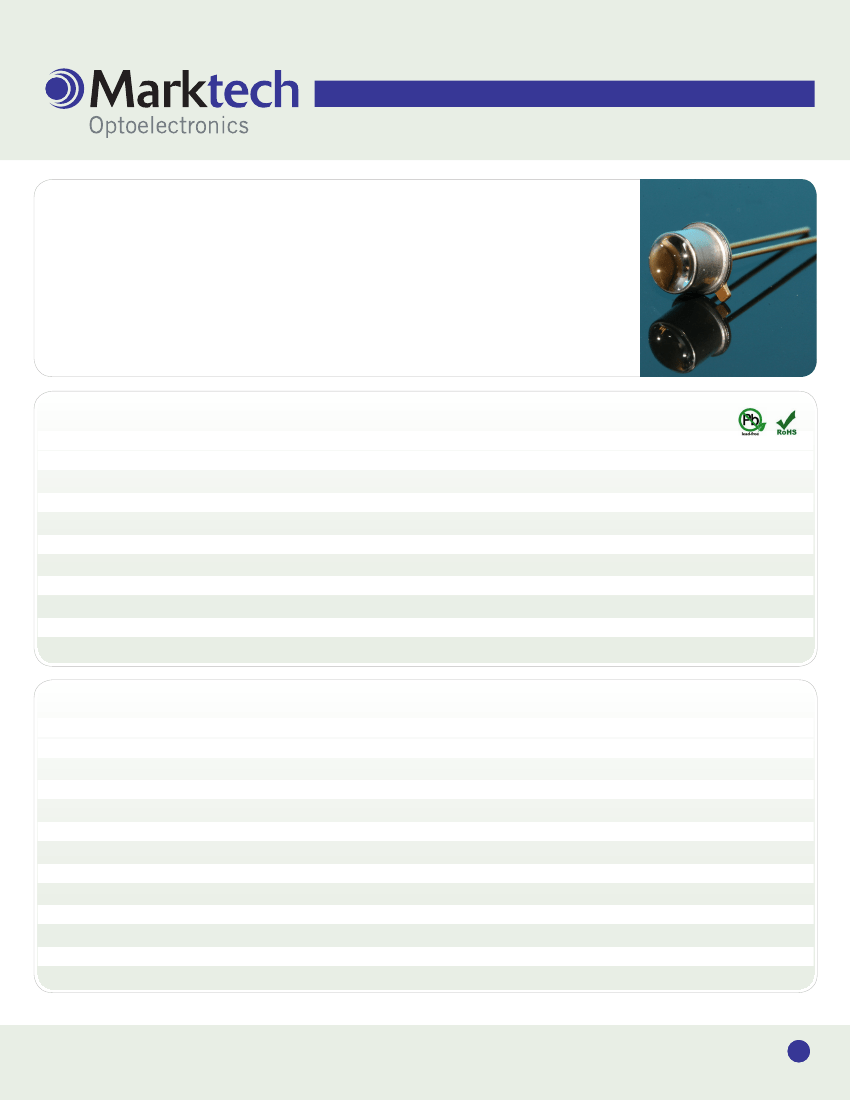

High Power Infrared Emitter
Product No:
MT E8760NK2
Peak Emission Wavelength: 870nm
The 870nm high power infrared emitter series is designed for applications requiring high accuracy and
precision as well as uniform spectral emission. Custom package solutions and sorting are available.
FE AT U R E S
APP L IC A TI O N S
>
Hermetically Sealed TO-46
>
High Output Power
>
High Reliability
>
Narrow Beam Angle
>
Optical Scanning
>
Linear & Rotary Encoder
> Edge Sensing / Optical Sensors
> Optical Switches / Security Systems
Absolute Maximum Ratings (Ta=25ºC)
IT E M S
SY M BO L
RA TI N GS
UNIT
Forward Current (DC)
Forward Current (Pulse)*1
Reverse Voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
Junction Temperature
Lead Soldering Temperature*2
IF
IFP
VR
PD
Topr
Tstg
Tj
Tls
100
1
5
200
-30 ~ +100
-40 ~ +125
125
260
mA
A
V
mW
ºC
ºC
ºC
ºC
*1: Tw=10µsec, T=1msec. *2: Time 5 Sec max, Position: Up to 3mm from the body.
Electrical & Optical Characteristics (Ta = 25ºC)
IT E M S
SYM B O L
C O N D I TIO N S
MIN
T YP
MA X
UNIT
Power Output
Forward Voltage
Reverse Current
Peak Emission Wavelength
Spectral Line Half Width
Half Intensity Beam Angle
PO
VF
IR
λp
∆λ
Ө
IF=50mA
IF=50mA
VR=5V
IF=50mA
IF=50mA
IF=50mA
--
--
--
--
--
--
10.0
1.5
--
870
45
±6
--
2.0
100
--
--
--
mW
V
µA
nm
nm
deg
2016-03-31
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
1
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
