SD-200D-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> SD-200D-5

SD-200D-5: DescriptionDC/DC CONVERTER 5V 200W; CategoryPower/power management; File Size604KB，3 Pages; ManufacturerMEAN WELL; Websitehttp://www.meanwell.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SD-200D-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SD-200D-5	-	-	View	Buy Now

SD-200D-5 Overview

DC/DC CONVERTER 5V 200W

SD-200D-5 Parametric

Parameter Name	Attribute value
type	closed
Voltage - Input (minimum)	72V
Voltage - input (maximum)	144V
Number of outputs	1
Voltage - Output 1	5V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (maximum)	40A
Power (W)	200W
Voltage - Isolation	1500V
application	ITE (Business)
efficiency	81%
Operating temperature	-20°C ~ 60°C (with derating)
Installation type	Base installation
size/dimensions	8.46" long x 4.53" wide x 1.97" high (215.0mm x 115.0mm x 50.0mm)
Approval	CB，CE

Preview

Download Datasheet

View All

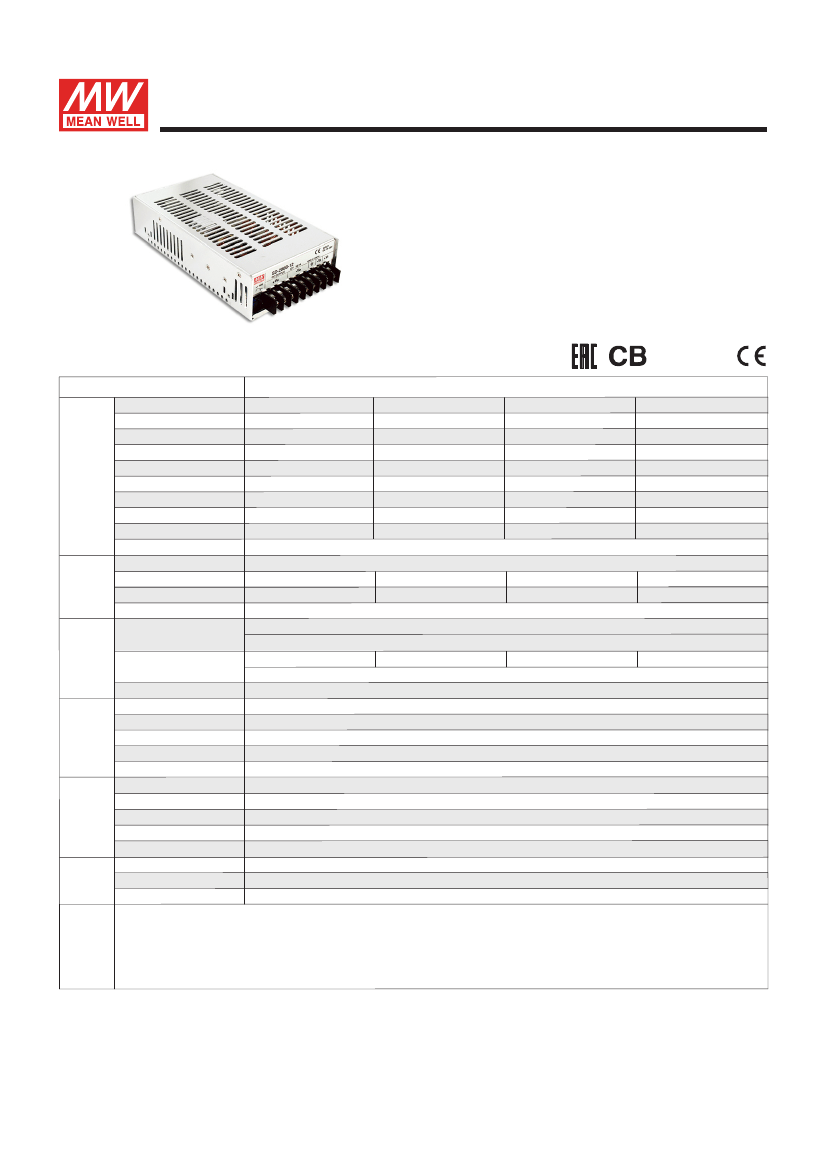

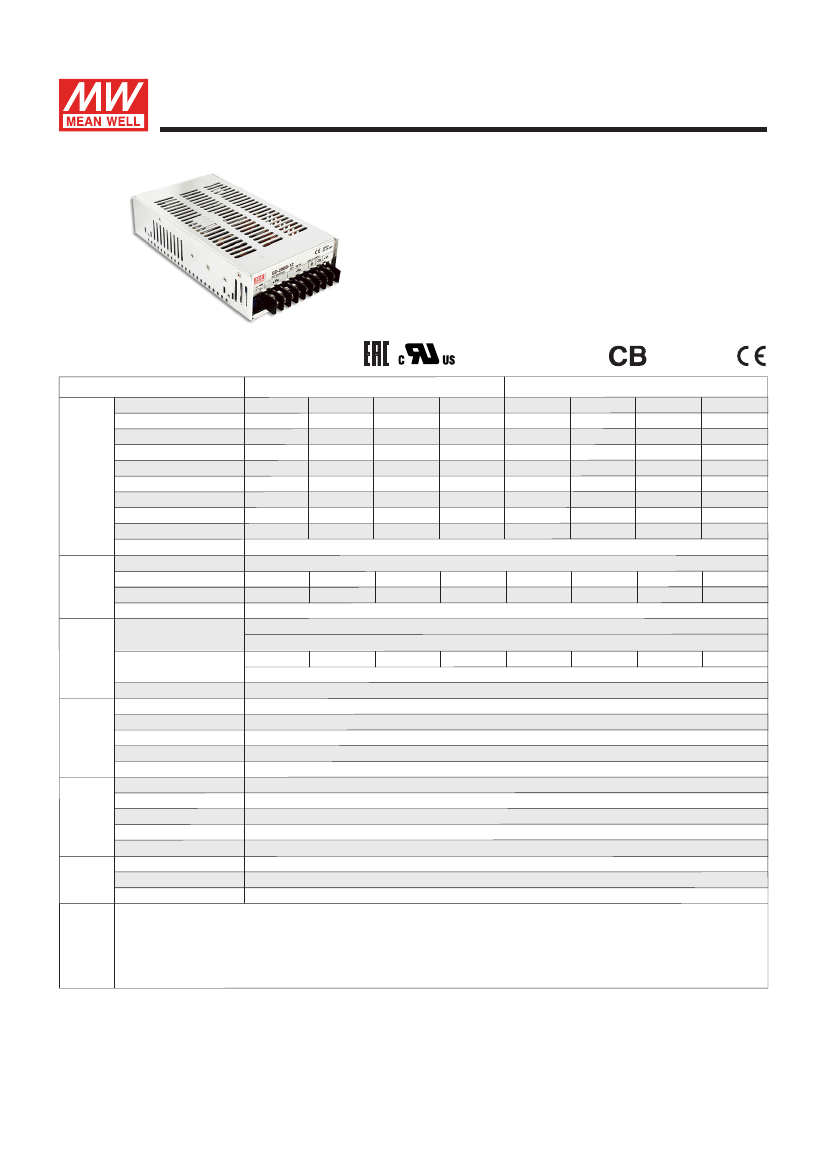

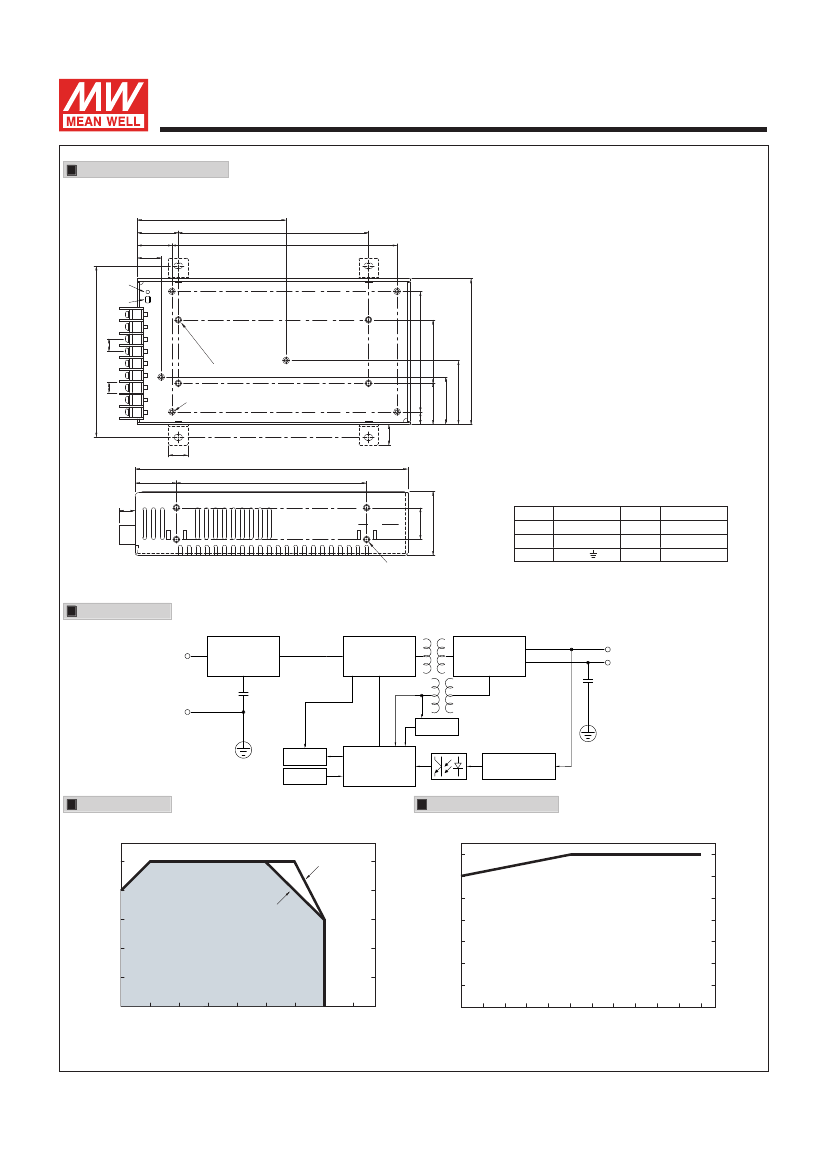

200W Single Output DC-DC Converter

■



‧



SD-200

series

‧



‧



‧



‧



‧



‧



SPECIFICATION

MODEL

DC VOLTAGE

RATED CURRENT

CURRENT RANGE

RATED POWER

OUTPUT

VOLTAGE ADJ. RANGE

LINE REGULATION

LOAD REGULATION

SETUP, RISE TIME

VOLTAGE RANGE

INPUT

EFFICIENCY (Typ.)

DC CURRENT (Typ.)

INRUSH CURRENT (Typ.)

OVERLOAD

PROTECTION

OVER VOLTAGE

OVER TEMPERATURE

WORKING TEMP.

WORKING HUMIDITY

ENVIRONMENT STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS

SAFETY & WITHSTAND VOLTAGE

ISOLATION RESISTANCE

EMC

(Note 4)



SD-200B

34A

0 ~ 34A

170W

4.5 ~ 5.5VDC

±0.5%

±1.0%

B:19 ~ 36VDC

79%

12V

16.7A

0 ~ 16.7A

200.4W

120mVp-p

11 ~ 16VDC

±1.0%

±0.5%

±1.0%

24V

8.4A

0 ~ 8.4A

201.6W

150mVp-p

23 ~ 30VDC

±1.0%

±0.5%

±1.0%

48V

4.2A

0 ~ 4.2A

201.6W

200mVp-p

43 ~ 53VDC

±1.0%

±0.5%

±1.0%

D:72 ~144VDC

86%

10.4A/24V

81%

5.4A/48V

84%

5.2A/48V

SD-200C

40A

0 ~ 40A

200W

100mVp-p

4.5 ~ 5.5VDC

±2.0%

±0.5%

±1.0%

12V

16.7A

0 ~ 16.7A

200.4W

120mVp-p

11 ~ 16VDC

±1.0%

±0.5%

±1.0%



24V

8.4A

0 ~ 8.4A

201.6W

150mVp-p

23 ~ 30VDC

±1.0%

±0.5%

±1.0%

48V

4.2A

0 ~ 4.2A

201.6W

200mVp-p

43 ~ 53VDC

±1.0%

±0.5%

±1.0%

RIPPLE & NOISE (max.)

Note.2

100mVp-p

VOLTAGE TOLERANCE

Note.3

±2.0%

300ms, 50ms at full load

C:36 ~ 72VDC

82%

85%

86%

6.7A/48V

86%

5A/48V

10.8A/24V

10.6A/24V

10.4A/24V

C:45A/48VDC

D:45A/96VDC

105 ~ 135% rated output power

Protection type : Shut down o/p voltage, re-power on to recover

5.75 ~ 6.75V 16.8 ~ 20V

31.5 ~ 37.5V 53 ~ 65V

Protection type : Shut down o/p voltage, re-power on to recover

5.75 ~ 6.75V

16.8 ~ 20V

31.5 ~ 37.5V

53 ~ 65V

Shut down o/p voltage, recovers automatically after temperature goes down

-20 ~ +60℃ (Refer to "Derating Curve")

20 ~ 90% RH non-condensing

-40 ~ +85℃, 10 ~ 95% RH

±0.03%/℃

(0 ~ 50℃)

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

UL60950-1approved (for SD-200C-24 type only), IEC60950-1 CB approved by TUV (for D type only),

EAC TP TC 004

approved

I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

Compliance to EN55032 (CISPR32) Class B, EAC TP TC 020

Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020

218.2K hrs min. MIL-HDBK-217F (25℃)

215*115*50mm (L*W*H)

1.1Kg; 12pcs/14.4Kg/0.92CUFT

EMC EMISSION

EMC IMMUNITY

MTBF

OTHERS

DIMENSION

PACKING

NOTE

℃











℃℃

File Name:SD-200-SPEC

2018-01-12

SD-200D-5 Related Products

	SD-200D-5	SD-200B-12	SD-200C-24	SD-200B-24	SD-200C-12	SD-200C-5	SD-200B-5	SD-200D-24
Description	DC/DC CONVERTER 5V 200W	isolated DC/DC converters 200.4W 19-36vin 12vout 16.7A	isolated DC/DC converters 201.6W 36-72vin 24vout 8.4A	isolated DC/DC converters 201.6W 19-36vin 24vout 8.4A	DC/DC CONVERTER 12V 200W	DC/DC CONVERTER 5V 200W	DC/DC CONVERTER 5V 170W	DC/DC CONVERTER 24V 202W
type	closed	-	-	-	closed	closed	closed	closed
Voltage - Input (minimum)	72V	-	-	-	36V	36V	19V	72V
Voltage - input (maximum)	144V	-	-	-	96V	72V	36V	144V
Number of outputs	1	-	-	-	1	1	1	1
Voltage - Output 1	5V	-	-	-	12V	5V	5V	24V
Current - Output (maximum)	40A	-	-	-	16.7A	40A	34A	8.4A
Power (W)	200W	-	-	-	200W	200W	170W	202W
Voltage - Isolation	1500V	-	-	-	1500V	1500V	1500V	1500V
application	ITE (Business)	-	-	-	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)
efficiency	81%	-	-	-	84%	81%	79%	86%
Operating temperature	-20°C ~ 60°C (with derating)	-	-	-	-20°C ~ 60°C (with derating)	-20°C ~ 60°C (with derating)	-20°C ~ 60°C (with derating)	-20°C ~ 60°C (with derating)
Installation type	Base installation	-	-	-	Base installation	Base installation	Base installation	Base installation
size/dimensions	8.46" long x 4.53" wide x 1.97" high (215.0mm x 115.0mm x 50.0mm)	-	-	-	8.46" long x 4.53" wide x 1.97" high (215.0mm x 115.0mm x 50.0mm)	8.46" long x 4.53" wide x 1.97" high (215.0mm x 115.0mm x 50.0mm)	8.46" long x 4.53" wide x 1.97" high (215.0mm x 115.0mm x 50.0mm)	8.46" long x 4.53" wide x 1.97" high (215.0mm x 115.0mm x 50.0mm)
Approval	CB，CE	-	-	-	CE	CE	CE	CB，CE
